Description:

• The remote switch remotely controls the electrical equipment on the aircraft model via a switch channel on the remote control, and the 1-way LED dynamically demonstrates the current switch status in real time, so you can get started quickly without the need for an operating manual.
• This device does not require calibration and can be accurately compatible with remote control devices of various brands.

Feature:

• Small size and light weight
• Transparent heat shrinkable adhesive, stylish in appearance, at a glance
• 1 channel servo signal input, control one way electronic switch
• Maximum 20A current
• One way LED indicates working status
• With boot protection, easy to operate
• Input channels do not need to be calibrated, compatible with all brands of remote control devices
• Only 5V voltage receiver is supported, otherwise the module may be damaged. If the receiver and the servo are using a high voltage system, the module should be added with a buck module.

Application range:

• Remote control model rocket launch
• Remote control model smoke control
• Weapon system control like real machine
• Smoke control of the model aircraft
• Control of various remote switching systems
• Switch the signals of the two cameras
• Control the opening and closing of various electrical power sources, such as navigation lights, searchlights, strobe lights, buzzers, etc.
• Control the camera shutter or switch the camera's recording and camera mode.

Typical application:

Connect

• Plug the signal input cable into an idle receiver channel that corresponds to a switch on the remote.
• The power indicator will be illuminated when connected to the receiver.
• The work indicator lights up when the switch channel is open and vice versa.

Working mode

• The red LED light is the power indicator.
• The green LED indicates the relay's working status.

Trigger

• Turn the switch on the remote control (OFF->ON), the green LED lights up and the relay starts to work.

Package:

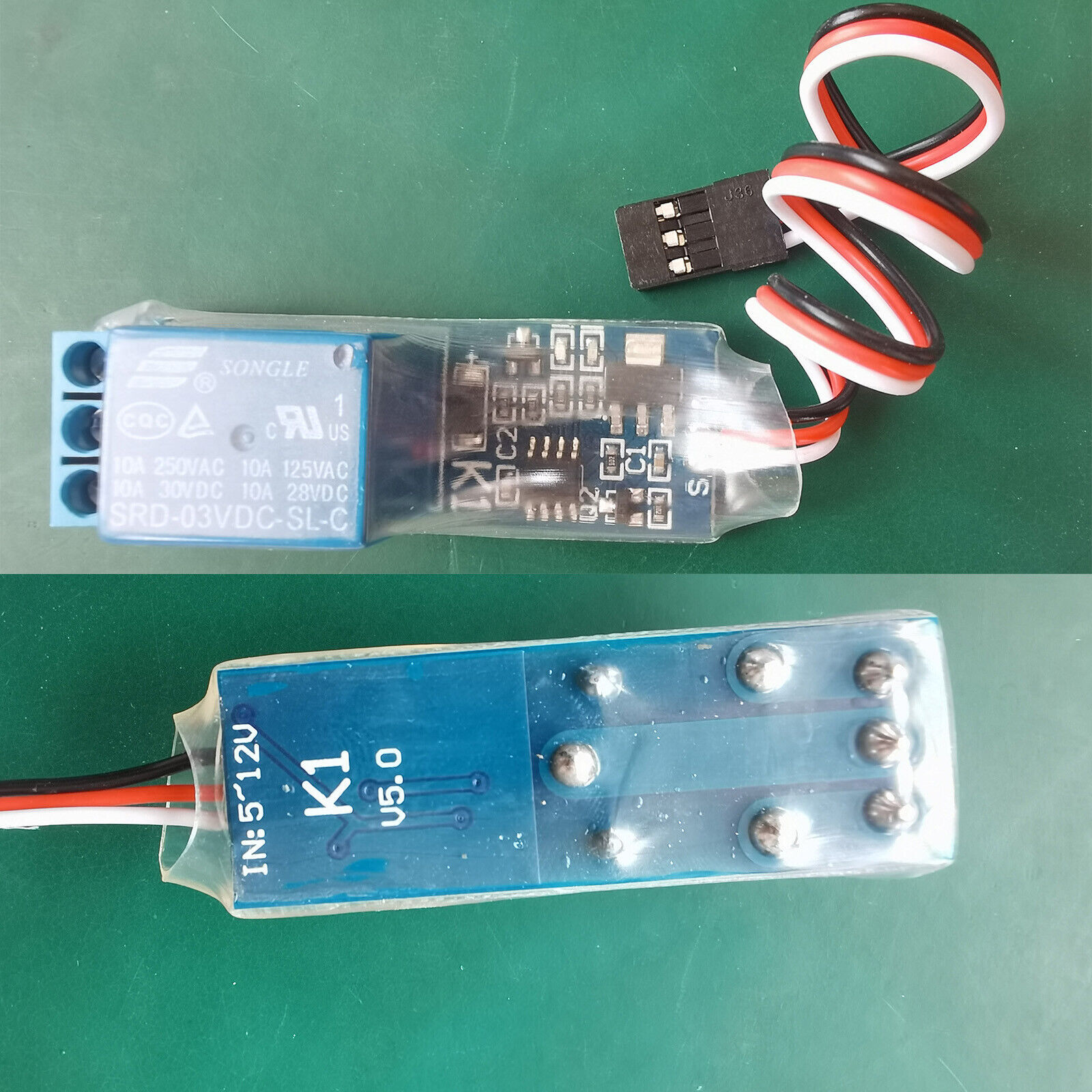

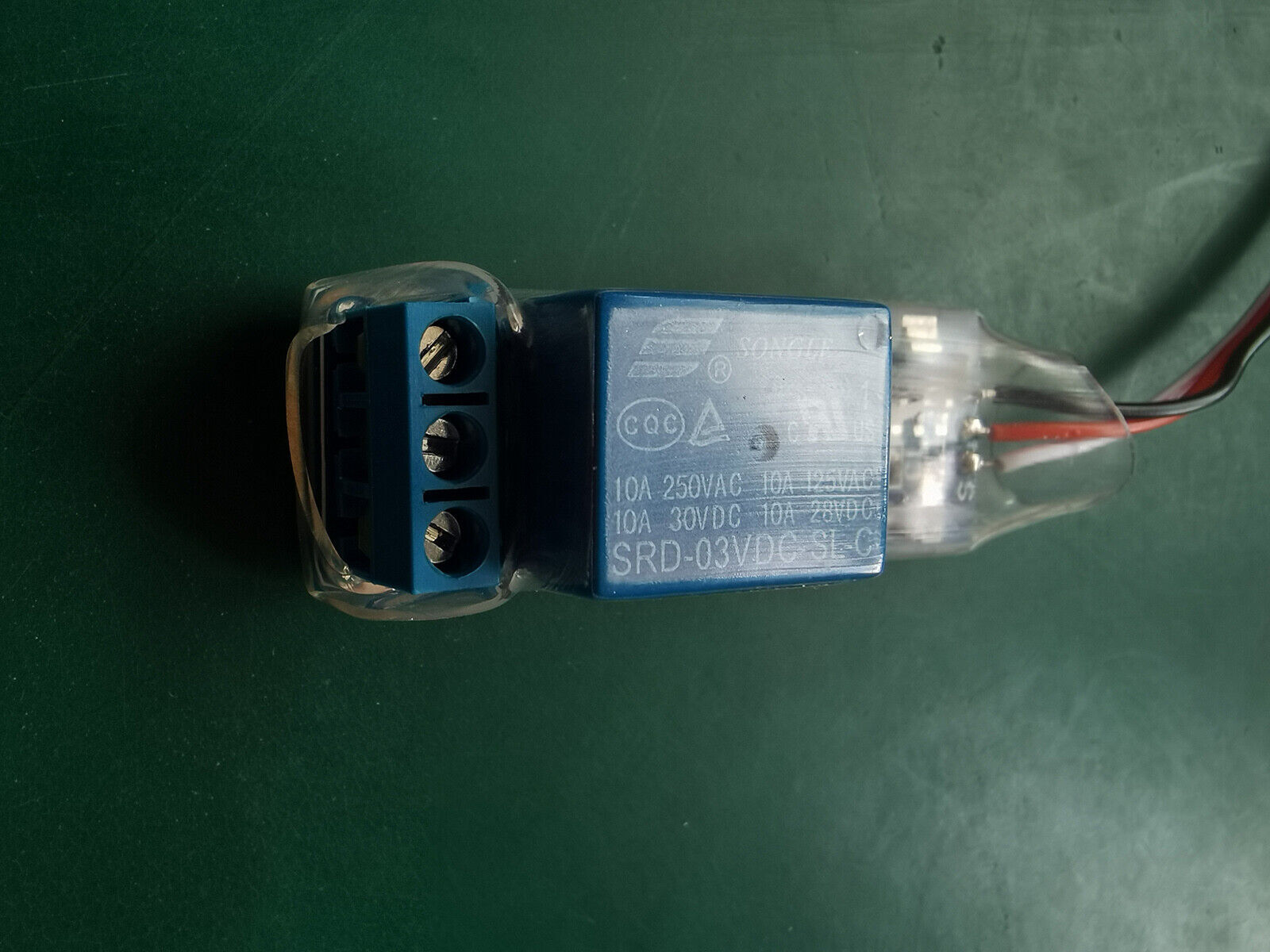

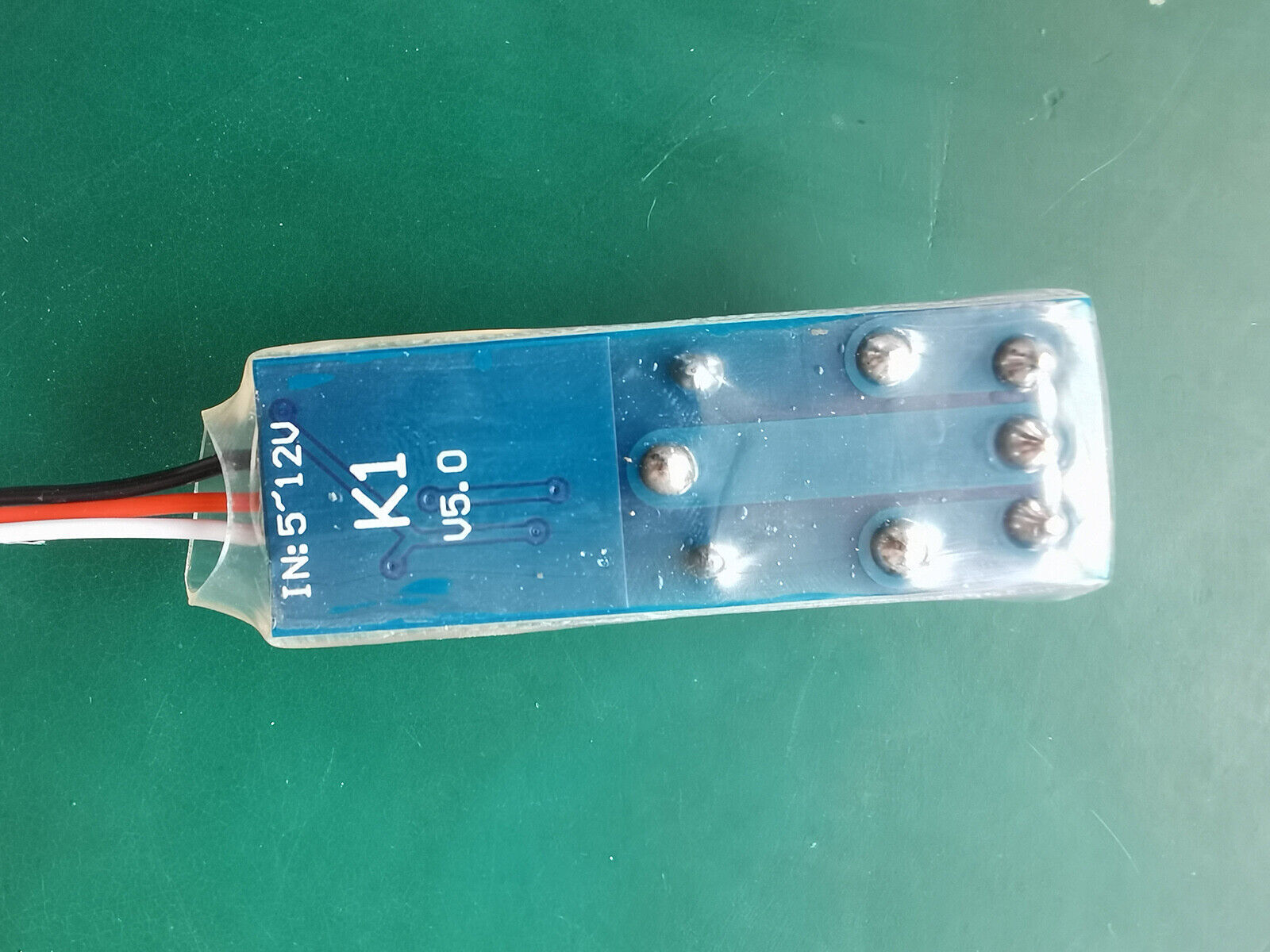

• 1x K1 RC Relay Switch
