Coilover Lowering Kit For Honda Accord DX/EX/LX CD5 CD7 1994-1997 Acura CL YA1








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

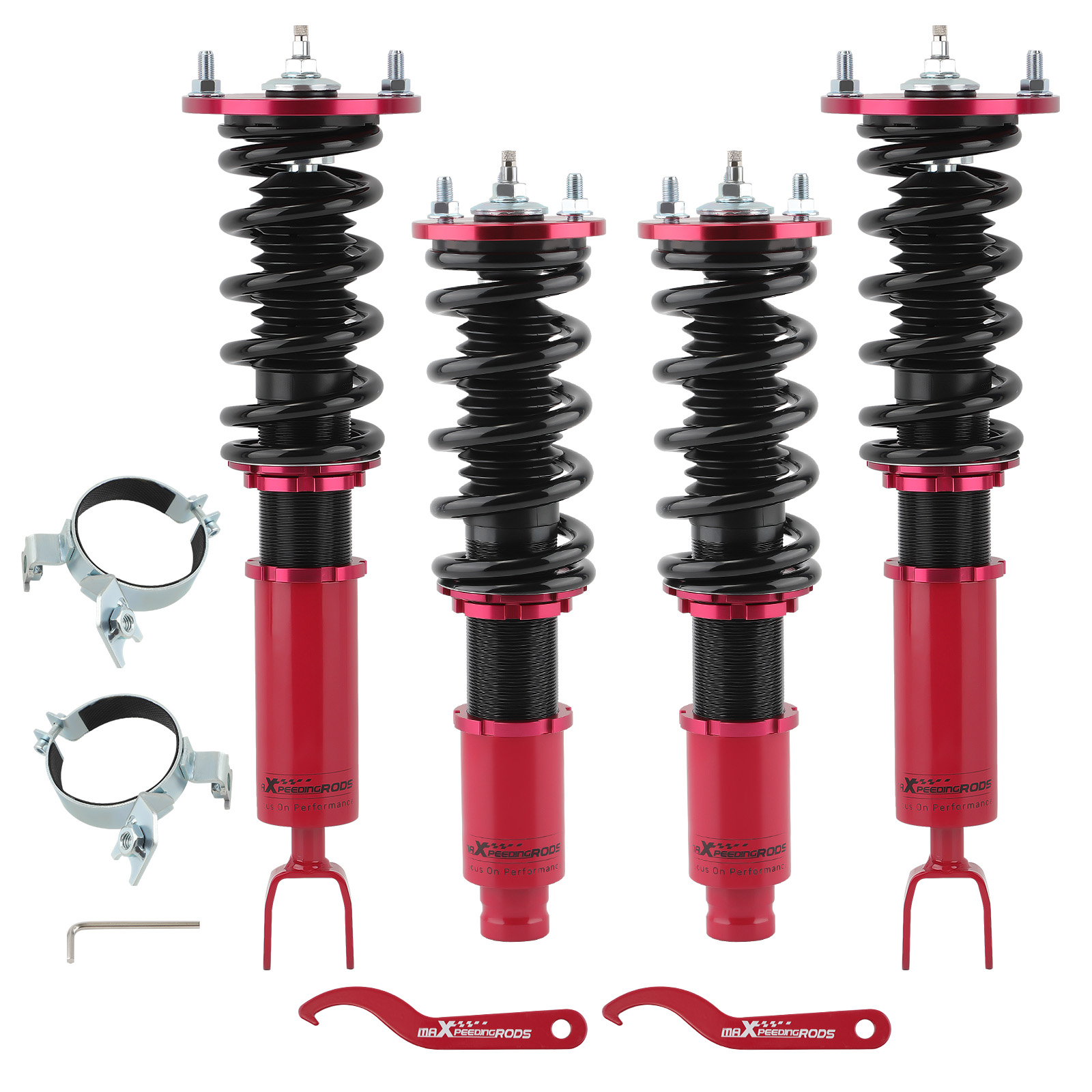

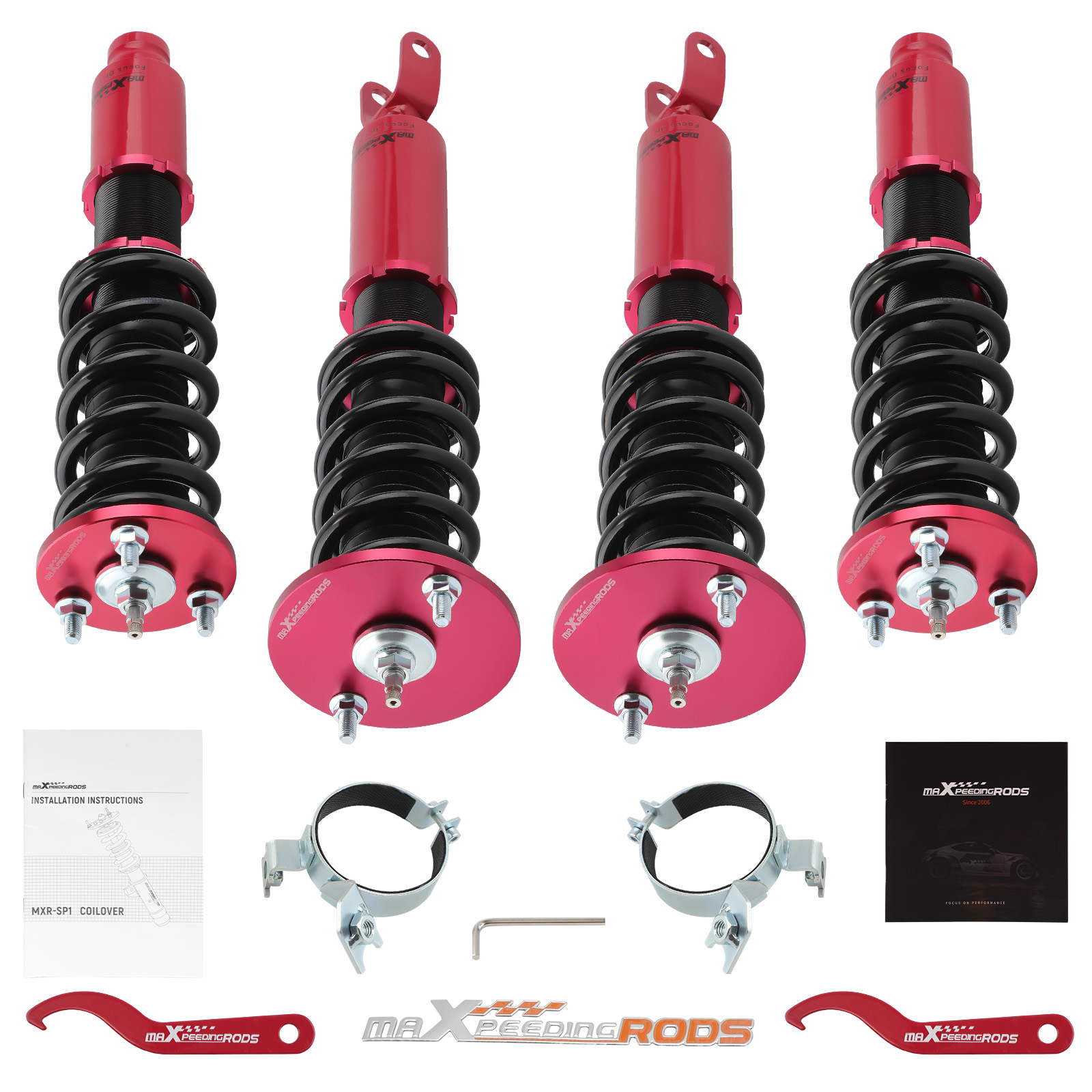

Package included
  • Complete coilovers 2 front and 2 rear
  • A pair wrench for height adjustment.



Application

  • For Honda Accord DX/EX/LX 1990-1997, Chassis Code: CB7/CD5/CD7
  • For Honda Acura CL 1997-1999, Chassis Code: YA1



Notice:

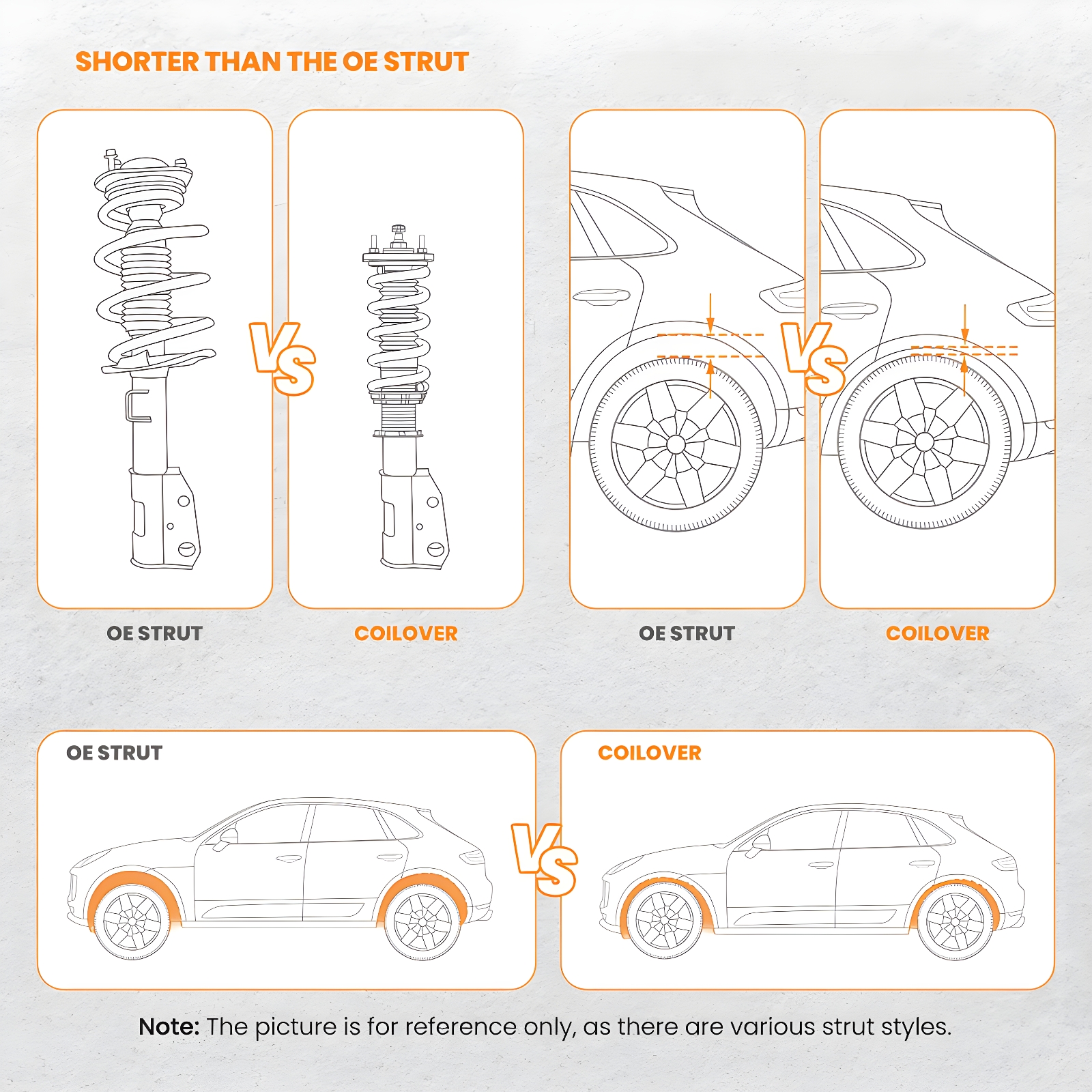

The coilovers kit will "Lower your car" and does not keep to the original ride height.

Standard Technical Specifications


Front and Rear top mount Rubber
Damping adjustable 24 levels rebound damping adjustable
Spring rate Front 10 kg/mm (560 lbs/in)
Spring rate Rear 7 kg/mm (392 lbs/in)
Spring length Front 200mm
Spring length Rear 200mm
Adjustable height lowering 1-3 inch
Coilover overall length Front 450mm-490mm
Coilover overall length Rear 525mm-620mm
Shock type Twin tube
Spring Preload 7-10 mm

Details

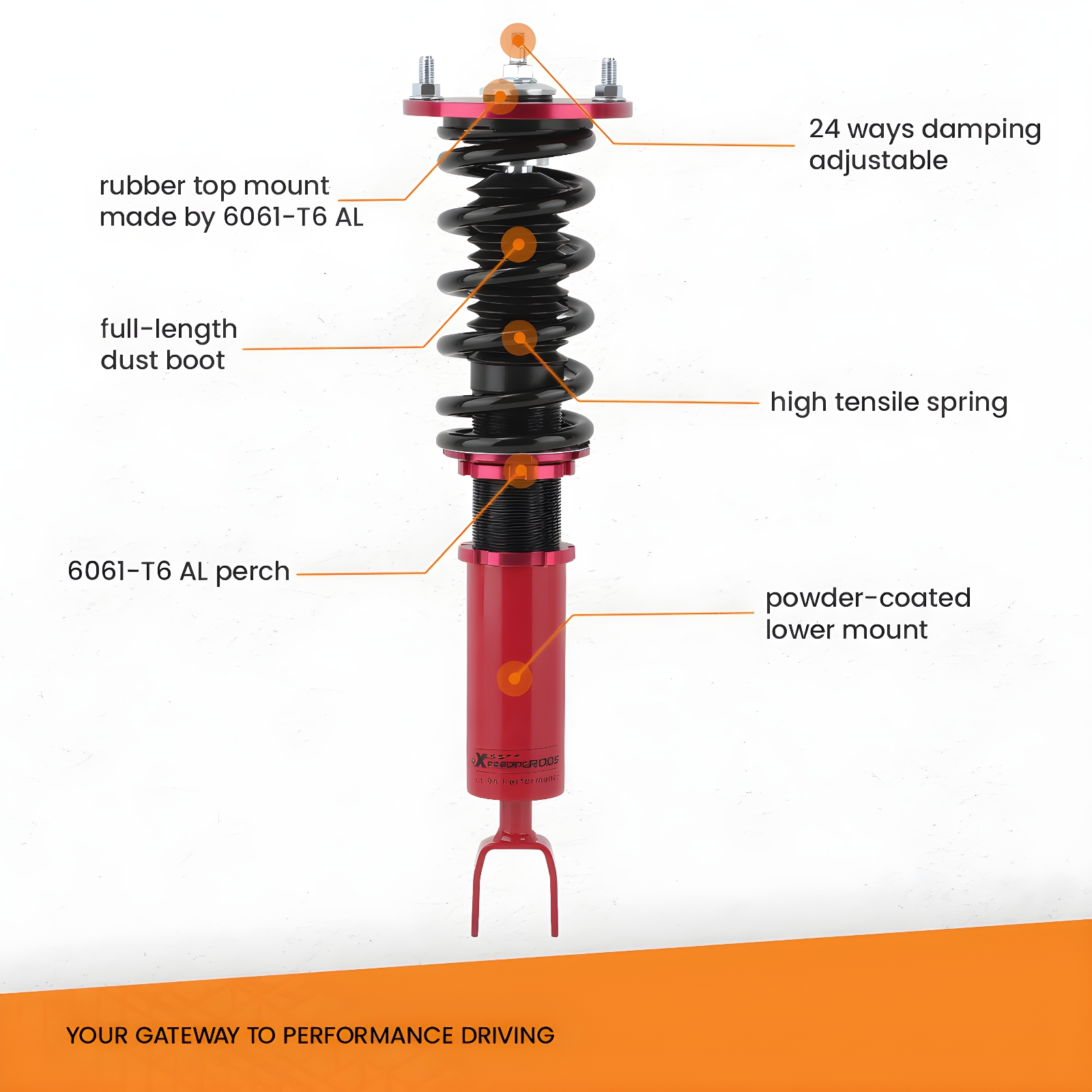

Feature

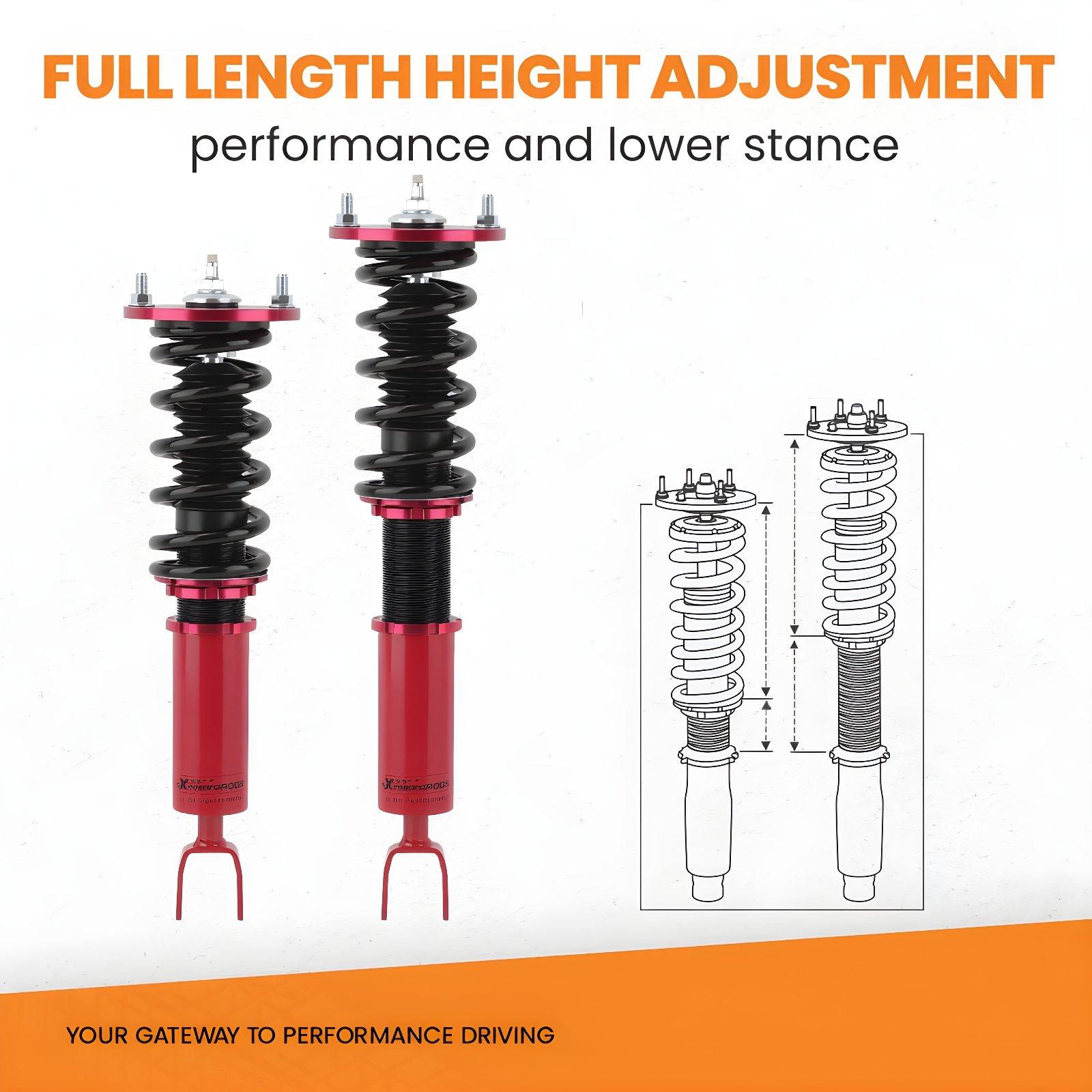

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance

2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

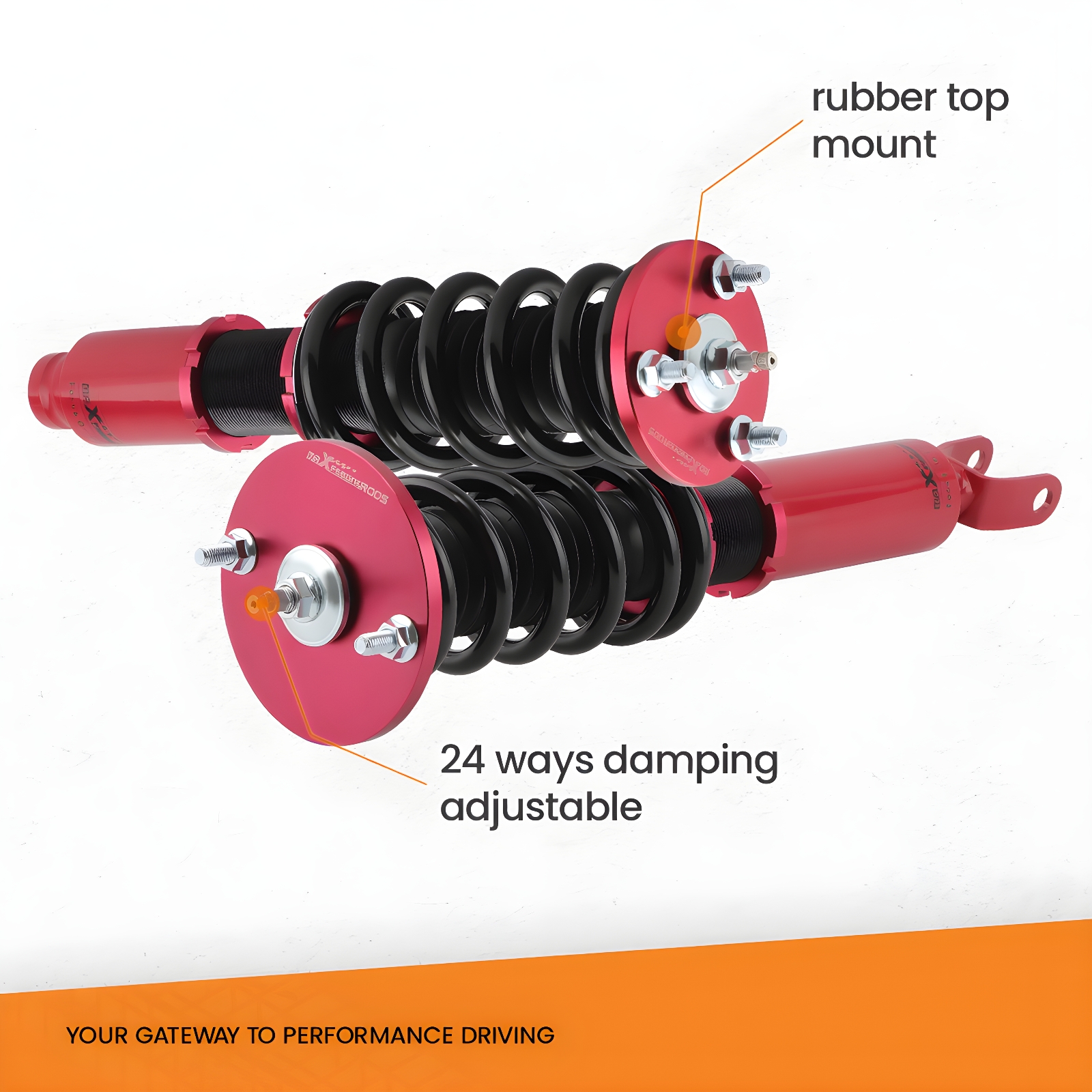

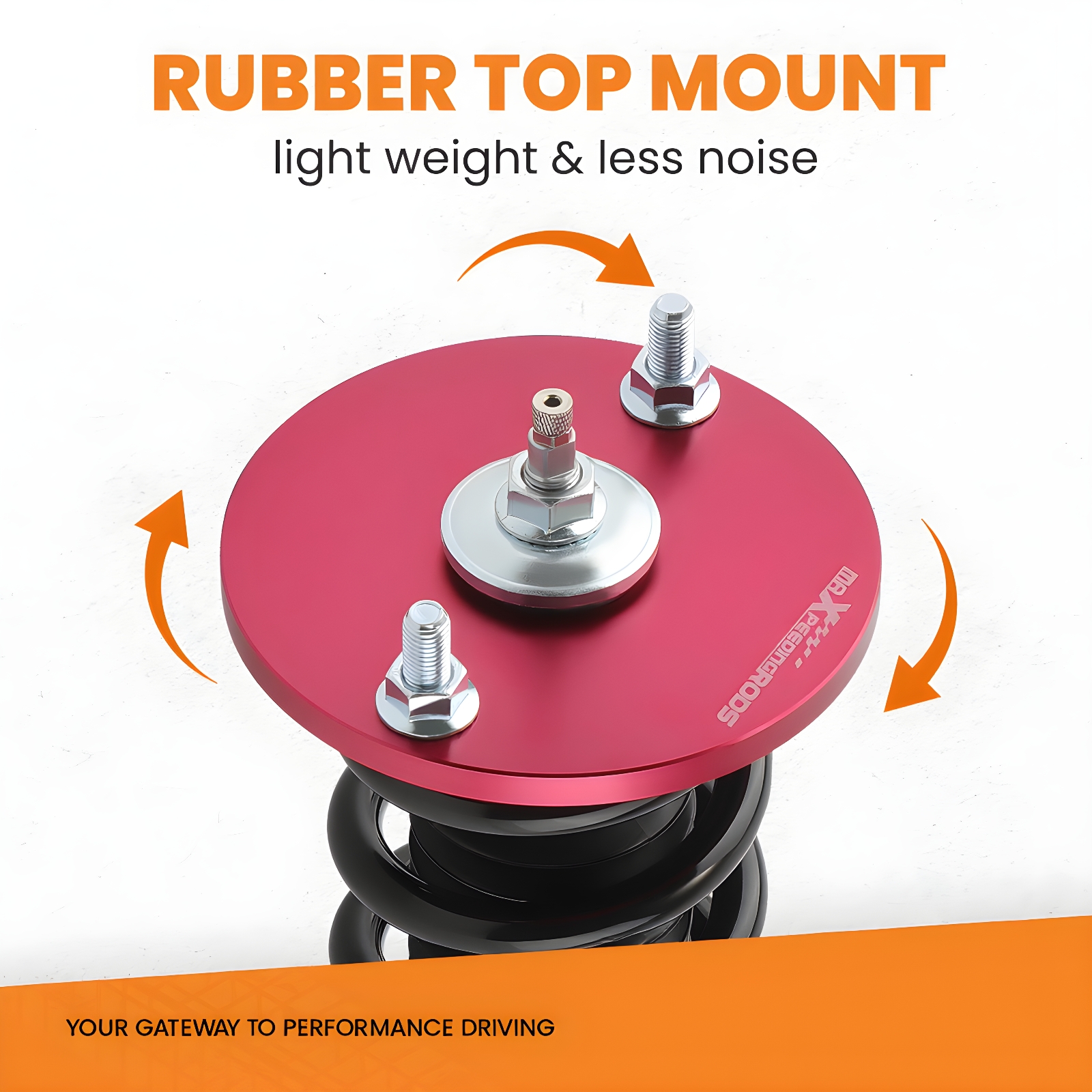

3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.

4. Twin-Tube structure allows sufficient stroke within the shock absorber.

5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

6. Separate height adjustment does not affect damper stroke.

7. Height can be adjusted with coilovers installed on the vehicle.

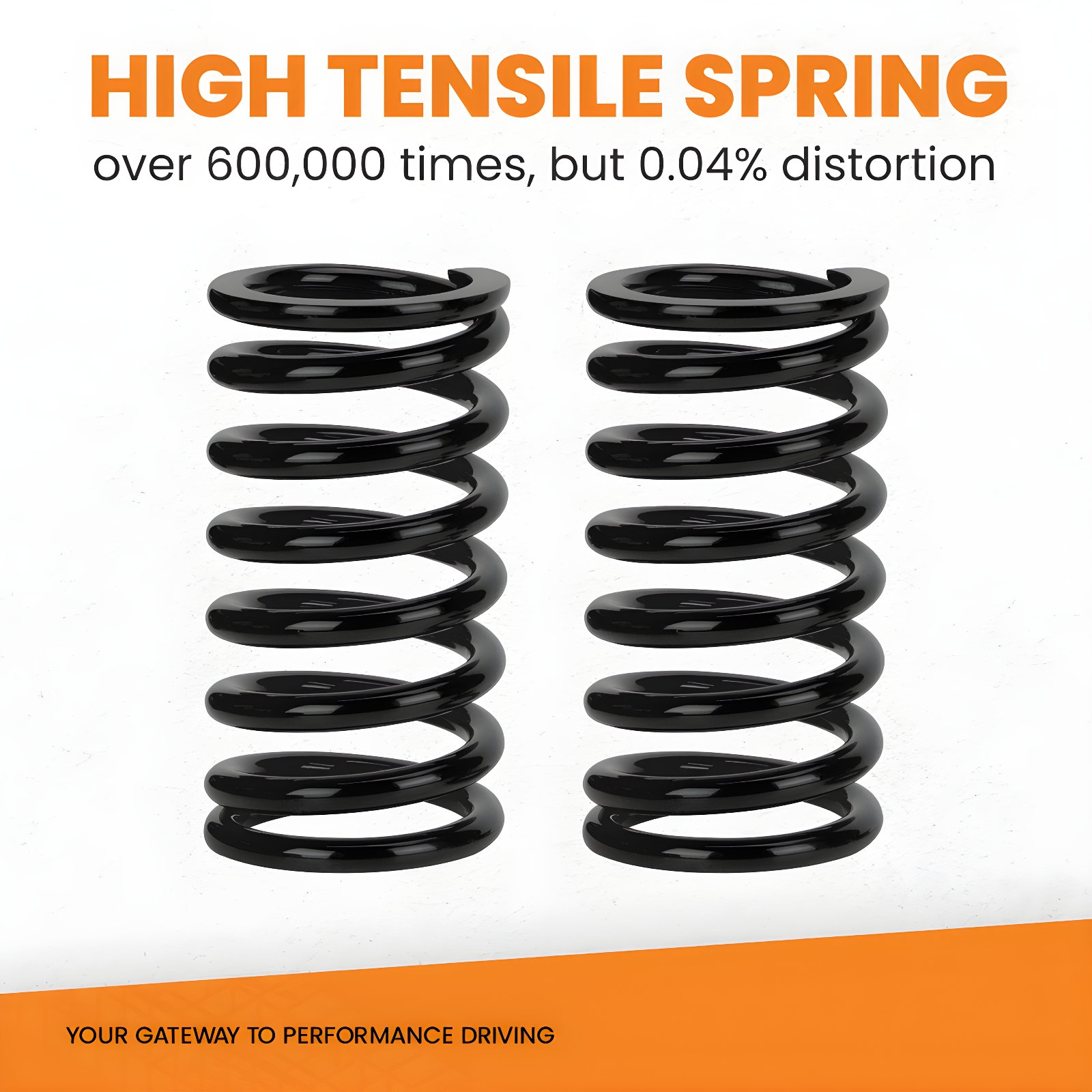

8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.

9. Height Adjustment tools included.

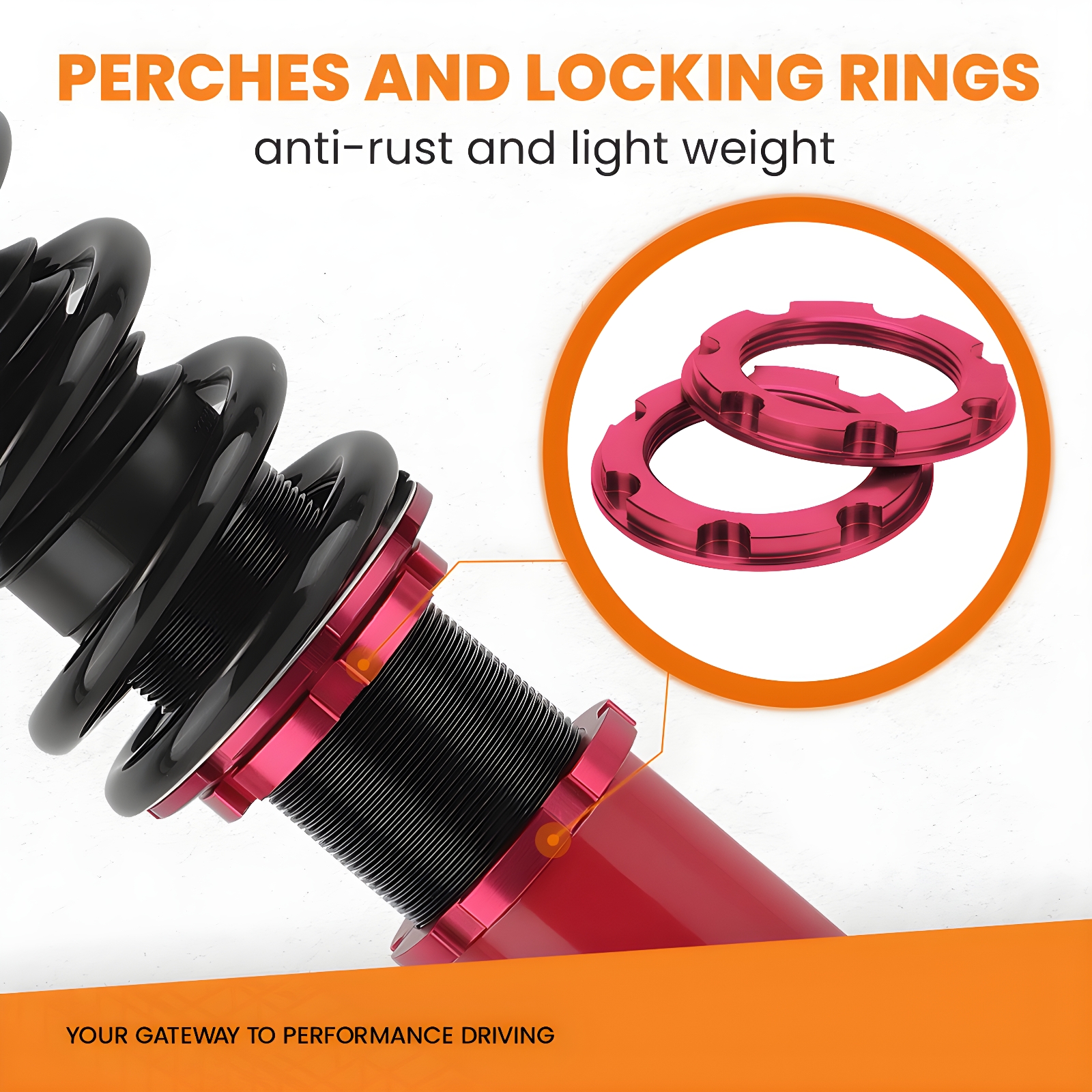

10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

11. Steel shock bodies with special surface treatment to improve the durability.

12. Full rebuildable.
