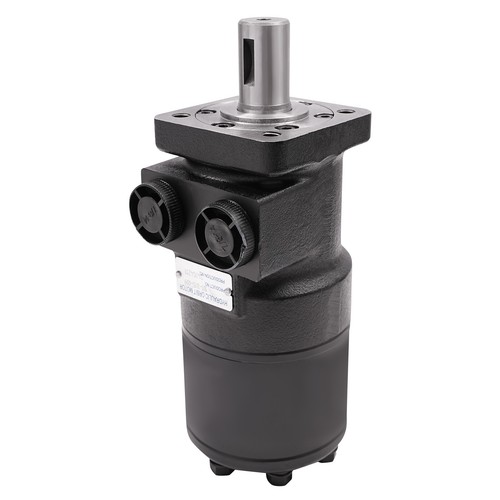

101-1015-009 Hydraulic Motor Replacement, Hydraulic Replacement Motor, High Torque Motor

Description

With a rated displacement of 300cc, a flow rate of 14.53 gal/min, a rated power of 9KW, a rated torque of 360N·m, and a rated speed of 165rpm, this product will provide strong power for your heavy machinery and industrial equipment to solve various high-resistance tasks. In addition, it adopts high-quality materials, a three-layer oil seal design, a needle roller bearing structure, and 8.5Mpa rated working pressure, which shows you excellent stability and reliability, and it is an excellent power solution for your industrial machinery.

Key Features

Long Service Life: The product is made of cast iron and low-carbon alloy steel and is treated with carbonitriding, cyanide treatment, paint spraying, and high-temperature quenching, which makes it corrosion-resistant, rust-resistant, abrasion-resistant, tear-resistant, deformation-resistant, and sturdy and practical even after long-term use.

Strong Power: The 9KW high power, 14.53gal/min flow rate, and 165rpm speed deliver great torque (360N·m), allowing this product to be used on various types of heavy machinery to handle tough jobs.

Powerful Function: This motor can effectively convert the liquid pressure energy provided by the hydraulic pump into mechanical energy (torque and speed) of its output shaft in the hydraulic system, thus providing sufficient energy.

Precisely Designed: It adopts a precision-machined column stator rotor, featuring low starting pressure, forward and reverse rotation, adjustable speed, controllable torque, and smooth and powerful rotation.

Excellent Sealing Performance: The high-quality 3-layer oil seal is resistant to high temperature and abrasion, providing superior sealing performance, which can effectively prevent the hydraulic oil from flowing out, protect the motor, extend its service life, and optimize the user experience.

Compact and Lightweight: The lightweight (17.86 lbs) and compact size (3.36*3.36*7.36in) make it easy to carry and install without taking up much space in your machine.

Ready to Use: The product has a one-piece design and is assembly-free, allowing you to install the product as soon as you receive it.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Needle Bearing Structure: It is resistant to high pressure, has a strong capacity to withstand axial and radial loads, and can be driven directly to the working mechanism, expanding the scope of application.

Pre-drilled Flange Holes: They allow you to easily and quickly mount the product on your machine.

Application

The product is mainly used in injection molding machinery, ships, hoists, engineering machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, shipping machinery, petrochemical, port machinery, and other fields and machinery.

Specifications

Color: Black

Material: Cast Iron, Low Carbon Alloy Steel

OEM Part Number: 101-1015-009

Assembly Required: No

Process: Spray Paint, High-temperature Quenching, Carbonitriding, Cyaniding

Rated Flow: 55L/14.53gal/min

Rated Displacement: 300cc

Rated Power: 9KW

Rated Torque: 360N·m

Rated Speed: 165RPM

Rated Pressure: 8.5Mpa

Maximum Working Differential Pressure: 8.5Mpa

Shaft Diameter: 25.4mm/1in

Oil Port Diameter: 7/8-14unf

Product Size: 8.53*8.53*18.7cm/3.36*3.36*7.36in

Package Size: 26*13*13cm/10.24*5.12*5.12lbs

Gross Weight: 9.5kg/20.94lbs

Net Weight: 8.1kg/17.86lbs

Package Included

1*Hydraulic Motor

Notes

• Please check the size carefully before ordering.
• The normal operating oil temperature of this product is 68-140℉, and the maximum system operating temperature is 194℉ (not more than 1 hour).
• Filter filtration accuracy is 10-30 microns, and it is better to add a magnetic block at the bottom of the oil tank to stop metal chips from entering the system. The solid contamination level of working oil should not be higher than 19/16.
• Please select the appropriate hydraulic oil according to the actual operation and ambient temperature. The oil viscosity at 104°F is 42-74mm²/s.
• When used in series or parallel, the external drain must be used for pressure relief if the back pressure exceeds 10MPa (the rotating speed is lower than 200rpm). It is better to connect the external drain directly with the oil tank.
• To ensure a long service life of the motor, it should be operated at 30% of the rated pressure for about 1 hour before adding load to the motor. Before adding load to the motor under any circumstances, ensure that the motor is filled with oil.
