Description:

1) All parts are hand inspected off the line before packaging and once again by our team before shipment.

2) According to the original factory specifications.

3) Perfect match for the original car.

4) Easy installation.

5) Stable characteristics, high reliability.

6) Aftermarket Products with Premium Quality.

Part Number: S224-3959,  GA9034, 12654958, 8217, 12598216, 12596088, 12611360

Interchange Part Number:

12578324 , 12578326 , 12593744

12593745 , 12603910 , 12608531

12609858 , 12616970 , 12621251

12631102 , 12631103 , 12631967

12643172 , 12646457 , 12657184

12659419 , 12665165 , 12784490

19180835 , 19180836 ,  89018112

12654958, 8217, 12598216, 12596088, 12611360

Fitments:

Buick    2.4L

LaCrosse: 2010 - 2016

Regal: 2011 - 2017

Verano: 2012 - 2017

Chevrolet    2.4L

Captiva Sport: 2012 - 2015

Cobalt: 2006 - 2008

Equinox: 2010 - 2017

HHR: 2006 - 2011

Impala: 2014

Malibu: 2008 - 2014

GMC    2.4L

Terrain: 2010 - 2017

Pontiac    2.4L

G5: 2007 - 2008

G6: 2006 - 2010

Solstice: 2006 - 2009

Saturn    2.4L

Aura: 2007 - 2009

Ion: 2006 - 2007

Sky: 2007 - 2010

Vue: 2008 - 2010

Size :

Pistons    dimensions:

Cylinder Bore Ø [mm]:       88 mm

Length [mm]:       49.25 mm

Compression Height [mm]:       27.75 mm

Bolt length [mm]:       58 mm

Bolt Ø [mm]:     20 mm

RINGS DETAILS:

Top ring   88 * 1.20 mm

2nd ring    88 * 1.50 mm

Oil ring    88 * 2.50 mm

Please Note:

Communication is the best way to solve the problem. If you have any problems after purchasing, please contact us in time, before opening return or case.

Package Included

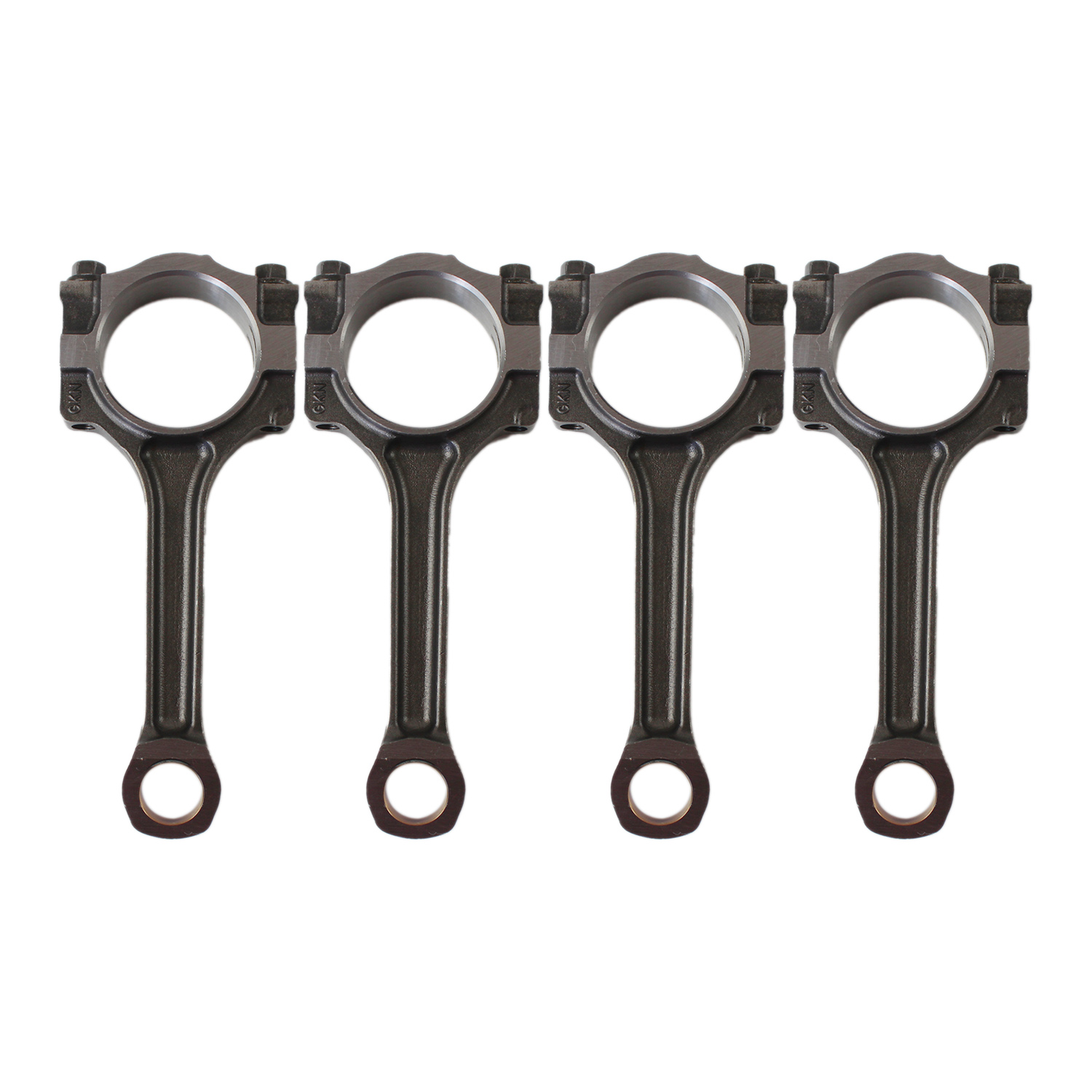

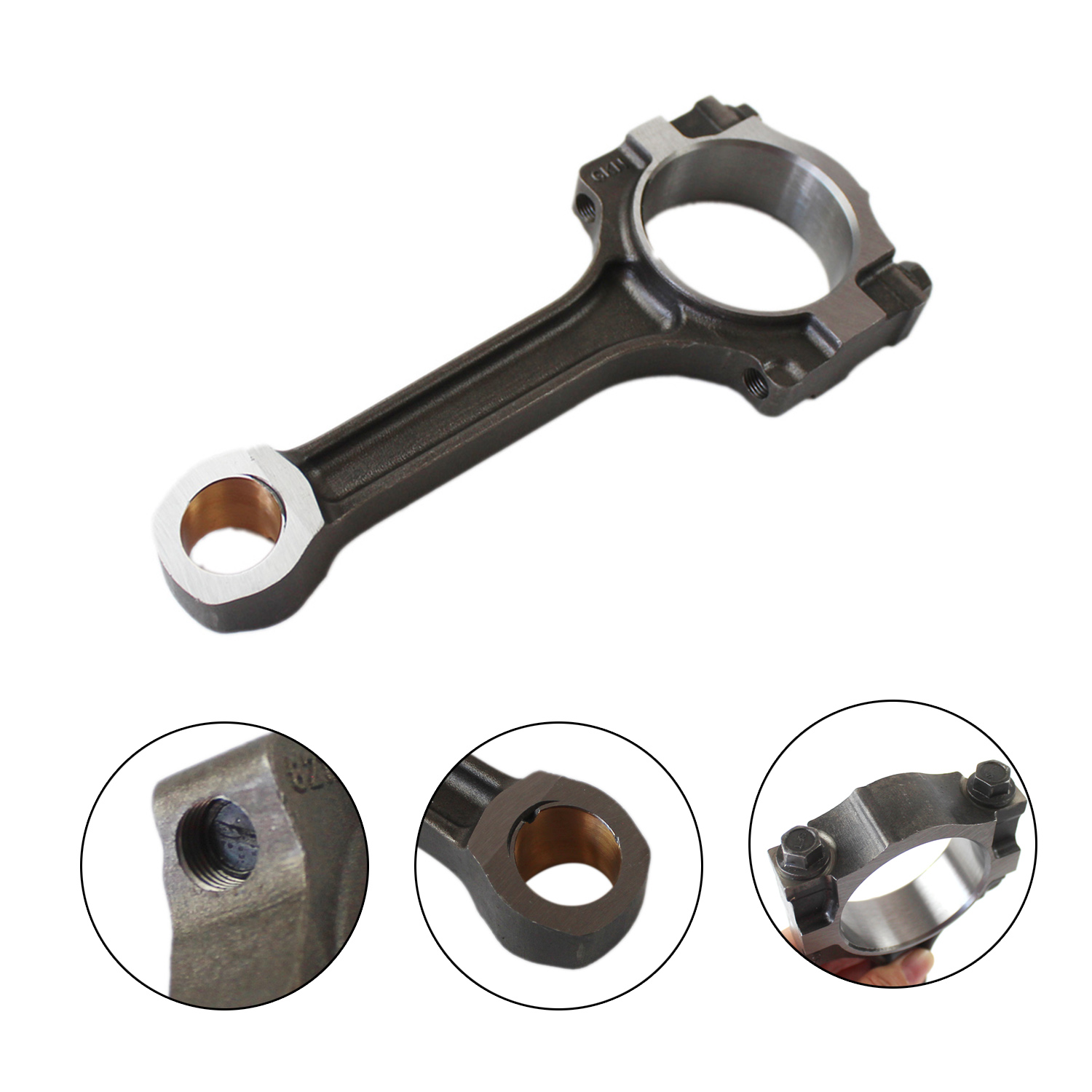

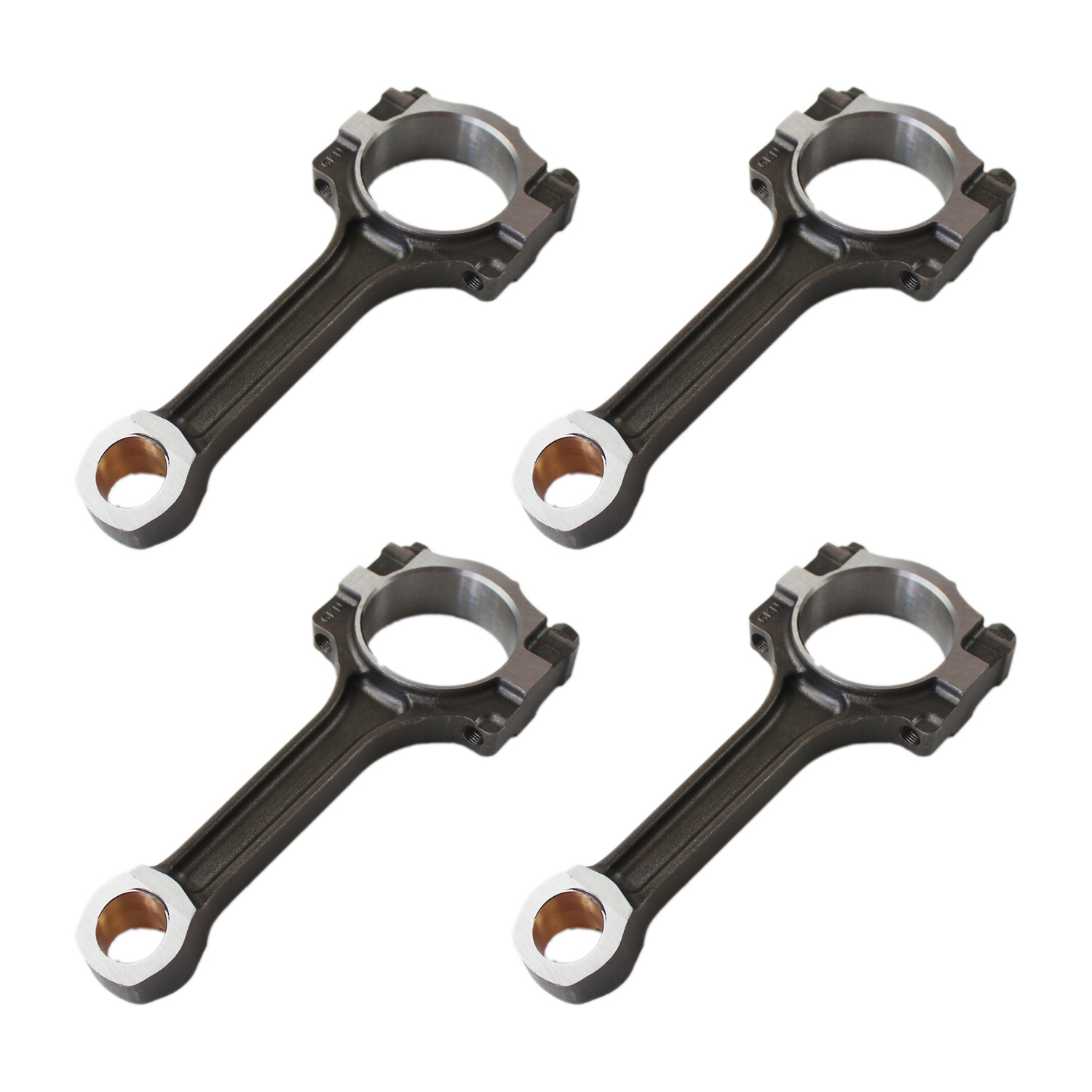

4 x Pistons & Rings & Connecting Rod Kit
