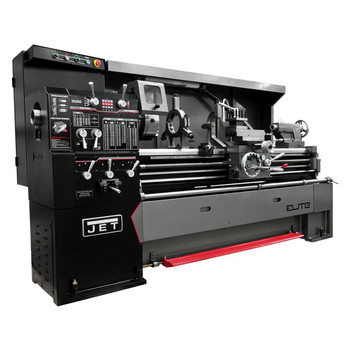

JET Elite Geared Head Lathe EGH-1740 with Newall DP700 Digital Readout and Collet Closer

Includes

3-1/8 in. Spindle Bore
Nylon safety gears in the end train prevent overloading, increasing safety
Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
Enclosed coolant system contains excess coolant for increased safety
Front facing chip pan allows easy chip removal from the front of the machine
Steady rests feature ball bearing guides for smooth material movements
Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
Hardened and ground gears in headstock reduce vibration and deflection
Wider bedways absorb vibration

Spindle Speed Settings	12
Power Source	Corded
No. of Inch Threads	45
Bluetooth Compatibility	No
Range of Inch Threads (TPI)	2 - 72
Spindle Bore Diameter	3-1/8 in
Motor Phase	3
PreWired Voltage	230V
Range of Longitudinal Feed Rates (IPR)	0.0015 - 0.04 in
Cross Slide Travel	9-1/4 in
Horsepower	7.5
Voltage	230V/460V
Spindle Speed Range (RPM)	36 - 1800
Compound Slide Travel	6-2/7 in
Range of Cross Feeds (IPR)	0.0008 - 0.02
Range of Metric Threads	0.2 - 14
Spindle Travel (Tailstock)	5 in
Max. Compound Slide Travel	6-2/7 in.
Bed Width	12 in
Distance Between Centers	40 in
Steady Rest Capacity	3/8 in - 6-3/4 in
No. of Metric Threads	39
Tool Size	1 x 1 in
Drive Type	Geared Head
Swing Range (Bed)	17 in
Gap Length	7-2/3 in
Swing Range (Cross Slide)	11 in
Max. Tailstock Spindle Travel	5 in.
Range of Longitudinal Feeds (IPR)	0.0015 - 0.04 IPR
Spindle Mount	Yes
