Condition: A MANUFACTURER CERTIFIED B-STOCK ITEM. THE PRODUCT WAS TESTED AND IS WORKING LIKE NEW!

Warranty: 1 YEAR AUDIOSAVINGS

Description:

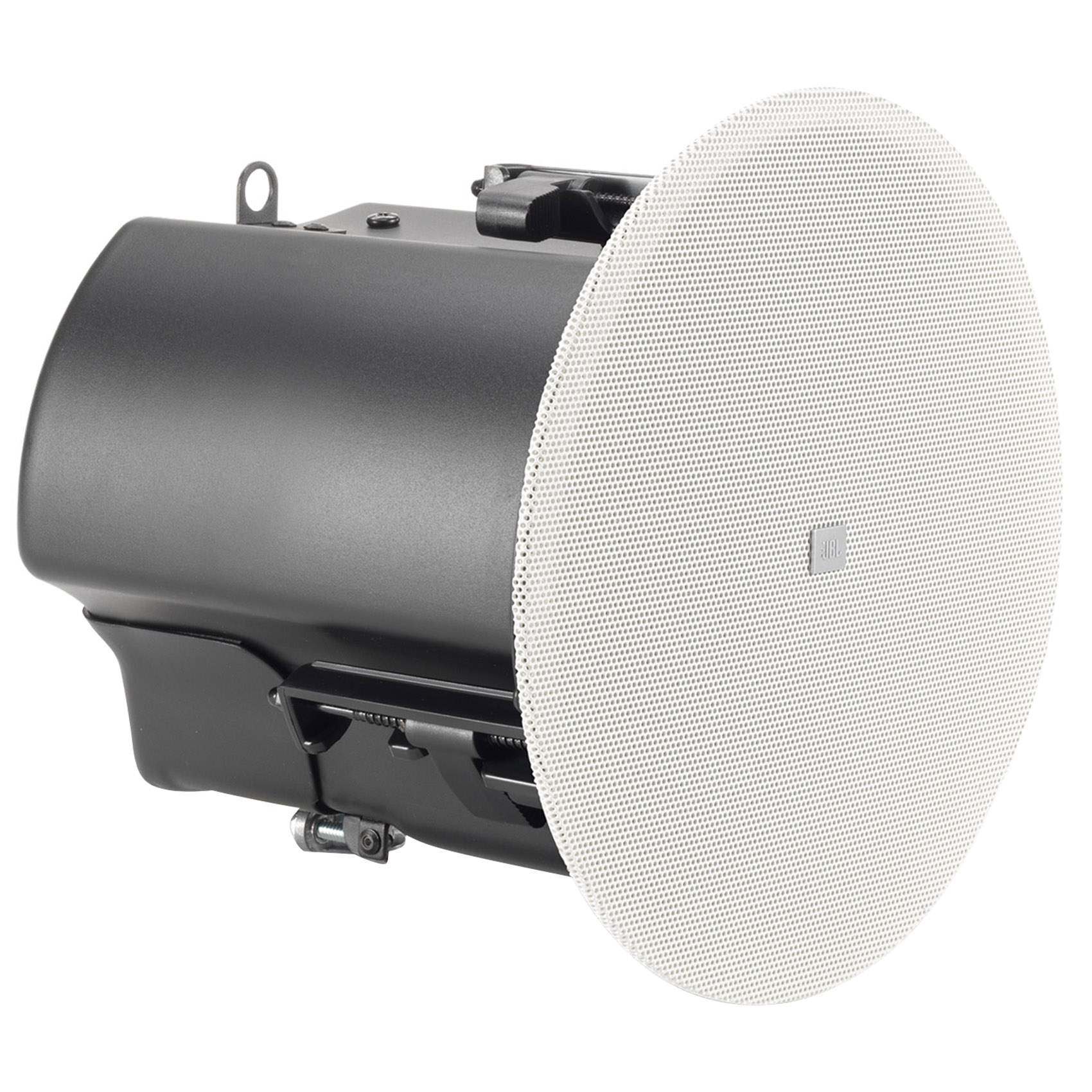

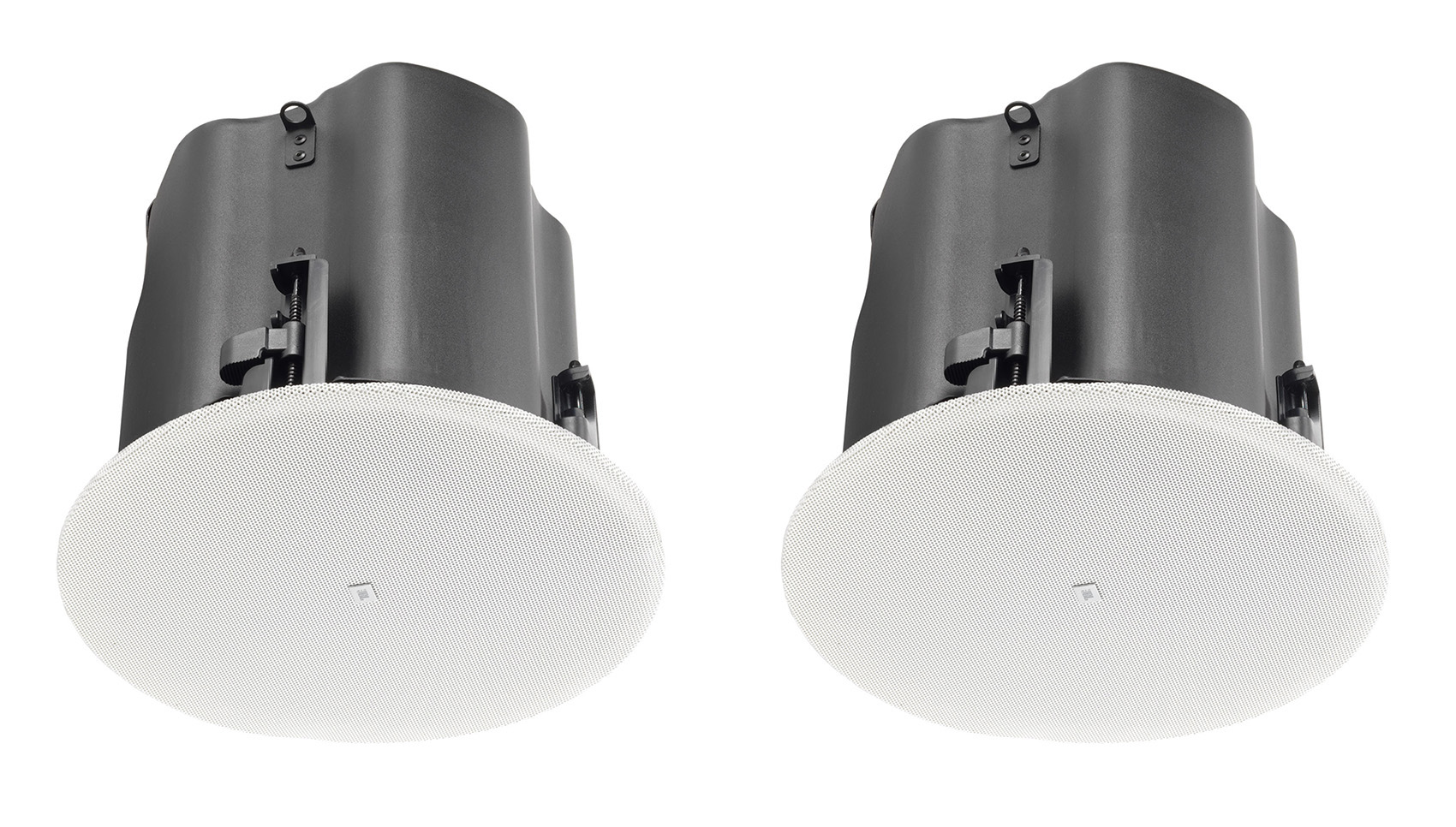

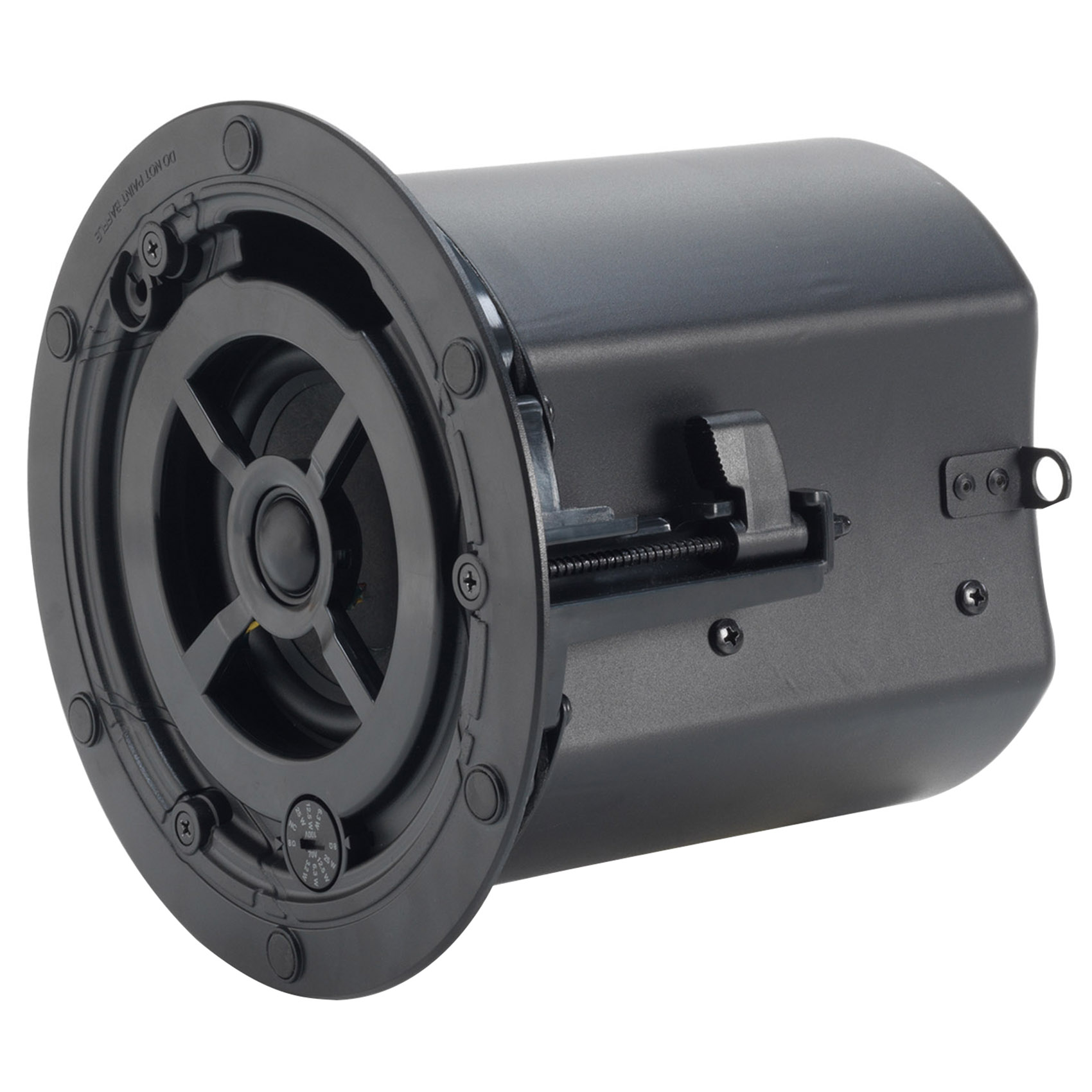

The JBL Control 414C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 414C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 414C/T supports both 70V/100V and low impedance applications.

EFFICIENT, FLEXIBLE INSTALLATION

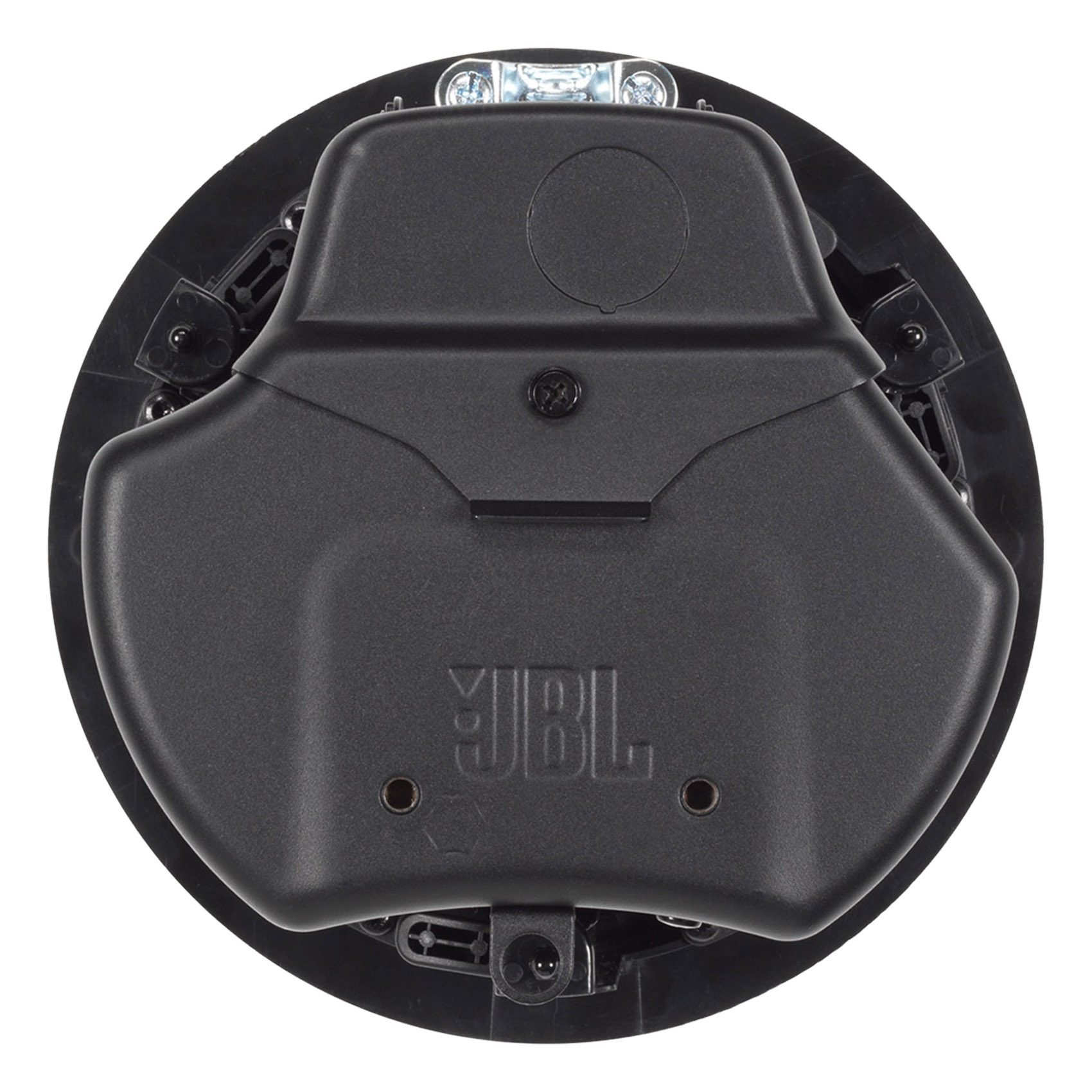

Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

REFINED, MODERN AESTHETICS
Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Features:

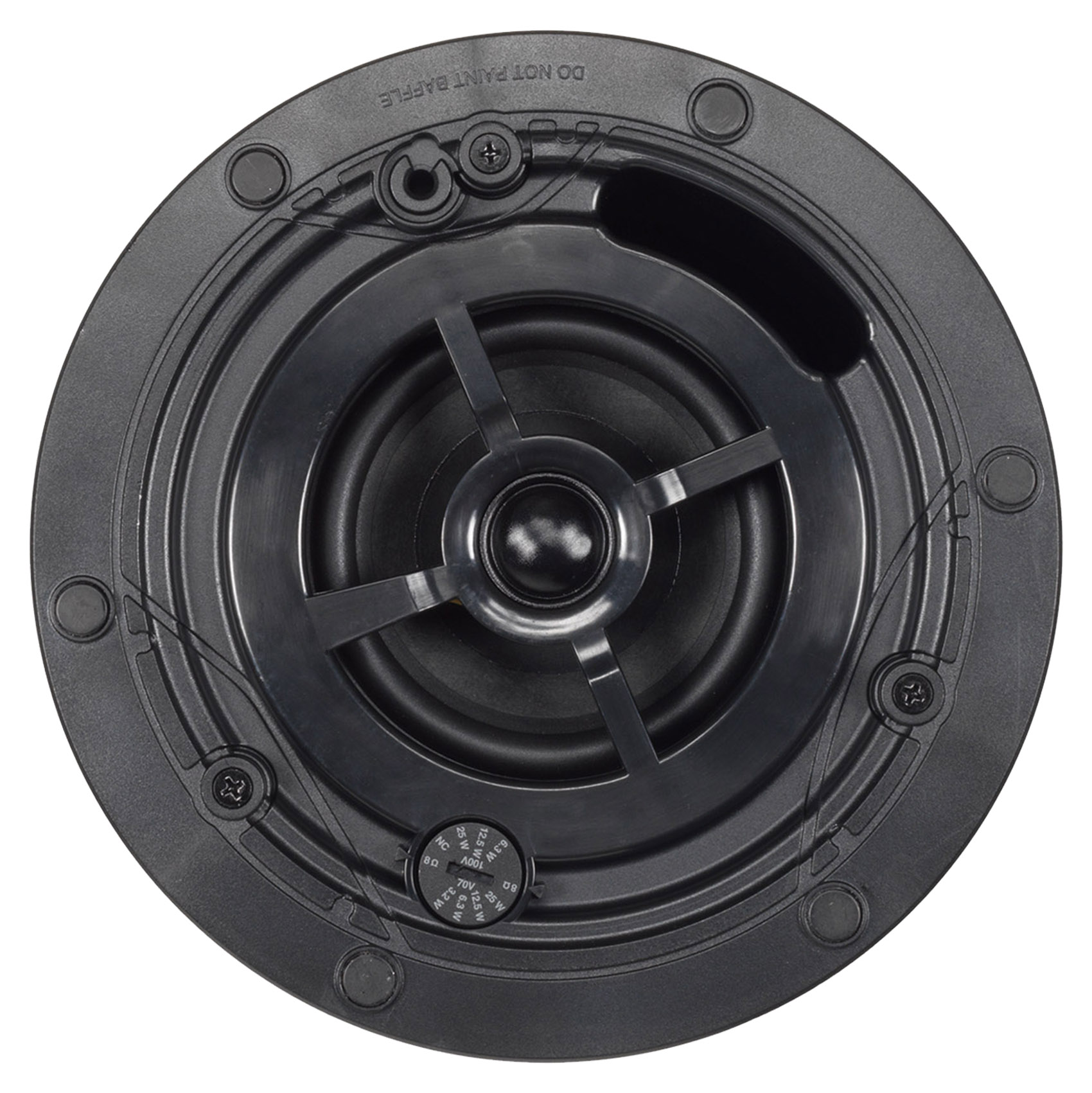

• 100 mm (4 in) woofer and 20mm (0.75 in) soft-dome tweeter
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces
• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
• Full-face, easily paintable magnetic grilles
• Top and side cable entry options

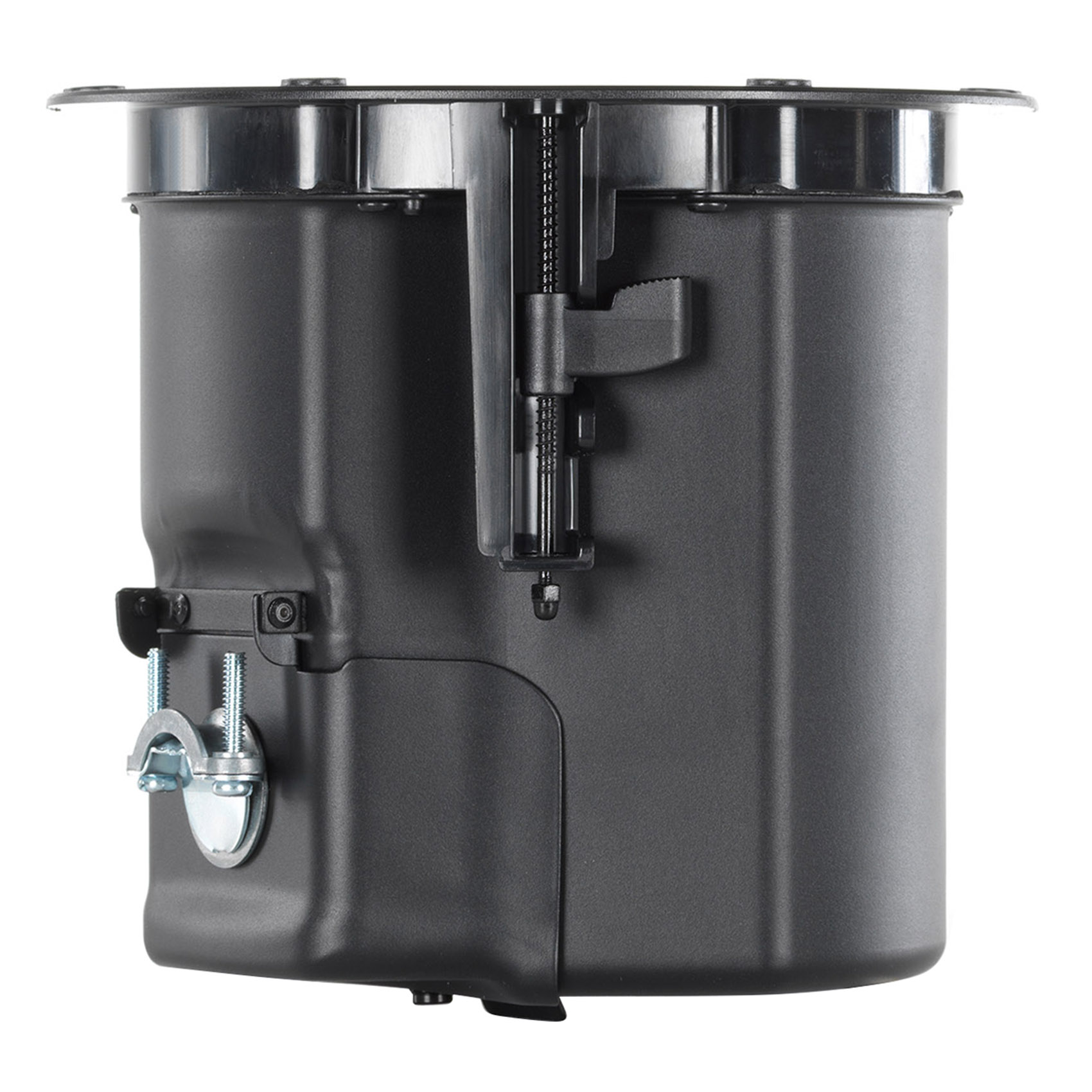

• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Specifications:

• Frequency Range (-10 dB): 65Hz - 20kHz
• Power Capacity:

  • 45W (180W Peak) Cont. Pink Noise (2 hrs)
  • 30W (120W Peak) Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W): 86dB
• Coverage Angle: 130° conical
• Maximum SPL (1m): 103 dB continuous pink noise (109 dB peak)
• Nominal Impedance: 8Ω

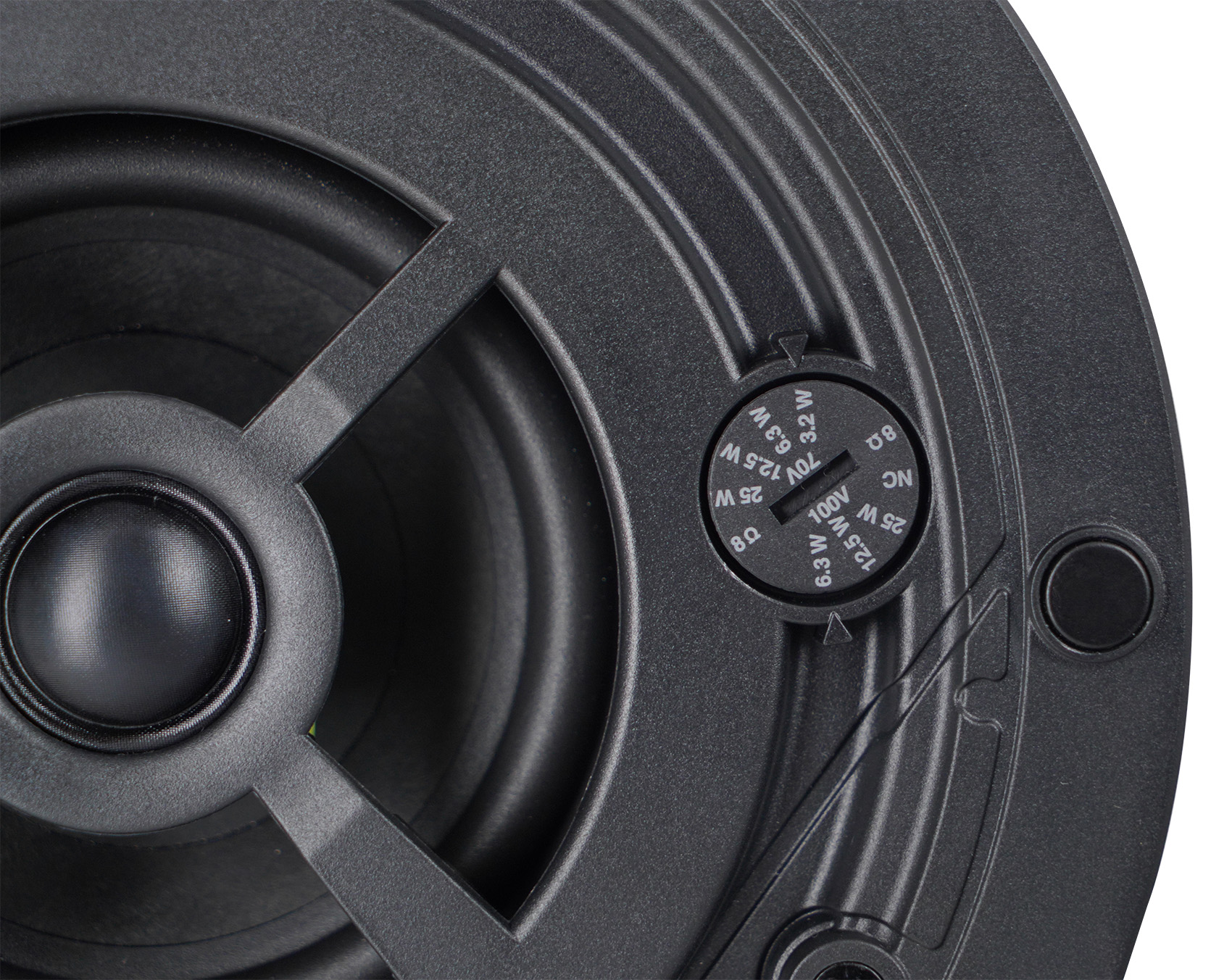

• Transformer Taps:

  • 70 V: 25 W, 12.5 W, 6.3 W & 3.2 W
  • 100 V: 25 W, 12.5 W, 6.3 W
• Drivers:

  • LF: 100 mm (4.0 in) with paper cone, SBR surround.
  • HF: 20 mm (0.75 in) soft dome
• Ceiling Cutout Size: 168 mm (6.6 in)
• Dimensions:

  • 186 mm (7.4 in) H x 203 mm (8.1 in) dia.
  • 177 mm (7.1 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental:

  • IP rating: IP33 per EN/IEC 60529.
  • Operating Temperature: 0° C to 45 °C.

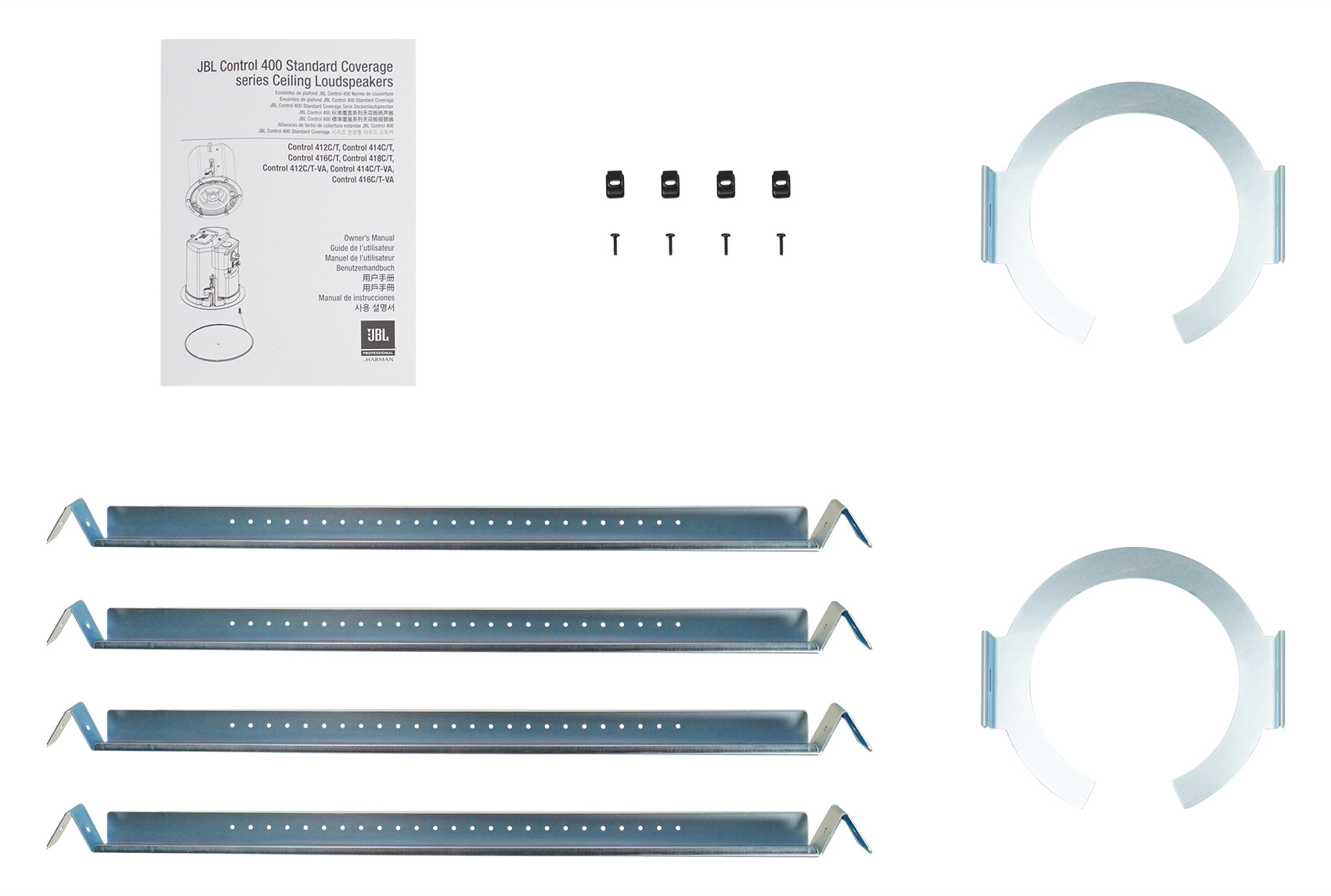

• Optional Accessories:

  • JBL-MTC-414BG black (RAL9004) round grille
  • JBL-MTC-414SG white (RAL9003) square grille
  • JBL-MTC-414WG white (RAL9003) weather grille
  • JBL-MTC-424NC new construction bracket
  • JBL-MTC-424MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Color: Stock grille is White (RAL9003), paintable
• Net Weight (ea): 2.50 kg (5.51 lbs)
• Shipping Weight (pair): 9.52 kg (20.99 lbs)
