Coilover Strut Suspension Kits Adj Height For Mazda Savanna RX-7 FC3S 1985–1992








Introduction



MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

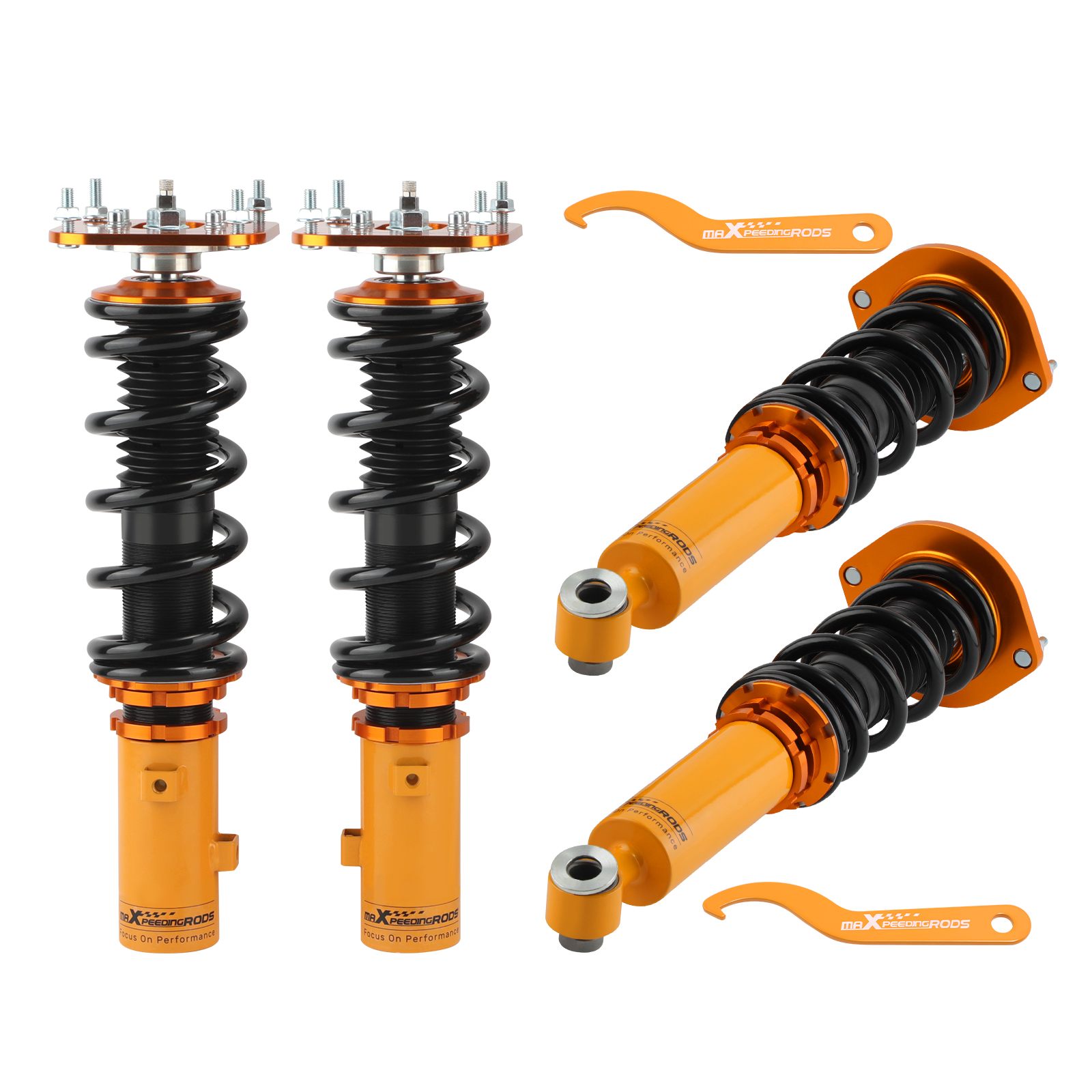

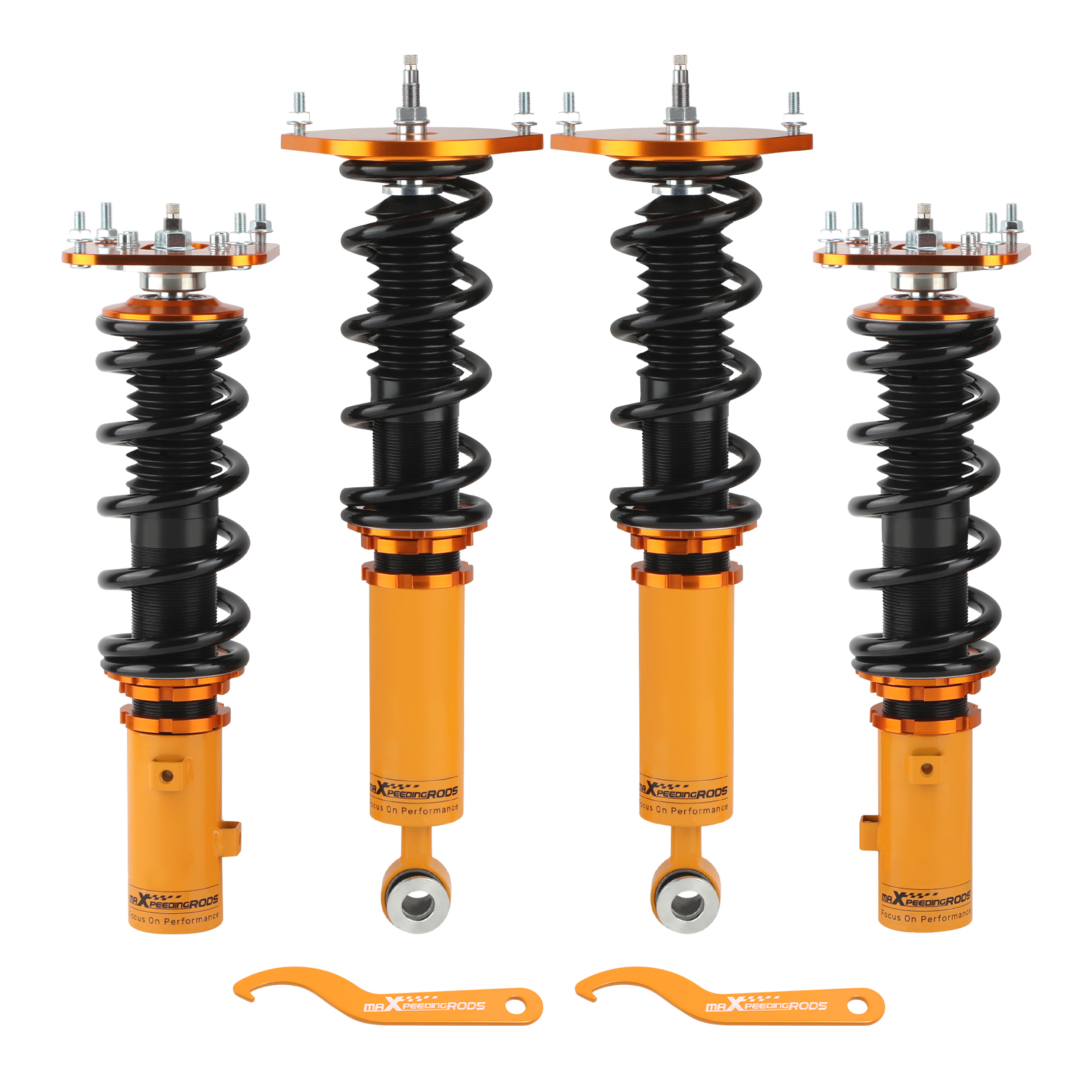

Package included
  • 2x Front coil-overs
  • 2x Rear coil-overs
  • 2x C spanners



Application

  • For Mazda RX-7/Mazda Savanna RX-7 second generation FC3S 1985–1992
  • 2 door coupe/2 door convertible

Standard Technical Specifications


Front top mount Pillow ball with camber plate
Rear top mount Pillow ball
Damping adjustable Available, 24 levels of rebound damping force
Camber adjustable Available
Spring rate Front 10 kg/mm (560 lbs/in)
Spring rate Rear 8 kg/mm (448 lbs/in)​
Spring length Front 230 mm
Spring length Rear 230 mm
Height adjustable Yes, lowering 25-75mm depending on the vehicle models
Shock type Twin tube
Spring Preload advised 7-10 mm

Details

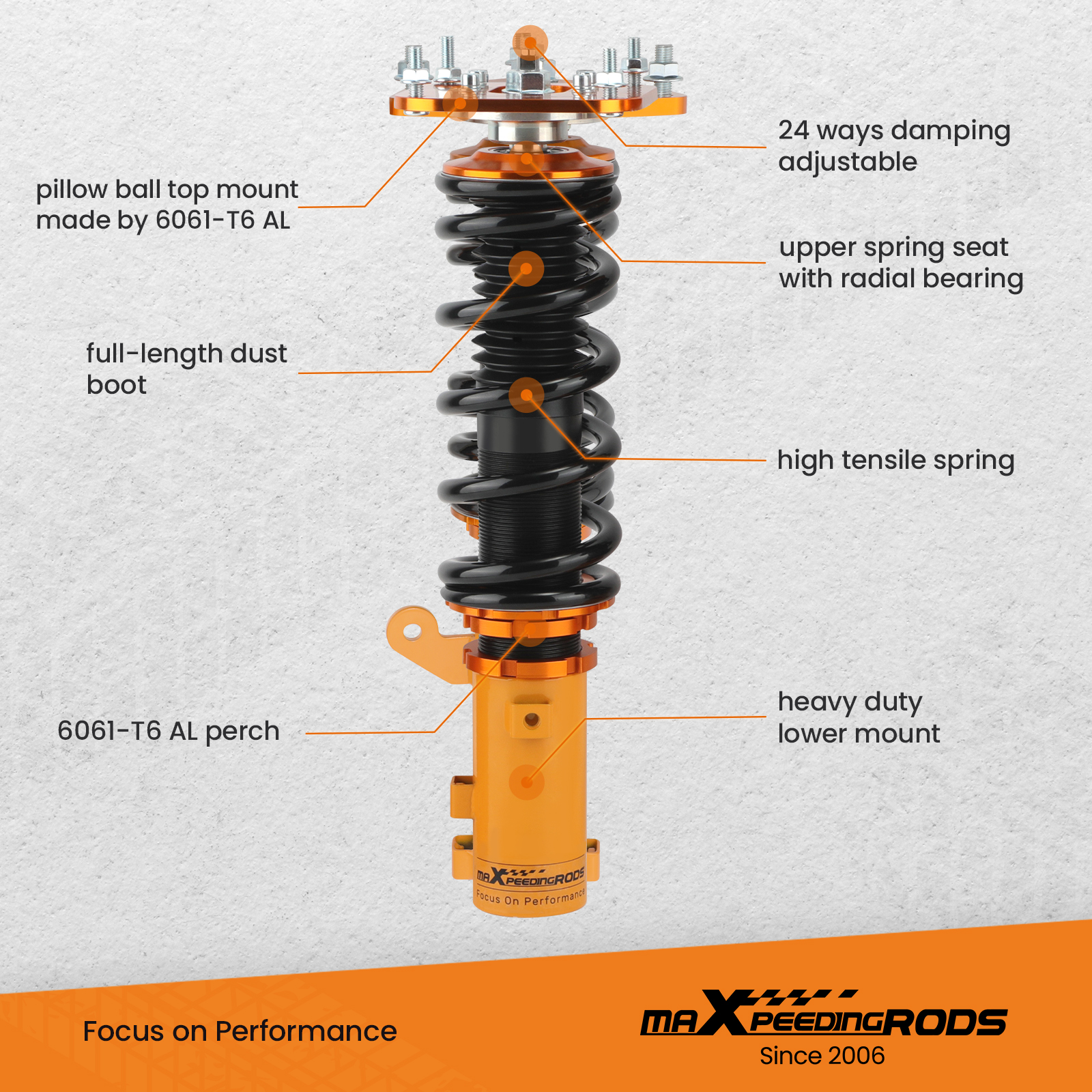

Feature

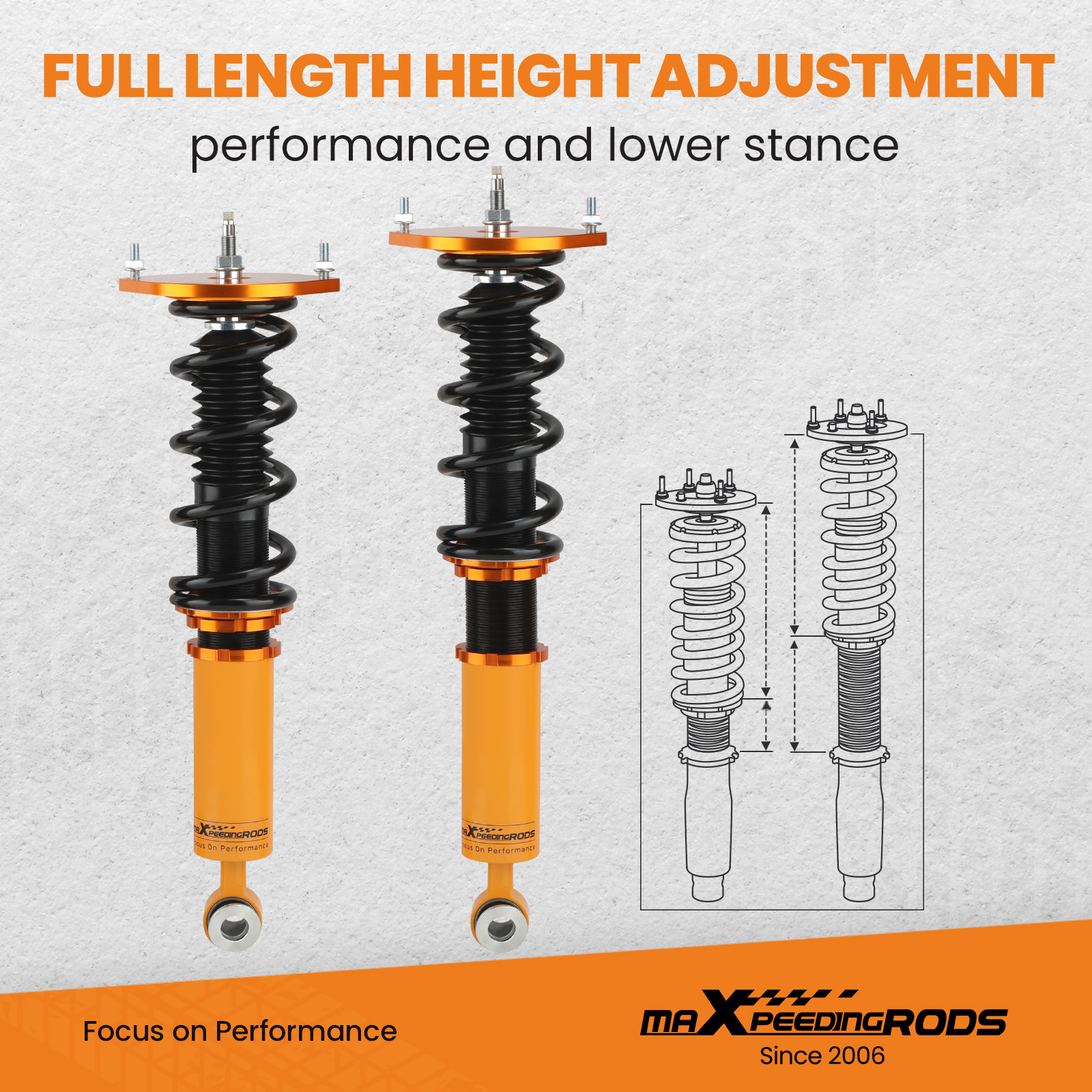

1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

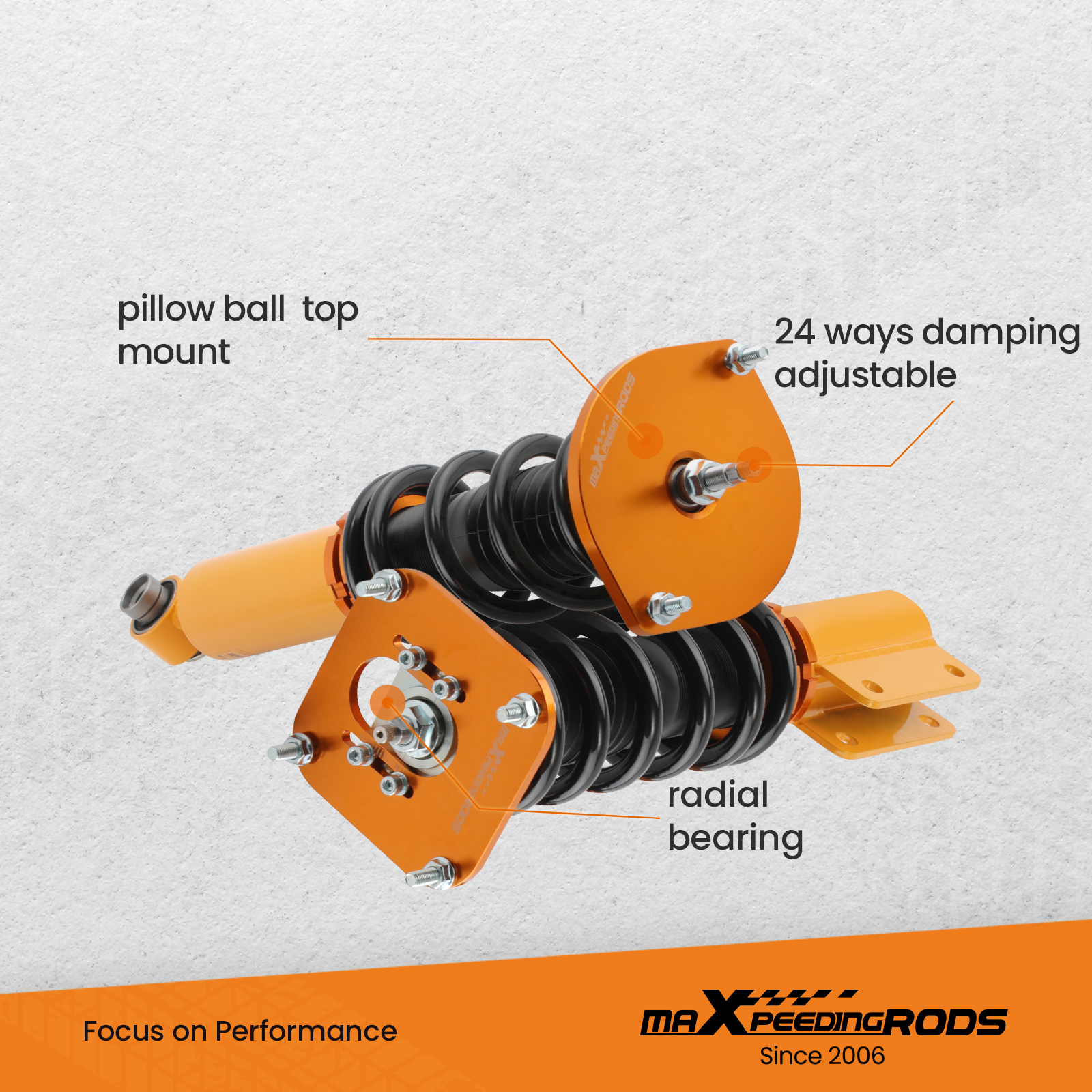

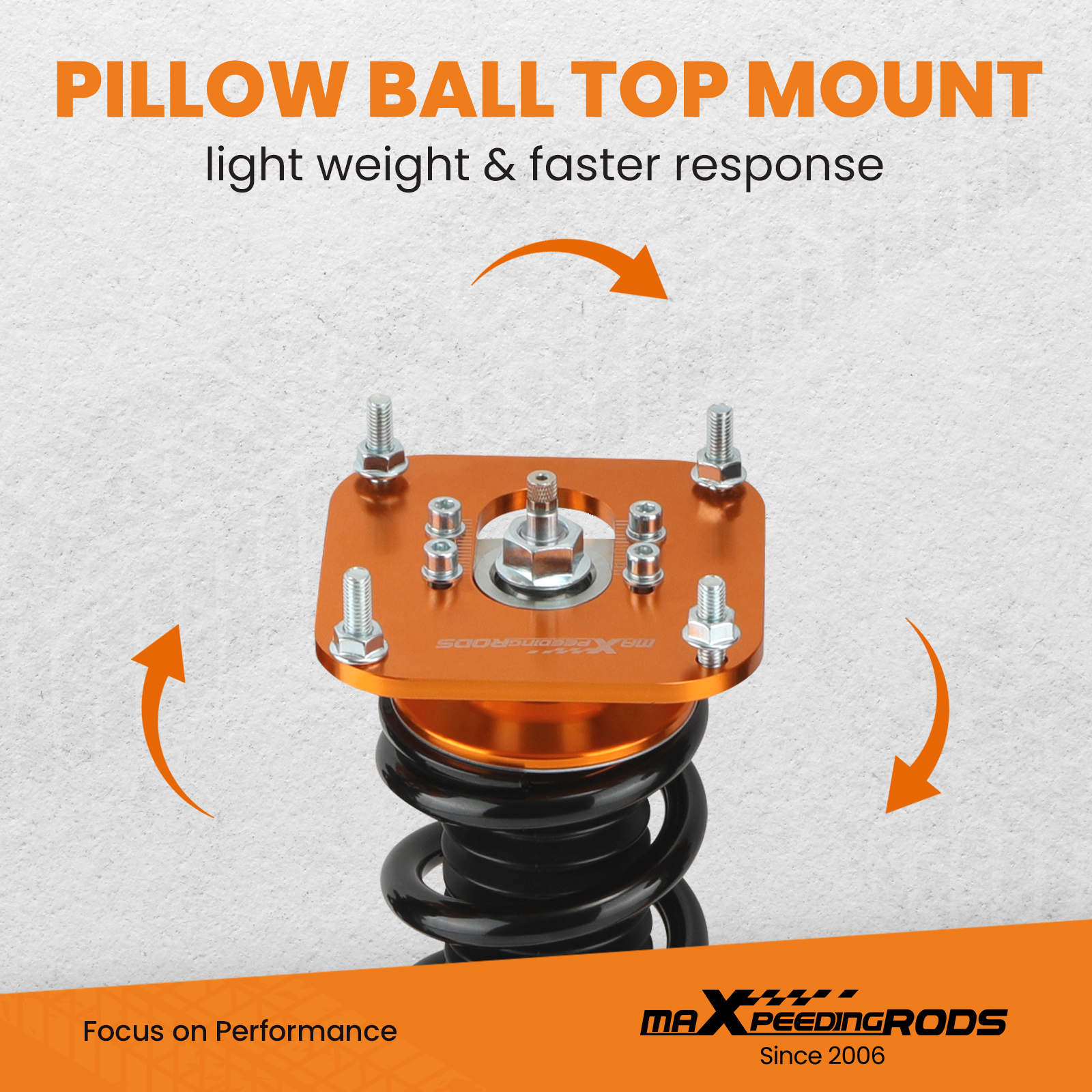

4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

5. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

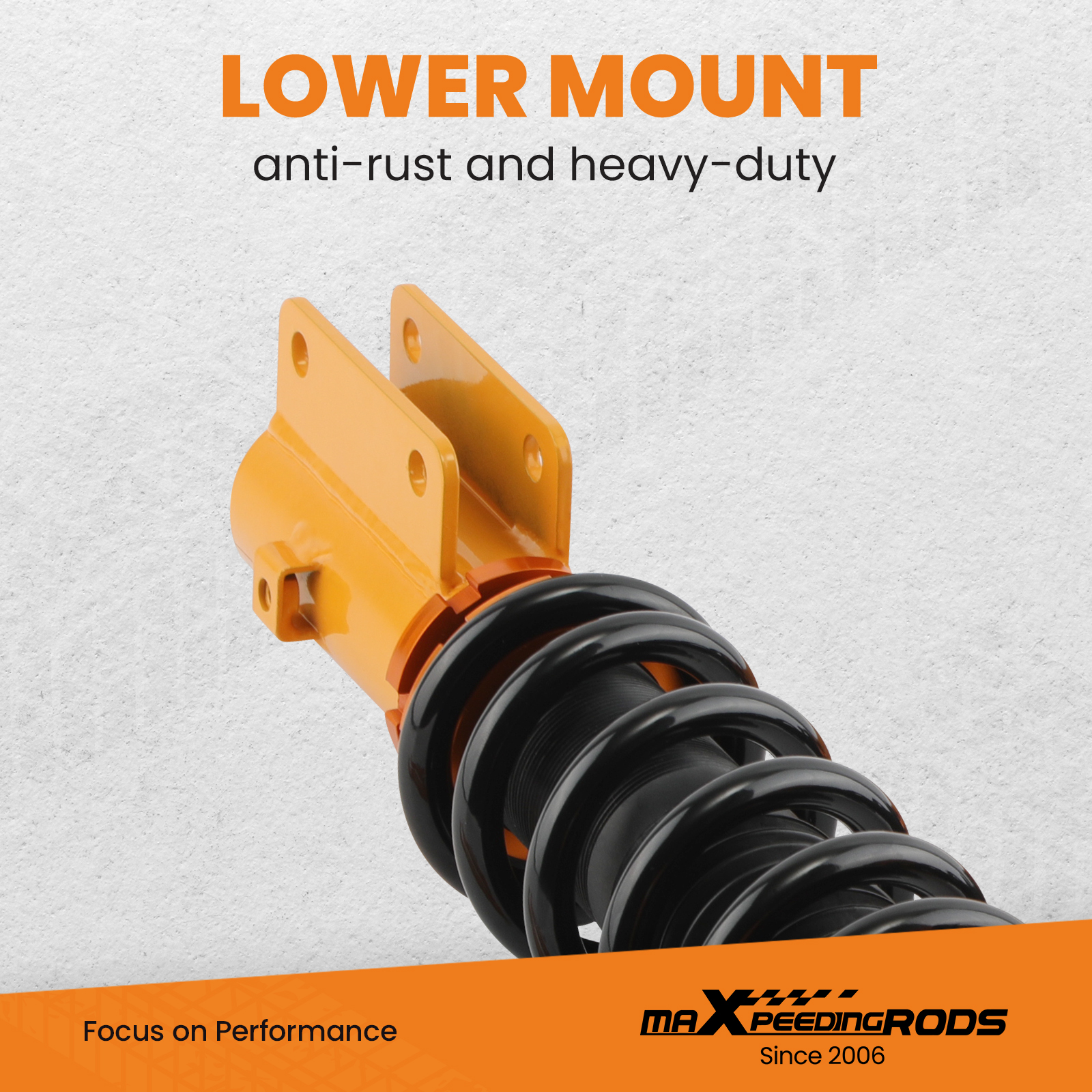

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

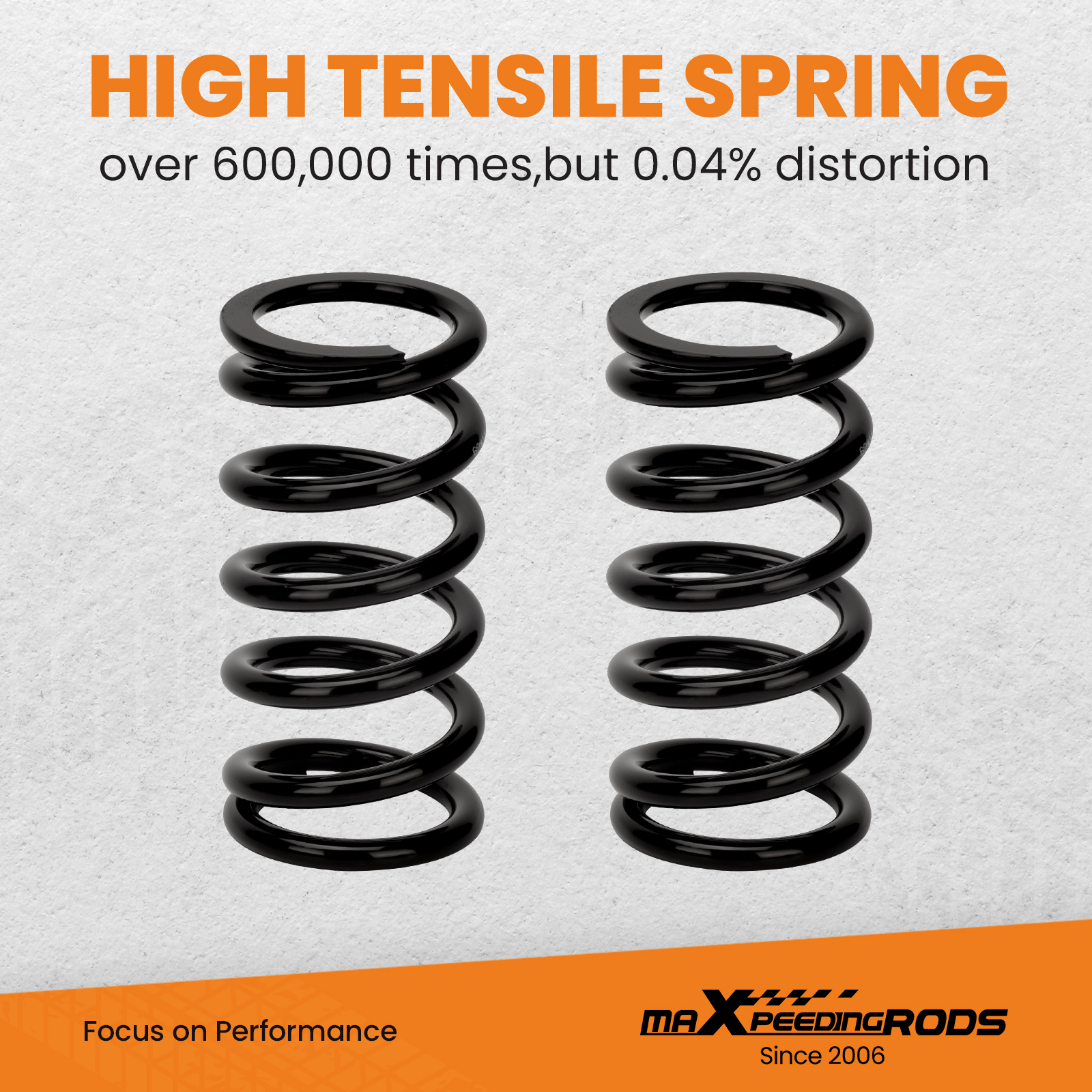

7. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

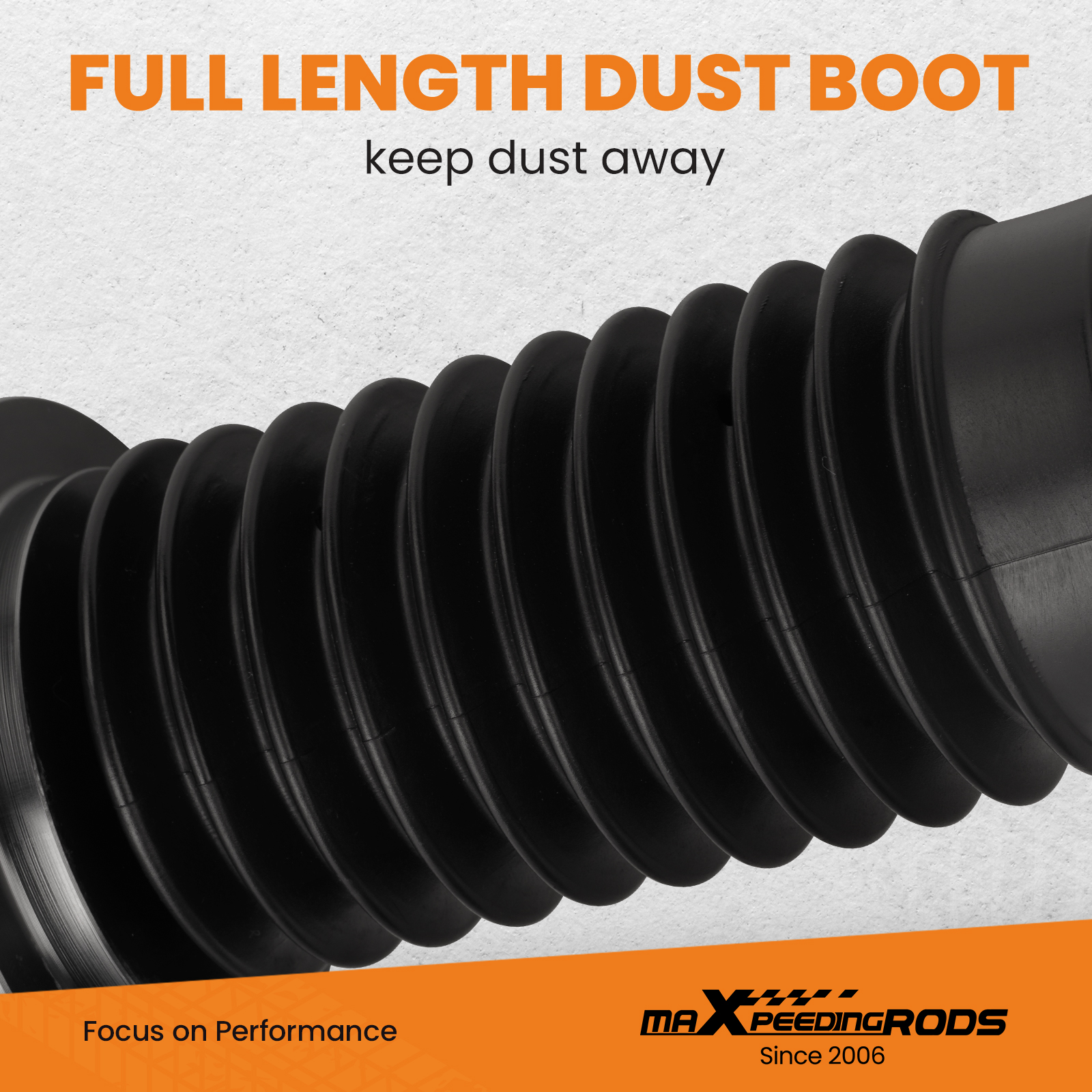

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
