24 Ways Adjustable Damper Coilover For Honda Civic FG1 FG2 FA1 FA2 FA3 06-11

Introduction

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

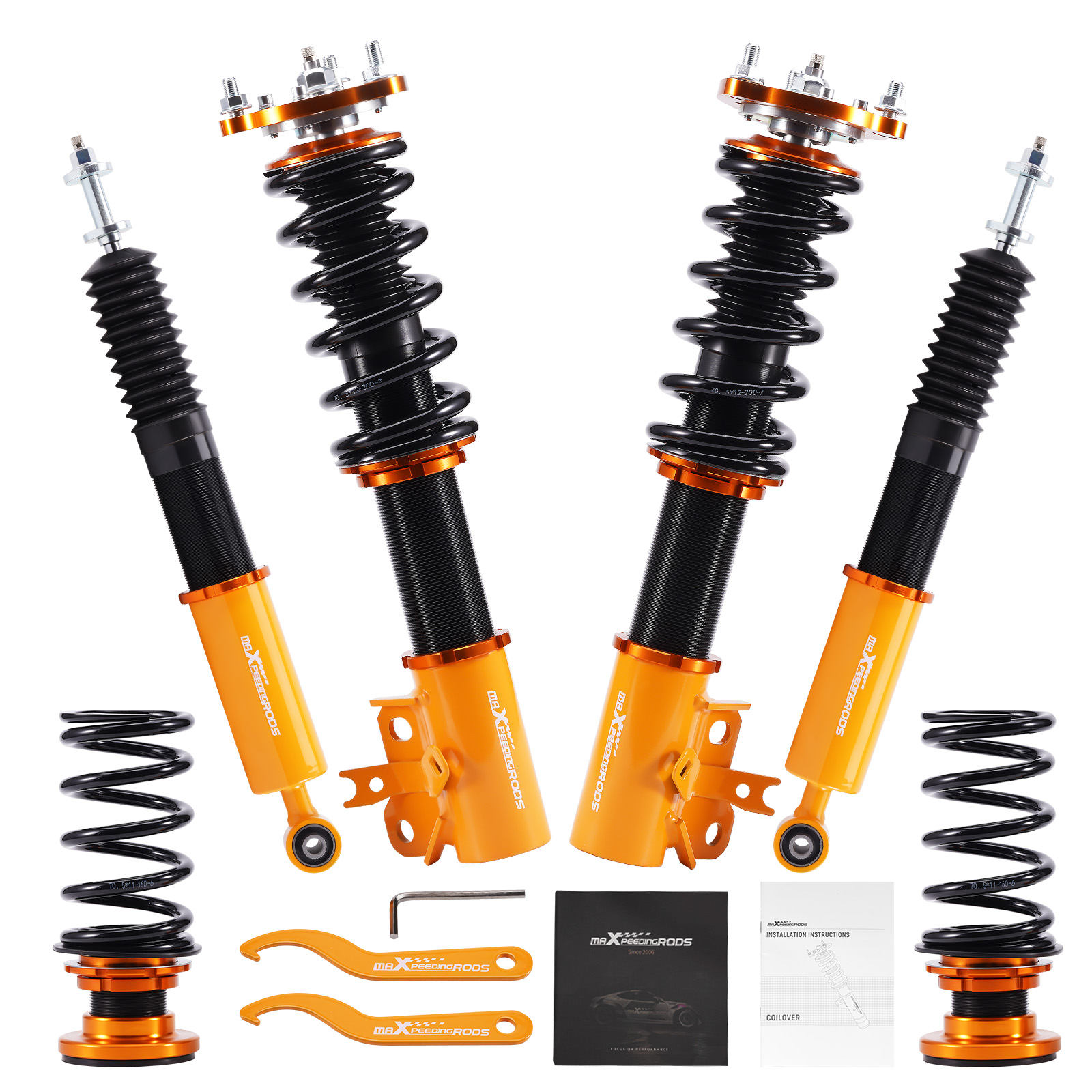

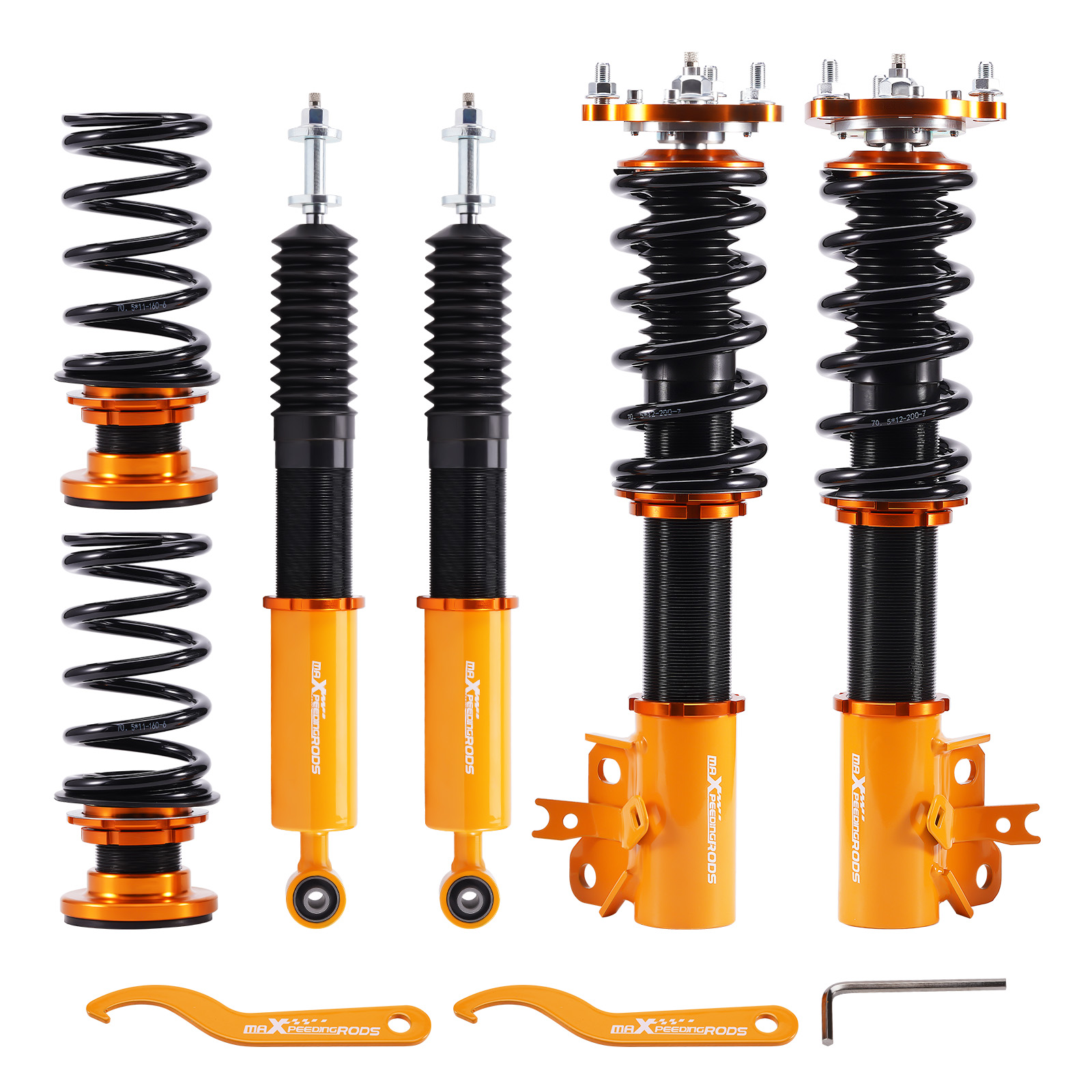

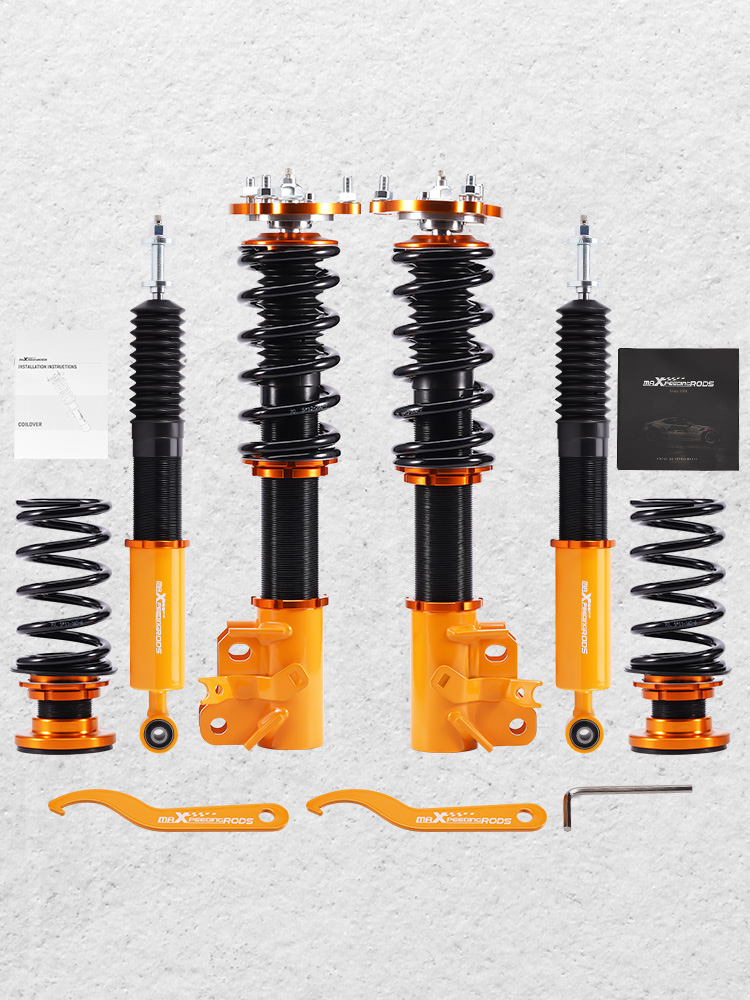

Package included

2x front coil-overs
2x rear coil-overs
2x C spanners

Application

For HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
For Acura CSX 4-door sedan（Canada）2006-2011

Note:

Not for the Mugen trim level.
The coilovers kit will "Lower your car" and does not keep to the original ride height.

Standard Technical Specifications

Damping adjustable	Available, 24 levels of rebound damping force
Spring rate Front	7 kg/mm(392 lbs/in)
Spring rate Rear	6 kg/mm (336 lbs/in)
Front spring inner diameter	70.5mm
Rear spring inner diameter	70.5mm

Spring length Front	200mm
Spring length Rear	160mm
Spring Preload advised	7-10 mm

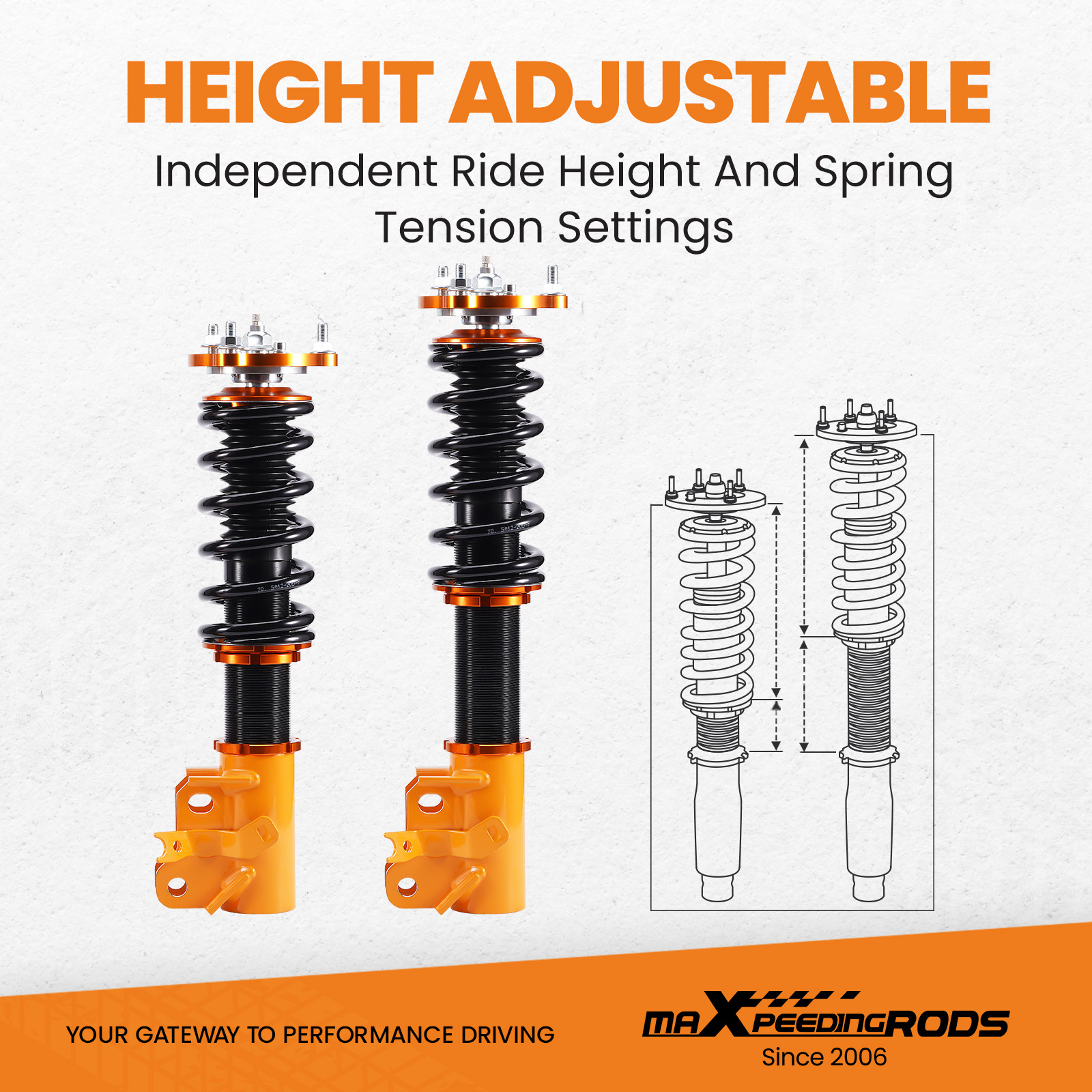

Height adjustable	Yes, lowering 1-3 inches depending on the vehicle models

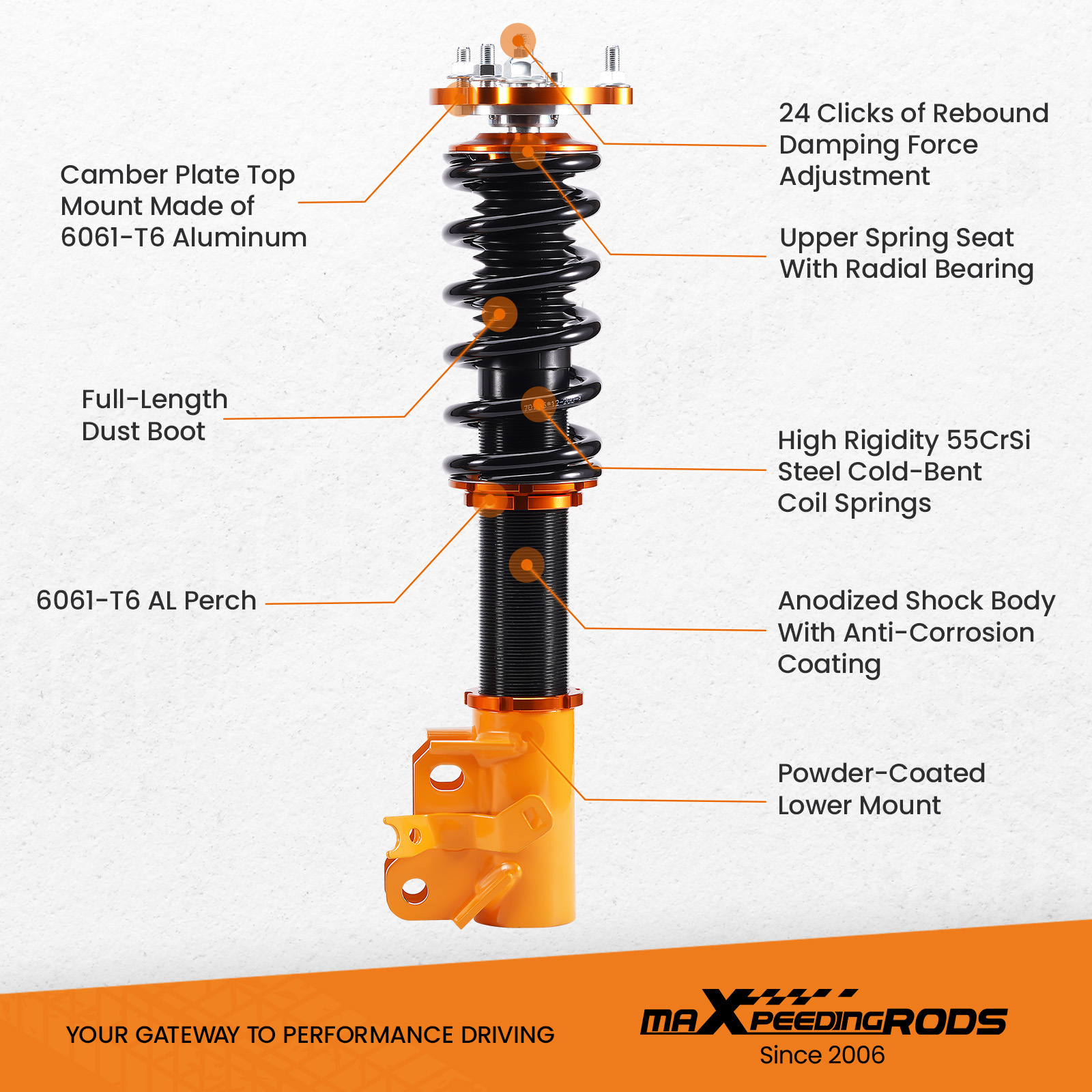

Feature

Lowered height adjustment from 1" - 3" (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance

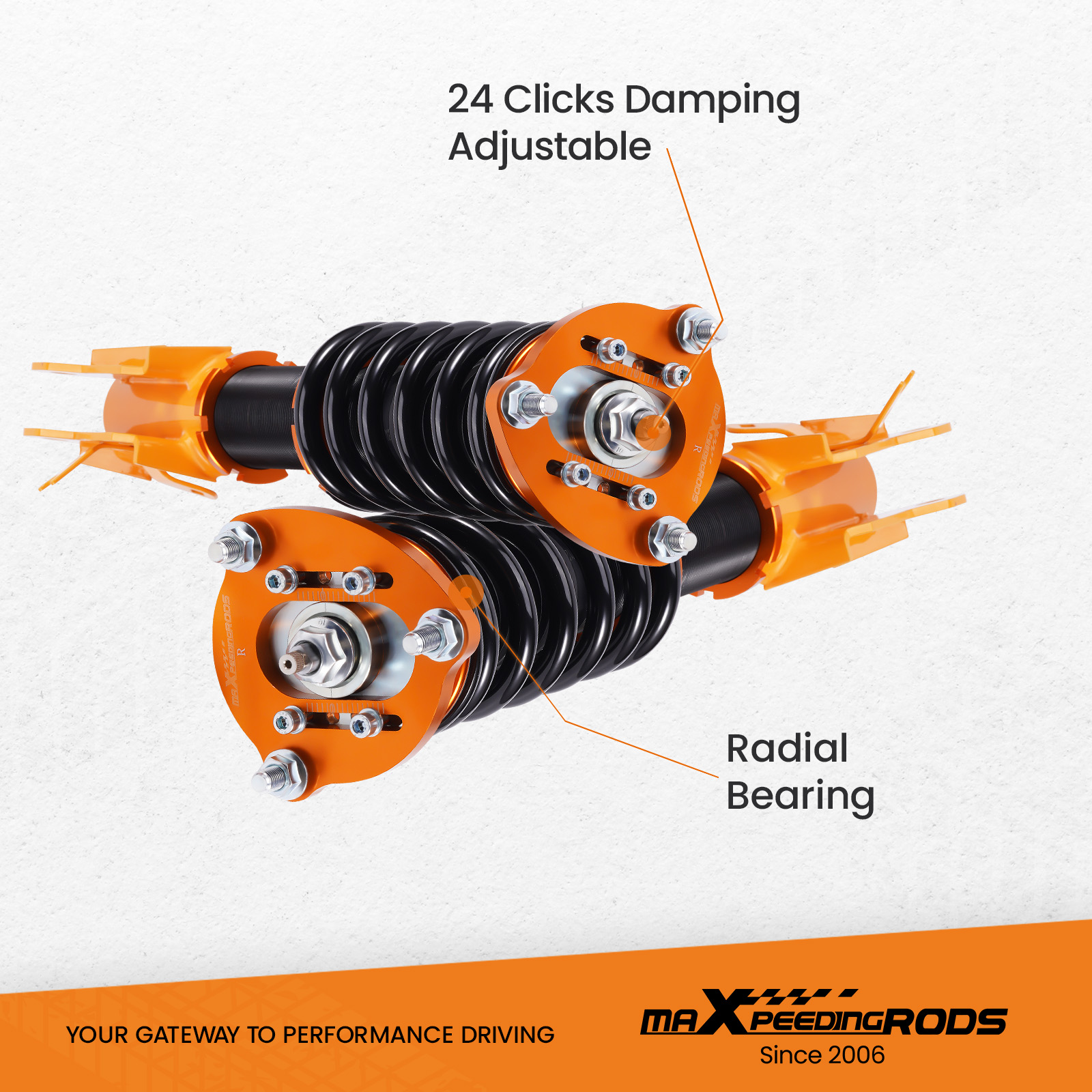

24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

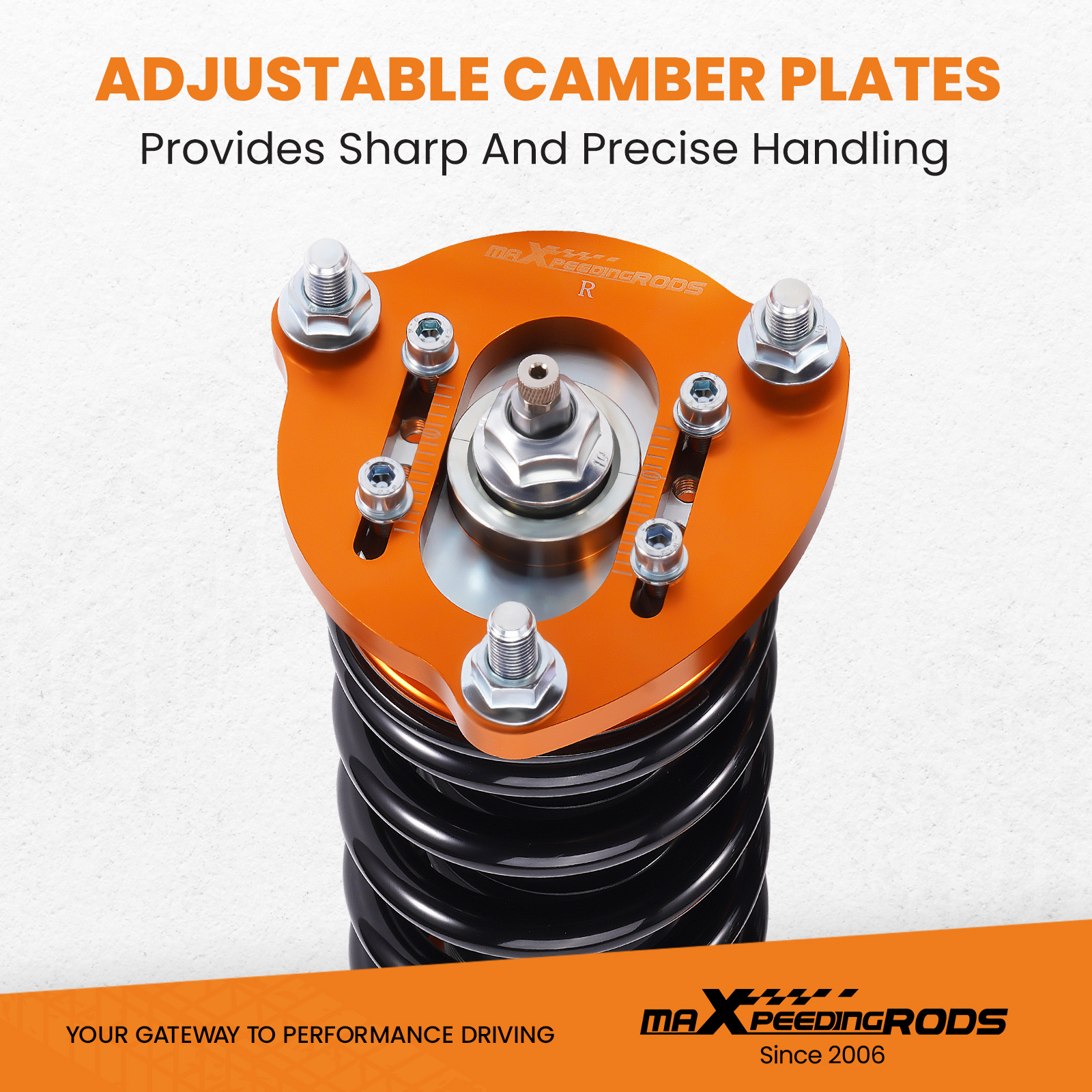

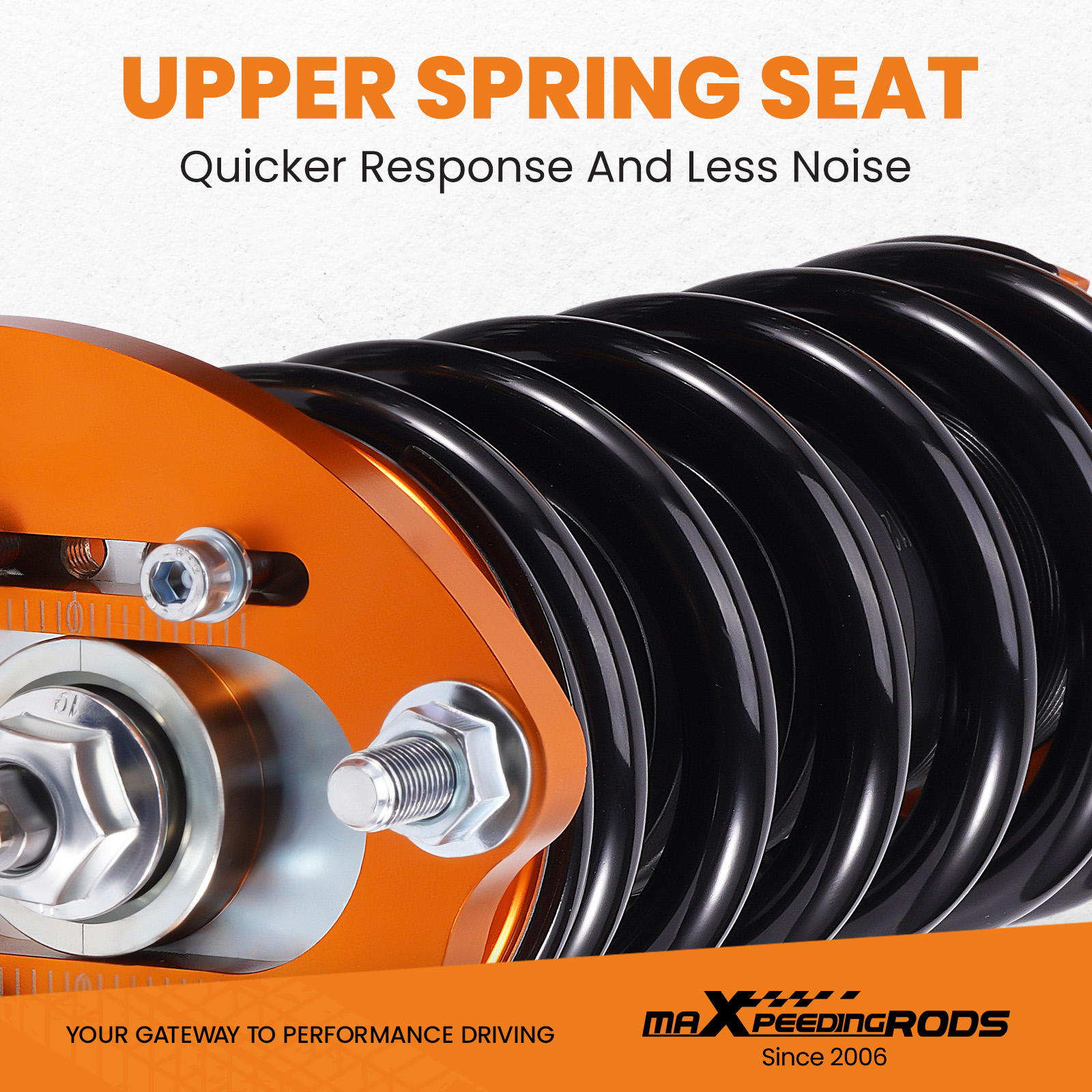

Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

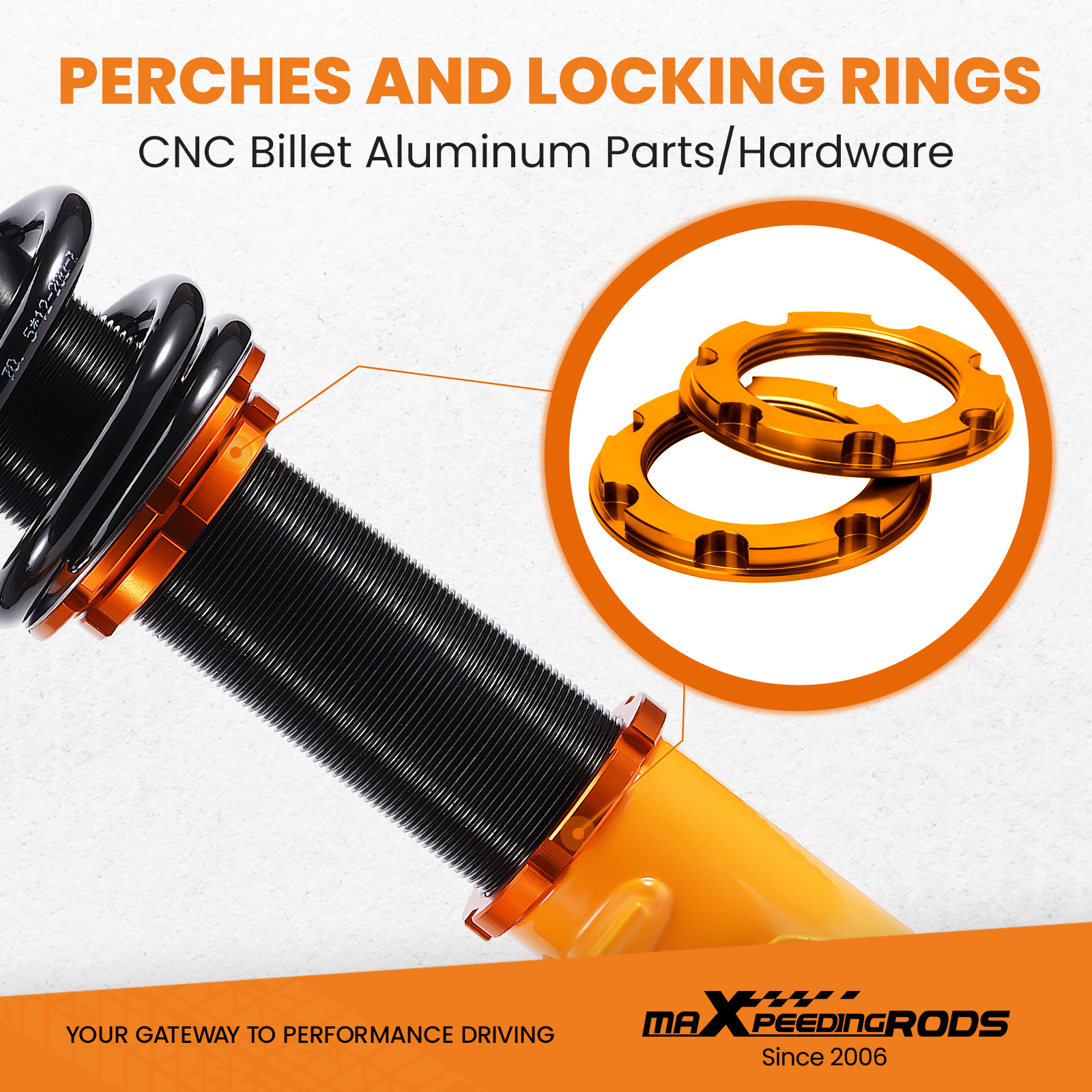

CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

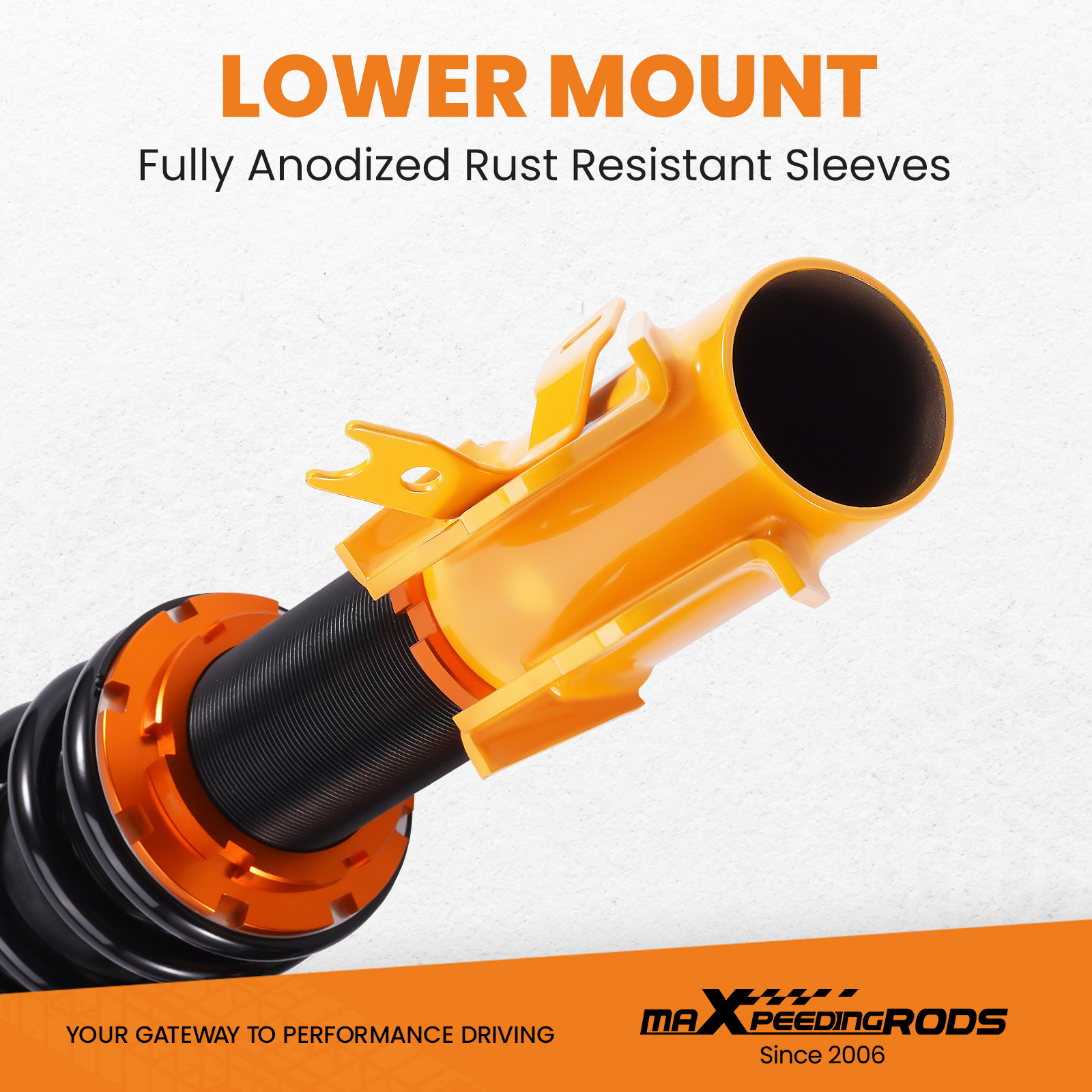

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

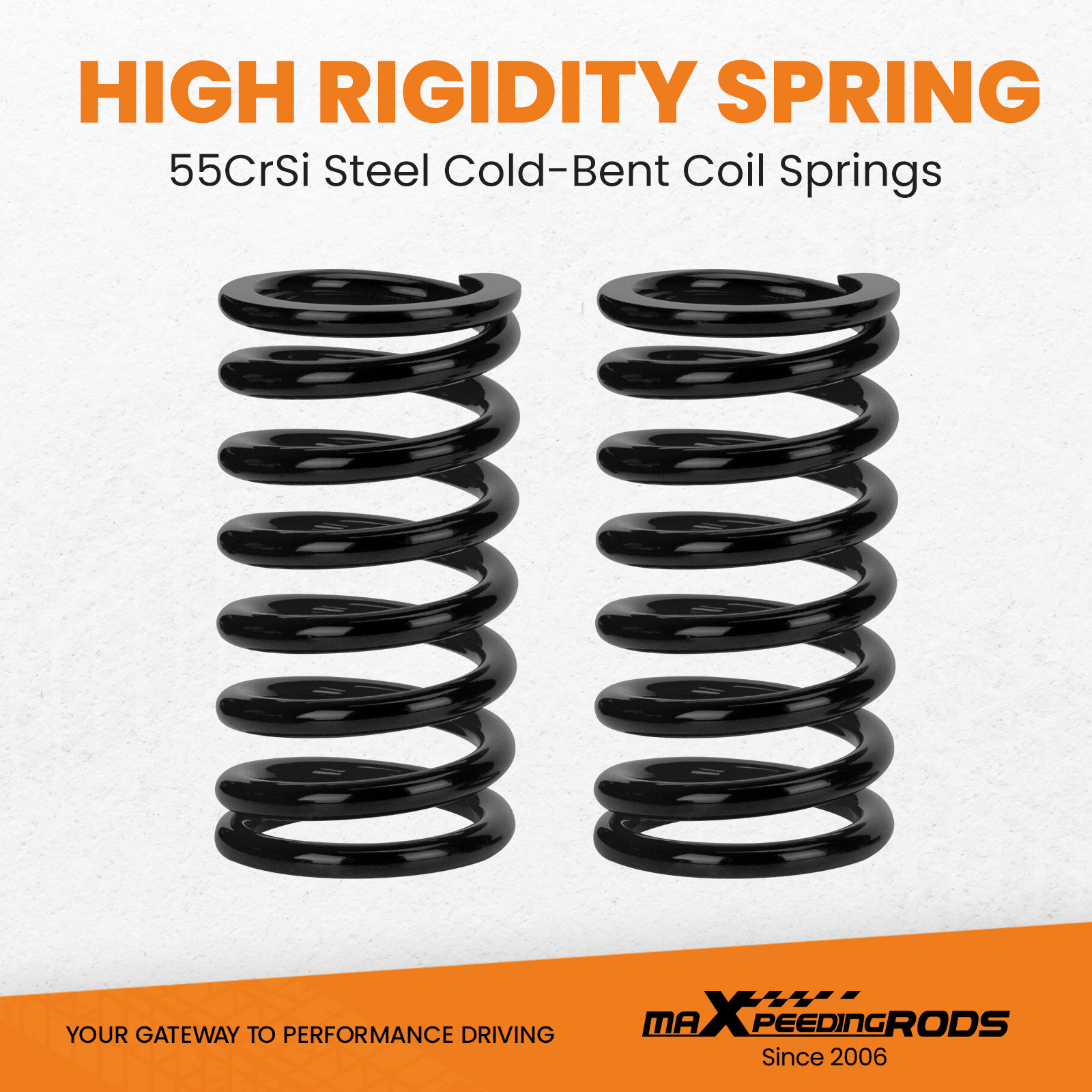

High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
