FEATURES
  • Real Android 13 VW/SEAT/Skoda Car Stereo: Android 13 (API level 33) brings significant improvements to the safety and your motions just feel more fluid. The user interface has been revamped, resulting in more pleasant interactions.
  • Apple CarPlay & Android Auto & Screen Mirroring: This VW/SEAT/Skoda radio offers easy access to wireless CarPlay and Android Auto via Bluetooth, and wired connections via USB cable. You can navigate make hands-free calls, enjoy music and more while driving in a safer way. You can also mirror your phone onto the car stereo display and watch your favorite videos.
  • 9 Inch IPS Display Car Player: The VW/SEAT/Skoda 9 inch touch screen features a resolution of 1280*720. Experience enhanced clarity and a comfortable viewing journey with the IPS touch screen.
  • Customize Your Music: This Android 13 VW/SEAT/Skoda head unit has 4x45W max output power. And there are 36-band graphic equalizer and 5 present EQ modes, allowing you to adjust and tailor the listening experience to fit your taste.
  • Keep OEM Features: Plug & play. Upgrade your car's entertainment system with the VWA13 car radio Compatible with VW, Skoda and Seat models (specific models listed in the description). No additional frame, no cable change. It comes with CANBUS and supports most of the original functions. Retain factory features including Dynaudio & Fender audio system, steering wheel controls, air conditioning information, radar sensors and vehicle information, etc.
  • 3 UI Themes: This VW/SEAT/Skoda apple car player comes with 3 built-in UI themes that you can choose from. Just personalize your car radio to your liking.
  • VW/SEAT/Skoda Android Car Stereo Essentials: Support Eonon dashcam (A100 optional), backup camera (A0125 optional), Bluetooth OBD2 scanner (V0056 optional) and DAB+ box (A0593 or A503 optional) (all not included). Enhance your vehicle with added functionality.


Parameter

  • Model: VWA13
  • Applicable Car Models: VW/SEAT/Skoda
  • Operation system: Android 13
  • CPU: Quad-core (RK3562)
  • RAM: 2GB
  • Storage: 32GB
  • Display: 9" IPS Touchscreen
  • Resolution: 1280*720
  • Operating voltage: DC12V
  • Maximum operating current: ≤10A
  • Installation size: 178mm(Width) * 34mm(Depth) * 100mm(Height)
  • Panel size: 220mm(Upper Width) * 130mm(Height) * 210mm(Lower Width)


Features

  • CarPlay: Wired & Wireless
  • Android Auto: Wired & Wireless
  • Split-screen multitasking: No
  • Adjustable viewing angle: No
  • Screen mirroring: Yes
  • 1s fast boot: Yes
  • Steering wheel controls: Yes
  • Built-in RDS radio receiver: Yes
  • Preset radio stations: /
  • Power-off memory function: Yes
  • Key button color: Variable
  • Wi-Fi Support: 2.4G/5G
  • 4G Feature: 4G dongle needed
  • Custom boot logo & screen wallpaper: Yes
  • App installation: Yes
  • Built-in UI themes: 3


Audio & Video

  • Built-in DSP: No
  • Built-in power amplifier: 4-channel FR/FL/RR/RL audio outputs and one subwoofer audio output
  • EQ bands: 36
  • EQ modes: Custom Standard Popular Rock Classical Jazz
  • HPF/LPF adjustment: No
  • Video input: 1
  • Video output: 0
  • Audio input: 2
  • Audio output: 4
  • USB input: 3
  • RMS power (CTA-2006): 22W
  • RMS power (manufacturer): 25W
  • Max amplifier output: 4x45W
  • Peak output: 38W
  • RMS power bandwidth: 20-20KHZ
  • Preamp outputs: 5-channel
  • Sub preamp outputs: Yes
  • Preamp voltage: 2.7V


Bluetooth

  • Bluetooth version: Blueooth 5.0
  • Hands-free calling: Yes
  • Bluetooth phonebook: Yes
  • Bluetooth music player: Yes
  • Built-in & external mic: Yes

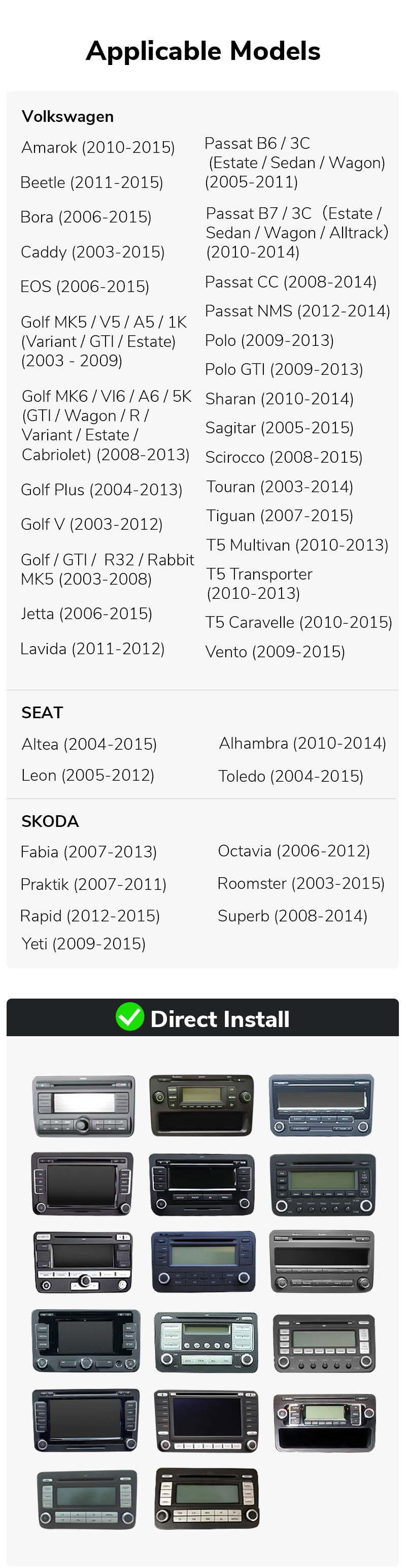

Applicable Models and Year

Volkswagen/VW：

  • Amarok (2010-2015)
  • Beetle (2011-2015)
  • Bora (2006-2015)
  • Caddy (2003-2015)
  • EOS (2006-2015)
  • Golf MK5 / V5 / A5 / 1K (Variant / GTI / Estate) (2003 - 2009)
  • Golf MK6 / Ⅵ6 / A6 / 5K (GTI / Wagon / R / Variant / Estate / Cabriolet) (2008-2013)
  • Golf Plus (2004-2013)
  • Golf V (2003-2012)
  • Golf/GTI/R32/Rabbit MK5 (2003-2008)
  • Jetta (2006-2015)
  • Lavida (2011-2012)
  • Magotan (2006-2013)
  • Passat B6 / 3C (Estate / Sedan / Wagon) (2005-2011)
  • Passat B7 / 3C (Estate / Sedan / Wagon / Alltrack) (2010-2014)
  • Passat CC (2008-2014)
  • Passat NMS (2012-2014)
  • Polo GTI (2009-2013)
  • Polo (2009-2013)
  • Sagitar (2005-2015)
  • Scirocco (2008-2015)
  • Sharan (2010-2014)
  • T5 Caravelle (2010-2015)
  • T5 Multivan (2010-2013)
  • T5 Transporter (2010-2013)
  • Tiguan (2007-2015)
  • Touran (2003-2014)
  • Vento (2009-2015)

SEAT:

  • Alhambra (2010-2014)
  • Altea (2004-2015)
  • Leon (2005-2012)
  • Toledo (2004-2015)

SKODA:

  • Fabia (2007-2013)
  • Octavia (2006-2012)
  • Praktik (2007-2011)
  • Rapid (2012-2015)
  • Roomster (2003-2015)
  • Superb (2008-2014)
  • Yeti (2009-2015)



Applicable Volkswagen OEM radio: RCD210 | RCD310 | RNS310 | RNS315 | RCD330 | RCD340 | RCD360 | RCD510 | RNS510
Inapplicable Volkswagen OEM radio: RCD550 | RNS810 | RNS850

Package include





Tips:
Q1. Why can't turn on the car radio ?

Please check the Voltage of car radio: 12V

When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.

Replace the same type of insurance to test the car radio.

Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

Q2. Why the car radio will show "No Signal" when we reversing?

Please check if the camera's line is properly connected to the car radio.

Note: The video port of rear camera must insert the "CAMIN" port of car radio.

Q3. Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

Please turn off the "Video Warning" function in the settings,then will be OK.

Q4. Why can't search FM?

No radio antenna inserted.

Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.

The signal of your location is not good. Please go to a better place to test again.

The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

Q5. Why can't connect the Bluetooth of car radio?

Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.

Please try to use another mobile phone to test this function.

All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minute.
