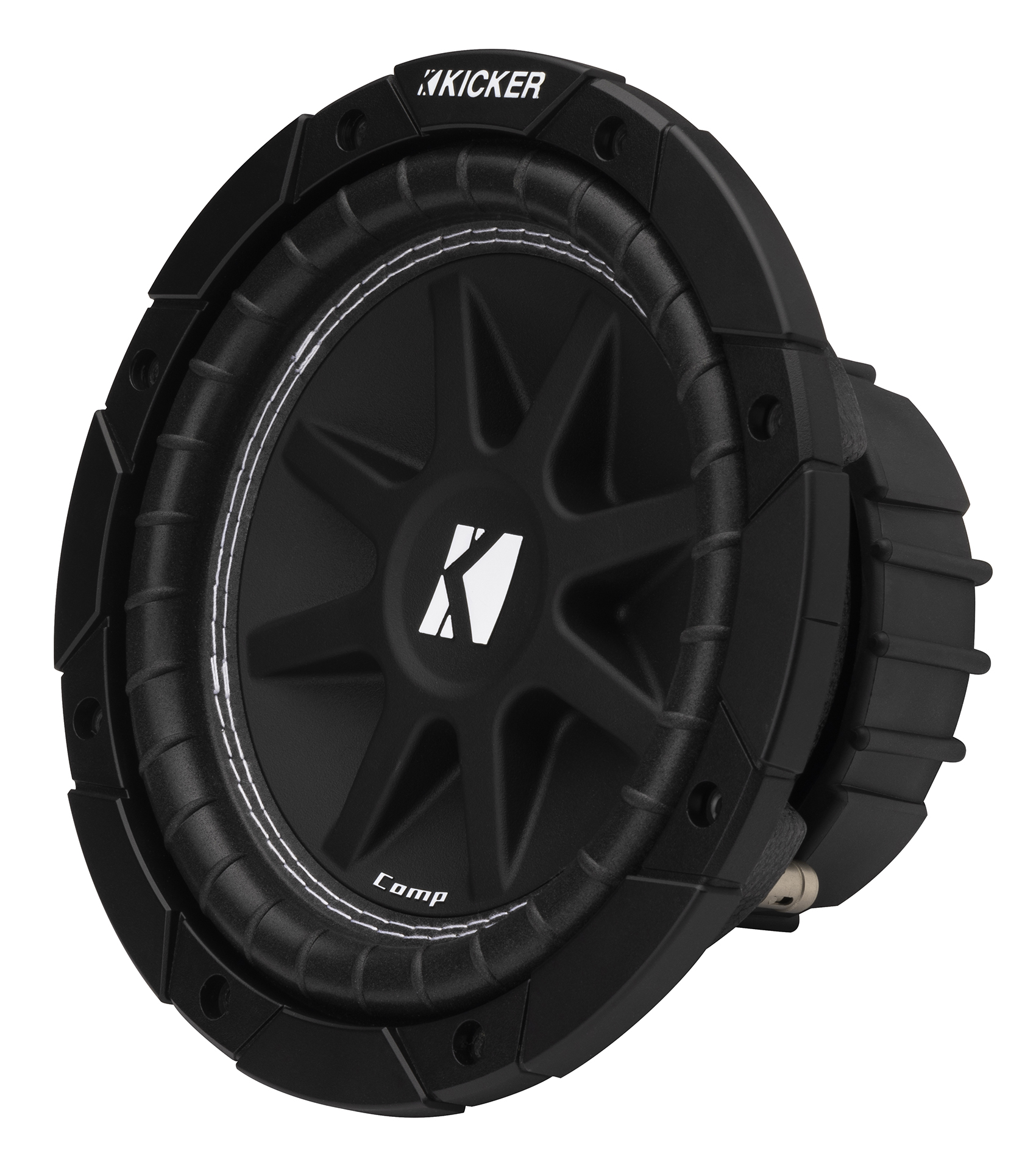

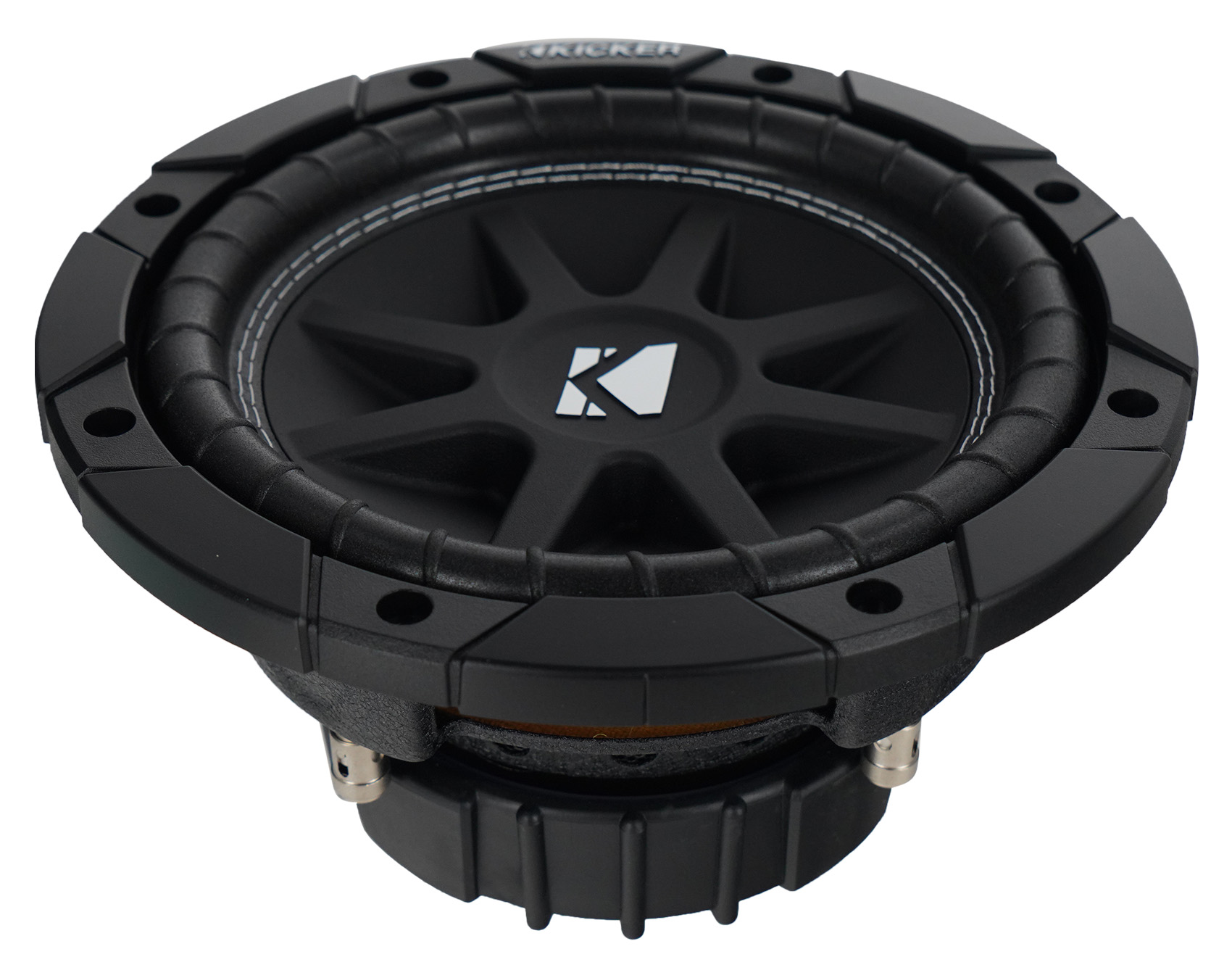

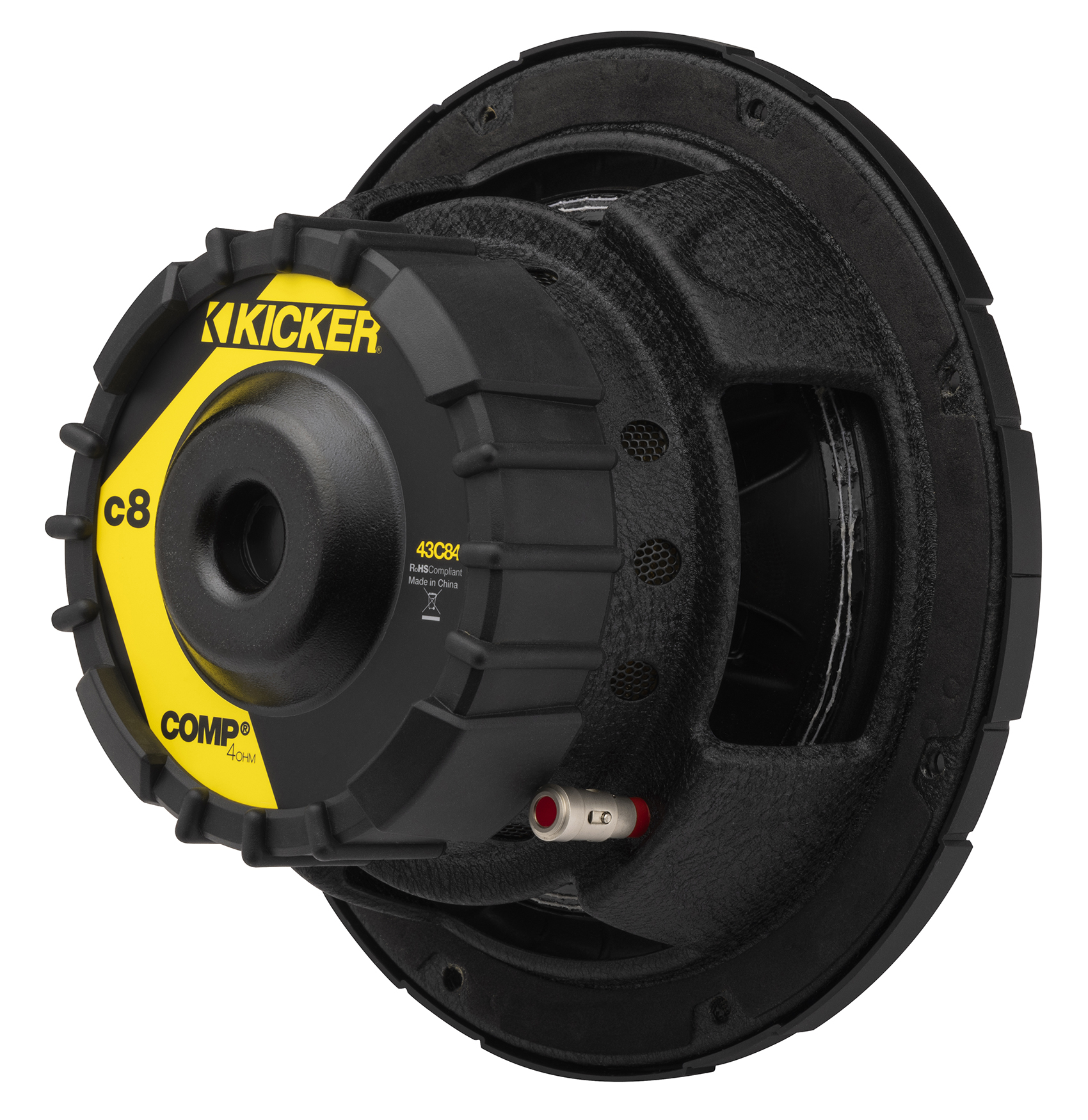

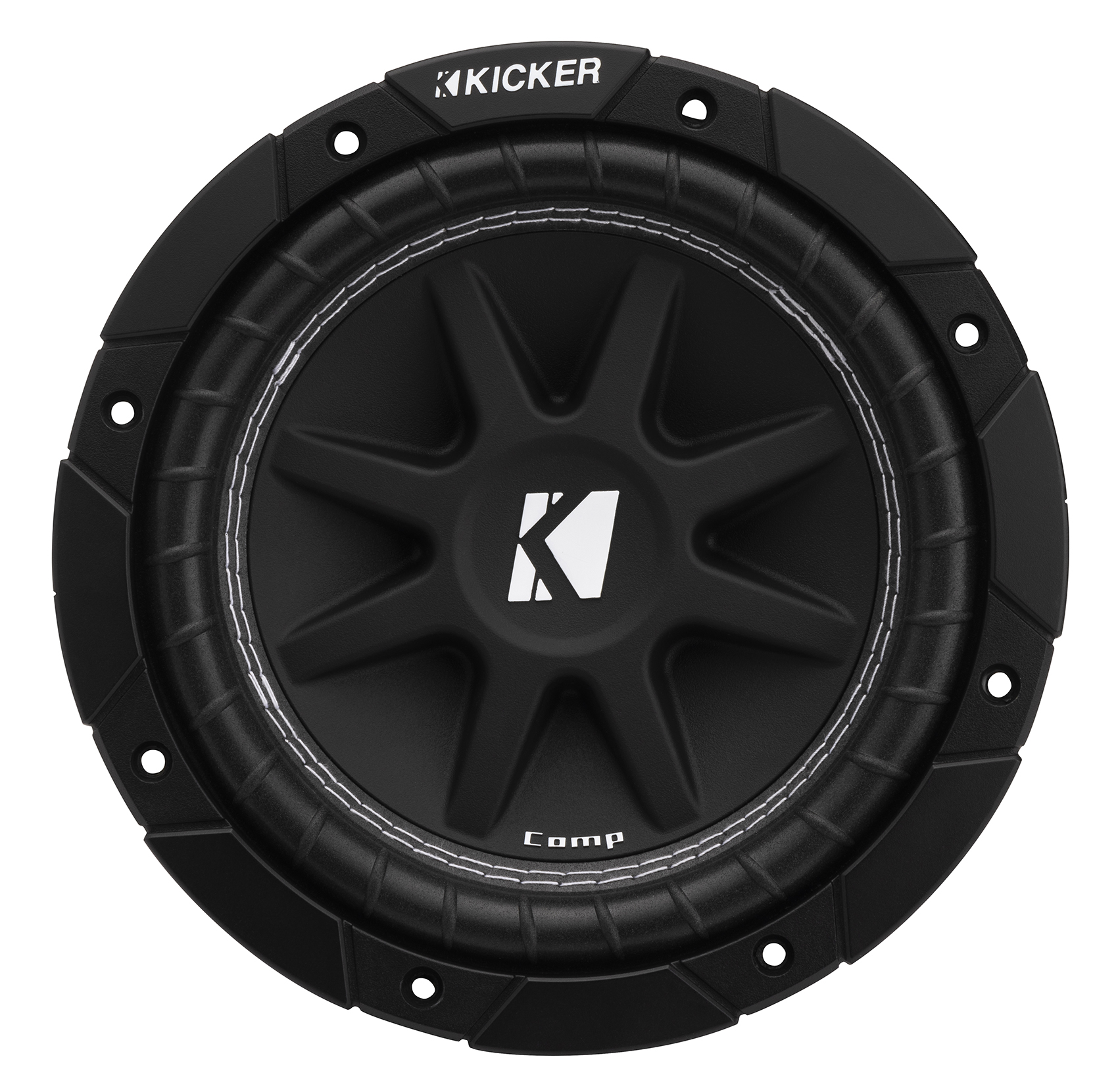

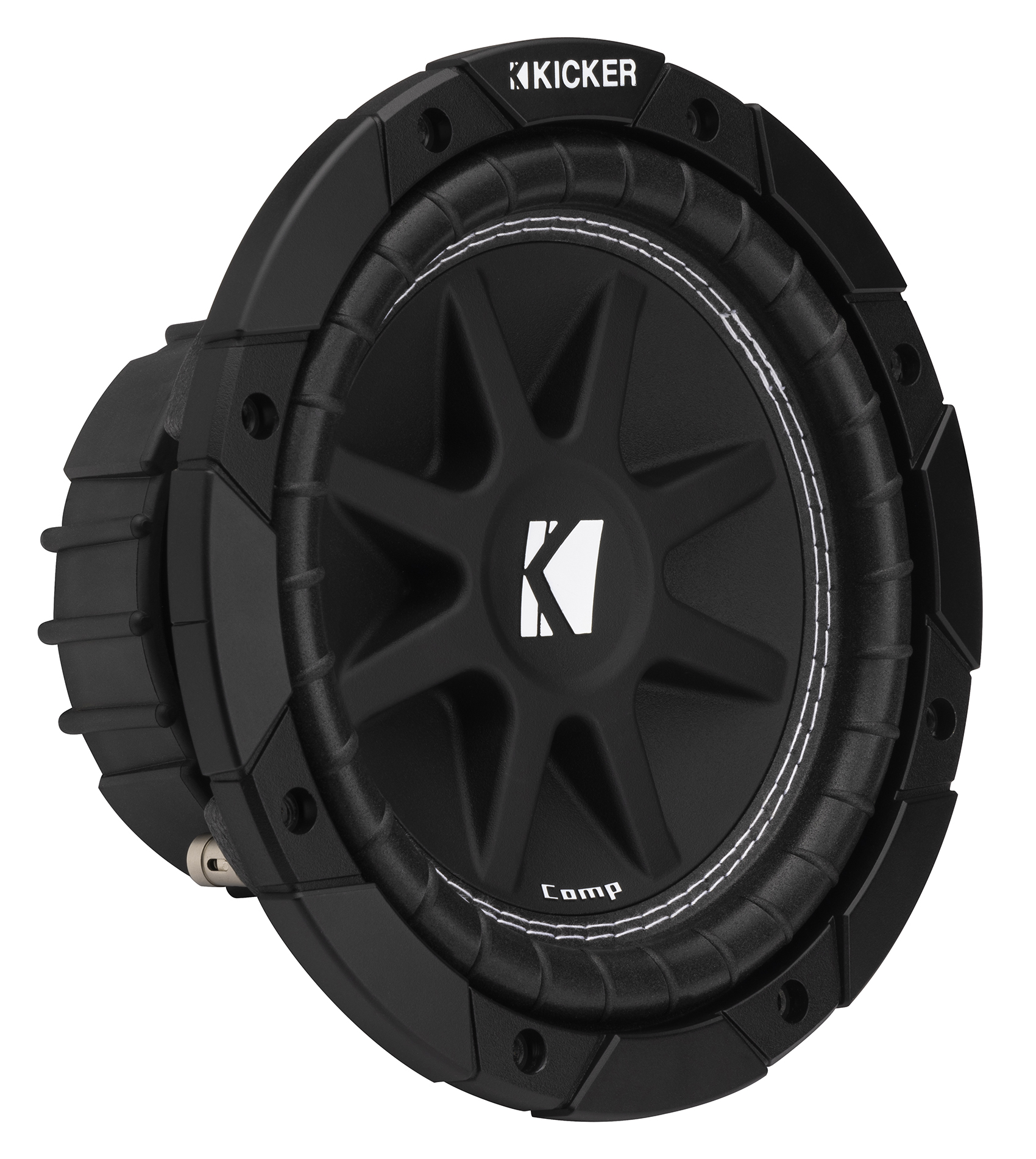

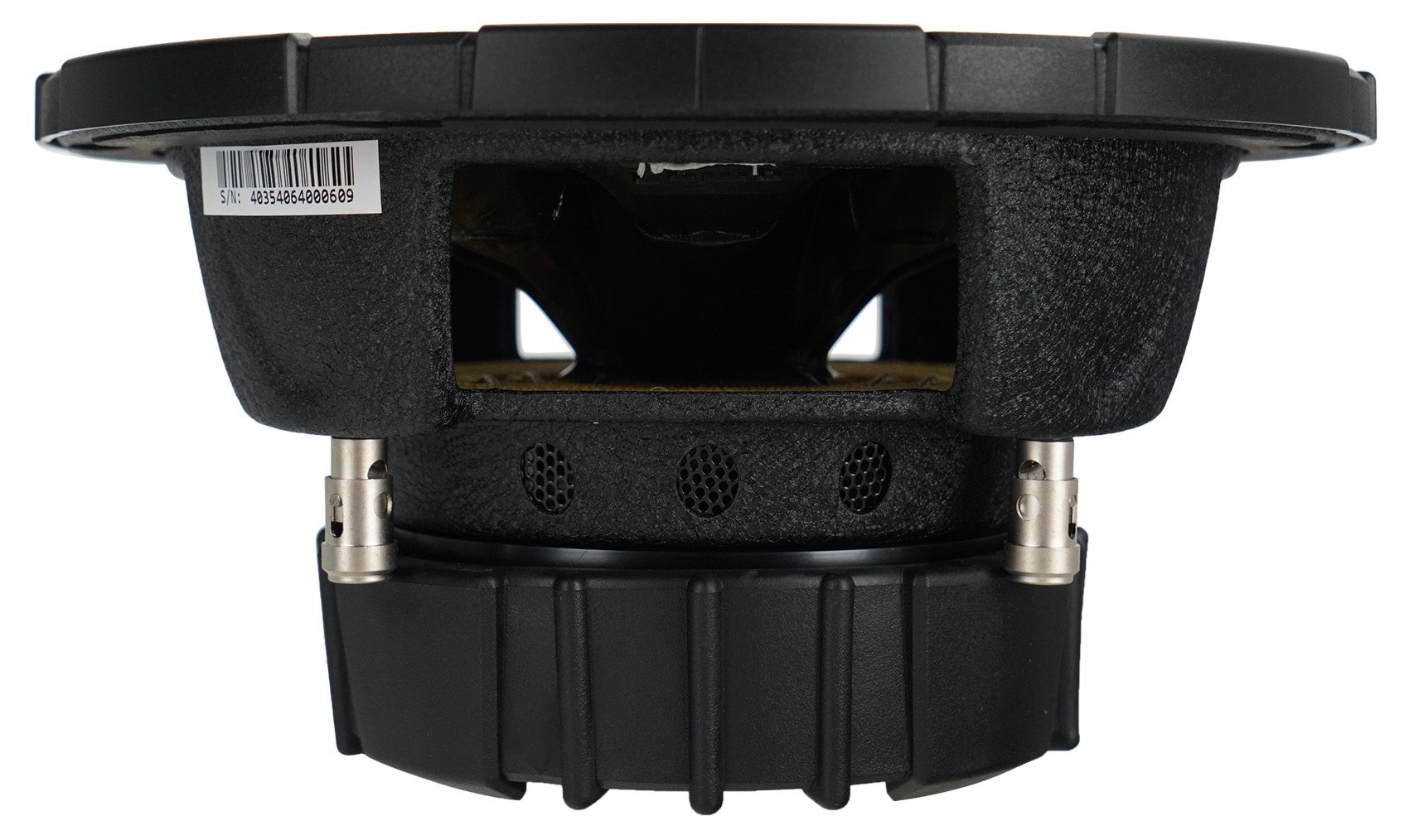

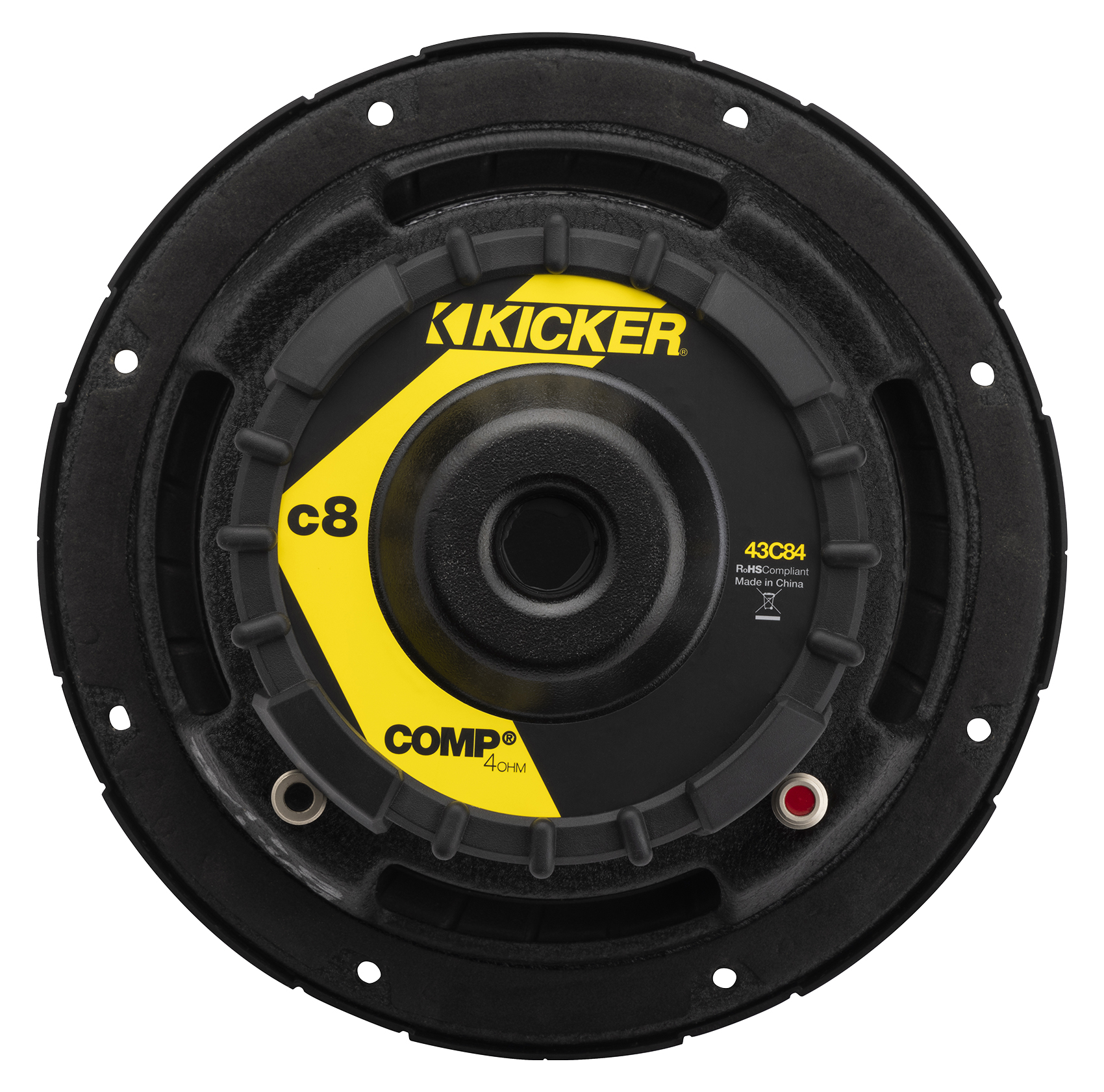

Kicker 43C84 8" 100 Watt RMS Comp Subwoofer 4 Ohm SVC Car Audio Sub C84
Click Thumbnails to Enlarge
Condition and Warranty
Condition: BRAND NEW IN ORIGINAL PACKAGING
Warranty: 1 YEAR MANUFACTURER
Product Description
Description:
Classic KICKER® Comp® Subwoofers give you incredible performance at an outstanding value.
Deep bass. Great value.
The Comp Subwoofers give you deep bass and a great value.

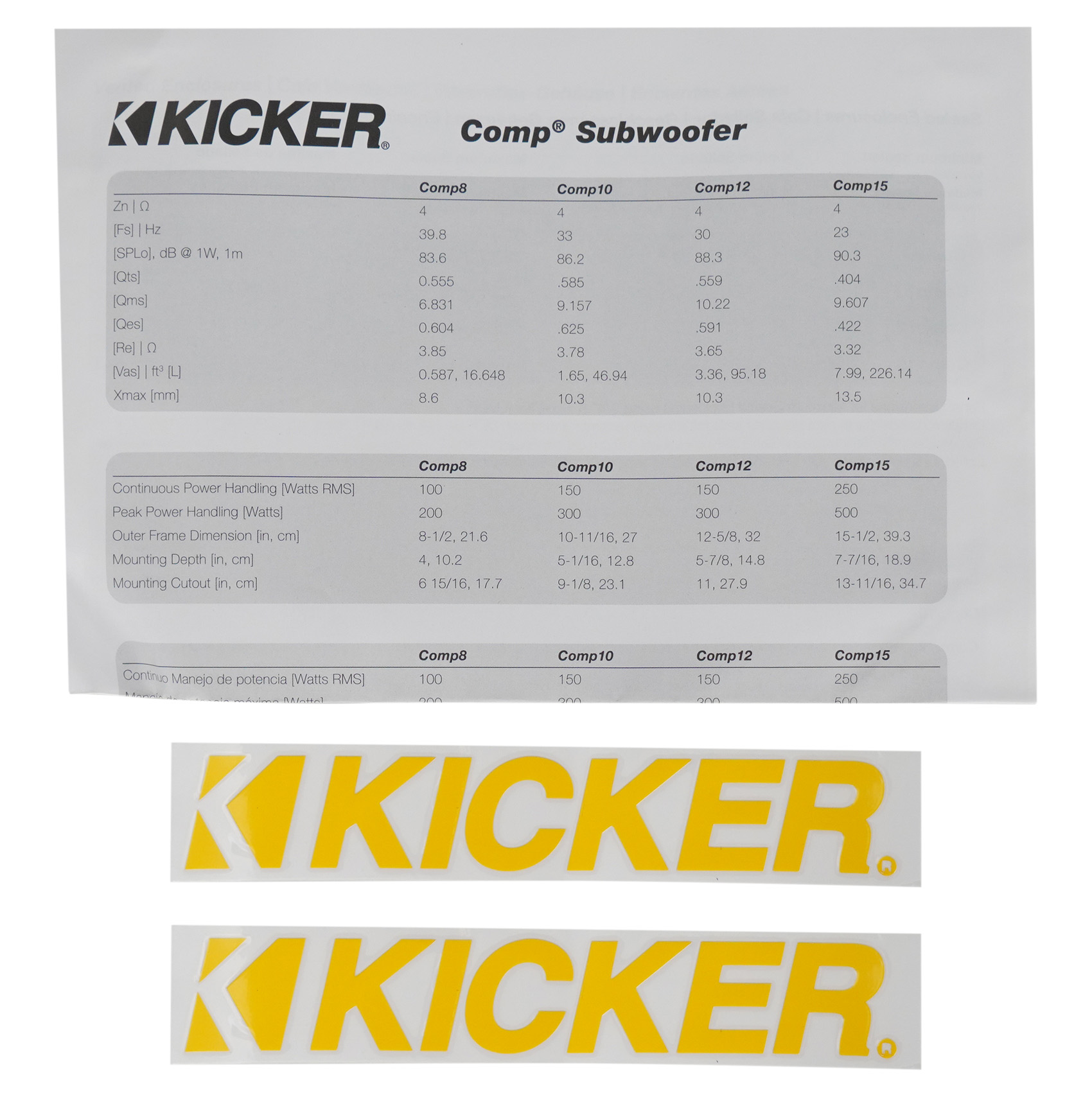

Specifications:
-
CNC Cutout Files
- Comp6.75-15.DXF
- Comp6.75-15.SLDPRT
- Model: Comp8
- Woofer [in, cm]: 8, 20
- Rated Impedance [Ohms]: 4 SVC
- Rec. Amp Power [watts RMS]: 50-100
- Peak Power Handling [watts]: 200
- Frequency Response [Hz]: 30-500
- Sensitivity [dB; 1W, 1m]: 83.6
- Xmax [mm]: 10.8
- Mounting Depth [in, mm]: 4, 10.2
- Min-Max Sealed Box Volume [cu.ft., L]: 0.5-1.2, 14.2-34
- Min-Max Vented Box Volume [cu.ft., L]: 0.66-1.2, 18.7-34
Thiele/Small Parameters:
- Electrical Parameters
| Re | 3.97 | Ohm | electrical voice coil resistance at DC |
| Krm | 0.0018 | Ohm | WRIGHT inductance model |
| Erm | 0.93 | WRIGHT inductance model |
|
| Kxm | 0.0127 | Ohm |
WRIGHT inductance model |
| Exm | 0.81 | WRIGHT inductance model |
|
| Cmes | 588.70 | µF | electrical capacitance representing moving mass |
| Lces | 24.90 |
mH |
electrical inductance representing driver compliance |
| Res | 50.92 | Ohm |
resistance due to mechanical losses |
| fs | 39.8 | Hz |
driver resonance frequency |
- Mechanical Parameters (using laser)
| Mms | 57.954 | g | mechanical mass of driver diaphragm assembly including air load and voice coil |
| Mmd | 54.485 | g | mechanical mass of voice coil and diaphragm without air load |
| Rms | 1.933 | kg/s | mechanical resistance of total-driver losses |
| Cms | 0.253 | mm/N | mechanical compliance of driver suspension |
| Kms | 3.95 | N/mm | mechanical stiffness of driver suspension |
| Bl | 9.922 | Tm | force factor (Bl product) |
- Loss factors
| Qtp | 0.609 | total Q-factor considering all losses |
| Qms |
7.828 | mechanical Q-factor of driver in free air considering Rms only |
| Qes | 0.610 | electrical Q-factor of driver in free air considering Re only |
| Qts | 0.566 | total Q-factor considering Re and Rms only |
- Other Parameters
| Vas | 15.9758 | l | equivalent air volume of suspension |
| n0 | 0.181 | % | reference efficiency (2 pi-radiation using Re) |
| Lm | 84.77 | dB | characteristic sound pressure level (at 1 m for 1 W @ Re) |
| Lnom | 84.81 | dB | nominal sensitivity (SPL at 1 m for 1 W @ Zn) |
| Sd | 211.24 | cm² | diaphragm area |
| Xmax | 10.8 | mm |
