Ultrasonic Thickness Tester Gauge Meter With 0.9-300mm  for Steel Metal Glass


1.Because of the transportation policy, liquid cannot be carried on the plane， so the couplant is not in the package！！！

The couplant can be replaced by detergent, glycerin, petrolatum or medical ultrasonic couplant.


2.This product can only display mm and CAN NOT switch the unit!!!



Specification:
Measuring Range: 0.9-300mm
Display accuracy: 0.1mm
Measurement error "±（0.1+1%H）mm
H is the thickness of the measured object"
Material sound speed 1000-9999m/s
LCD screen: 2.3 inch large color screen display
Calibration function: instrument calibration and sound velocity calibration
Data storage function Each group can store 200 data, a total of 10 groups can store 2000 data
Power display: Yes

Shutdown mode: manual/automatic (automatic shutdown after 5 minutes without operation)
External dimensions of the host: 130mm*70mm*26mm
Power supply Three (No. 7) alkaline batteries(not included)
Working temperature 0℃-50℃
Working humidity: 20%RH—90%RH
Weight: 125g (without probe and battery)

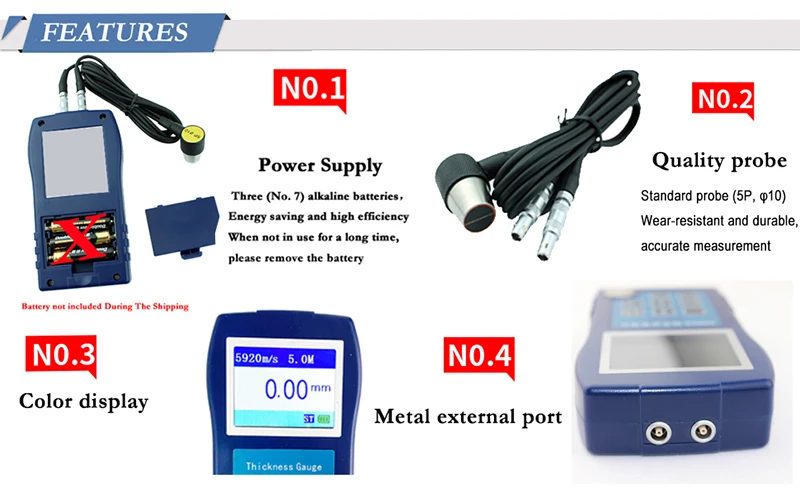

Festures:

*Almost suitable for thickness measurement of all materials, such as: metal, glass, plastic and other materials; The instrument is exquisite, compact and intuitive, with a large 2.3-inch color screen display, convenient to carry, suitable for on-site testing

*Two kinds of manual shutdown and automatic shutdown, users can choose at will; Built-in sound velocity of 7 commonly used materials, which can be edited, which is convenient for users to use;

*Humanized data storage mode: large-capacity storage, and can store data in groups, can store 10 groups of data, each group can store 200 data, can store 2000 data, manual storage is more autonomous, which is beneficial to result analysis; ; Mass storage, viewing, deleting operations, convenient and simple Multi-probes are used together, and high temperature probes can be selected for high temperature environment measurement.





Configuration list:
1: Host 1
2: Standard probe (5P, φ10) 1
3: Calibration piece 1 piece
4: 1 manual
5: ABS instrument bag 1
