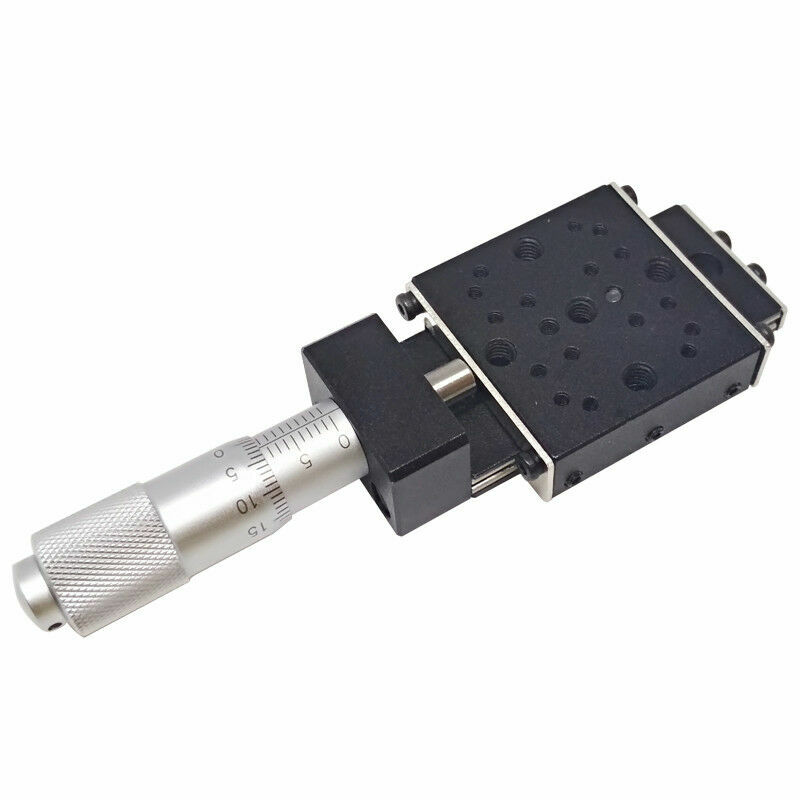

13mm stroke stage 5μ High-Precision manual translation Stage


Descriptions:


Features:
1. Precisely machined pedestal and table top, so that the running straightness, yaw, pitch and motion parallelism of the table are within a certain accuracy range.
2. Displacement adjustment using micrometer drive
3. The micrometer head is placed in the center of the translation stage, which is easy to operate.
4. Spring reset to eliminate axial clearance
5. The mounting hole of the standard hole spacing is distributed on the table top and the base for easy installation and combination.
6. Can be combined with other series of stages to form a multi-dimensional adjustment frame

Specifications：
Type : PP110-13-34
Travel Range: 13mm
Actuator Type: Micrometer Head in Center
Travel Guide: Ball Bearing
Platform: 34mm × 34mm
Parallelism: 30μm
Straightness: 20μm
Driving Parallelism:30μm
Minimum Scale: 10μm
Positional Accuracy: 5μm
Minimum Adjust Distance: 2μm
Pitching: 80”
Yawing: 60″
Material – Finish: Aluminum Alloy - Black-Anodized
Load capacity: 2Kgs
Weight: 0.07kgs

Package include：
1x A set of Linear Stage
