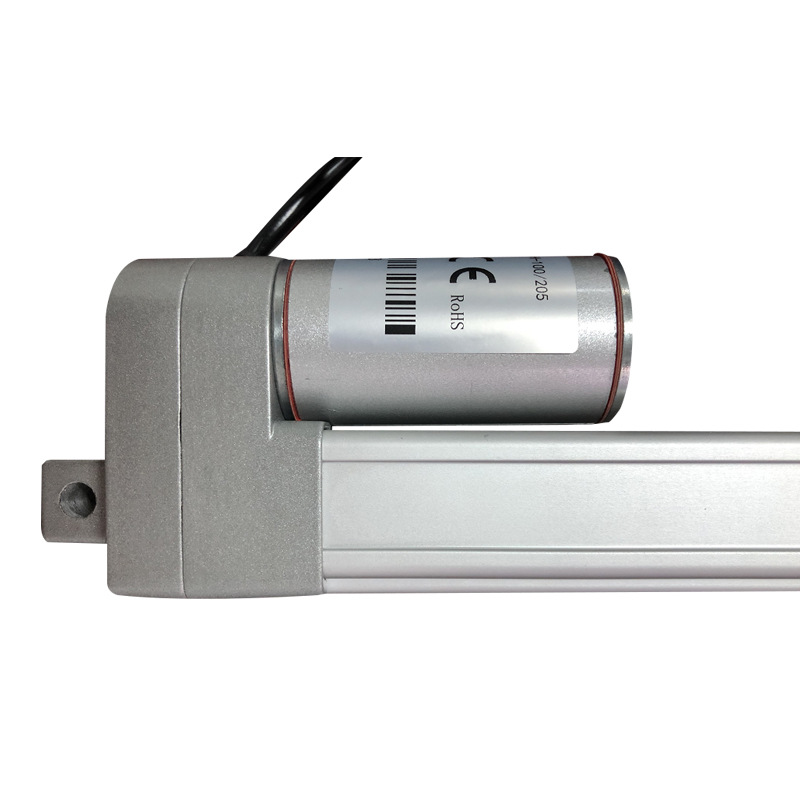

Linear Actuator 12V Heavy Duty Stroke 2-24" 300N 66lbs Max Fast Speed 1.77"/s

Product Description

Features:

  • Heavy Duty - The alloy-steel shaft accompanied by metal gears allows it to push and pull up to 440 lbs.It will be great to use the actuator with our controller, which helps to control your actuactor to Forward & Reverse.
  • Features - Aluminum alloy housing, IP54 rated protection sealed against dust, water, and corrosion suitable for outdoors use. Internal limit switch, automatically switch off when it reaches in case of the motor idling.
  • Quiet & Comfortable - move at 10mm/s, silent and stable, make sound lower than 50db, suit for hospital and massage. Built-in safety lock, stop at any position in the stroke.
  • Safe - over current protection, overload protection, over-voltage protection, over-discharge protection, short circuit protection, shock protection.
  • Quality Assurance - We have manufactured actuators for years, through multiple technical testings, CE certificate. We have a professional and experienced technicians team to service you.

    • Specifications:

    How to install the actuator?

    1.Prepare to connect the two wires of the actuator to a 12 volt battery

    2.Red wire to the positive terminal and Black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.

    3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch.

    4.Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.

    5.The actuator has pre-installed inner limit switch, it cannot

     How to protect your actuator?

    • Please use the 12V DC power adapter.
    • The actual load does not exceed the rated load.
    • All the actuators have duty cycle, they are unable to work all the time without stop.
    • The actuator is not completely waterproof, please do not directly immerse in water.




    Package Included:

    1× Linear Actuator Motor

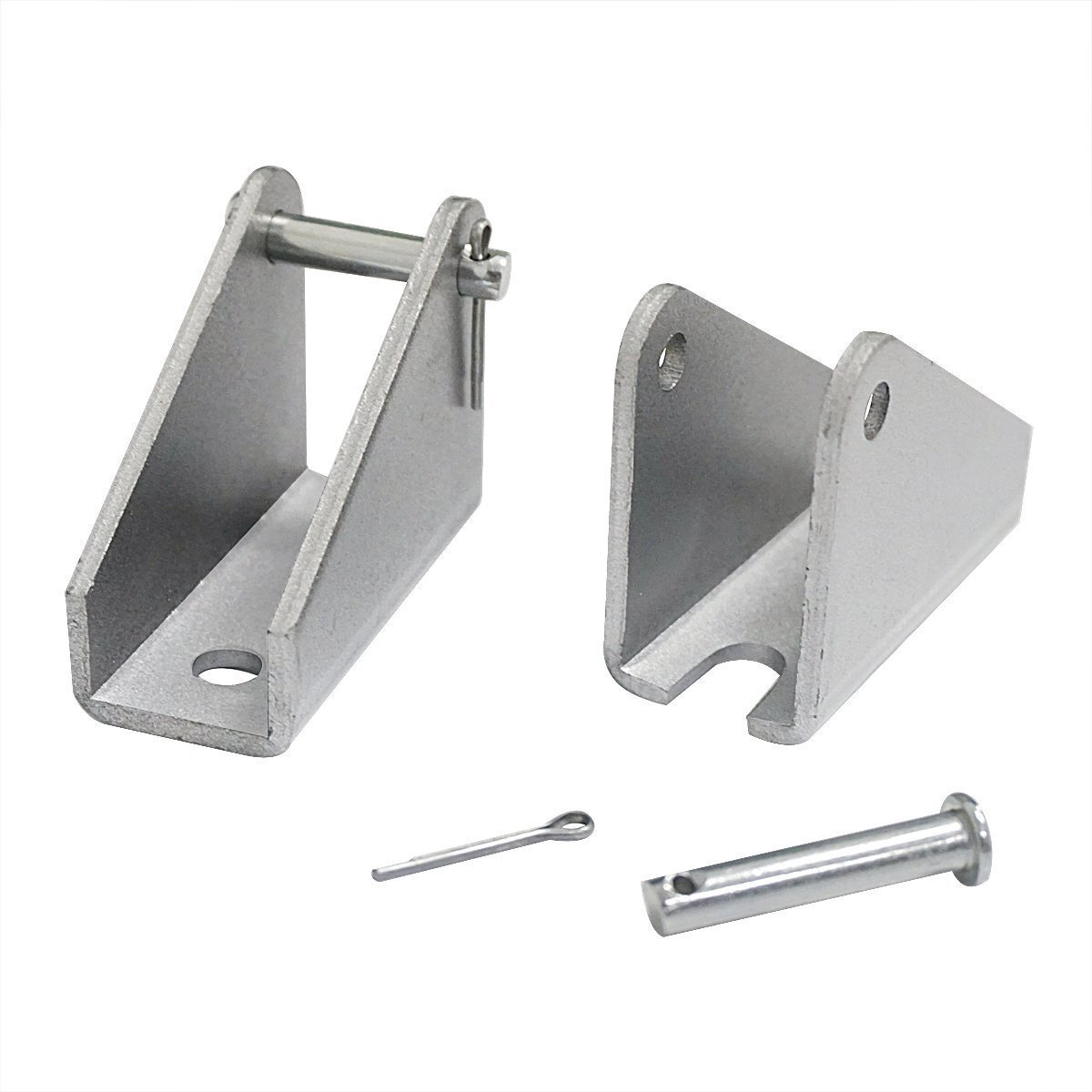

    2×Mounting Bracket

    1x Remote controller（Optional you need add this remote controller to your cart the place order togther）
