Warning

1: This product will not work in a Bafang or TSDZ mid motor.

2: It needs to be in a 36V or 48V battery to work properly.

3: This product needs to be connected to the same battery as the controller, otherwise the brake function cannot be activated.

4: Connecting the brake requires the controller to be a low brake.

Work status description:

Driving lights: When the switch of driving lights is turned on, the headlights and tail lights are on

Horn: When the horn button is pressed, the horn starts to work, release it to cancel

Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled.

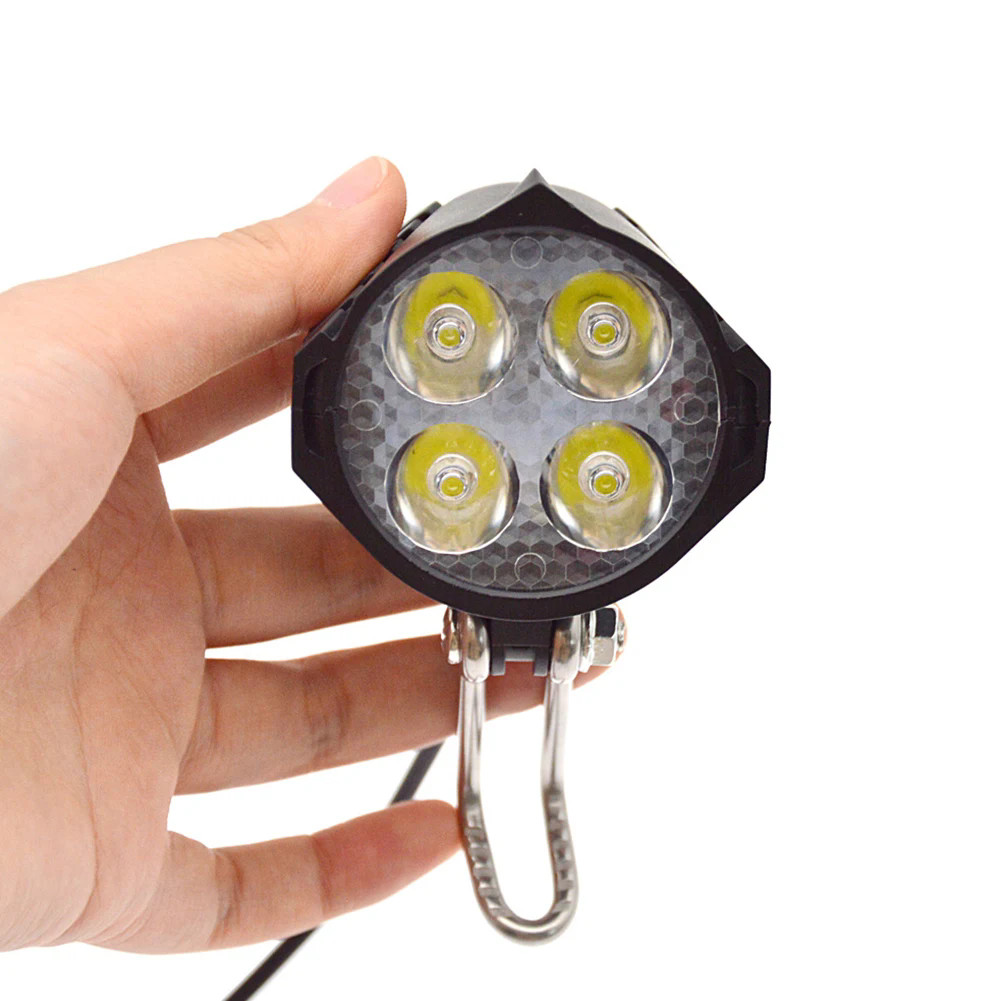

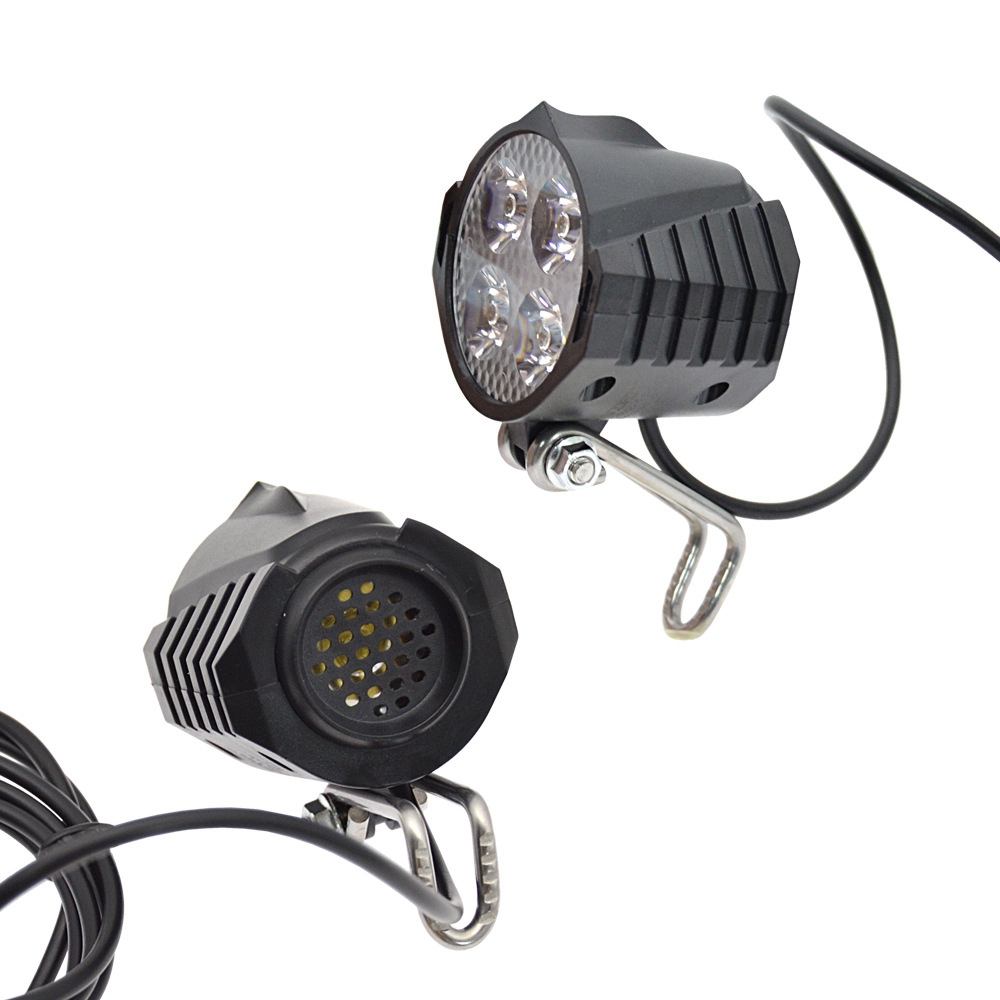

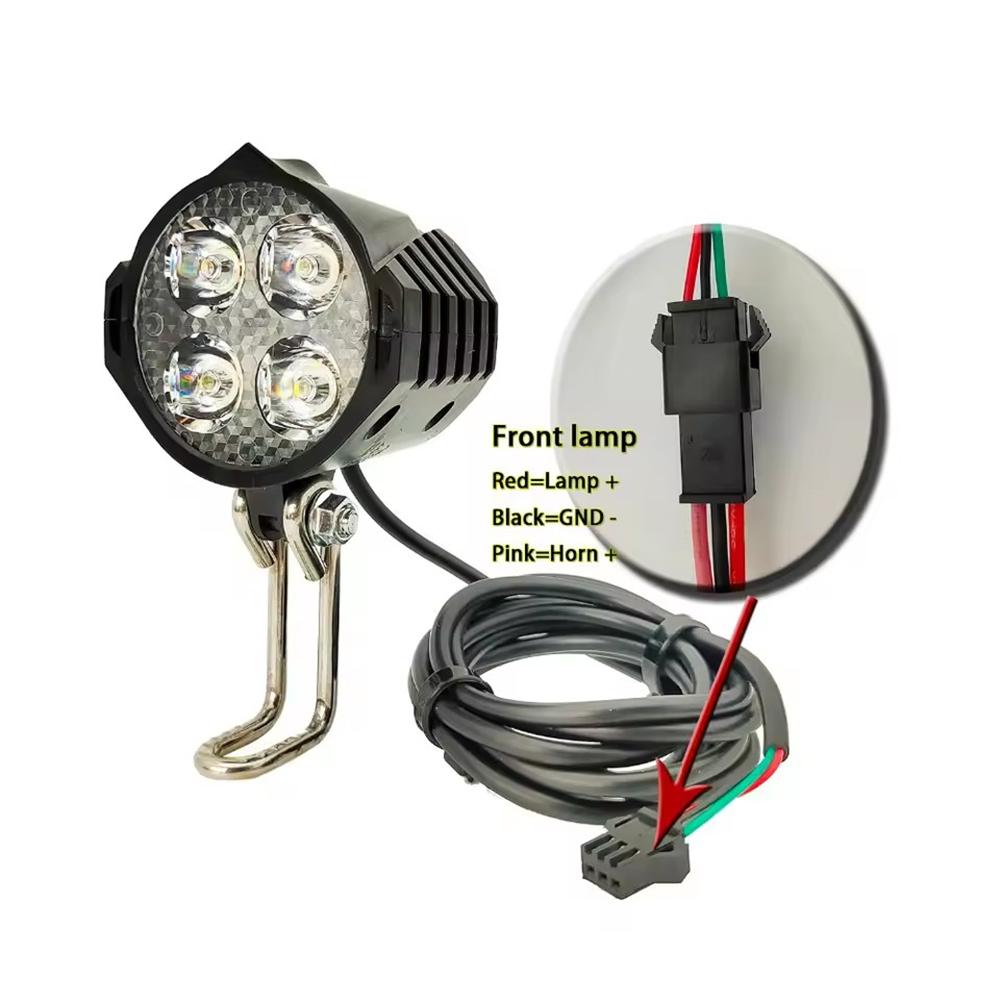

E-bike LED Headlights with Horn Function

Specification:

Product name：Two-in-one LED lights for headlights and horns

Out line: three-core wire

Material: ABS + LED

Weight: 104g

Wire length: 1500mm

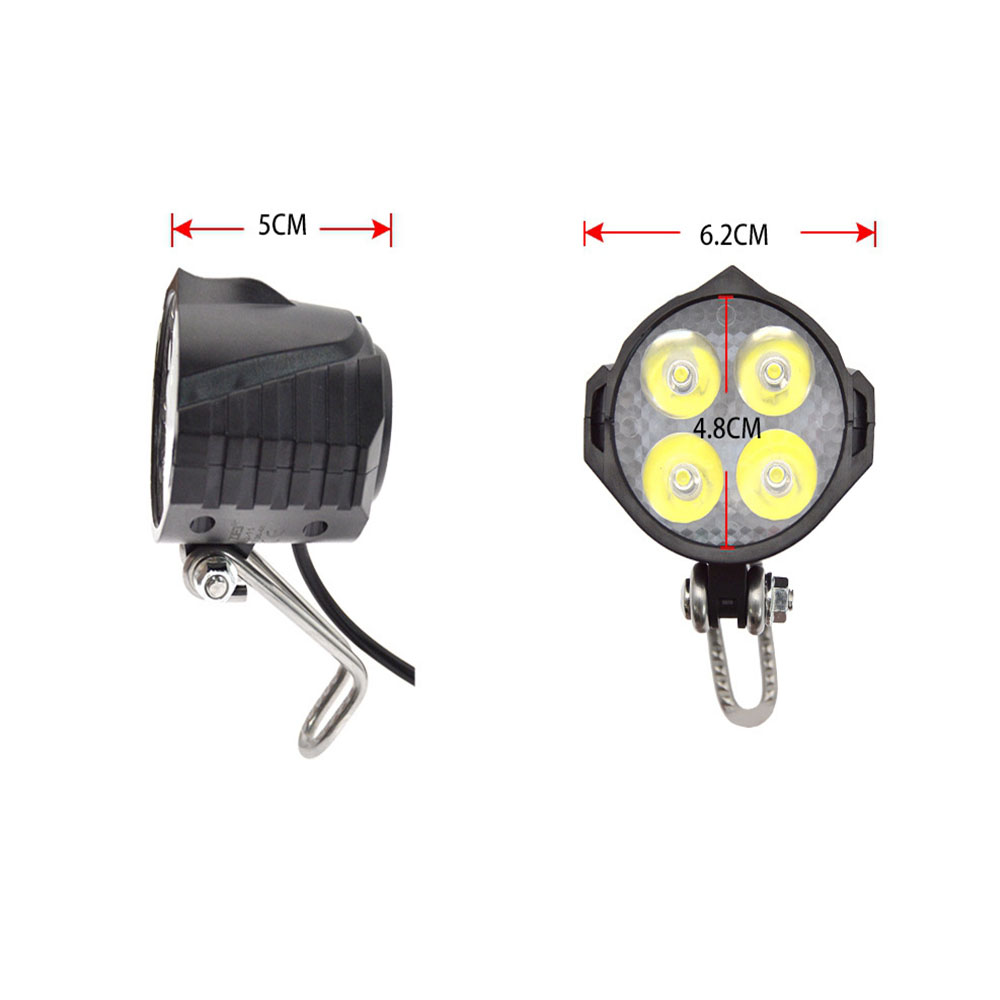

Size: As shown

Function: Headlight, horn

Horn DB: 80-100dB

Voltage: 12v-80v general

Number of lamp beads: 4 LED

Power: 12W

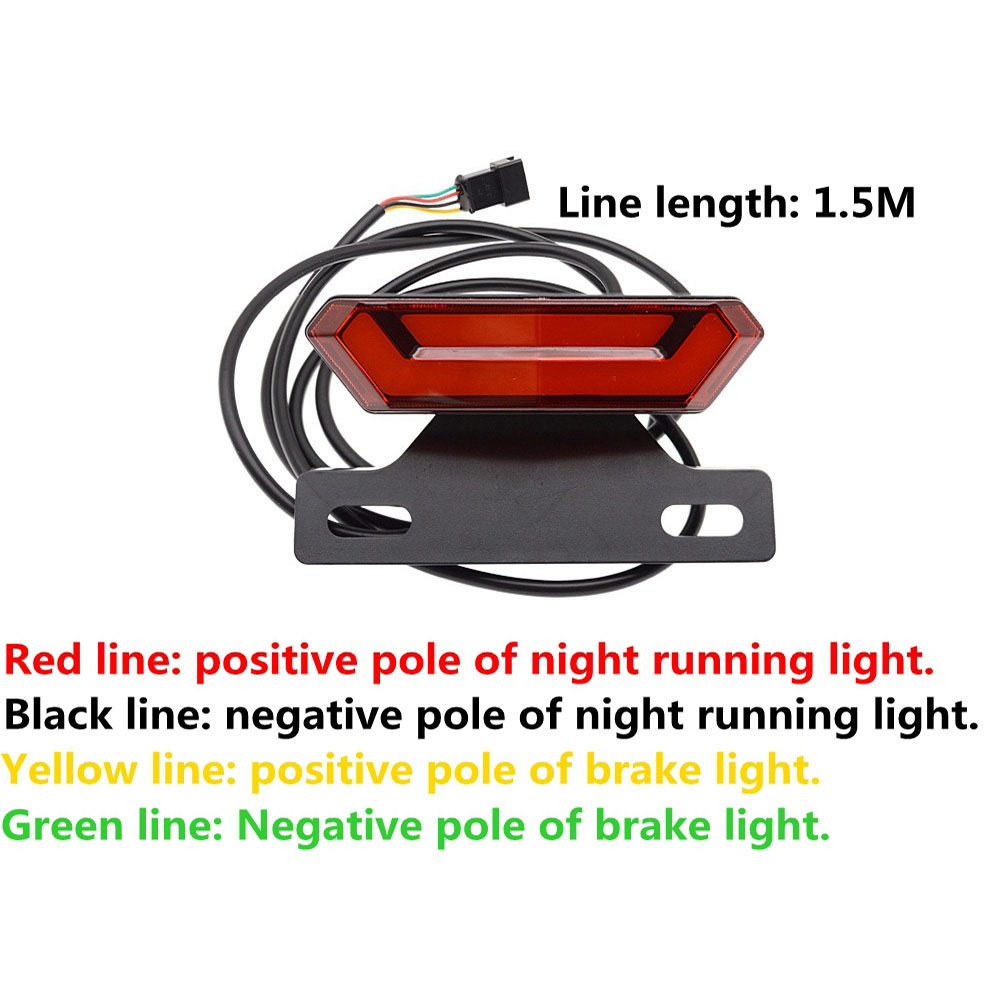

E-bike Multifunctional tail light

Specification:

Product Name：Multifunctional bicycle tail light

Outlet wire: Four core

Applicable to voltage: 24V-48V

Weight: 92g

Wire length: 1500mm

Material: ABS+LED

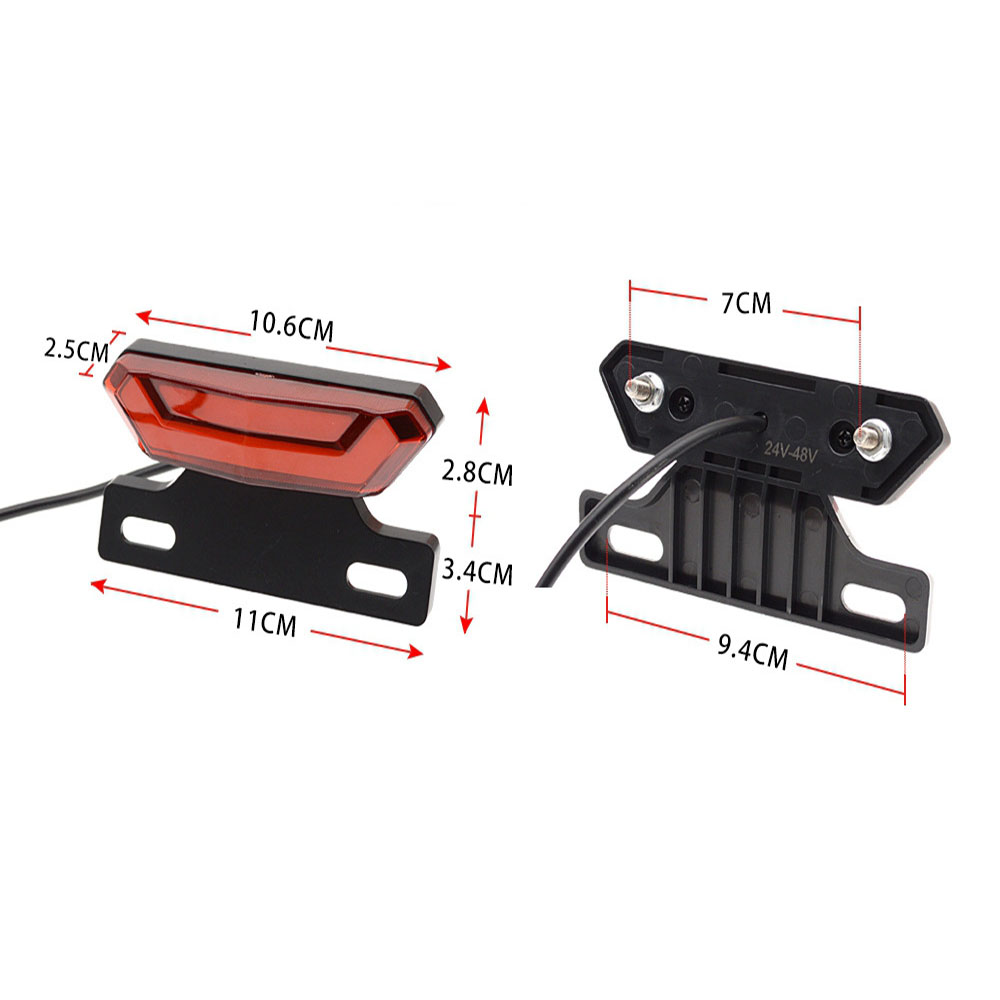

Size: As shown

Luminous flux: 15LM

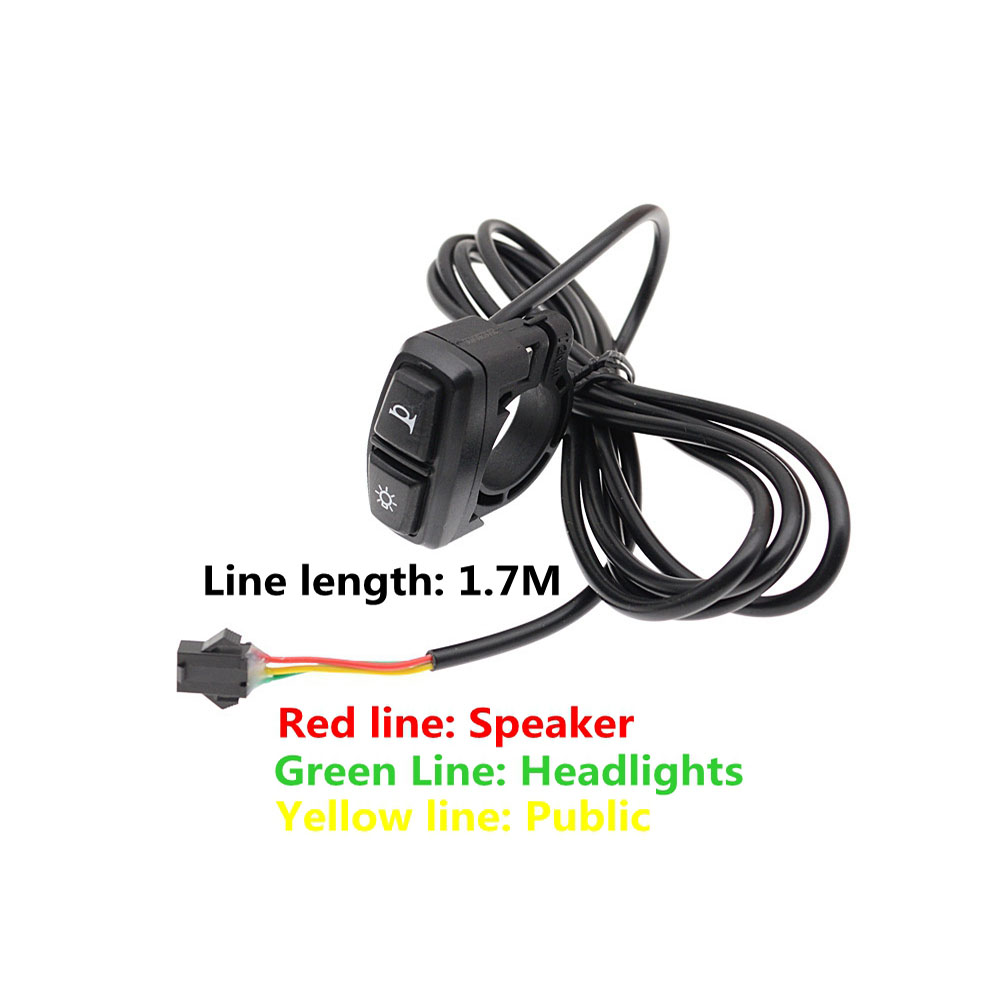

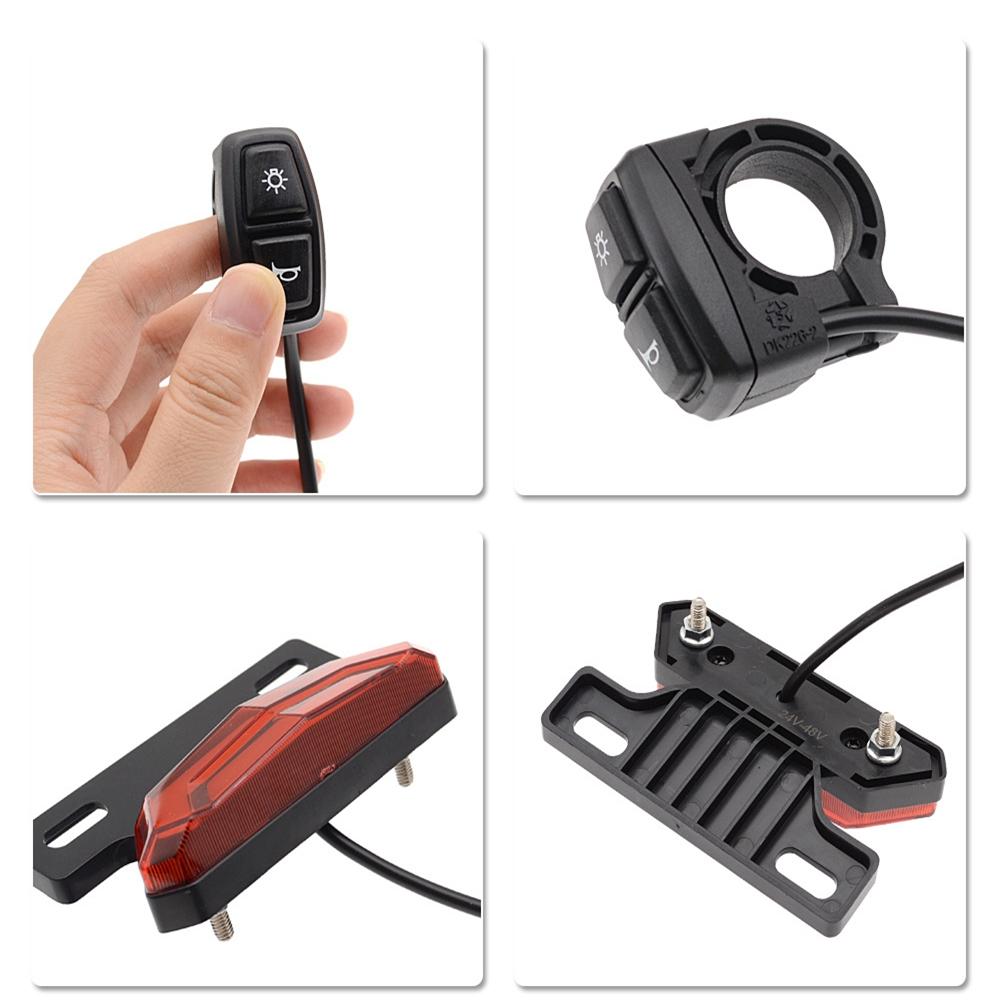

Switch button

Specification:

1. Handlebar size: 22mm

2. Product size: As shown in the figure

3. Waterproof: IP65

4. Function: Control headlights and speakers

5. Cable length: 1.7m

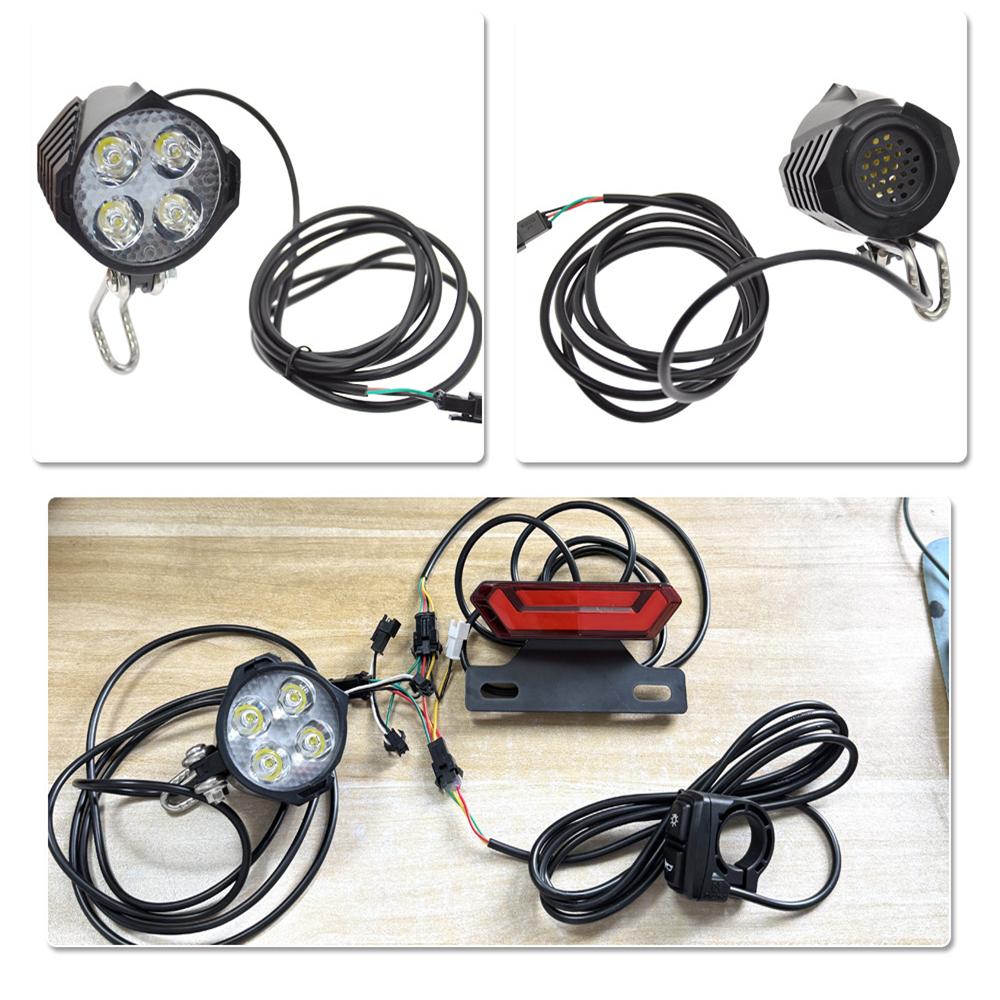

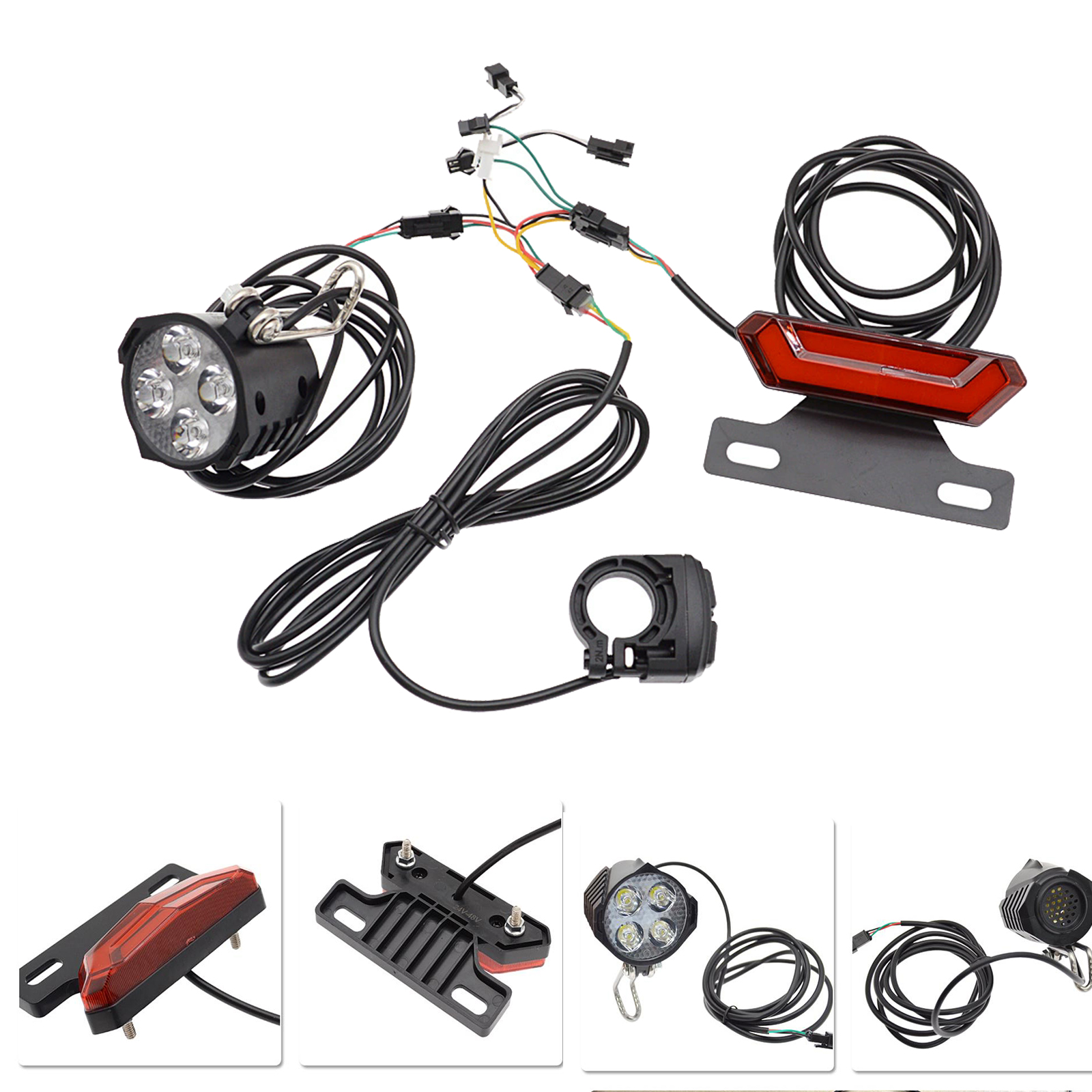

Package includes:

1*1set E-bike Light Kit
