Fit For :  Universal

Universal-Suitable for most cars, may requires additional accessories to meet the needs of the particular application. Please ensure enough space for installation.

ItemSpecifics:

Type: 16-Row Oil Cooler Kit
Material: Aluminum
Style: English Style
Oil Cooler Inlet/Outlet Size: AN-10
Corner Brace Thickness: 3mm
Fitting Adapters: 2*AN10 Female to AN8 Male; 2*AN10 Female to AN6 Male
Oil capacity:0.35L
Test pressure:0.7-0.8Mpa≈101-116psi
Burst pressure:1.7Mpa≈246psi

Package Includes:

1*16-Row Oil Cooler
2*AN10 Female to AN8 Male fitting adapters
2*AN10 Female to AN6 Male fitting adapters
1*Air Guide Kit
1*Corner Brace Kit
(As Shown in the Picture)

Feature:

1. The oil cooler is made of high quality aluminum, and it is powder-coated and oxidized which can protect the product and be more durable.
2. This oil cooler kit is efficient to cool the oil temperature, and it can keep the oil at a suitable operating temperature to improve engine performance. It can also help to prolong the life of oil and the internal engine components.

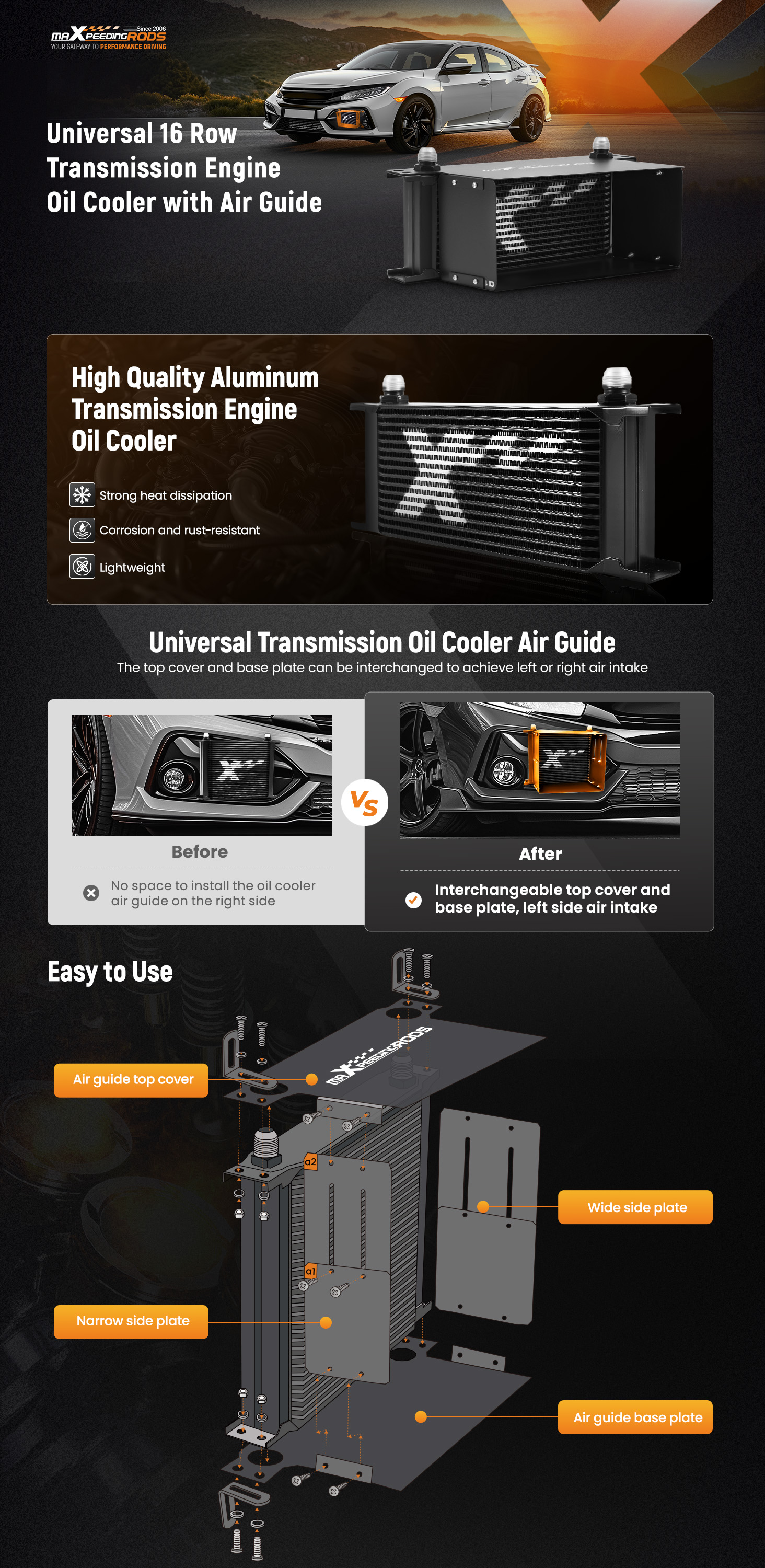

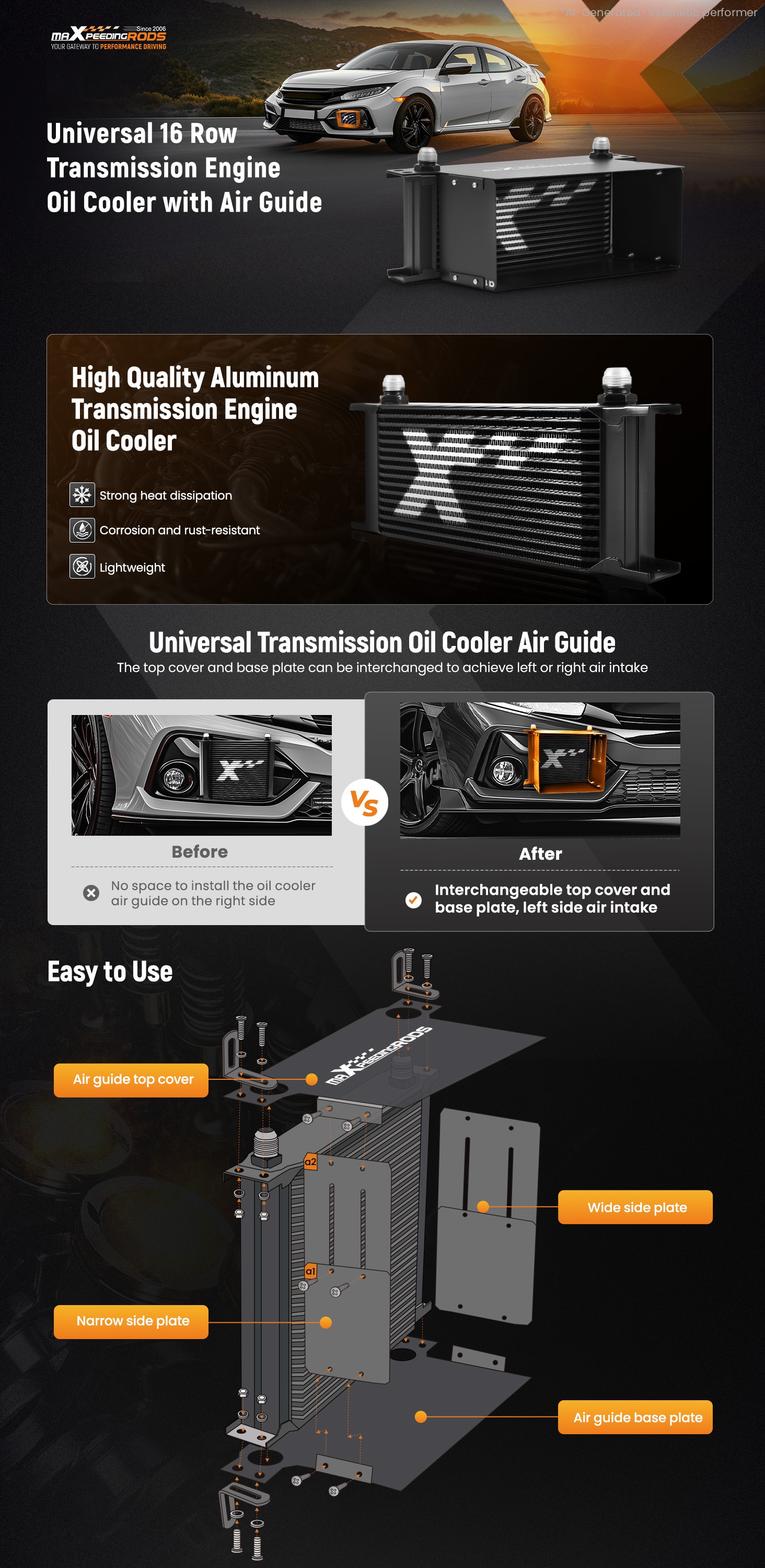

3. The oil cooler kit includes a air guide kit, which can  make the contact area between the air and the oil cooler greater. Thus it can reduce the oil temperature more effectively.
4. The air guide kit’s top cover and base plate can be interchanged to achieve either a left-facing or right-facing air intake. You can choose the orientation based on the vehicle's installation position.
5. This oil cooler kit also includes 4 corner braces and other accessories which make the installation more secure.

Notice:

1. Preparation Before Installation: ①Fill the oil cooler with oil. ②Completely fill until all air is evacuated. ③Attach the oil cooler hoses. ④Fill the oil cooler hoses with appropriate oil.
2. This is a universal oil cooler kit. Just measure the size of the space before buying to ensure that it can be installed, and then you can choose the right size according to your cooling efficiency needs.
3. Professional Installation is Highly Recommended.
4. The item description was measured by hand, it could have 1-2 inches deviation.All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
