Galvanised Wire Rope Clamps DIN 741 U-Bolt Cable Clips Rigging Hardware 3-14mm
Our Galvanised Wire Rope Clamps lock a loop of wire rope back onto itself, giving you a secure eye at the end of the rope with nothing more than a spanner.
This listing covers eight sizes for 3mm to 14mm rope, U-bolt threads M4 to M10, in packs of 2, 4 or 10, so you can order the quantity the job needs.
Made to DIN 741
U-bolt, saddle and nuts matched for each rope size.
Zinc coating
For corrosion resistance.
Constructional steel and cast iron
High-strength materials, resistant to damage.
Simple bolt-up fitting
Two nuts, no swaging or crimping tools needed.
Adjustable and re-tightenable
For secure, durable clamping.
Eight sizes for 3mm to 14mm rope
U-bolt threads M4 to M10, in packs of 2, 4 or 10.
Technical Specification
You may also know them as wire rope clips, cable clamps or U-bolt cable clips, and whichever name you use (wire rope clip, rope clamp or cable clamp), the fitting is the same.
Every clamp is made to DIN 741, so the U-bolt, saddle and nuts are dimensioned as a matched set for each rope size. They are made from constructional steel and cast iron, high-strength materials that resist damage, with a zinc coating for corrosion resistance. Because the joint is bolted rather than crimped, there are no swaging or crimping tools to buy, and the nuts can be loosened to adjust the rope tension, then checked and re-tightened.
Key Features
- Made to DIN 741: U-bolt, saddle and nuts matched for each rope size
- Zinc coating for corrosion resistance
- Constructional steel and cast iron, resistant to damage
- Simple bolt-up fitting with two nuts, no swaging or crimping tools needed
- Adjustable and re-tightenable for secure, durable clamping
- Eight sizes for 3mm to 14mm rope, U-bolt threads M4 to M10
- Packs of 2, 4 or 10
Size guide
| For rope | U-bolt thread | Length (L) |
| 3mm (0.12in) | M4 | 21mm (0.83in) |
| 5mm (0.20in) | M5 | 23mm (0.91in) |
| 6mm (0.24in) | M5 | 26mm (1.02in) |
| 8mm (0.31in) | M6 | 30mm (1.18in) |
| 10mm (0.39in) | M8 | 34mm (1.34in) |
| 11mm (0.43in) | M8 | 36mm (1.42in) |
| 13mm (0.51in) | M10 | 42mm (1.65in) |
| 14mm (0.55in) | M10 | 44mm (1.73in) |
Match the clamp to the rope: choose the size for your rope diameter, and the U-bolt thread and length L follow from it.
Typical Applications
- Rigging: clamped loop terminations.
- Fencing and balustrades: anchoring tensioned wire runs.
- Agricultural fencing: securing and tensioning wire runs.
- Workshop, garden and yard: finishing a wire rope end.
- Construction: securing and tensioning ropes on structures.
- Transport: securing loads on trailers.
Fitting & Installation Guidance

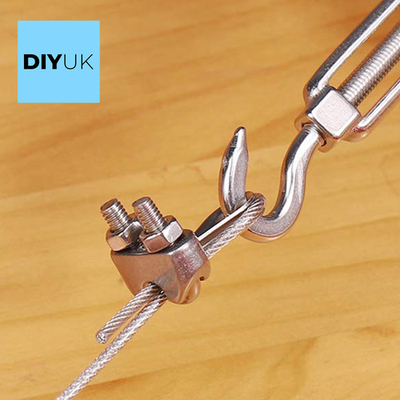

How It Works: Each clamp is formed from a U-bolt, a grooved saddle plate and two nuts; tightening the nuts draws the saddle down onto the rope, pinching the standing and dead ends of the rope together to hold the loop closed.
This type of termination is typically formed around a thimble (sold separately), which sits inside the loop to protect the rope from sharp bending and keep the loop shape true.
