PVC Coated Galvanised Steel Wire Rope Metal Cable Clothesline 3-8mm by the Metre
PVC coated galvanised steel wire rope with protection against corrosion and wear. Five diameters from 3mm to 8mm, sold by the metre, 1m to 100m.
This listing covers 3mm, 4mm, 5mm, 6mm or 8mm diameters, each cut to 1, 3, 5, 10, 30, 50, 75 or 100 metres, so you can order exactly the length the job needs.
PVC coated steel wire rope
Galvanised steel wire rope with a PVC coating that protects it from corrosion and wear in various weather conditions.
Declared breaking load
Declared minimum breaking load 5.39 kN on 4mm and 9.59 kN on 5mm and 6mm, with working loads of 1.35 kN and 2.4 kN.
Wire rope by the metre
Five diameters from 3mm to 8mm, cut to length: 1, 3, 5, 10, 30, 50, 75 or 100 metres.

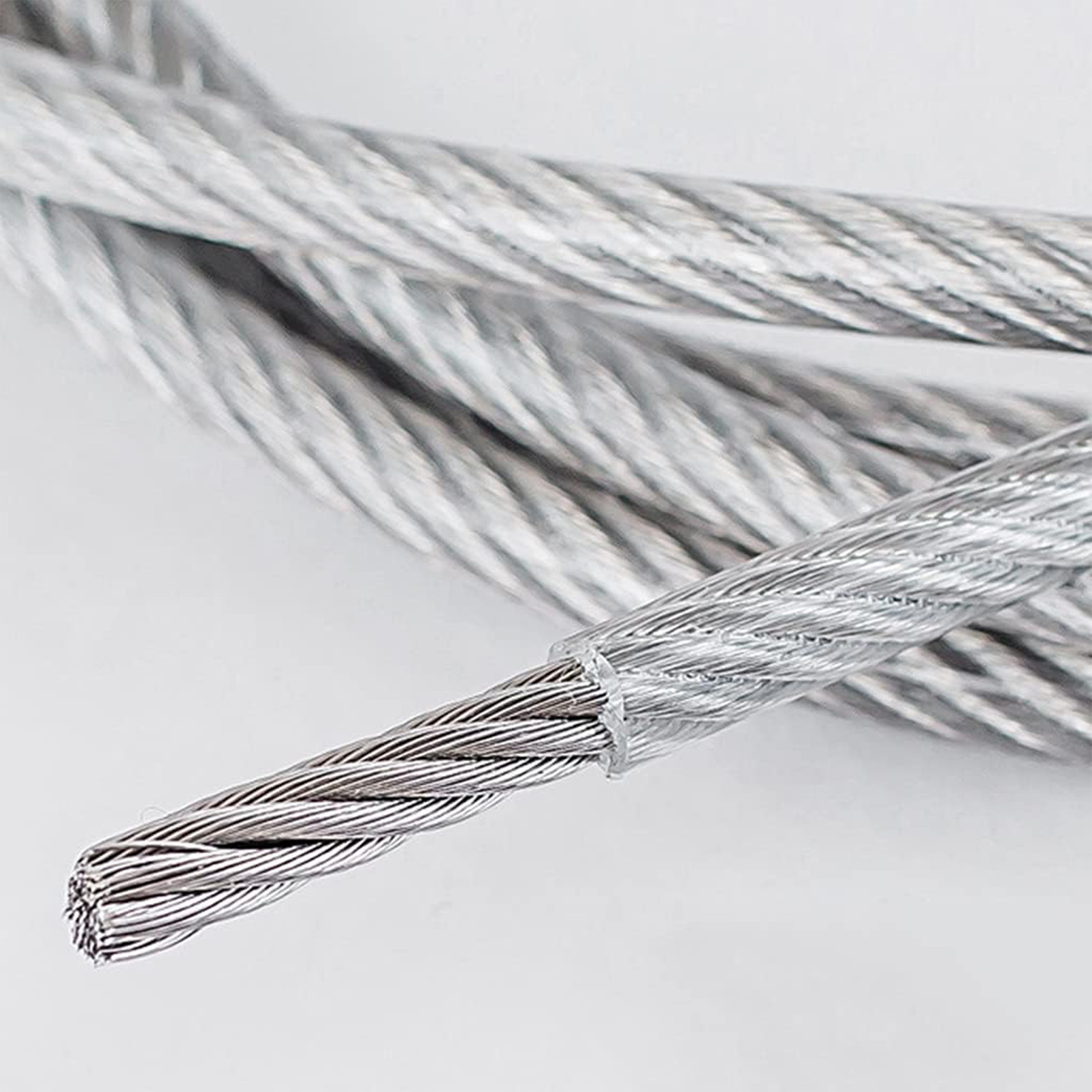

Steel core plus PVC layer
Steel core plus PVC layer on every diameter; 6x7 fibre core (FC) construction to DIN 3055 on 4mm, 5mm and 6mm.
Smooth plastic coated wire
Smooth PVC surface that is easier on the hands than bare wire and does not scratch the surfaces it rests against.
Technical Specification
Our PVC Coated Galvanised Steel Wire Rope combines the strength of a steel rope with extra protection against corrosion and mechanical damage. The galvanised steel rope carries a PVC coating that protects it from corrosion and wear in various weather conditions, and PVC coated galvanised steel ropes are known for their longevity and durability.
Choose from five diameters, from 3mm (0.12in) to 8mm (0.31in), cut to length: 1, 3, 5, 10, 30, 50, 75 or 100 metres. Flexible and weatherproof, it is cut to the length you need. Each diameter is a steel core plus its PVC layer, and the smooth, non-abrasive PVC surface is easier on the hands than bare wire and does not scratch the surfaces it rests against.
Key Features
- Galvanised steel wire rope with a PVC coating that protects the rope from corrosion and wear
- The strength of a steel rope with extra protection against corrosion and mechanical damage
- Declared minimum breaking load and working load: 4mm 5.39 kN / 1.35 kN; 5mm and 6mm 9.59 kN / 2.4 kN
- Steel core and PVC layer listed for every diameter: 3mm (2.0 + 1.0), 4mm (3.0 + 1.0), 5mm (4.0 + 1.0), 6mm (4.0 + 2.0), 8mm (6.0 + 2.0)
- Five diameters from 3mm to 8mm, cut to 1, 3, 5, 10, 30, 50, 75 or 100 metres
- 6x7 fibre core (FC) construction to DIN 3055 on 4mm, 5mm and 6mm
- Protection against corrosion in various weather conditions, known for longevity and durability
- Smooth PVC surface that is easier on the hands than bare wire and does not scratch the surfaces it rests against
Specification
Rope diameter = steel core + PVC coating.
| Rope diameter | Steel core | PVC layer |
| 3mm (0.12in) | 2mm (0.08in) | 1mm (0.04in) |
| 4mm (0.16in) | 3mm (0.12in) | 1mm (0.04in) |
| 5mm (0.20in) | 4mm (0.16in) | 1mm (0.04in) |
| 6mm (0.24in) | 4mm (0.16in) | 2mm (0.08in) |
| 8mm (0.31in) | 6mm (0.24in) | 2mm (0.08in) |
Material: galvanised steel with a zinc coating; PVC outer coating
Sold: by the metre, in the cut lengths below
| Length (metric) | Length (imperial) |
| 1m | 3.3ft |
| 3m | 9.8ft |
| 5m | 16.4ft |
| 10m | 32.8ft |
| 30m | 98.4ft |
| 50m | 164ft |
| 75m | 246ft |
| 100m | 328ft |
Load Data
Figures are the manufacturer's declared minimum breaking load and working load for each diameter with a declared construction.
| Rope diameter | Construction | Minimum breaking load (kN) | Working load (kN) |
| 4mm | 6x7 + FC, DIN 3055 | 5.39 | 1.35 |
| 5mm | 6x7 + FC, DIN 3055 | 9.59 | 2.4 |
| 6mm | 6x7 + FC, DIN 3055 | 9.59 | 2.4 |
FC means a fibre core.
Working loads are the manufacturer's figures at a 4:1 safety factor; apply the safety factor your application requires.
Typical Applications
- Construction sites: lifting and securing construction elements and pulling tools.
- Workshops and industry: lifting, securing and transporting loads.
- Sailing and boats: sheets, ladders, anchor ropes and steering lines.
- Agriculture: tractors, farm machinery, tying and securing loads.
- Fishing: fishing and making fishing rods.
- DIY projects: various DIY projects and general use.
- Washing lines: clotheslines, with the PVC coating keeping washing clear of bare wire.
- Tying down: securing and tying down loads for transport and storage.
- Garden rigging: trellis, plant supports and fencing wire runs.
Fitting & Installation Guidance
Seal or tape the cut ends first, then cut through the rope: this stops the strands underneath unravelling once the coating is cut.
