Rear Drop System for Chevrolet S10 GMC S15 Sonoma RWD 1982-2004 Shock Kit



Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

maXpeedingrods G1 Shock
Specification

Product type: lowering shock

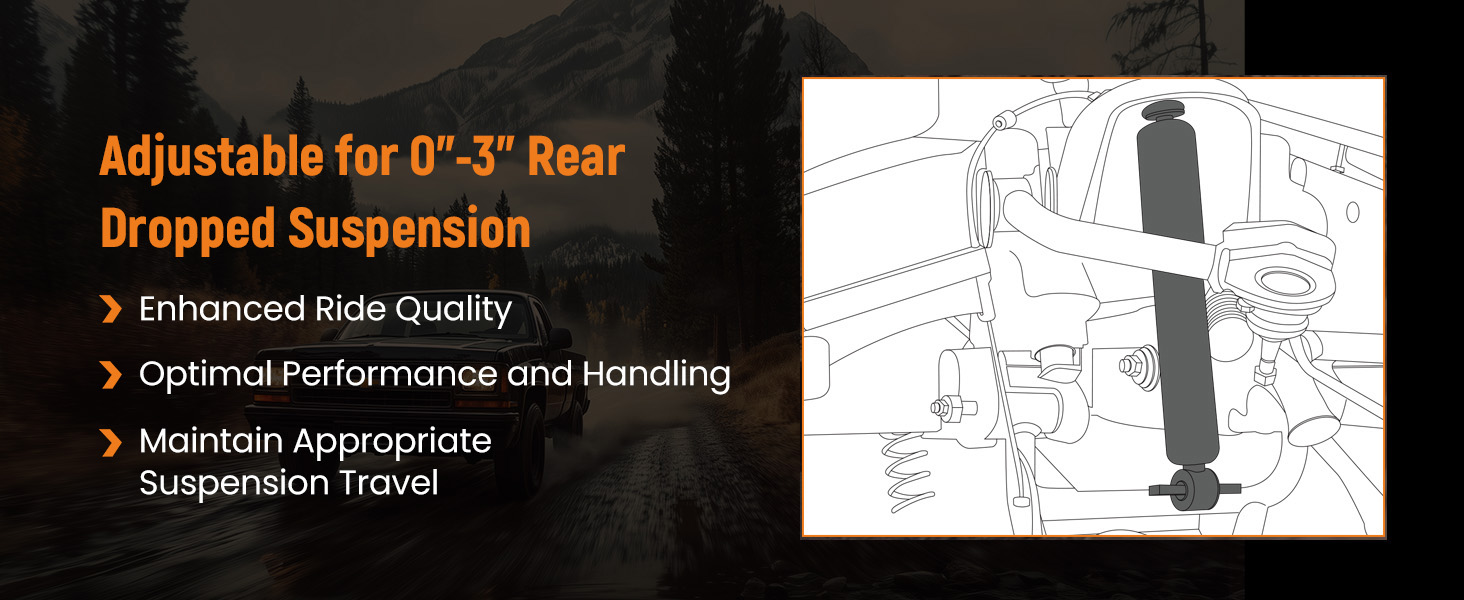

Compatible drop height: Rear 0-3"

Material: High Tensile Strength Carbon Steel

Finish: Powder coated

Bushing material: Rubber

Nitrogen charged：yes

Dust cover equipped: yes

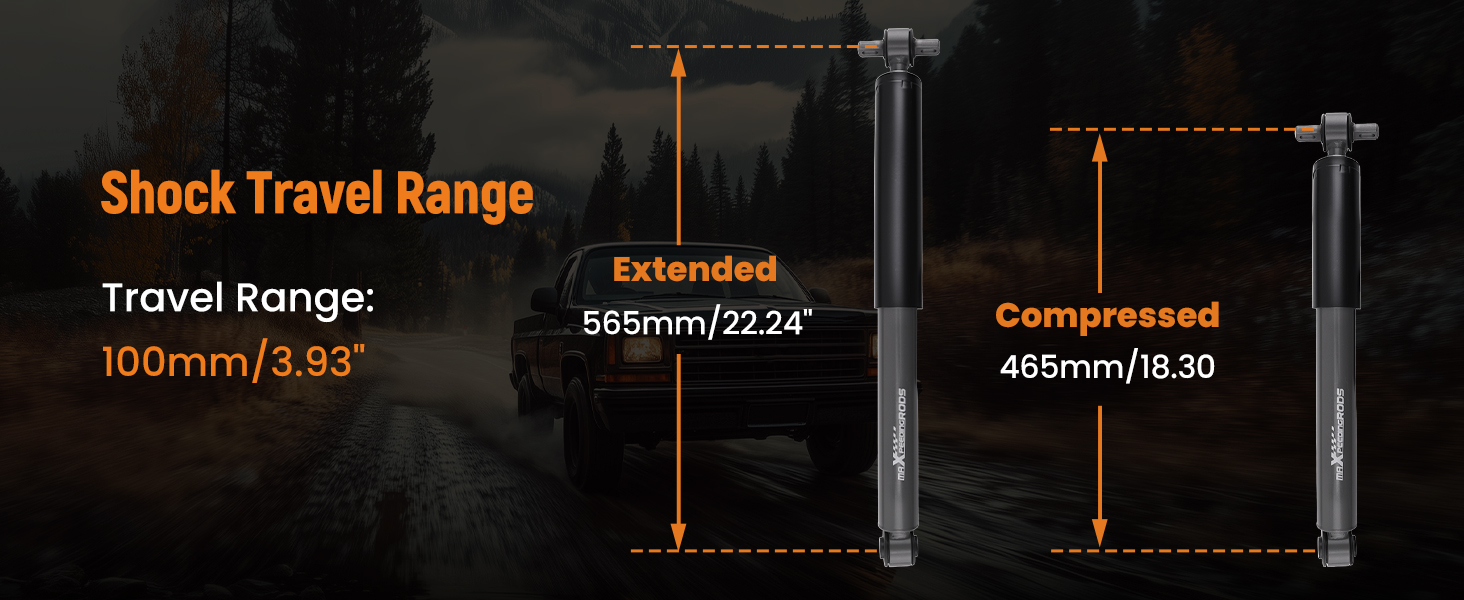

Travel: 100mm=3.93"

Extended length: 565mm=22.24"

Collapsed length:465mm=18.30

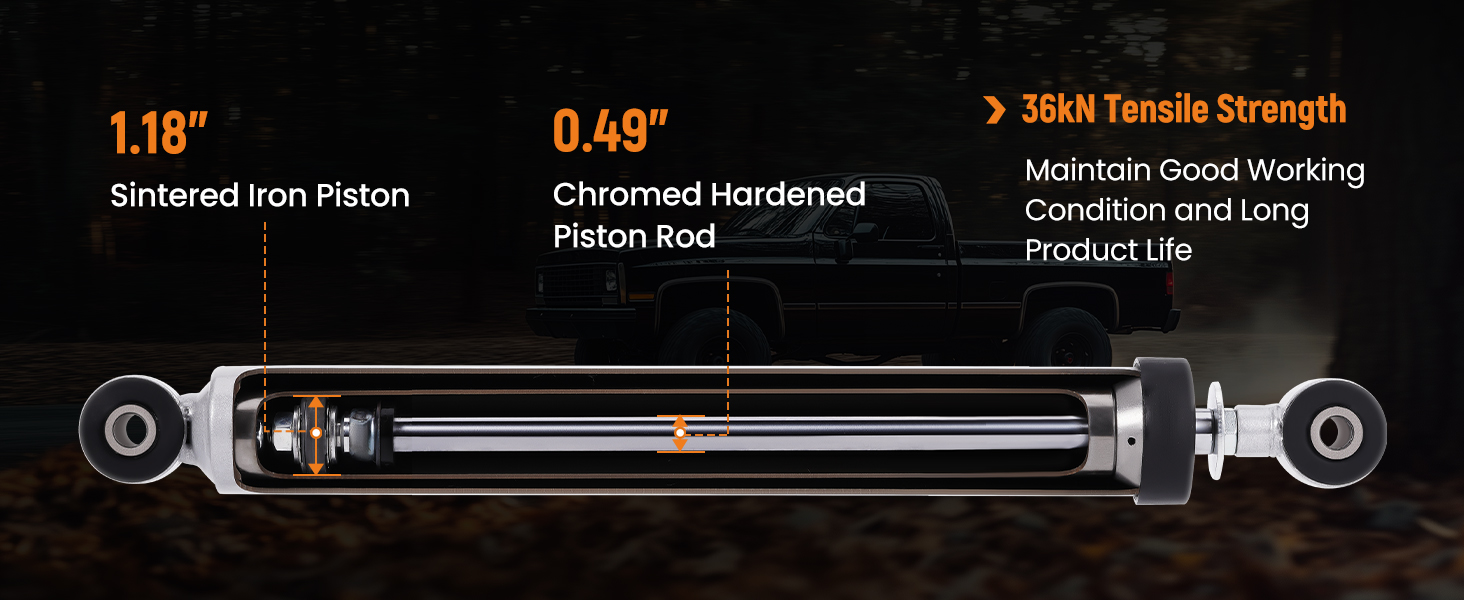

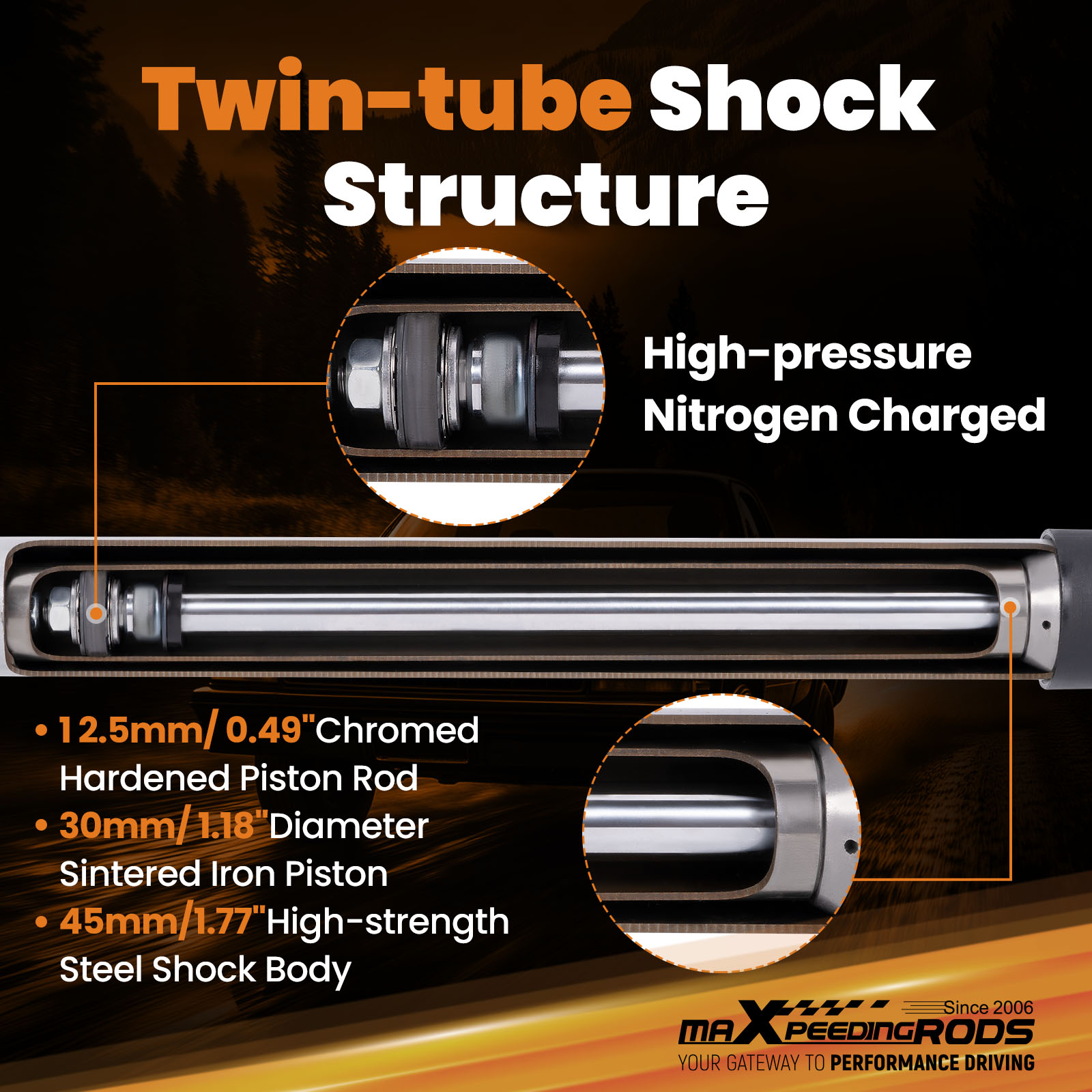

Shock Structure
  • Diameter of piston rod: 12.5mm/0.49"
  • Piston diameter: 30mm/1.18"
  • Outer cylinder diameter: 45mm/1.77"

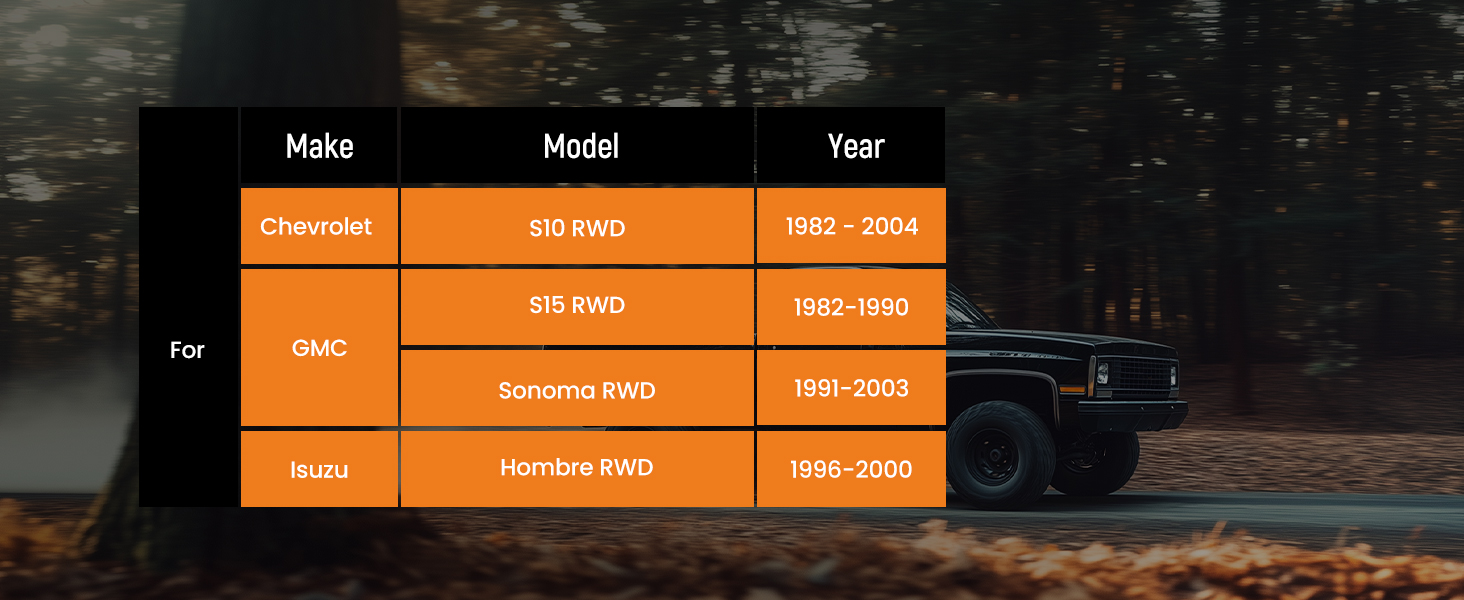

Application

for Chevrolet S10 1982 - 2004 RWD

for GMC S15 S15 1982-1990 RWD

for GMC Sonoma 1991-2003 RWD

for Isuzu Hombre 1996-2000 RWD

G1 Shock

Feature

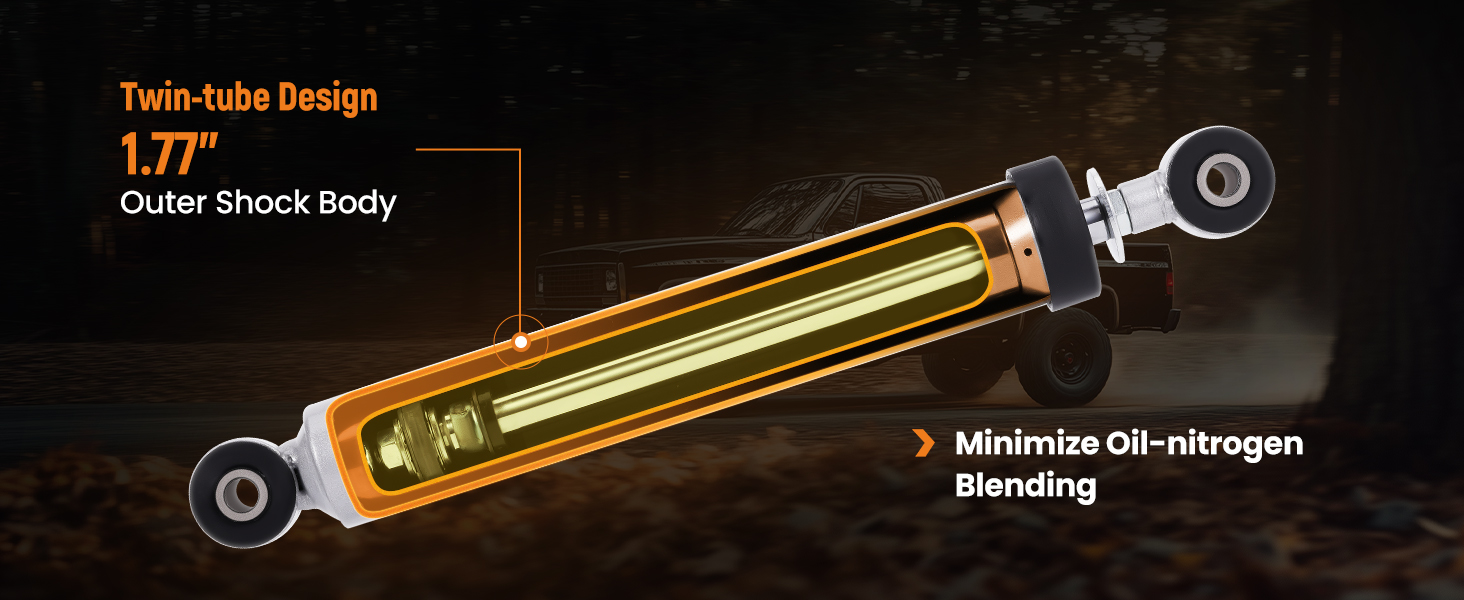

High-pressure nitrogen charged twin-tube shock absorber with high durability.

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

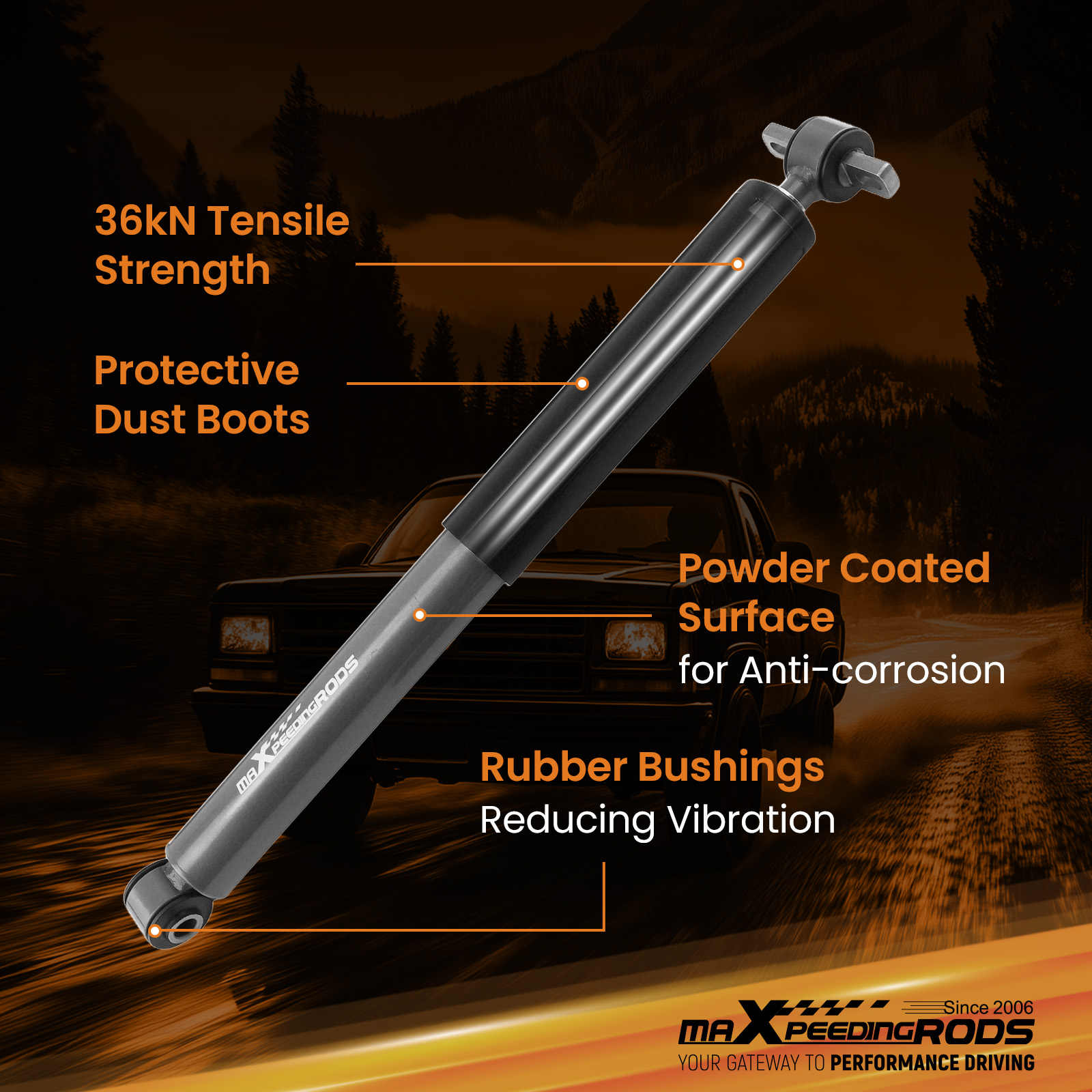

36KN Tensile Strength.

Precision Welding.

Easy bolt-on installation

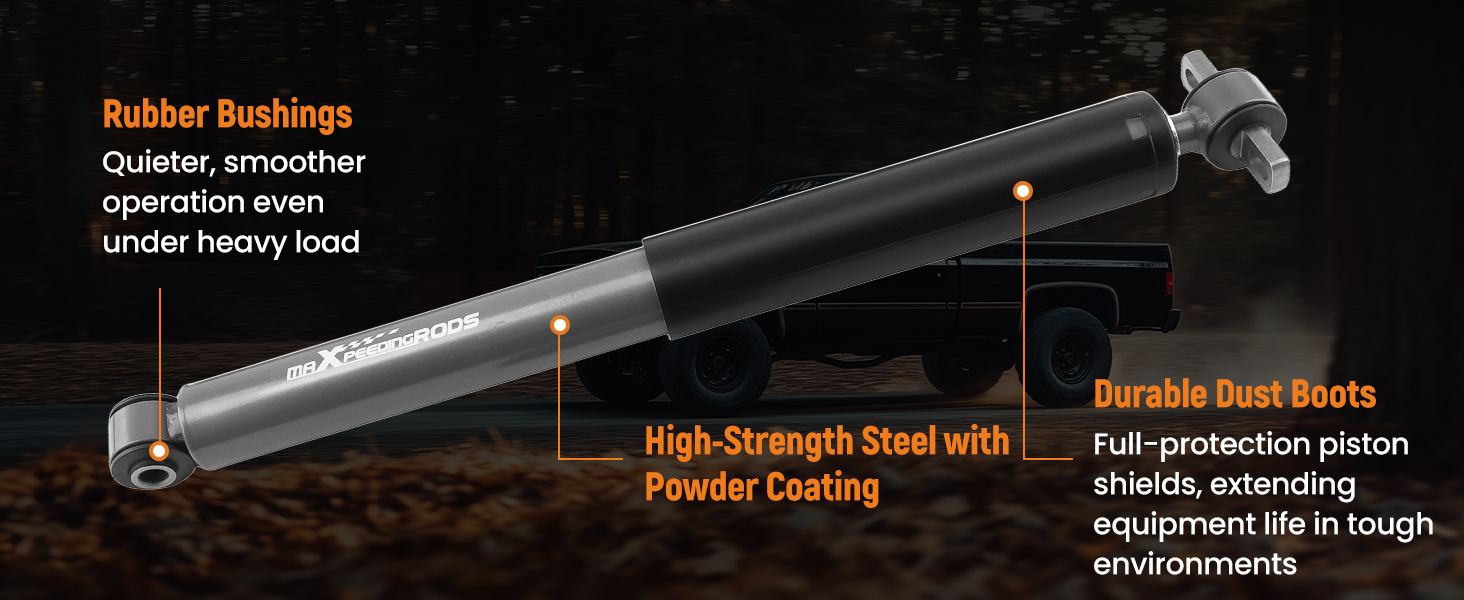

Power coated surface：provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.

Dust cover included prevent the shaft rod and oil seal from damaging.

Why Chosse US?

Why Chosse US?



Other items you might also like

  • Front 3 Front 3"in Lowering Spring Lowering Kit For Chevy S10 GMC S15 1982-2004
  • Front 3 Front 3" & Rear 4" Coil Spring Lowering Kit For Chevy S10 GMC S15 1982-2004
  • 2 2" Front Lowering Coil Springs Drop Kit for Chevy GMC S10 S15 Jimmy Blazer 82-05

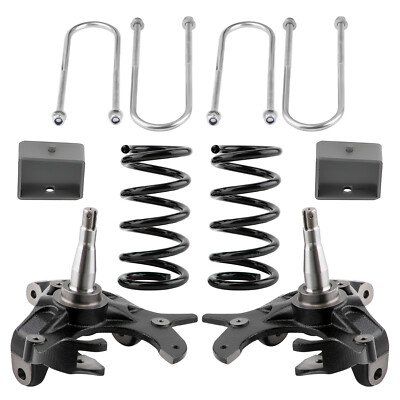

  • 5 5" Front 4" Rear Drop Lowering Kit For Chevy S10 GMC S15 V6 2WD 82-2004
  • Front Lowering Shocks 2 Front Lowering Shocks 2"-5" Drop For Chevy/GMC C10 C15 1973-1987
  • 4” Drop Lowering Blocks Kit EXTRUDED BLOCKS 4” Drop Lowering Blocks Kit EXTRUDED BLOCKS
  • Upgraded Upper Control Arms 2-4 Upgraded Upper Control Arms 2-4" Lift For 1982-2004 Chevy S10 GMC S15 Jimmy 4WD
  • Rear Lowering Shocks 3 Rear Lowering Shocks 3"- 6" Drop for Chevrolet S10/GMC Sonoma 2WD 1982-2004
  • Front OE Coil Springs Set 5660 For Chevrolet S10 Blazer 1982-1996 Camaro 1991-92 Front OE Coil Springs Set 5660 For Chevrolet S10 Blazer 1982-1996 Camaro 1991-92
  • Front Left Upper Control Arm for Chevy S10 Malibu GMC S15 Jimmy Cutlass Salon Front Left Upper Control Arm for Chevy S10 Malibu GMC S15 Jimmy Cutlass Salon

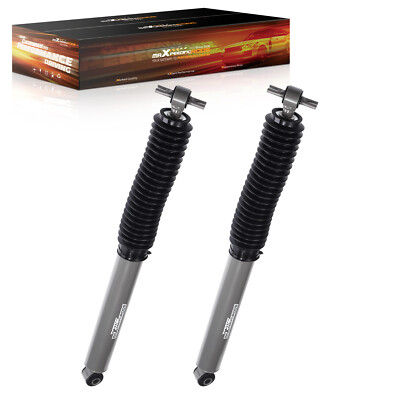

  • 2-4.5 2-4.5" Lift G1 Rear Shock Absorbers for Chevy/GMC S10/S15 Blazer/Jimmy 82-05
