All of our 4-pin cameras can't be connected directly with any other monitors(no matter DVR or dash or whatever)without using our power cable.
Product Parameters:
Image Sensor: 1054 chip
TV System: PAL
Resolution: 1920*1080 Pixels
Viewing Angle: 170degrees
Signal to Noise Ratio: >48dB
Waterproof Grade: IP68
Power: DC 12-24V
Minimum Illumination: 0.01Lux / F1.5
Working Humidity: 80%RH
Operating Temperature: -22℉— +140℉
Storage Temperature: -40℉—+176℉

Attention: There maybe two guide lines shown on your head unit, please change the setting of your device to turn off the original one.

Package:
1 * AHD 1080P Trajectory Guide Line Backup Camera
1 * 26FT Double Shielded Video Cable
1 * 5FT Power Cable
1 * Accessory Bag for Metal Holder
1 * User Manual
1 * Adhesive Tape
1 * Removal Tool
5 * Zip Ties
5 * Wire Clamps
1 * Mini Screwdriver
1 * Electric Adhesive Tape
2 * T-tap Sets

• Back Up Camera With Movable Guideline---Applying new chip, our back up camera can show trajectory guide line without extra device, its guide line automatically changes according to the car’s moving direction.
• AHD 1080P High Definition Flush Mount Backup Camera---1054 sensor chip, 1920*1080 Pixels, 0.01 flux to support high quality night vision image, fisheye lens 170 degrees wide viewing angle covering most blind spot area, will meet your need for sure.
• Built-in Rotating Metal Camera Body---Unlike old-fashioned car cameras which can only adjust the viewing angle by adding gaskets, you can rotate GreenYi pickup rear camera’s lens part to find a best viewing angle with the help of the mini wrench, never need to worry about too high or too low image shown on the monitor. Mini design, solid shinning metal housing, shockproof, longer service life.
• Dynamic Trajectory Guide Line Rearview Camera with Switcher Cables--- It generates CVBS 30HZ/30FPS/NTSC video signal by default. Cut the green wire to make the camera generate AHD-1080P-25HZ/25FPS/PAL video signal. Cut the white wire to make the camera generate AHD-720P-25HZ/25FPS/PAL video signal. Cut both switcher cables to make the camera generate CVBS 30HZ/30FPS/NTSC video signal. NOTE: Please unplug and reconnect the 4-pin power cable after cutting any wire.

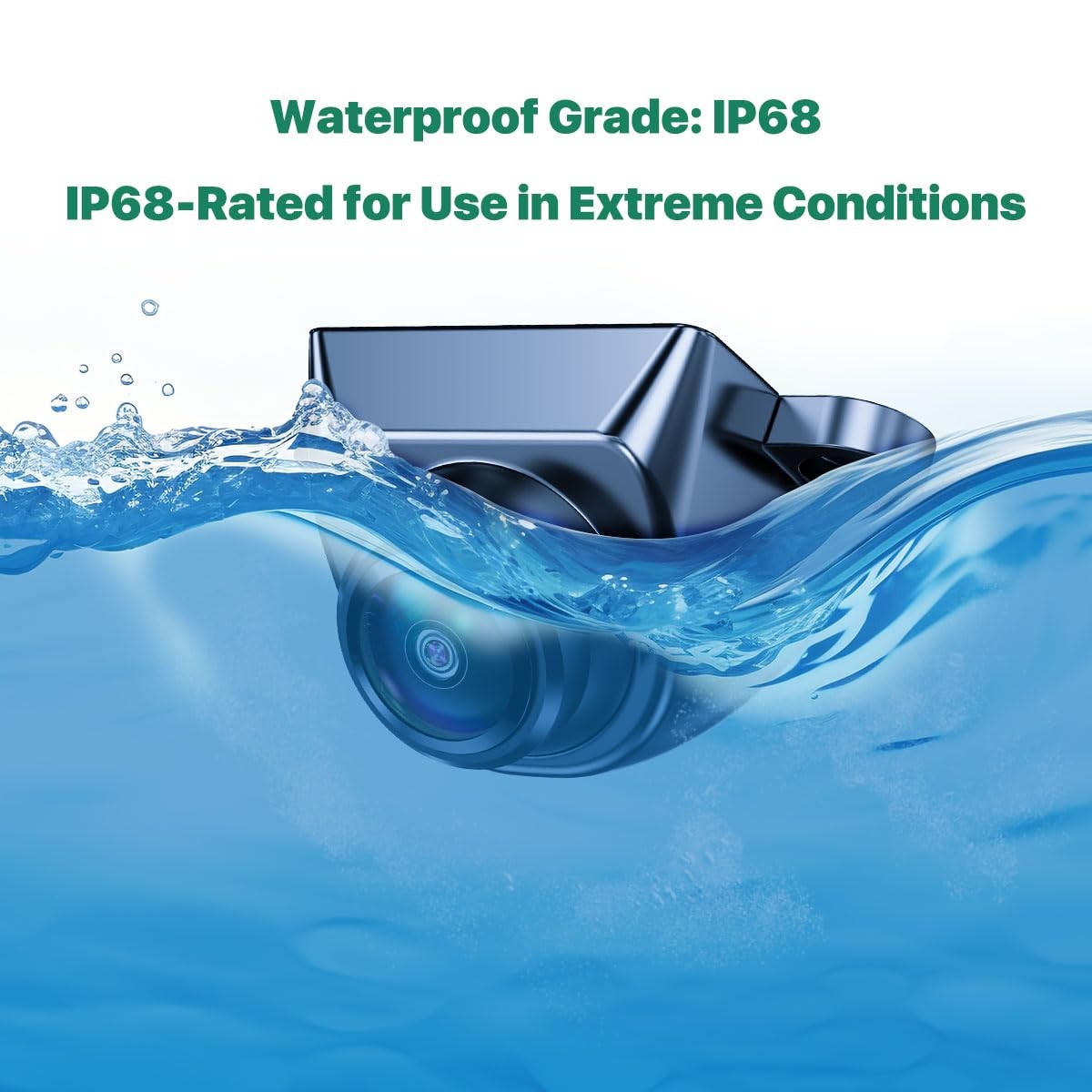

• IP68 Rated Waterproof Reverse Camera---When manufacturing the reversing camera, we have tried our best to upgrade the waterproof grade. We have fulfilled the whole camera body with waterproof silicon rubber, we tested every single camera under water for 24 hours, it will work properly under extreme conditions.
• Backing Camera Work With Monitors Supports RCA Connection---This backing up camera only works with monitors which supports RCA connection. For normal mirror monitors or TFT monitors, no need to use the trigger detection cable. When it works with a radio head unit, please remember to connect the trigger wire.
• Double-shielded Video Cable for AHD Rear View Camera---To ensure best video signal transmission, less interference and delay, no signal attenuation. Also, we provide high-quality 4-pin power cable, because different 4-pin may have different definitions, to ensure quality image and compatibility, please use all the wires in the package.
