Features & Details:

Machine Type: ATV/UTV/SXS
Fitment Type: Direct Replacement
Items Included: 1x Rear Left or Right cv axle shaft
Manufacturer Part Number: Does not apply
UPC: Does not apply
Quantity: 1
Output Shaft Spline Count: 27
Superseded Part Number: YAM7015,ATVYA8331,4108002,PAXL1104HD,PAXL1104,02141703,AX7815,YAM6015HD
Input Shaft Spline Count: 23
Placement on Vehicle: Rear Left or Right
Brand: KAC
Type: CV Axle Joint Shaft Assembly
Interchange Part Number: YAM7015,ATVYA8331,4108002,PAXL1104HD,PAXL1104,02141703,AX7815,YAM6015HD
Axle Nut Included: Yes
Manufacturer Warranty: 5 Years
ABS Ring Included: No
Compressor Length（IN）: 20.88in

Key Benefits:

- The CV Axle Joint Shaft Assembly is engineered for fits 2009-2014 Yamaha YFM550 Grizzly FI 4x4 Auto EPS and Auto models, ensuring direct compatibility and optimal performance.

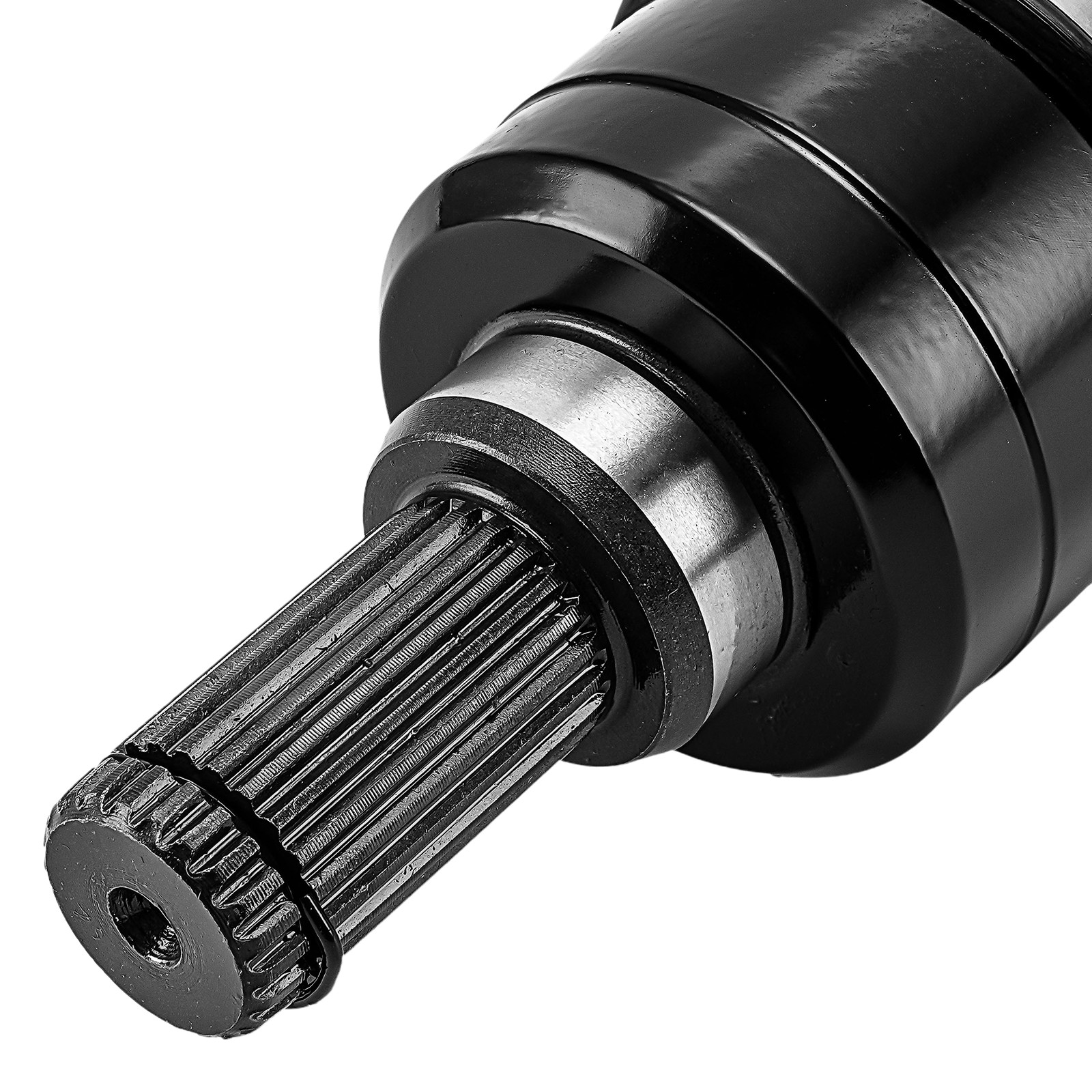

- Designed with a 27-output shaft spline count and 23-input shaft spline count, providing precise fitment and reliable operation on the rear left or right side of your vehicle.
- Manufactured by KAC, this product comes with a 5-year warranty, indicating its durability and high-quality construction.
- Includes an axle nut for quick and hassle-free installation without the need for additional purchases.
- Compressor length of 20.88 inches precisely matches the requirements for the specified Yamaha models.


Fitment:

For Yamaha：
Yamaha YFM550 Grizzly FI 4x4 Auto EPS 2009-2014 All engine
Yamaha YFM550 Grizzly FI 4x4 Auto 2009-2014 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto 2009-2013 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto EPS 2009-2013 All engine
Yamaha YFM700 Grizzly FI 4x4 Auto EPS SE 2009-2013 All engine

Kit Includes:

1x Rear Left or Right cv axle shaft


Installation Guide:

- Confirm that the CV axle is the correct fit for your specific Yamaha model by cross-referencing the OE numbers: YAM7015, ATVYA8331, 4108002, PAXL1104HD, PAXL1104.
- Raise the vehicle safely and ensure it is securely supported before beginning work on axle replacement.
- Remove the wheel on the rear side where the axle needs to be installed for better access.
- Detach the axle nut using appropriate tools and carefully disconnect the existing CV axle.
- Fit the new CV axle, aligning it with the spline counts as specified, and secure the axle nut provided.
- Reattach the wheel and lower the vehicle before conducting a test drive to ensure proper installation.


Important Notes:

- Verify vehicle compatibility and part fitment before purchase to prevent installation issues.
- Installation should be performed by a qualified technician to avoid damage or voiding of warranty.
- This product does not include an ABS ring; ensure any necessary ABS components are sourced separately if required by your vehicle.
- Retain a copy of your purchase receipts and warranty information for reference in case of future claims.


How to Replace a CV Axle:

1. Removing the Vehicle’s hubcap，hubcap，axle nut

2. Jack up the appropriate side of the vehicle with jack stands

3. Removing the Wheel and Brake Assembly
Disassemble the wheel
Disassemble the brake caliper
Unbolt the outer tie rod from steering knuckle
Unbolt the hub from the strut tower

4. Remove and Replacing the CV Axle
Pry the CV joint. use a small pry bar or sturdy flathead screwdriver to pry the axle from the joint.  replace the faulty axle.
