Features & Details
Gasket or Seal Included: Yes
Outlet Outside Diameter (IN): 0.375

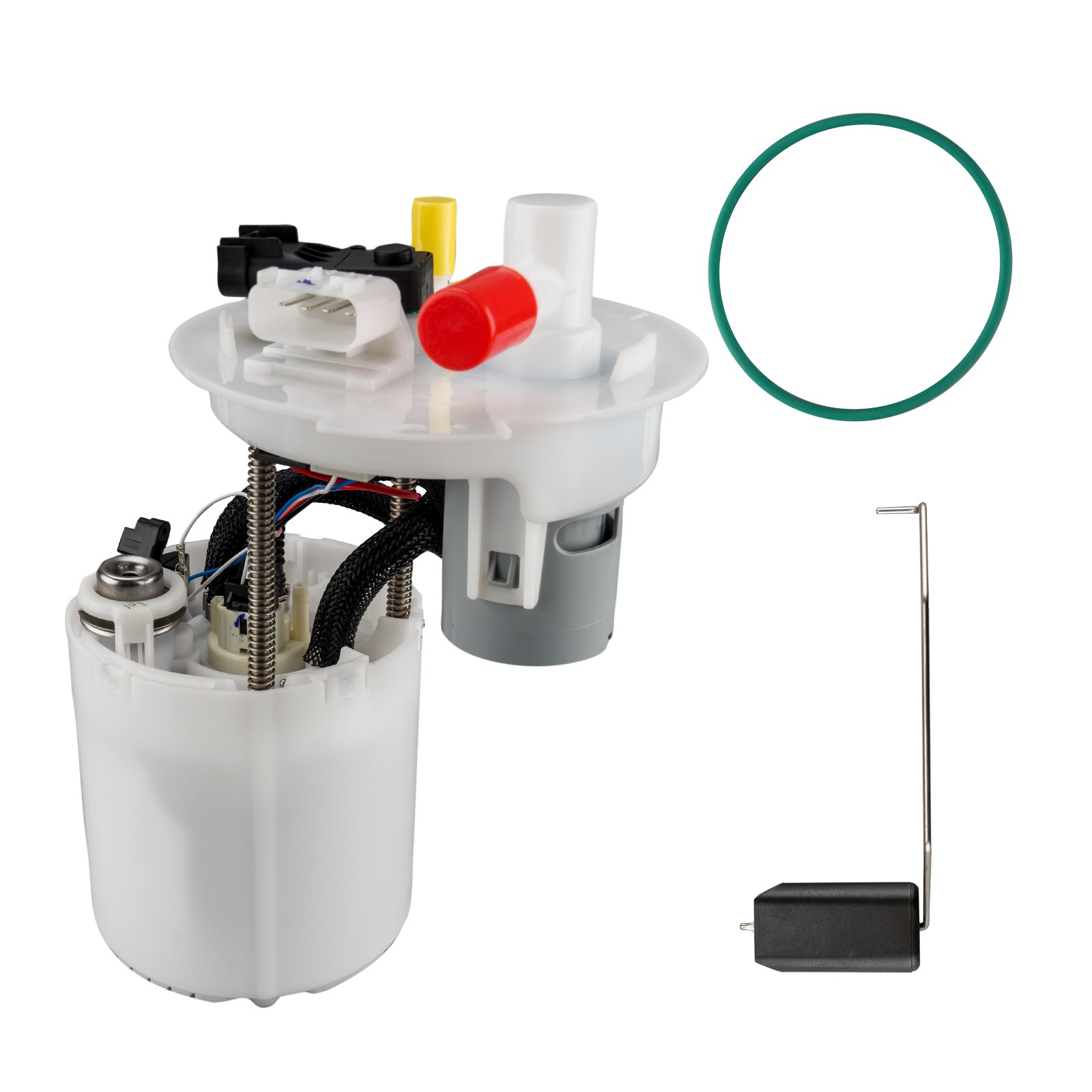

Items Included: 1x Fuel Pump Assembly - FG1739
Outlet Quantity: 2
In Tank or External: In Tank
Manufacturer Part Number: FG1739,P77102M,13504673,13580701,2920885,M635737,B11111666TG,19421048,E4034M,MU2181,A30532,C0842M,M100042,DFG1739
Resistance Ohms Empty (82): 250.0
UPC: Does not apply
Lock Ring Included: No
Average Flow Rating GP: 35
Strainer Included: Yes
Brand: KAC
Vapor Pressure Sensor Included: Yes
Maximum Pressure (PS): 85.0
Resistance Ohms Full (82): 40.0
Outlet Type: Quick Connect
Fuel Level Sender Assembly Included: Yes
Key Benefits
- Designed specifically for fit for Chevrolet 2011-2012 Cruze L4 1.8L and fit for Buick 2013 Verano L4 2.4L.
- Ensures proper flow and function with a flow rating of 35 gallons per hour, providing consistent fuel supply.
- In-tank placement to minimize the risk of fuel line leakage and external contamination.
- Equipped with quick connect outlet types for easier and secure installation.
- Resistant to high pressure with a maximum pressure of 85 PSI, enabling optimal performance.
- Includes a vapor pressure sensor for improved vehicle diagnostic and efficiency features.
Compatibility
For Chevrolet:Chevrolet Cruze 2011-2012 L4 1.8L
For Buick:Buick Verano 2012 All engine
Buick Verano 2013 L4 2.4L
What's Included
1x Fuel Pump Assembly - FG1739
Installation Guide
- Ensure the engine is off and cool before beginning the installation process.
- Disconnect the battery to ensure safety during the installation.
- Drain the fuel tank to prevent spills when accessing the fuel pump assembly.
- Remove the old fuel pump assembly from the tank, taking care not to damage the tank or associated components.
- Install the new fuel pump assembly, ensuring all quick connect outlets and electrical connections are properly secured.
- Refill the fuel tank and reconnect the battery.
- Start the vehicle to ensure the new fuel pump is functioning correctly.
Important Notes
- The assembly includes a gasket or seal and a strainer but excludes the lock ring.
- Ensure to check resistance ohms: 250.0 when empty and 40.0 when full for accurate installation.
- The product is not supplied with a UPC code and should be verified by part numbers like FG1739 or 13580701 prior to purchase.
- It is advisable to refer to a professional mechanic if unsure about the installation process.
- Compatibility should be confirmed with the OE numbers for precise fitments.
