2mm Galvanised Steel L Corner Brace Angle Bracket 90 Degree Wood Connector Plate | SS8 Supplements
  • Reinforce 90-degree joints with confidence: heavy duty 2mm steel L corner brace for timber framing, structural bracing, shelving and furniture
  • Zinc coated on both sides: pre-galvanised Z275 steel (not less than 275g/m2) for high resistance to corrosion
  • Plan with real numbers: Pmax,k up to 29.5kN for a joint with two 100x100x100mm brackets; CE marked under a European Technical Assessment
  • A size for every joint: 15 sizes, leg widths 40mm to 100mm and lengths 40mm to 200mm, with fixing holes and weight listed for each
  • Fix straight away: pre-punched 5mm holes take 4mm connector nails or 5mm Torx connector screws, with no drilling of the bracket

2mm Galvanised Steel L Corner Brace Angle Bracket 90 Degree Wood Connector Plate

Heavy-duty 2.0mm galvanised steel angle brackets for timber framing, shelving and structural bracing. 15 sizes, up to 29.5kN.

This listing covers all 15 sizes, leg widths 40mm to 100mm and lengths 40mm to 200mm, sold as a single bracket or in packs of 2, 4, 10, 20 or 40, so you can order the quantity the job needs.

βœ… Suitable for: Timber Framing, Furniture, Shelving & Light Structural Joints

Reinforce 90-degree joints with confidence

Heavy duty 2mm steel L corner brace for timber framing, structural bracing, shelving and furniture.

Zinc coated on both sides

Pre-galvanised Z275 steel (not less than 275g/m2) for high resistance to corrosion.

Plan with real numbers

Pmax,k up to 29.5kN for a joint with two 100x100x100mm brackets; CE marked under a European Technical Assessment.

A size for every joint

15 sizes, leg widths 40mm to 100mm and lengths 40mm to 200mm, with fixing holes and weight listed for each.

Fix straight away

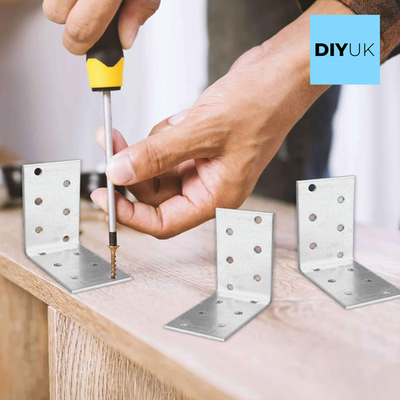

Pre-punched 5mm holes take 4mm connector nails or 5mm Torx connector screws, with no drilling of the bracket.

Technical Specification

Heavy-duty galvanised steel angle brackets in a 2.0mm (0.08in) gauge, also known as L brackets, metal angle brackets or corner braces, for general-purpose 90-degree joints and reinforcement in timber and light structural framing. The L-shaped profile is described by two dimensions – leg width (AxB, the two arms of the bracket) and overall length (C) – so the same style of bracket can serve as either a compact corner gusset or a long reinforcing strip, depending on the size chosen.

A 40x40x40mm bracket, for example, is a small, square-footprint corner gusset suited to a single point fixing, while a 40x40x200mm piece keeps the same 40mm leg width but stretches out into a long angle strip for reinforcing a longer joint or edge. The range runs from small shelving and furniture brackets up to larger 100x100mm braces, across 15 sizes covering four leg widths (40mm, 60mm, 80mm and 100mm) and lengths from 40mm up to 200mm – see the full table below for exact dimensions and weights.

The brackets are made from pre-galvanised Z275 steel (DX51D + Z275), with a zinc coating of not less than 275g/m2 (0.90oz/sq ft) applied to both sides, about 20 microns (0.0008in) thick, giving high resistance to corrosion. For timber structures in service classes 1 and 2 (EN 1995-1-1), in corrosion categories C1 and C2. Fixing holes are pre-punched at the factory on every size, so each bracket can be offered straight up to the joint and fixed in place without any additional drilling of the bracket itself.

Key Features

  • 2.0mm (0.08in) gauge steel construction, suited to general-purpose 90-degree joints and reinforcement in timber and light structural framing
  • Pre-galvanised Z275 steel (DX51D + Z275), with a zinc coating of not less than 275g/m2 (0.90oz/sq ft) on both sides, for high corrosion resistance
  • 15 sizes spanning four leg widths – 40mm (1.57in), 60mm (2.36in), 80mm (3.15in) and 100mm (3.94in)
  • Overall lengths from 40mm (1.57in) up to 200mm (7.87in), covering both compact square-footprint corner gussets and long reinforcing angle strips
  • Leg width (AxB) and overall length (C) given for every size, making it straightforward to match a bracket to an existing joint
  • Pre-punched 5mm (0.20in) fixing holes, for fixing to timber with 4mm (0.16in) connector nails or 5mm (0.20in) Torx connector screws
  • Weight listed for every size, from 45g (1.6oz) for the smallest 40x40x40mm bracket up to 290g (10.2oz) for the largest 100x100x100mm
  • Load data for every size: characteristic capacity (Pmax,k) up to 29.5kN (6,632 lbf) for a joint with two 100x100x100mm brackets
  • Steel construction throughout, CE marked under a European Technical Assessment

Specification

The table below lists the exact leg width (AxB), overall length (C), number of 5mm (0.20in) fixing holes and approximate weight for all 15 sizes in the range, so the correct bracket can be matched to the joint before ordering.

Leg width (A x B)Overall length (C)Fixing holes (5mm)Approx. weight
40 x 40mm (1.57 x 1.57in)40mm (1.57in)845g (1.6oz)
40 x 40mm (1.57 x 1.57in)60mm (2.36in)1270g (2.5oz)
40 x 40mm (1.57 x 1.57in)100mm (3.94in)20115g (4.1oz)
40 x 40mm (1.57 x 1.57in)200mm (7.87in)40236g (8.3oz)
60 x 60mm (2.36 x 2.36in)40mm (1.57in)1270g (2.5oz)
60 x 60mm (2.36 x 2.36in)60mm (2.36in)18106g (3.7oz)
60 x 60mm (2.36 x 2.36in)80mm (3.15in)24141g (5.0oz)
60 x 60mm (2.36 x 2.36in)100mm (3.94in)30176g (6.2oz)
80 x 80mm (3.15 x 3.15in)40mm (1.57in)1694g (3.3oz)
80 x 80mm (3.15 x 3.15in)60mm (2.36in)24140g (4.9oz)
80 x 80mm (3.15 x 3.15in)80mm (3.15in)32186g (6.6oz)
80 x 80mm (3.15 x 3.15in)100mm (3.94in)40235g (8.3oz)
100 x 100mm (3.94 x 3.94in)60mm (2.36in)30177g (6.2oz)
100 x 100mm (3.94 x 3.94in)80mm (3.15in)40233g (8.2oz)
100 x 100mm (3.94 x 3.94in)100mm (3.94in)50290g (10.2oz)

Load Data

Characteristic load-carrying capacity (Pmax,k) from the manufacturer's data, determined by tests or calculation for pressure loading, with timber of 350kg/m3 (21.8lb/cu ft) density and the brackets fixed to the manufacturer's nailing pattern. The values are given for a complete joint made with two brackets, so the force per bracket is half of the value listed.

Size (A x B x C)Pmax,k, joint with two brackets
40 x 40 x 40mm (1.57 x 1.57 x 1.57in)14kN (3,147 lbf)
40 x 40 x 60mm (1.57 x 1.57 x 2.36in)14kN (3,147 lbf)
40 x 40 x 100mm (1.57 x 1.57 x 3.94in)14.8kN (3,327 lbf)
40 x 40 x 200mm (1.57 x 1.57 x 7.87in)24.16kN (5,431 lbf)
60 x 60 x 40mm (2.36 x 2.36 x 1.57in)14kN (3,147 lbf)
60 x 60 x 60mm (2.36 x 2.36 x 2.36in)15.2kN (3,417 lbf)
60 x 60 x 80mm (2.36 x 2.36 x 3.15in)19.88kN (4,469 lbf)
60 x 60 x 100mm (2.36 x 2.36 x 3.94in)26.3kN (5,912 lbf)
80 x 80 x 40mm (3.15 x 3.15 x 1.57in)14.8kN (3,327 lbf)
80 x 80 x 60mm (3.15 x 3.15 x 2.36in)15.6kN (3,507 lbf)
80 x 80 x 80mm (3.15 x 3.15 x 3.15in)26.83kN (6,032 lbf)
80 x 80 x 100mm (3.15 x 3.15 x 3.94in)27.9kN (6,272 lbf)
100 x 100 x 60mm (3.94 x 3.94 x 2.36in)19.88kN (4,469 lbf)
100 x 100 x 80mm (3.94 x 3.94 x 3.15in)28.54kN (6,416 lbf)
100 x 100 x 100mm (3.94 x 3.94 x 3.94in)29.5kN (6,632 lbf)

Typical Applications

With 15 sizes spanning both compact corner gussets and long reinforcing strips, the range of metal brackets for wood covers general 90-degree corner work as well as jobs where a longer run of joint or edge needs bracing. Typical uses include:

  • Shelving and furniture assembly, squaring up and reinforcing corner joints
  • General timber framing, bracing stud, rail and similar joints at 90 degrees
  • Light structural bracing wherever a timber joint benefits from additional mechanical reinforcement
  • Workbench and rack construction, where repeated corner joints need a consistent, pre-punched bracket
  • Timber joists, bracing 90-degree timber joints
  • Any DIY job needing a standard right angle bracket, 90-degree corner bracket or reinforcing angle strip
  • Smaller 40x40mm (1.57 x 1.57in) sizes for compact, single-point fixings such as small shelving or furniture corners
  • Longer sizes from 100mm to 200mm (3.94in–7.87in) for reinforcing a longer joint or running edge rather than a single corner point, since the same leg width is available across several lengths

Choosing the Size

Where a joint or edge runs longer than a single small bracket can span, choose one of the longer 100–200mm (3.94–7.87in) options in the same leg width rather than fitting two short brackets end to end. When choosing a size, match the leg width (AxB) to the timber section or adjoining bracket it will sit against, and use the overall length (C) figure to check the bracket will fit within the available joint before fixing. Secure to the timber with 4mm (0.16in) connector nails or 5mm (0.20in) Torx connector screws.

Common Questions

  • Which size do I need? Match the leg width (AxB) to the timber it will sit against, then use the overall length (C) to check the bracket fits the joint. All 15 sizes are in the table above.
  • How do I fix them? Through the pre-punched 5mm (0.20in) holes, with 4mm (0.16in) connector nails or 5mm (0.20in) Torx connector screws, with no drilling of the bracket.
  • Are they galvanised? Yes. Pre-galvanised Z275 steel, zinc-coated on both sides (not less than 275g/m2), gives high resistance to corrosion.
  • How much load do they carry? From 14kN to 29.5kN characteristic capacity (Pmax,k) for a joint with two brackets, depending on size. Every size is listed in the Load Data table.
