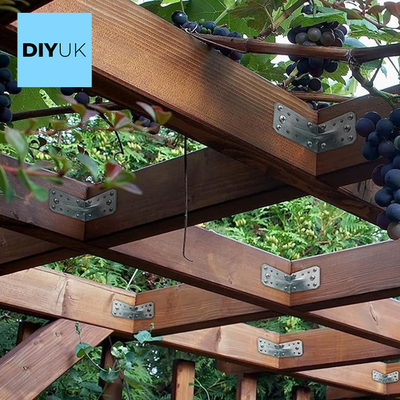

2.0mm Galvanised Steel Angle Bracket Corner Brace 70x70x55mm CE Marked
Use the pre-punched bolt holes for through-bolted structural connections, or the smaller holes for nail/screw fixing.
2.0mm galvanised steel angle bracket, 70x70x55mm, DX51D structural steel, Z275 hot-dip galvanised, rated load ~10.4kN.
Delivery
Free Returns
Control
2.0mm DX51D Structural Steel
Engineered for rigid, load-bearing right-angle joints.
Z275 Hot-Dip Galvanised Zinc Coating
Protects against corrosion for reliable long-term use indoors and outdoors.
Pressed Rib Across the Bend
Increases resistance to bending compared with a flat angle of the same thickness.
Rated Load ~10.4kN (2,338 lbf)
Per bracket.
Symmetrical, Non-Handed Design
No embossing through the centre of the plate, so it fits equally well facing inward or outward.
Dual Hole Pattern
A dense array of ø5mm fixing holes for nails or screws, plus two ø11mm bolt holes for through-bolted connections.
Eurocode-Informed Hole Spacing
Suits both standard proprietary fixings and individually engineered connections.
Compact 70x70x55mm Footprint
Approximately 109g per bracket.
Technical Specification
| Size | 70 x 70 x 55mm (2.76 x 2.76 x 2.17in) |
| Material Thickness | 2.0mm (0.08in) |
| Material Grade | DX51D Structural Steel |
| Coating | Z275 Hot-Dip Galvanised Zinc |
| Fixing Holes | Multiple ø5mm + Two ø11mm Bolt Holes |
| Weight | ~109g (3.8oz) |
| Rated Load Capacity | ~10.4kN (2,338 lbf) |
