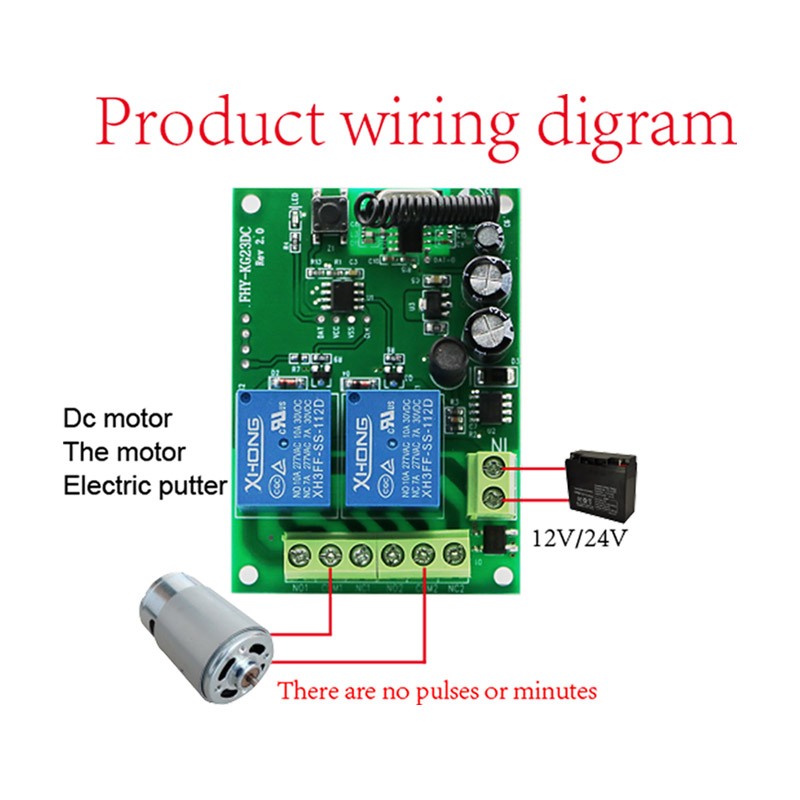

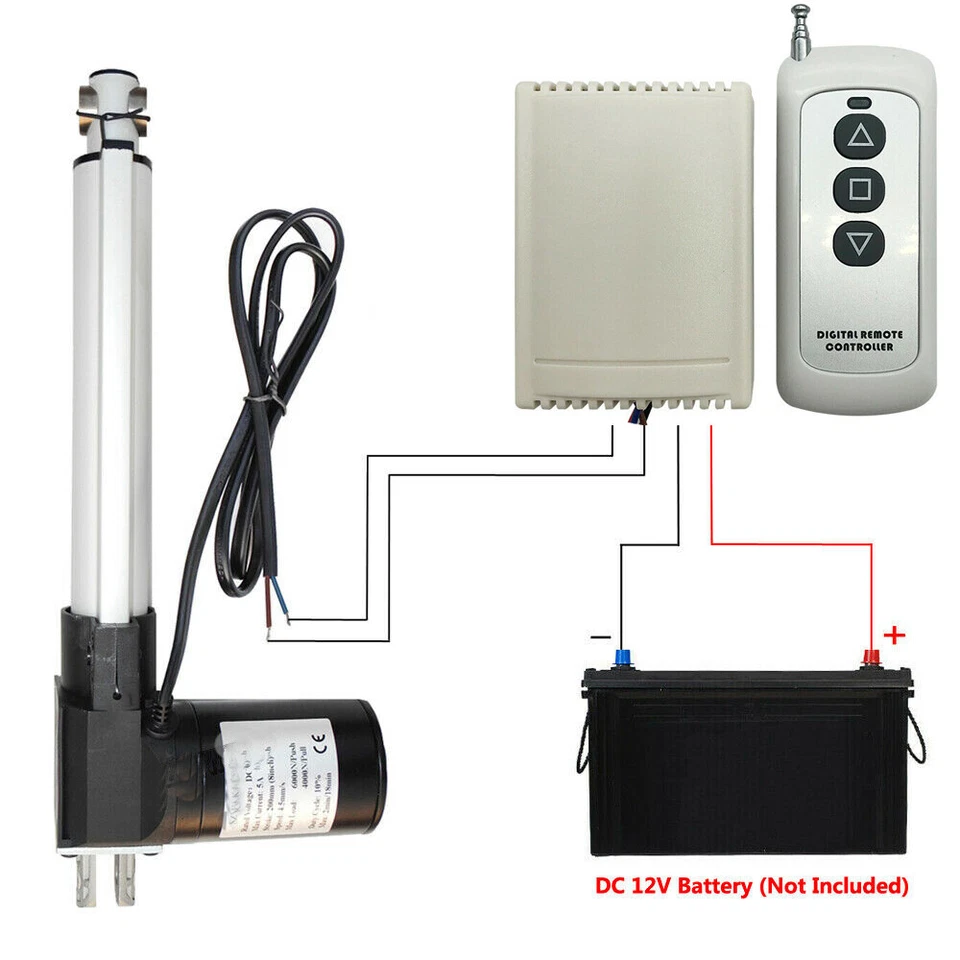

• The main function of this set of controller is to control the positive &negative rotation of the DC motor, generally used for linear actuators.
• The controller's power supply is DC 8V - 35V, it has the function of reverse connection protection.
• There is a manual switch with the controller, the positive & negative rotation plays the role as the limit switch protection.
• The remote control can be inching control and self-lock control.
• 3 keys remote control more stable. Remote control distance: less than 50 meter.
• The input voltage should be within 8V - 35V.
• Please do not let water go inside.
• Please do not make the positive and reverse turn in a short time.
• It needs to replace the battery inside the remote controller when the control distance is shorter.(Battery not included. Battery size: 12V 23A)
• The fuse may be broken when it had no response.

Package:

1 * Set Remote Controller

1 * Instruction Manual

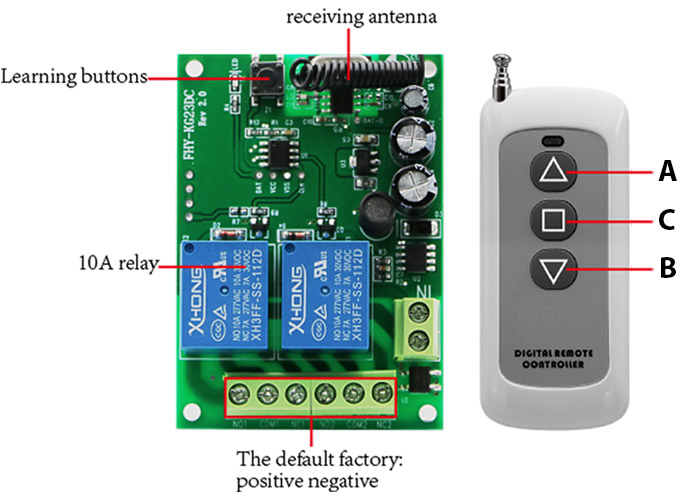

1. Remote control jogging pairing
Press the learning button once, the indicator light will turn on. Press and hold the A button on the remote control that needs to be paired, and the indicator light will flash three times to indicate successful pairing,
When the rear indicator light is on, press and hold the B button on the remote control that needs to be paired. If the indicator light flashes three times, the pairing is successful.

2. Remote control clear code(Every time before re-pairing, you need to clear the code first.)
Press the learning button 8 times in succession, and the indicator light will flash rapidly 3 times, indicating successful deletion of the remote control. All remote controls that were previously controllable will now be disabled.

3. Remote control interlock pairing
Press the "Learning buttons" three times in succession. The indicator light will illuminate. Press and hold the A button on the remote control that needs to be paired. If the indicator light flashes three times, it indicates successful pairing. Once the indicator light is on, press and hold the B button on the remote control. If the indicator light flashes three times, it indicates successful pairing. After the indicator light is on, press and hold the C button on the remote control. If the indicator light flashes three times, it indicates pairing is complete.

(Tips:

You can press the next button only after the indicator light flashes three times; otherwise, pressing the next button before the previous pairing is fully complete will result in failed pairing.
Please pair while the indicator light is still on. If the indicator light has already gone off, it means it is no longer recording pairing information. You will need to clear the code and pair again.)
