Features:



* 18 IR reverse camera, high-resolution picture



* 7" TFT LCD HD 800 x 480 monitor

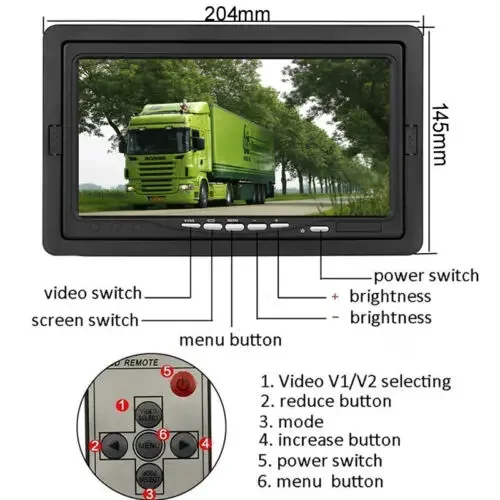

* Switch display mode by remote control



* 2 channels video input, full color display. auto white balance

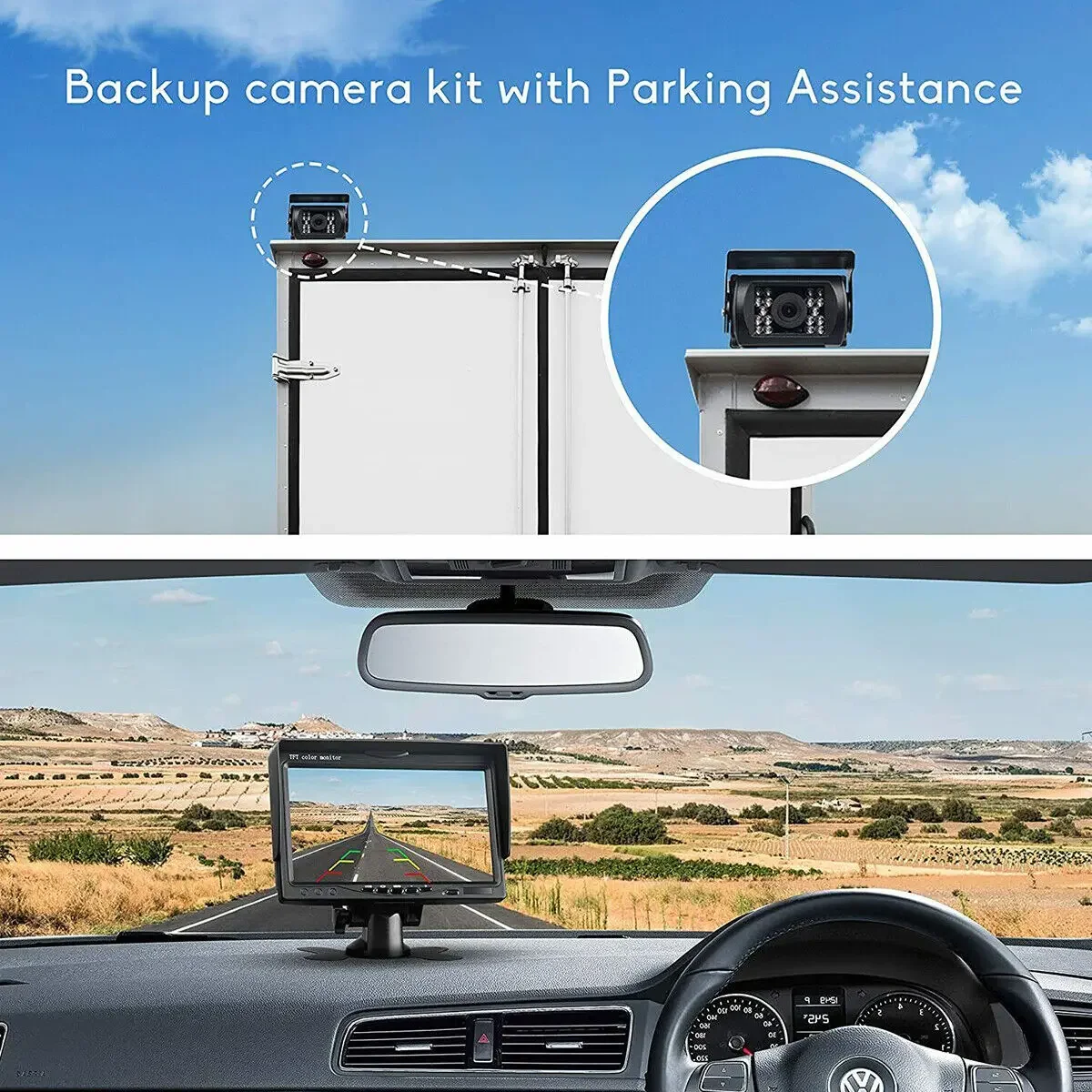

* Automatic back sight function for car backing

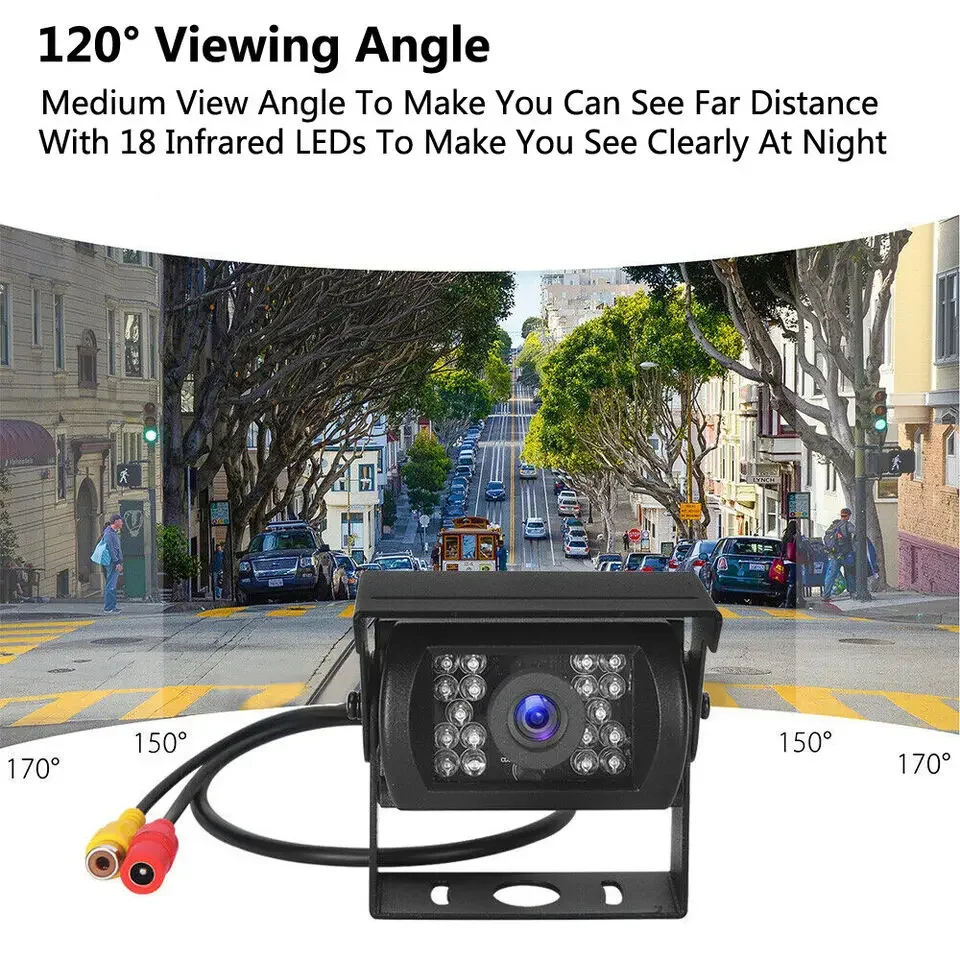

* 100% waterproof IR camera with 120° wide view angle



* 18 infrared lamps, night vision up to 10-15 meters



* Can easily adjust the camera installation angle in multi-level

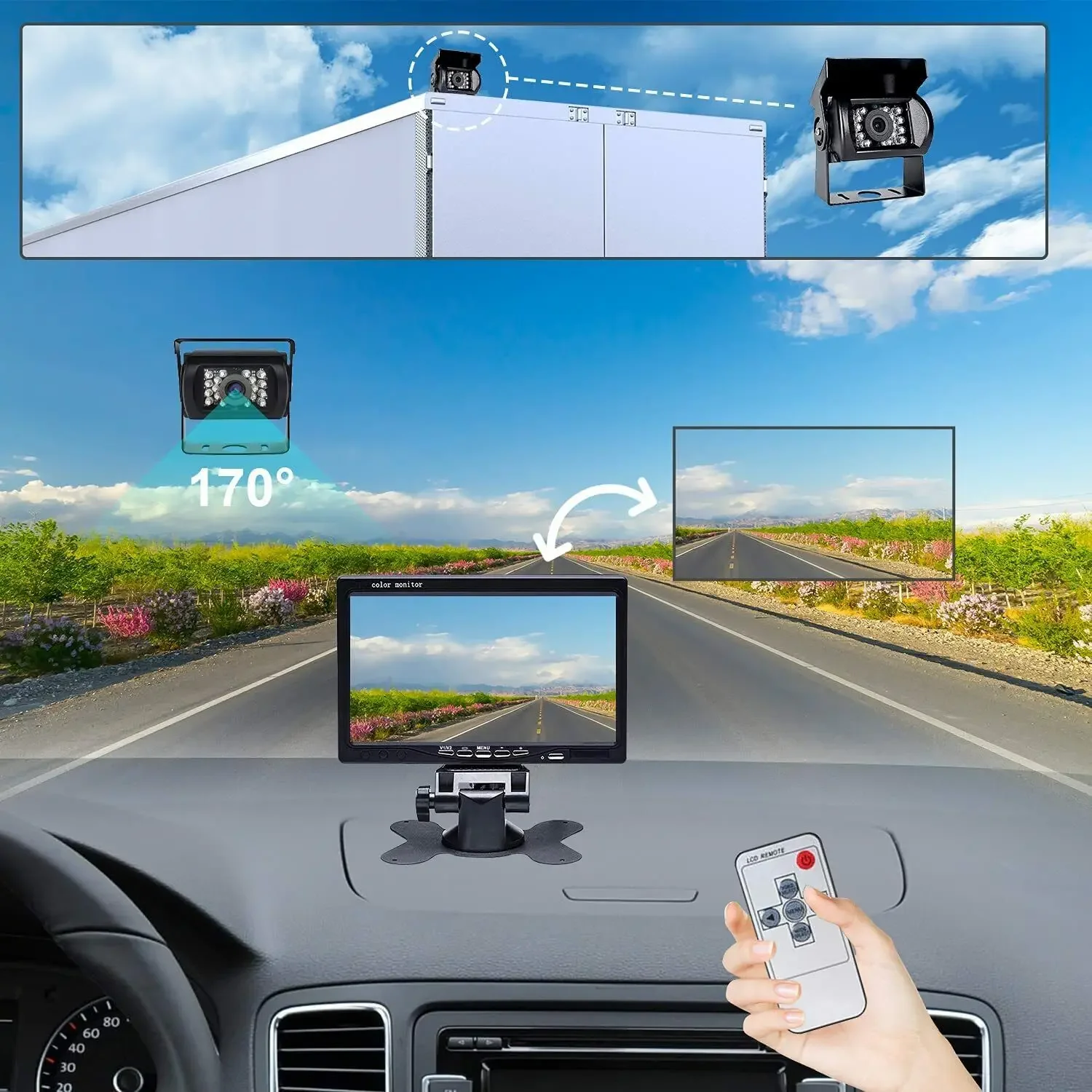

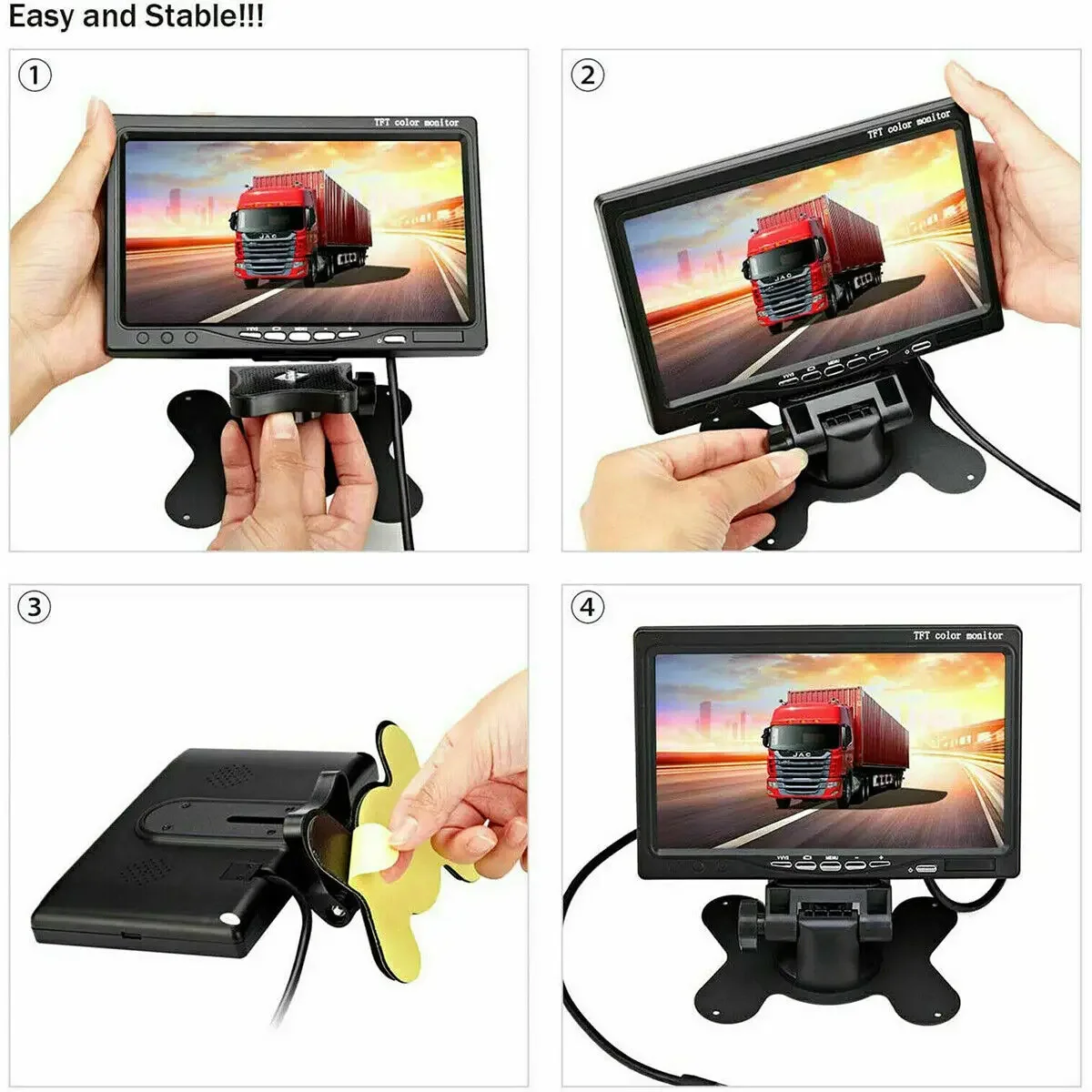

* Headrest style installation and bracket installation, support screen rotation, easy to mount & easy to use

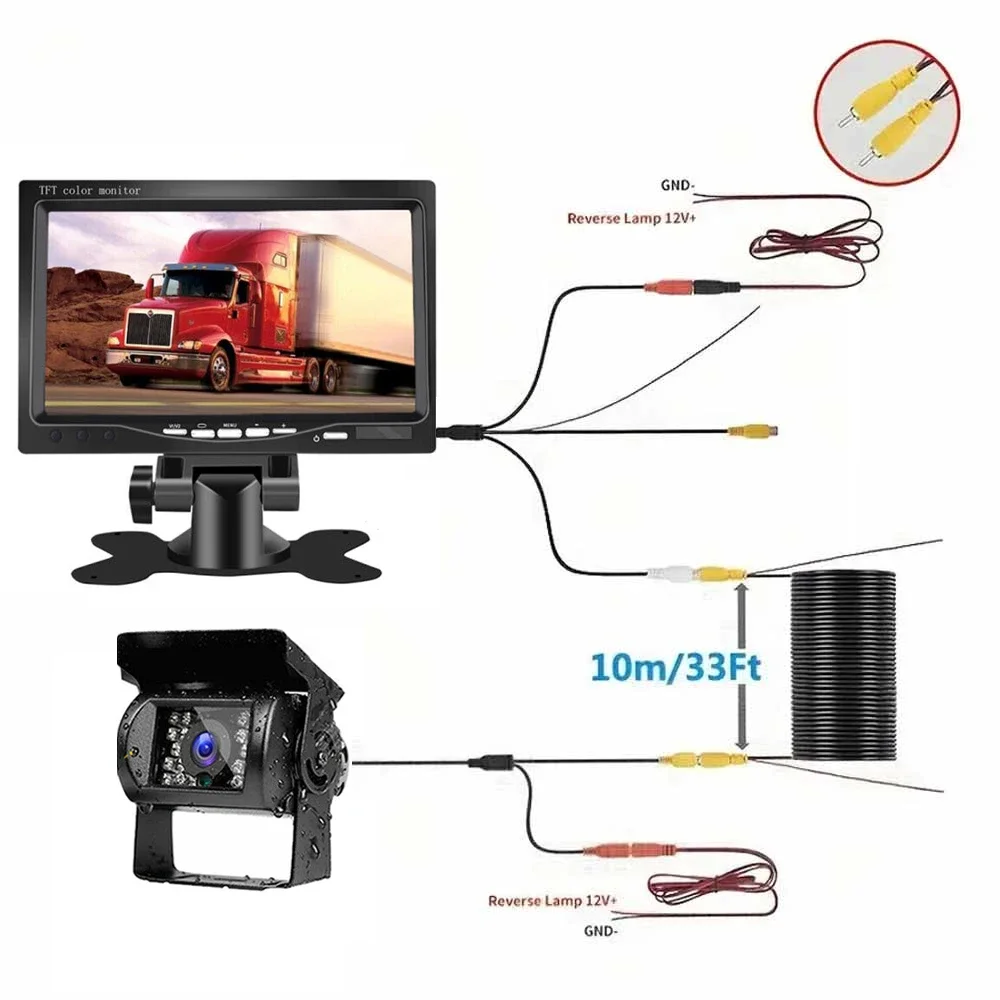

* Connector cable solution deals with both power and singal transmission. No power cable is needed to connect cameras. Special thick hard wire can shield vehicle\\\\\\\\'s circuit interference better than normal AV cables, cCan be connected directly at the same time multiple cables working together without other connection head







Specification:



Camera:



* Image sensor CCD



* TV system : PAL / NTSC (we will sent the PAL or NTSC according your country)



* Lens: 2.8mm(120°)



* Number of pixels: 800 x 480



* Horizontal Resolution: 480 TV Lines



* Scan frequency: 50Hz ~60Hz



* S/N Ratio: ≥48dB(AGC OFF)



* Minimum illumination: 0 LUX



* Backlight compensation:Auto



* White Balance: Auto Tracing



* Auto Gain Control: Automatic



* Night vision: Yes



* Video Output: 1.0Vp-p.1.5ω. RCA Connector



* Synchronous System: International Synchronization



* work Temperature: - 20°C ~ +60°C



* Power Requirement : DC 12 V-24V



* Focal distances: 30mm to infinite

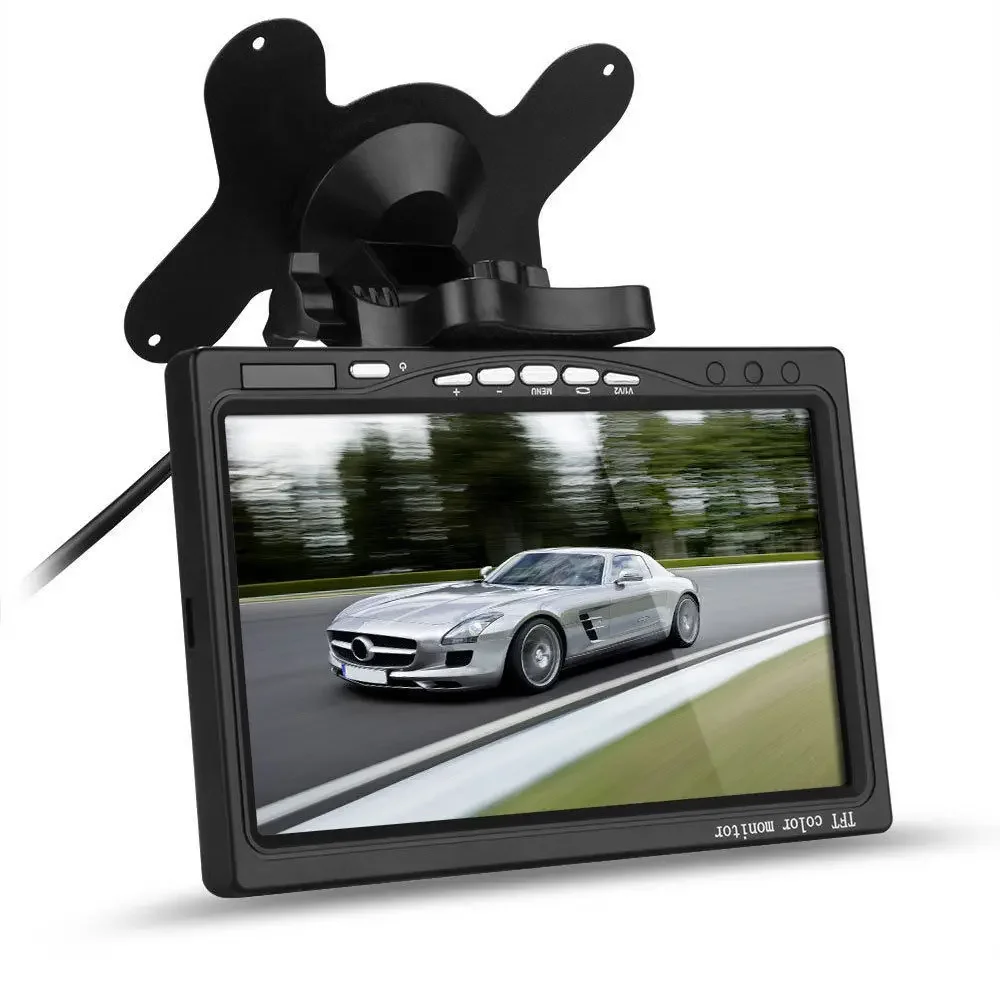

Monitor:

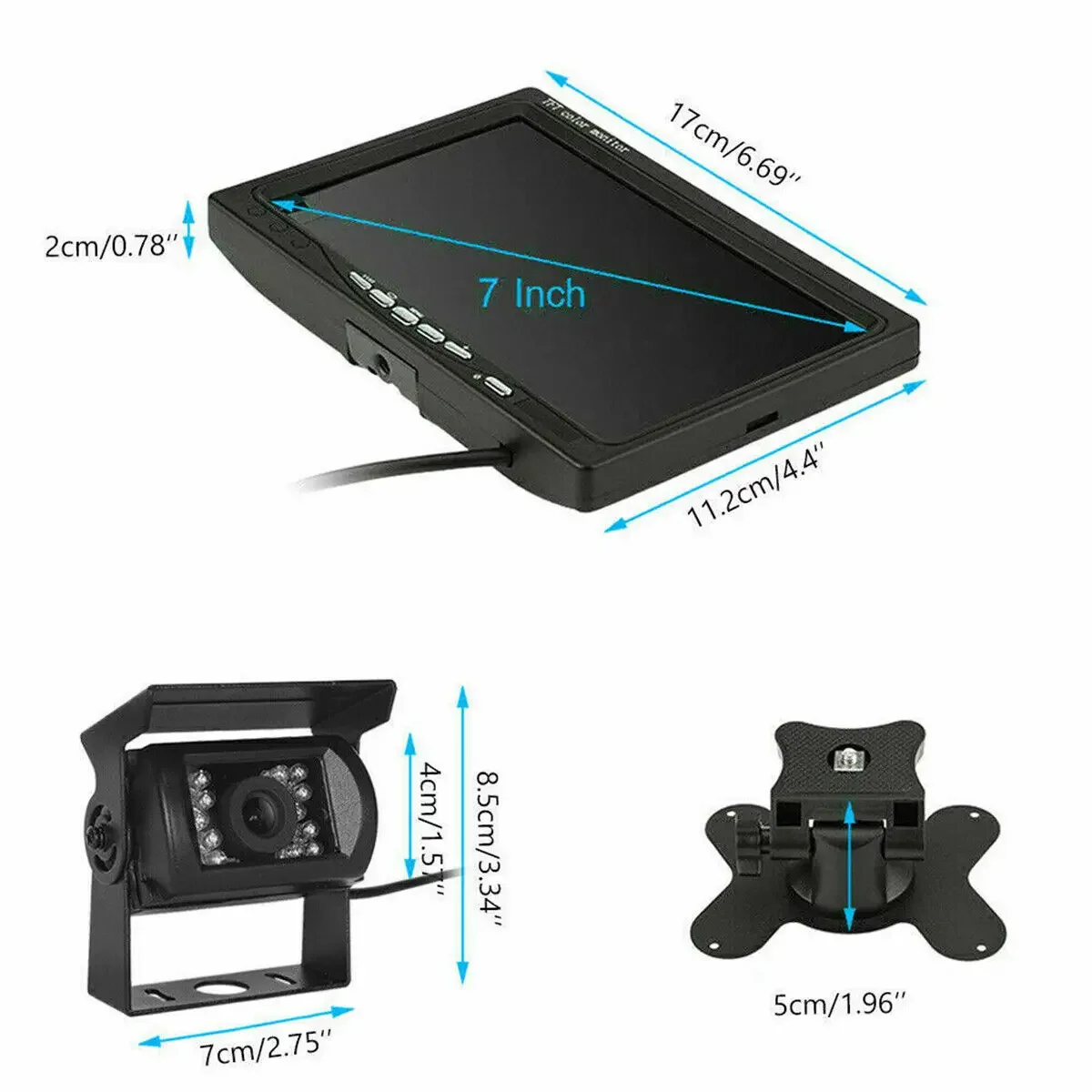

* Display Size 7.0 Inch



* Resolution 800(W) x RGB x 480(H)



* System PAL&NTSC Auto



* Power requirement DC 12V-24V



* Consumption 6W



* Video 2-channel video input; V1/V2 switch

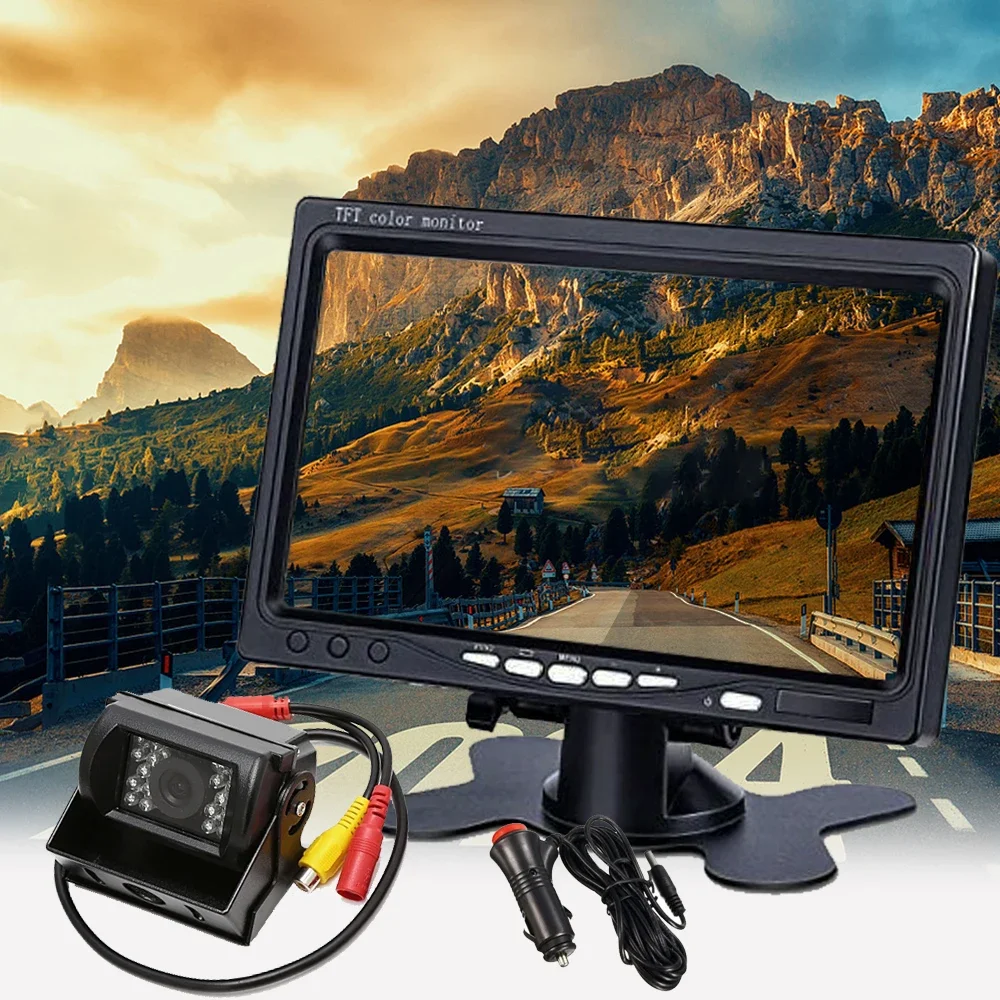

ONE CAMERA KIT:



Package Content:



1 x  12V-24V 7" LCD Rearview HD Monitor



1 x  18 LED Car CCD Rearview Camera

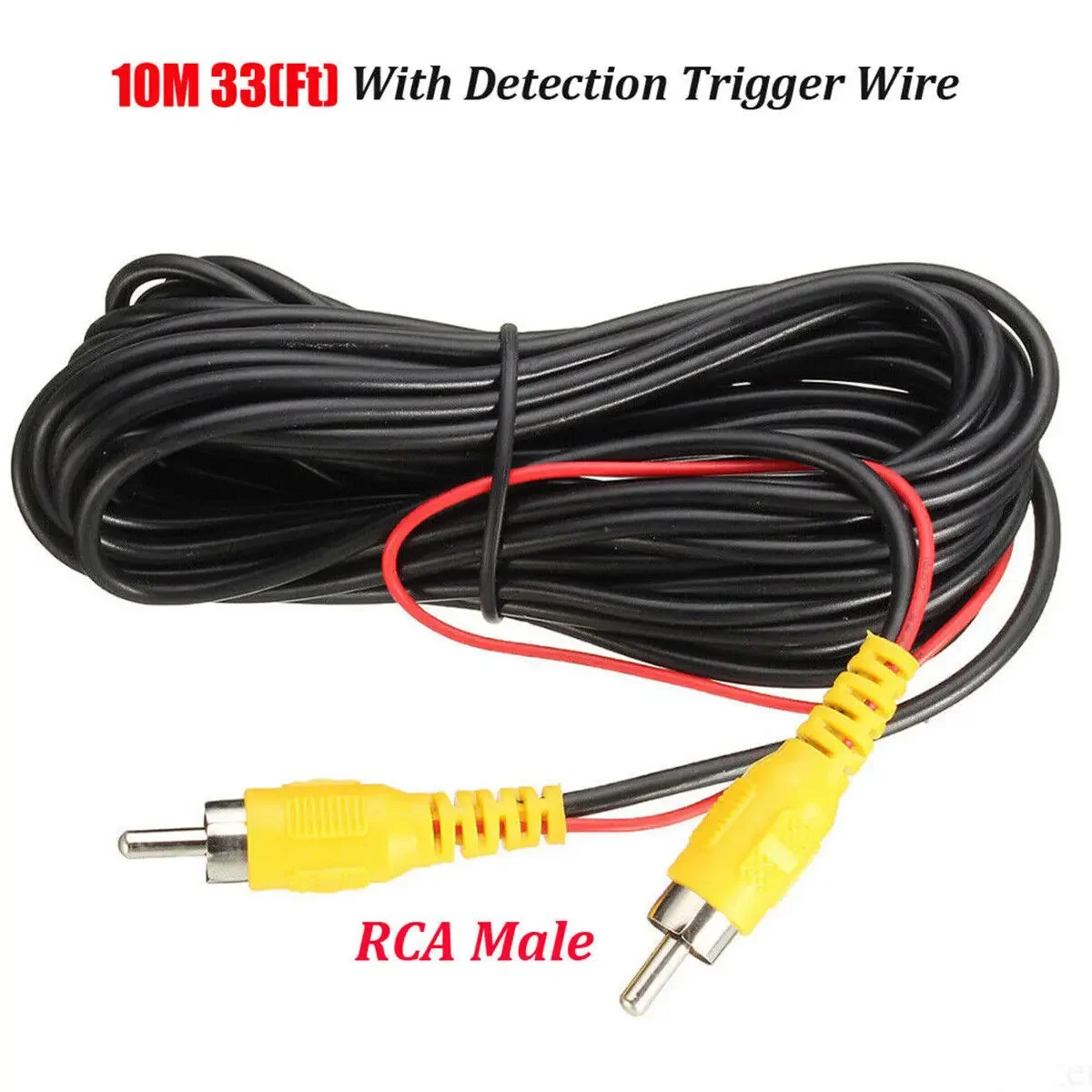

1 x 10M Video Cable



1 x Two-sided Adhesive Tap



1 x Mount Bracket



1 x Remote Controller



TWO CAMERAS KIT:
Package Content:



1 x  12V-24V 7" LCD Rearview HD Monitor



2 x  18 LED Car CCD Rearview Camera



2 x 10M Video Cable



1 x Two-sided Adhesive Tap



1 x Mount Bracket



1 x Remote Controller



1 x Manual
