Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Description:

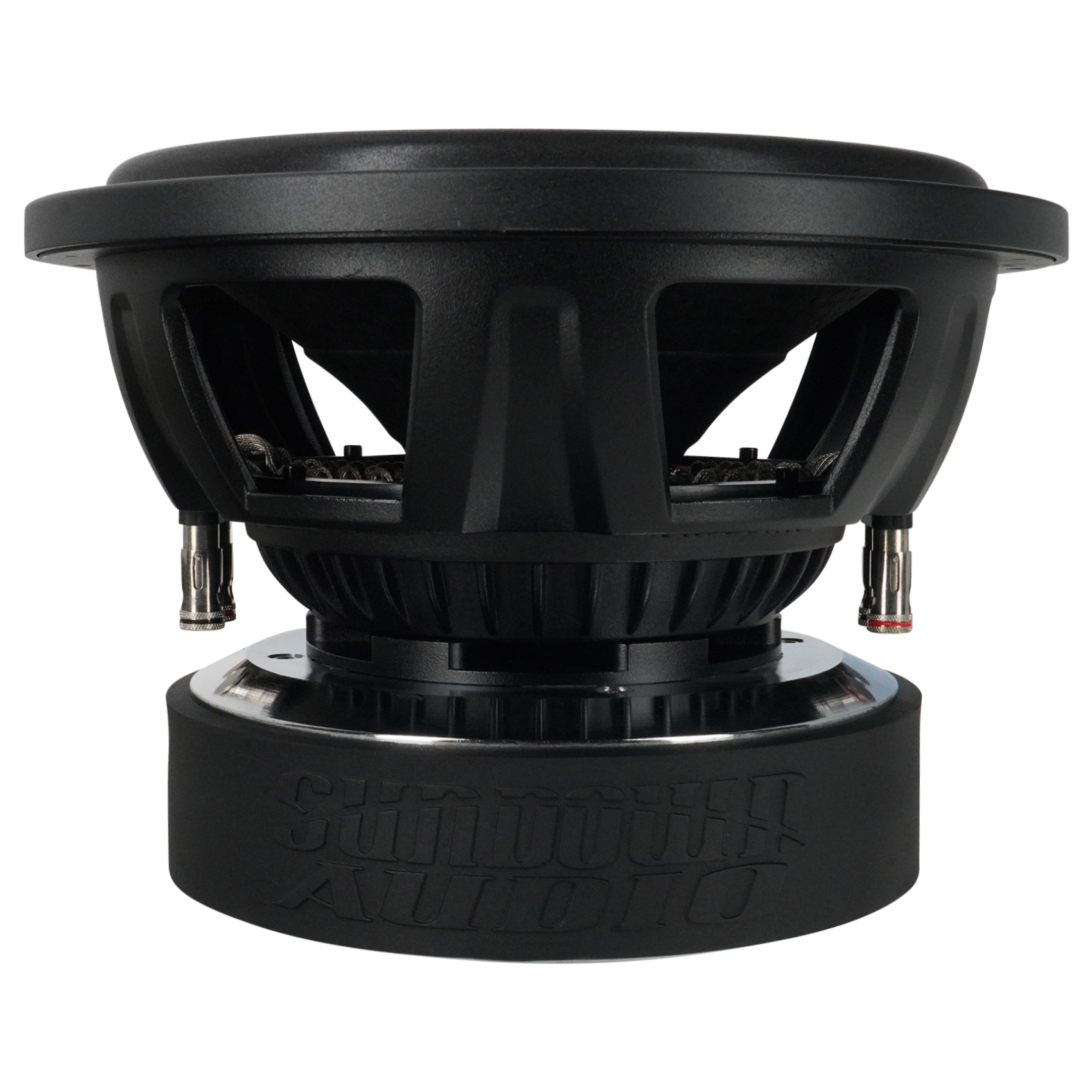

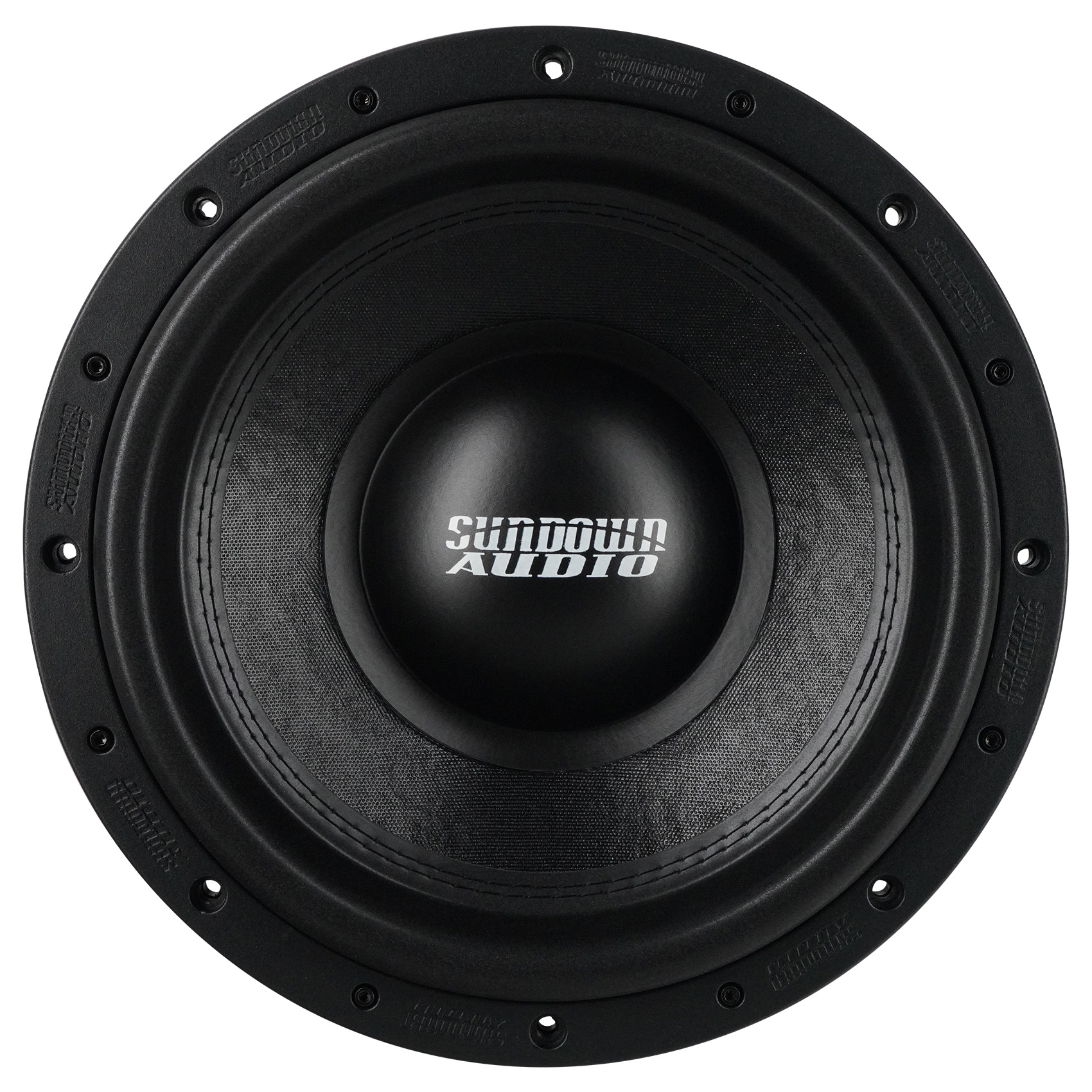

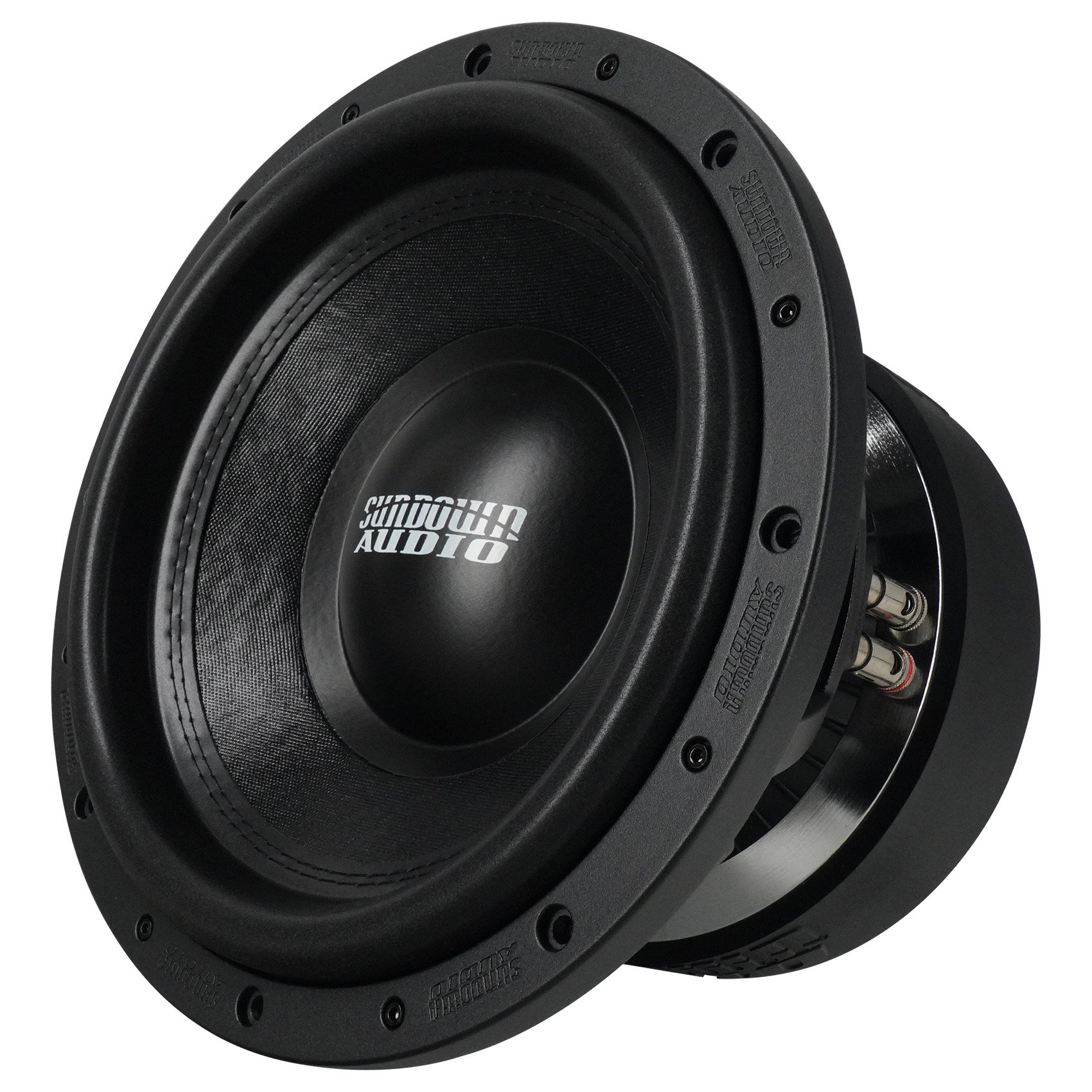

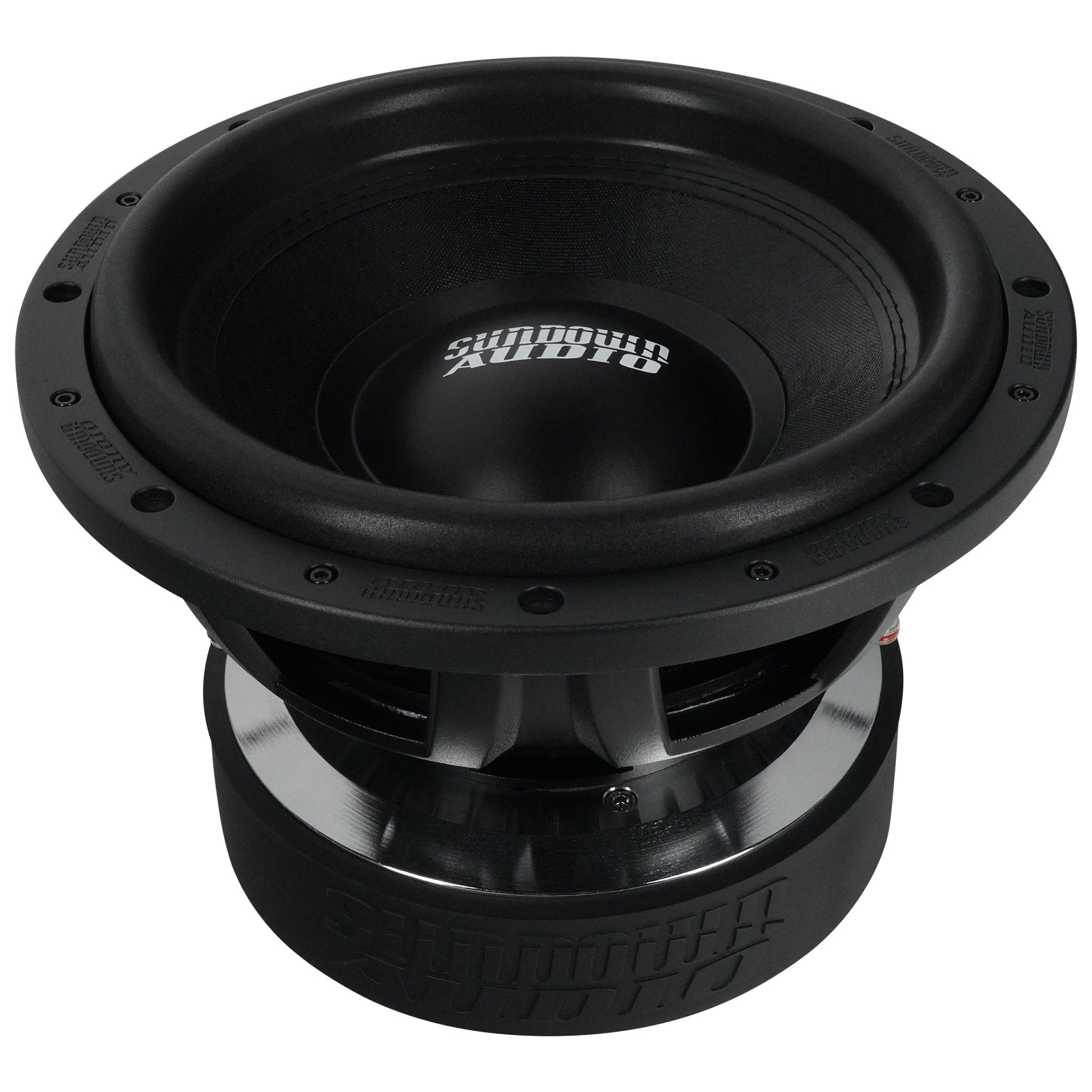

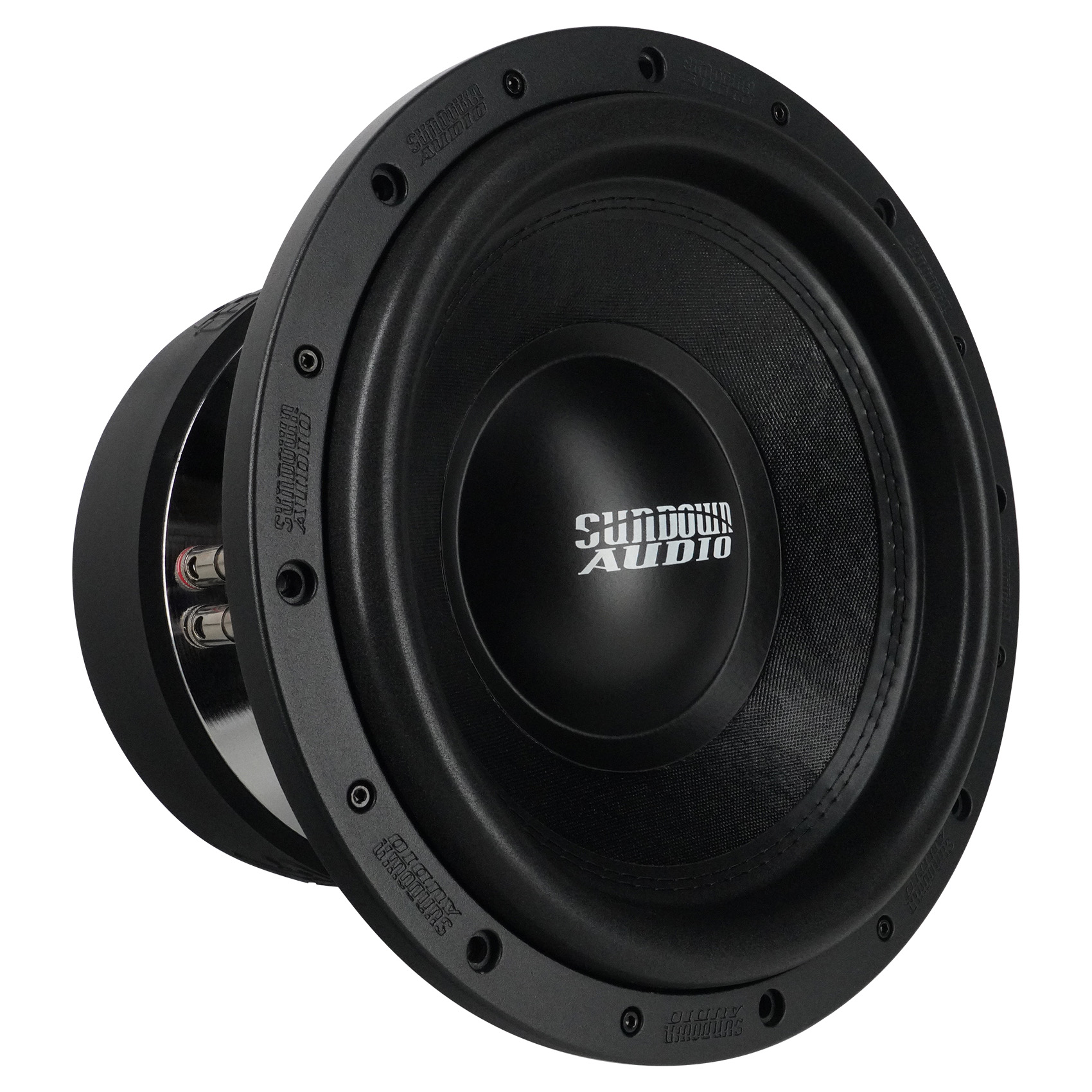

Designed to be at home in the competition lanes or playing your favorite music, the U Series is the premier “standard suspension” woofer in the Sundown lineup. A double-stacked 9.4-inch wide ferrite magnet system is coupled to a thick top plate. A thick set of shorting rings are used inside the magnets and on the pole cap, smoothing out frequency response while doubling as a heat sink and airflow guide. A custom, substantially thicker aluminum frame was designed specifically for the U Series, equipped with heat dissipation ribs. The U v.2 motor also features an extended pole piece to keep the coil under perfect control under high stress. The coil temperature is kept in check via a high-velocity solid pole / machined pole channels arrangement and a series of 16 direct air-gap vents in the back plate.

Features:

• 2000 Watts RMS / 4000 Watts Peak
• Dual 2 ohm
• Optimized for small ported or bandpass enclosures
• Aluminum 3” voice coil former for superior heat dissipation
• High-temperature copper voice coil
• Double stitched surround
• Heavy-duty cast basket

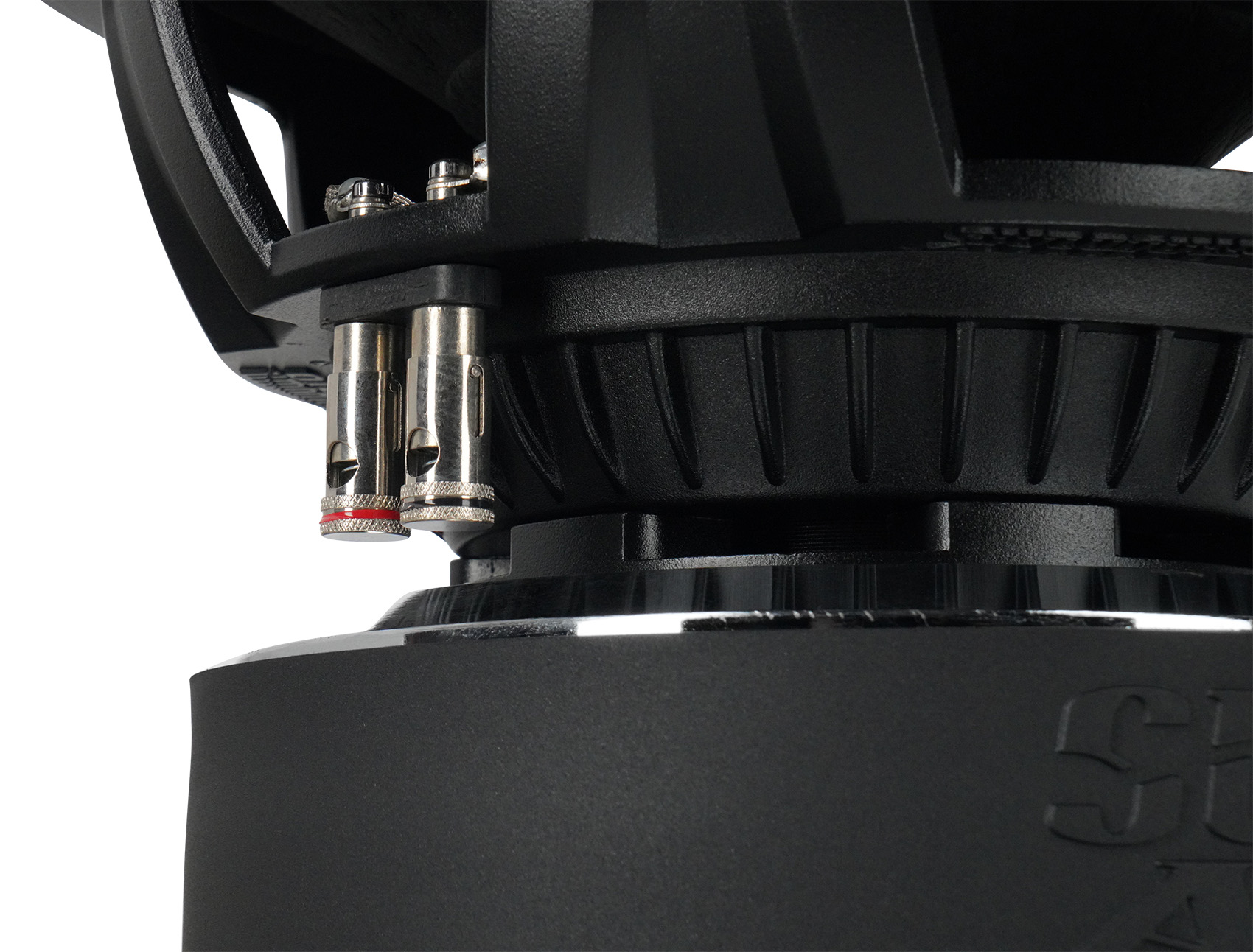

• Spring-loaded terminals accept up to 8-gauge wire
• Stitched-on heavy-duty tinsel leads
• Solid pole with vent channels and aluminum shorting ring cap

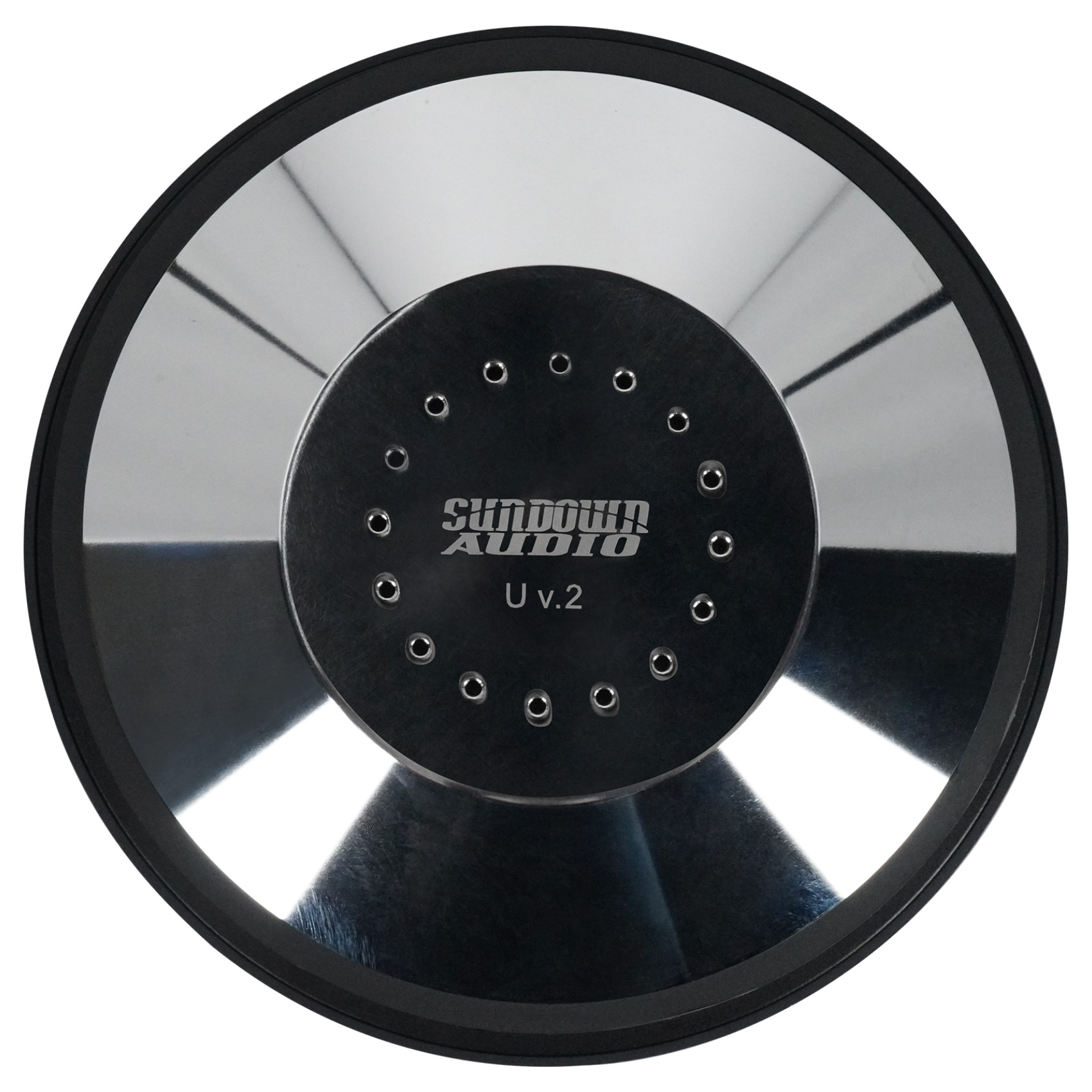

• Rear gap-venting
• Top-Plate Cooling Channels

Specifications:

• RE (Ohms): 3.8
• FS (Hz): 42.2
• VAS (L): 14.76
• Qes: 0.48
• Qms: 4.74
• Qts: 0.44
• Le (mH): 3.18
• BL (NA): 27.26
• Mms (Grams): 358.64
• Cms (uM/N): 40.47
• Sens (dB @ 1w/1m): 85.19
• Xmax: 30mm

Subwoofer Measurements:

• Displacement (Inches): .19cu ft
• Depth (Inches): 7.75"
• Cutout (Inches): 11.01"
• Motor Diameter (Inches): 9.68

Ported Enclosure Specs:

• Ported Enclosure Size: 2.0cu ft
• Recommended Port Area: 32sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 1cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: .75cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 45sq in
• 4th Order Port Length: 6"
