Condition: USED

Warranty: 1 YEAR AUDIOSAVINGS

Description:

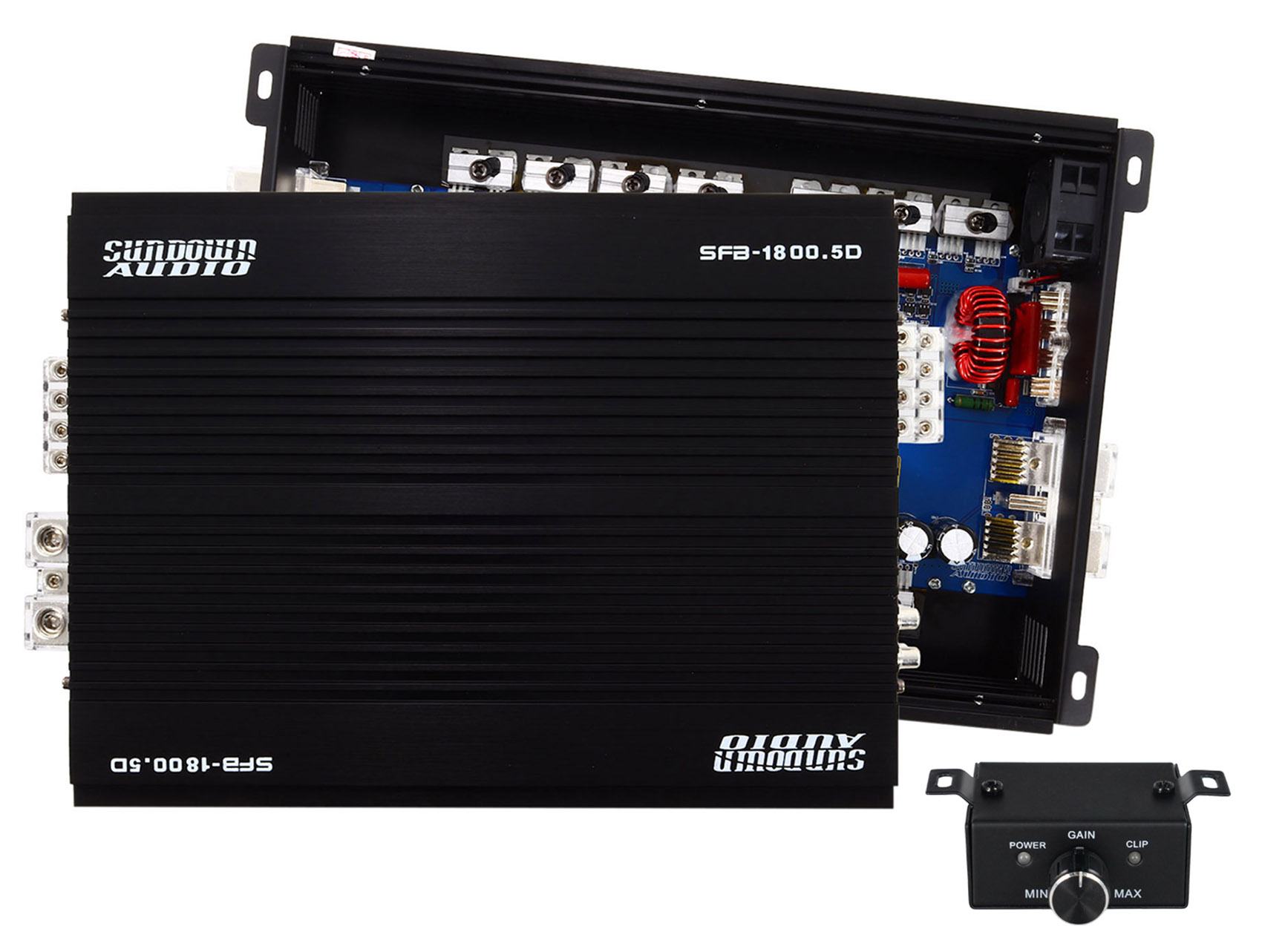

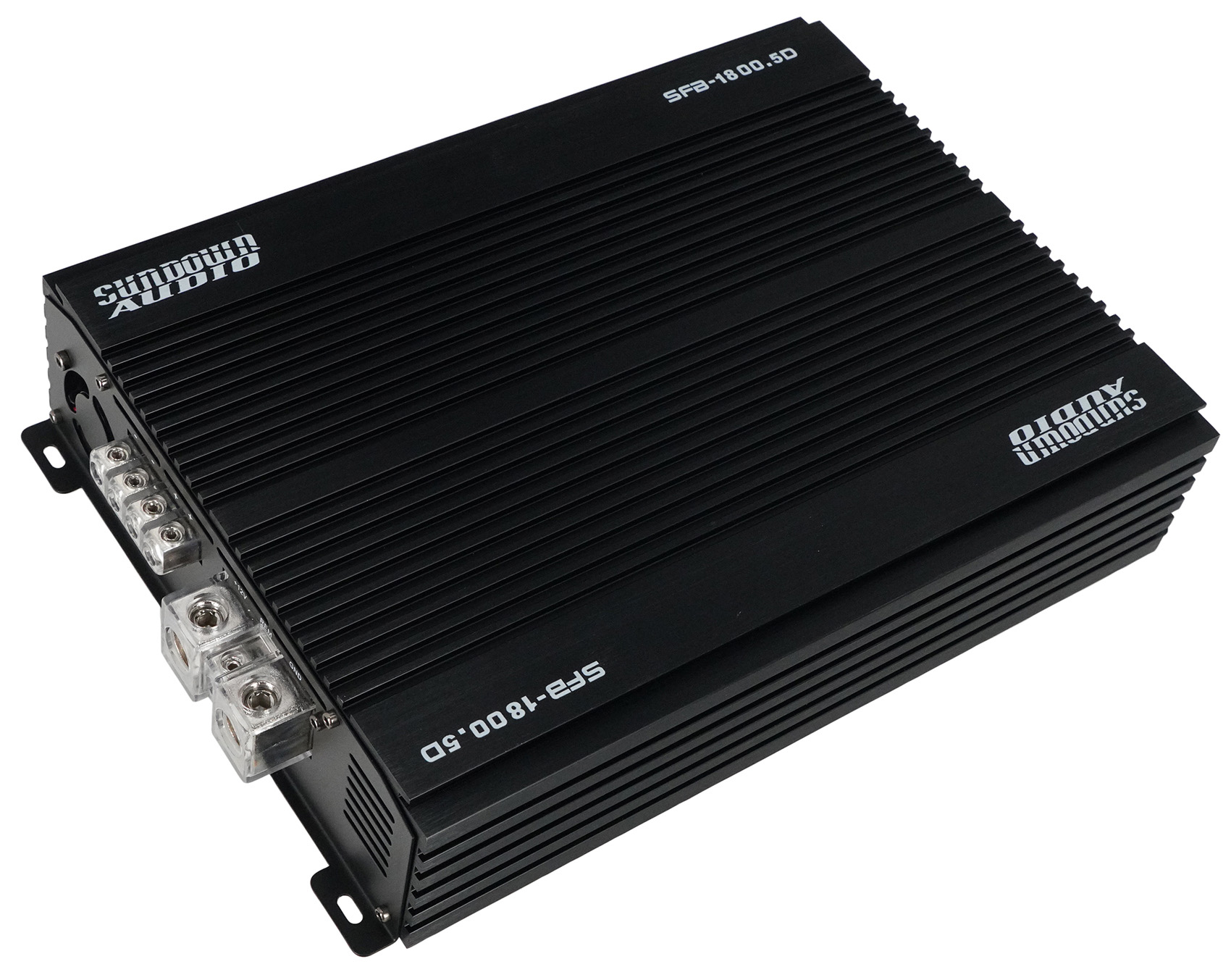

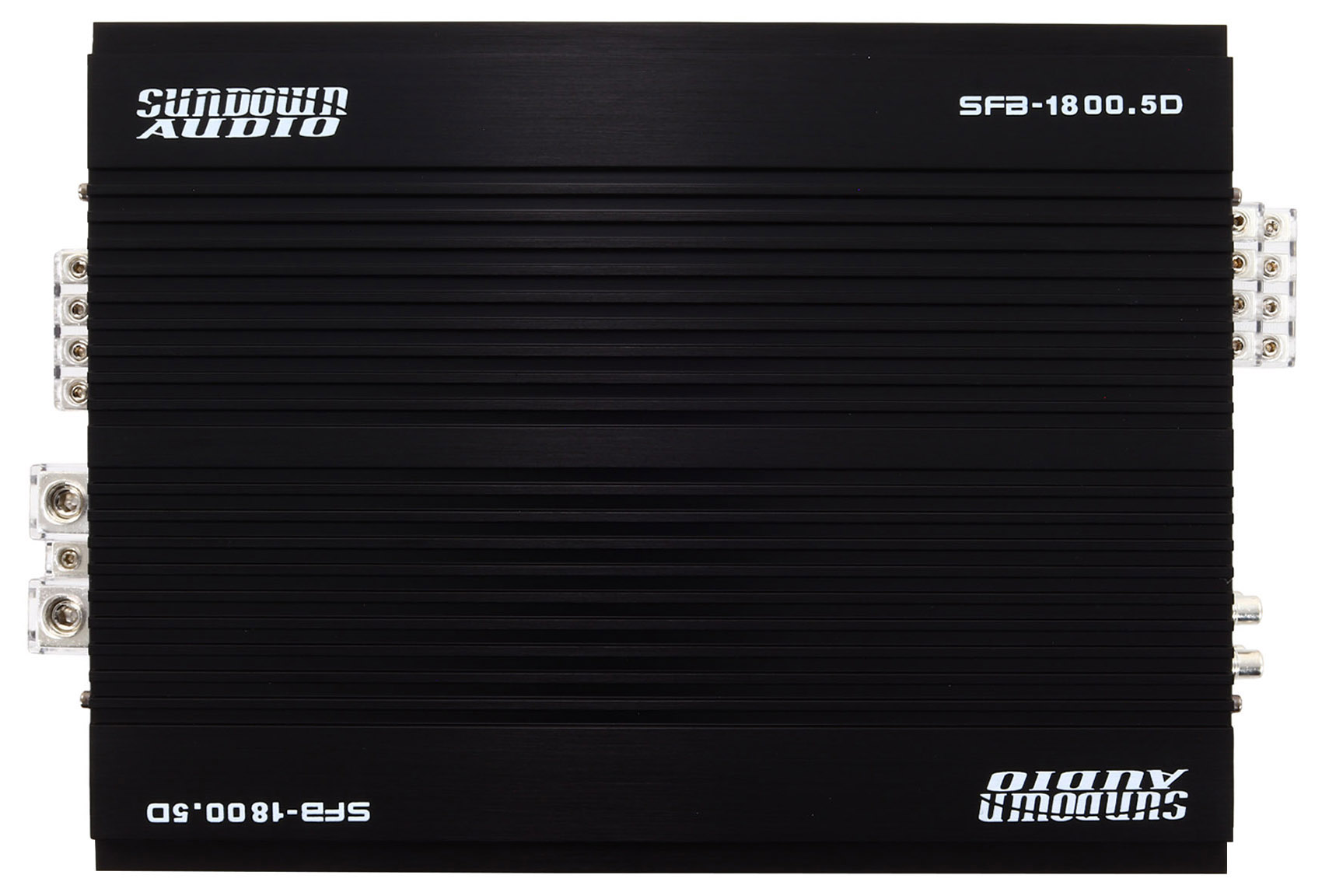

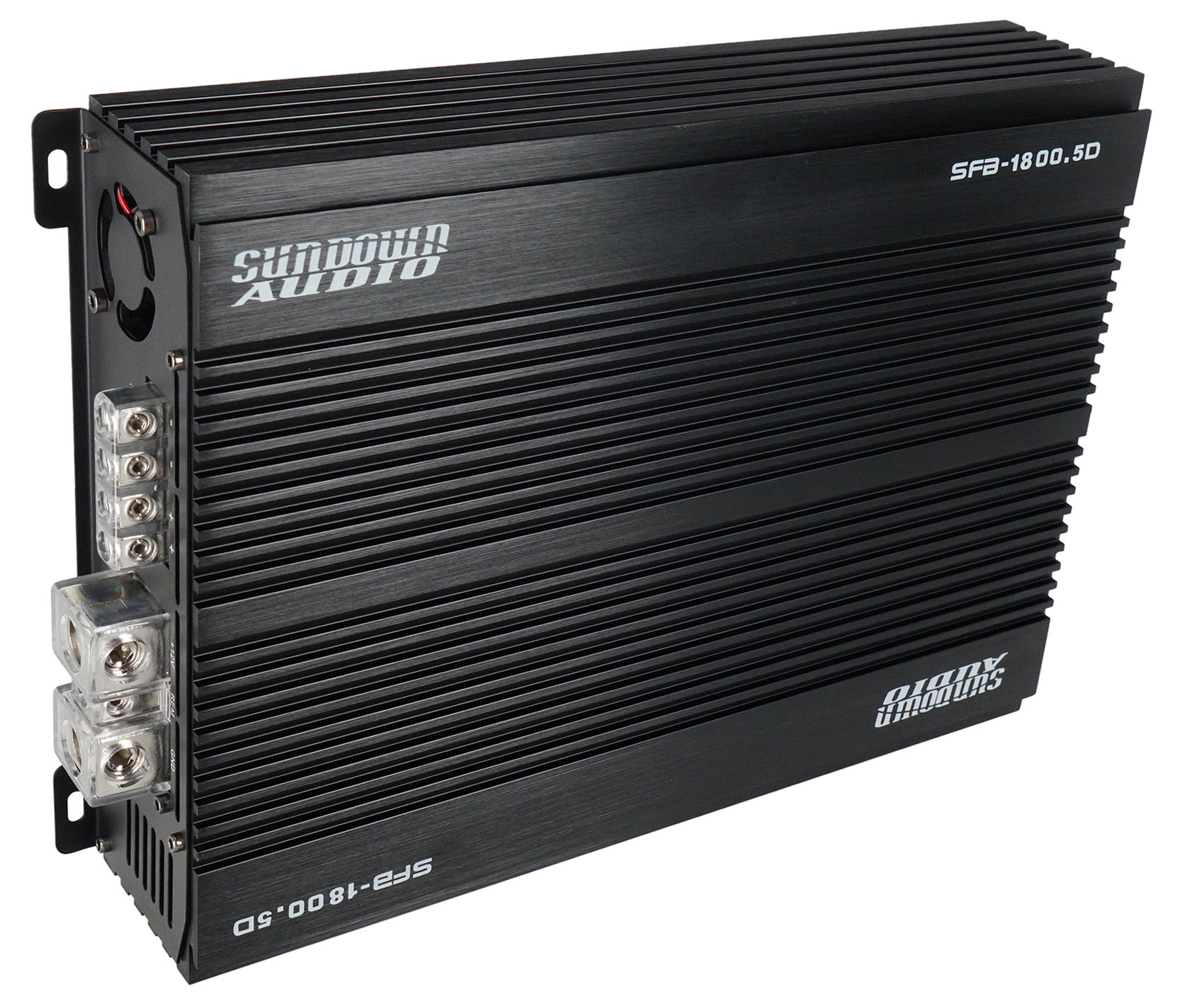

Full Bridge for your full system! The “Brazilian Style” SFB packs a powerful punch in a compact size, with a bass channel stable down to 1 ohm. Use the SFB to wire several speakers together on every channel - an ideal amp for a PA mid/high speaker array, a large marine system, or your favorite set of separates, plus a dedicated powerhouse for a sub channel. If you are looking for raw power on a budget – look no further!

Features:

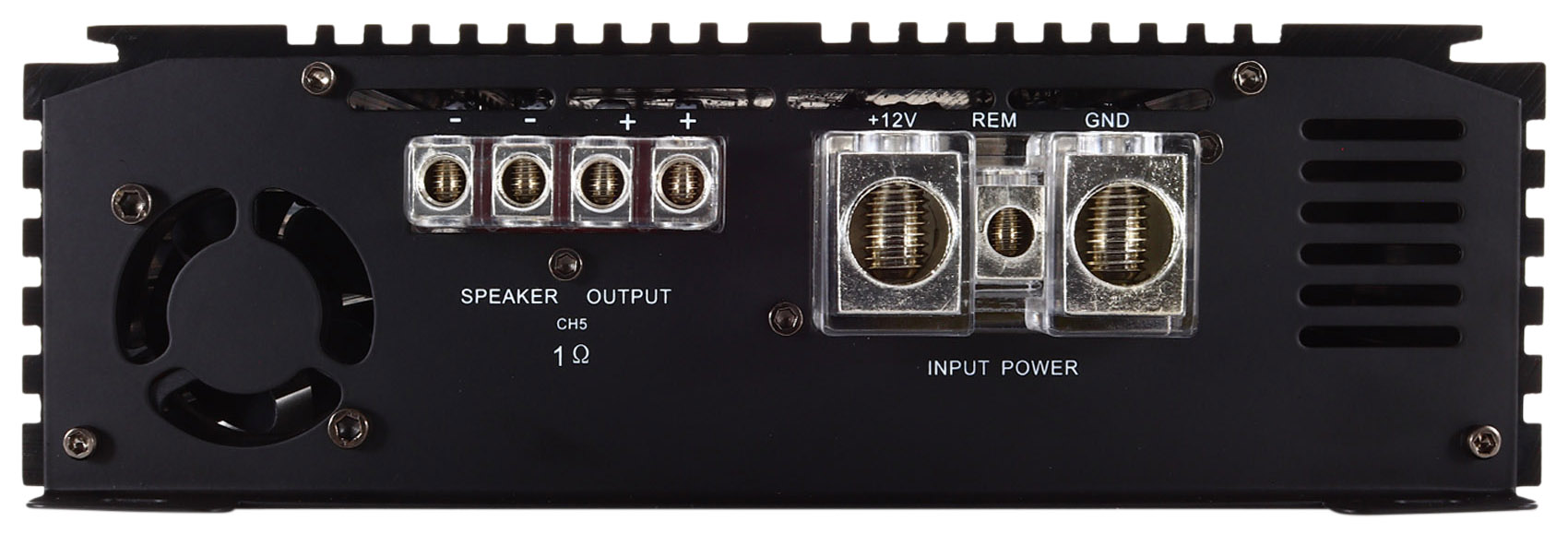

• 1,000 x 1 @ 1 ohm RMS (Ch. 5)
• 300 x 4 (Ch. 1-4) + 500 x 1(Ch. 5) @ 2 ohms RMS
• 200 x 4 (Ch. 1-4) + 250 x 1(Ch. 5) @ 4 ohms RMS
• 5-channel full-range amplifier

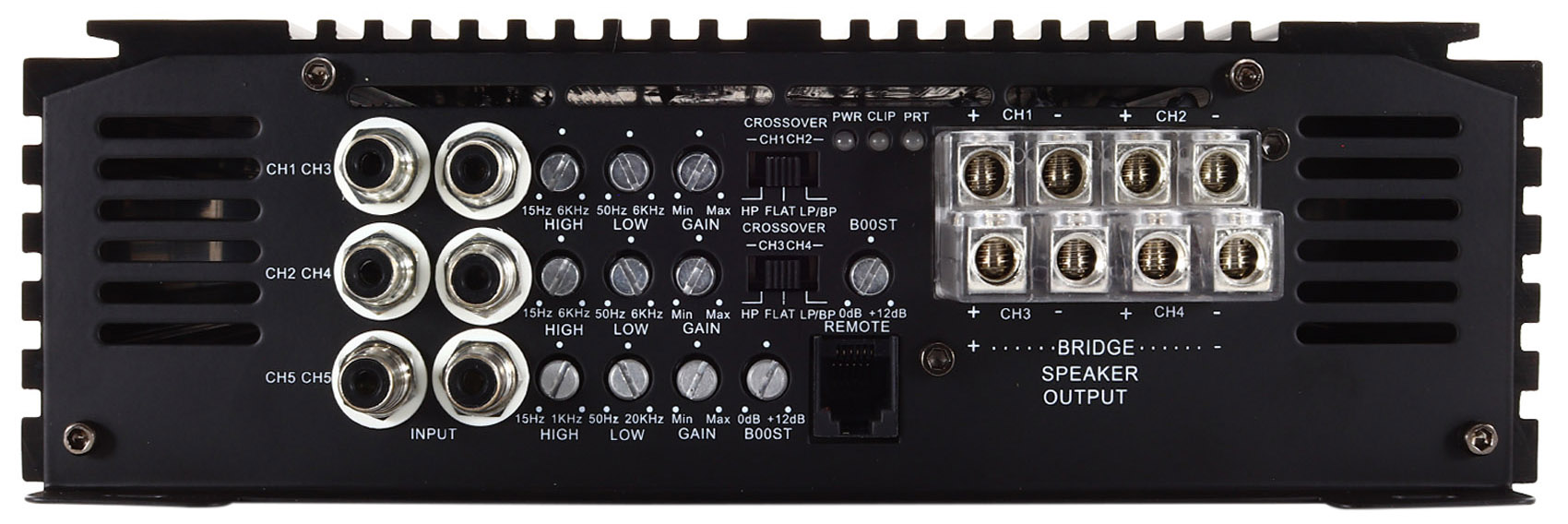

• Variable 12dB low pass filter: 50Hz – 6kHz (Ch. 1-4)
• Variable 12dB low pass filter: 50Hz – 20kHz (Ch. 5)
• Variable 12dB high pass filter: 15Hz – 6kHz (Ch. 1-4)
• Variable 12dB high pass filter: 50Hz – 1kHz (Ch. 5)
• Variable 12dB Bass Boost @ 50Hz
• Power, protection & clipping indicators included
• Thermal, voltage, speaker short, and dc-offset protection circuitry

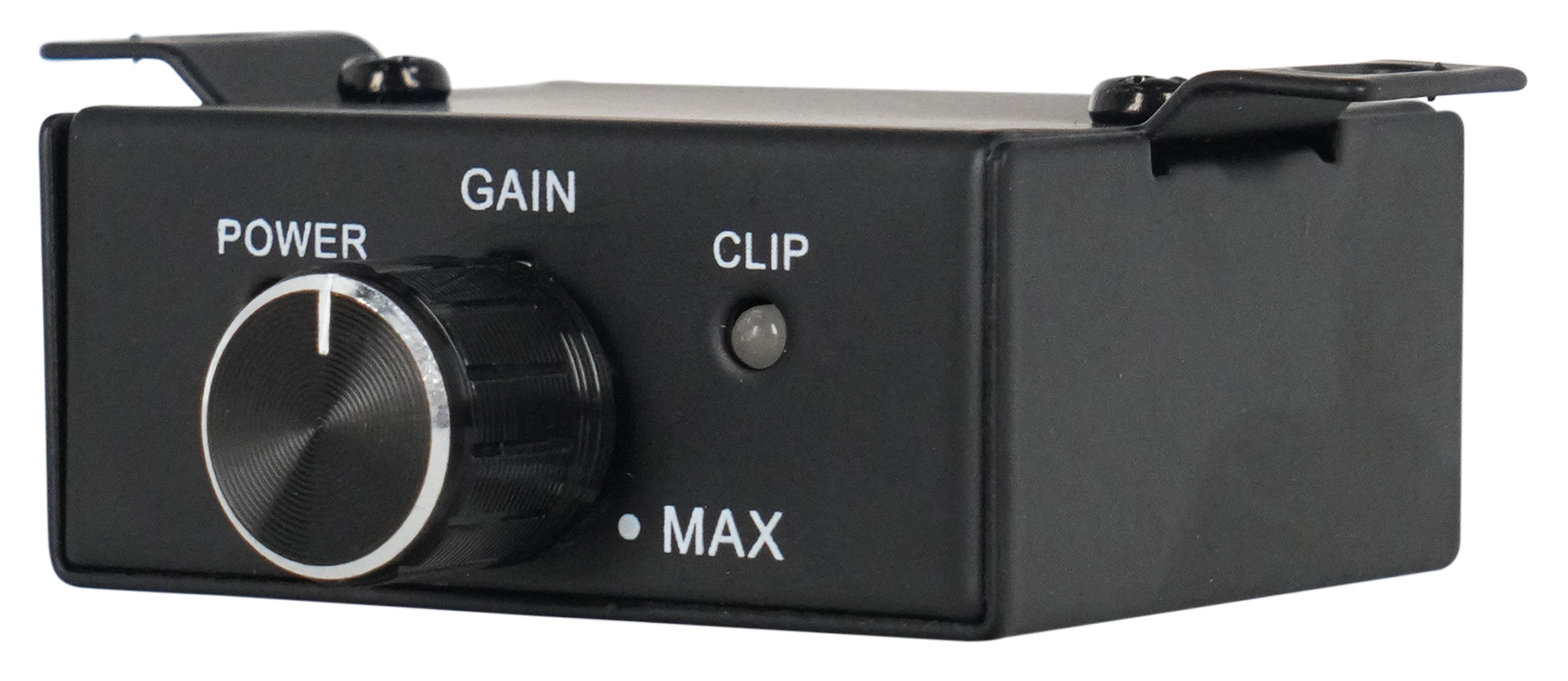

• Optional wired remote control with clipping indicator

Specifications:

• Frequency Response: 10HZ-20KHZ(-3dB)
• Input Impedance: 56k ohms
• Input Sensitivity 5V Max
• Minimum Supply Voltage: 9VDC
• Maximum Supply Voltage: 16VDC
• Working Voltage 10.5v-15.5v
• Dimensions 8.86″ x 11.81″ x 2.70″
• Amplifier Type: 5-channel full-range amplifier
• 1 Ohm RMS Power: 1,000 x 1 @ 1 ohm RMS (Ch. 5)
• 2 Ohm RMS Power: 300 x 4 (Ch. 1-4) + 500 x 1(Ch. 5) @ 2 ohms RMS
• 4 Ohm RMS Power: 200 x 4 (Ch. 1-4) + 250 x 1(Ch. 5) @ 4 ohms RMS
• Operation Voltage: 10.5v-15.5v
• Recommended Fuse: 150A
• Signal / Noise Ratio: 100dB
• Variable 12dB High Pass Filters: 15Hz – 6kHz (Ch. 1-4) 50Hz – 1kHz (Ch. 5)
• Variable 12dB Low Pass Filters: 50Hz – 6kHz (Ch. 1-4) 50Hz – 20kHz (Ch. 5)
• Dimensions:

  • Length: 11.81"
  • Width: 8.86"
  • Height: 2.70"
