DC 3.7V High Voltage Module 50M RC Arc Igniter Lighter Booster Coil 10/15/25KV

Product View

Detail

Product Features
1. Built-in high-performance boost coil delivers stable arc discharge to meet ignition requirements

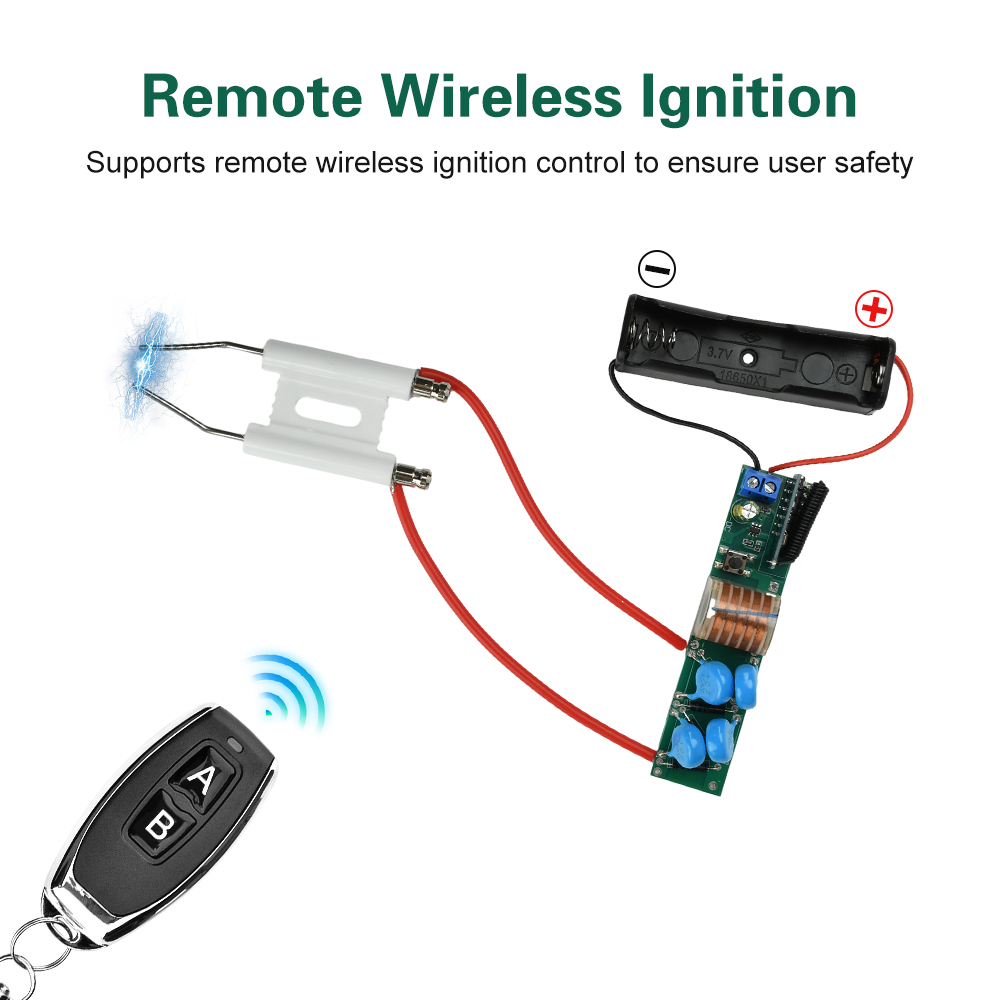

2. Supports 50-meter wireless remote control operation for enhanced safety
3. Integrated 3.7V battery power module ensures compact, lightweight, and portable design
4. Robust operating current up to 2.5A guarantees stable ignition and reliable performance

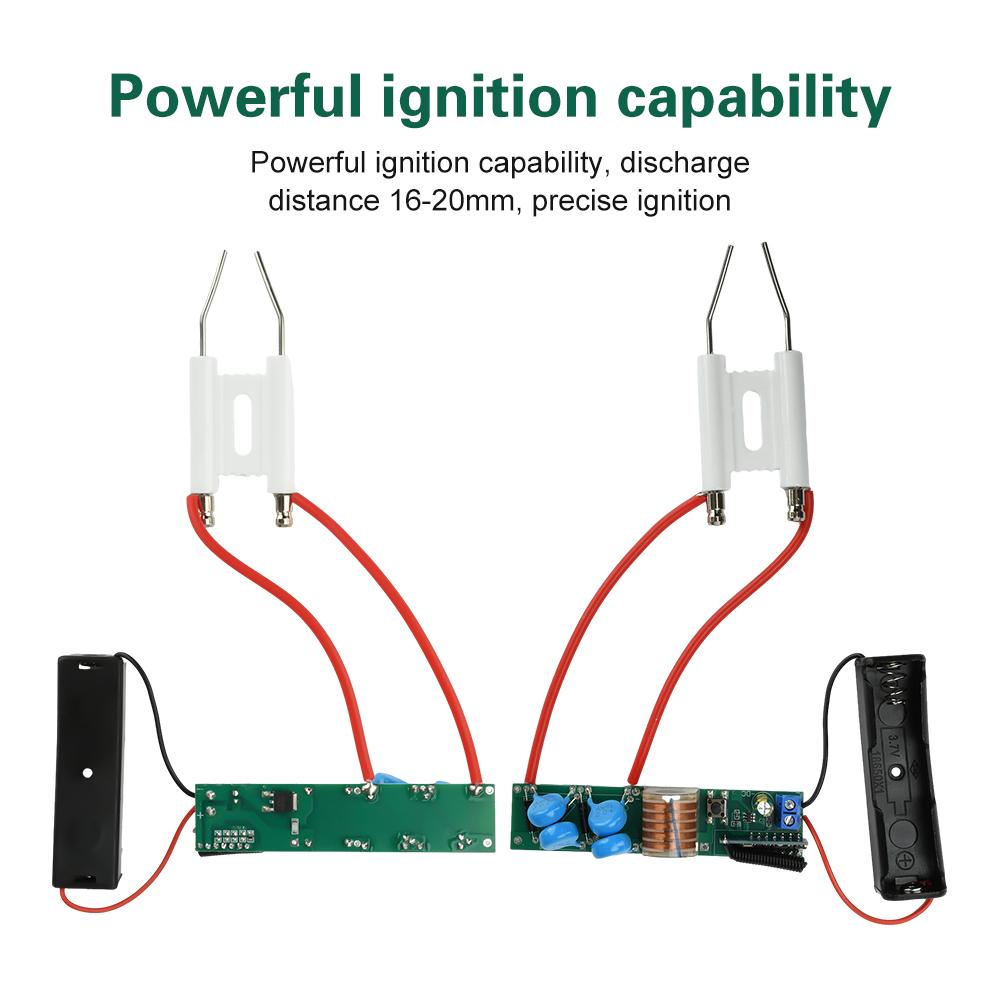

5. Powerful ignition capability with discharge distances of 10-12mm (10KV/15KV) or 16-20mm (25KV) for precise ignition

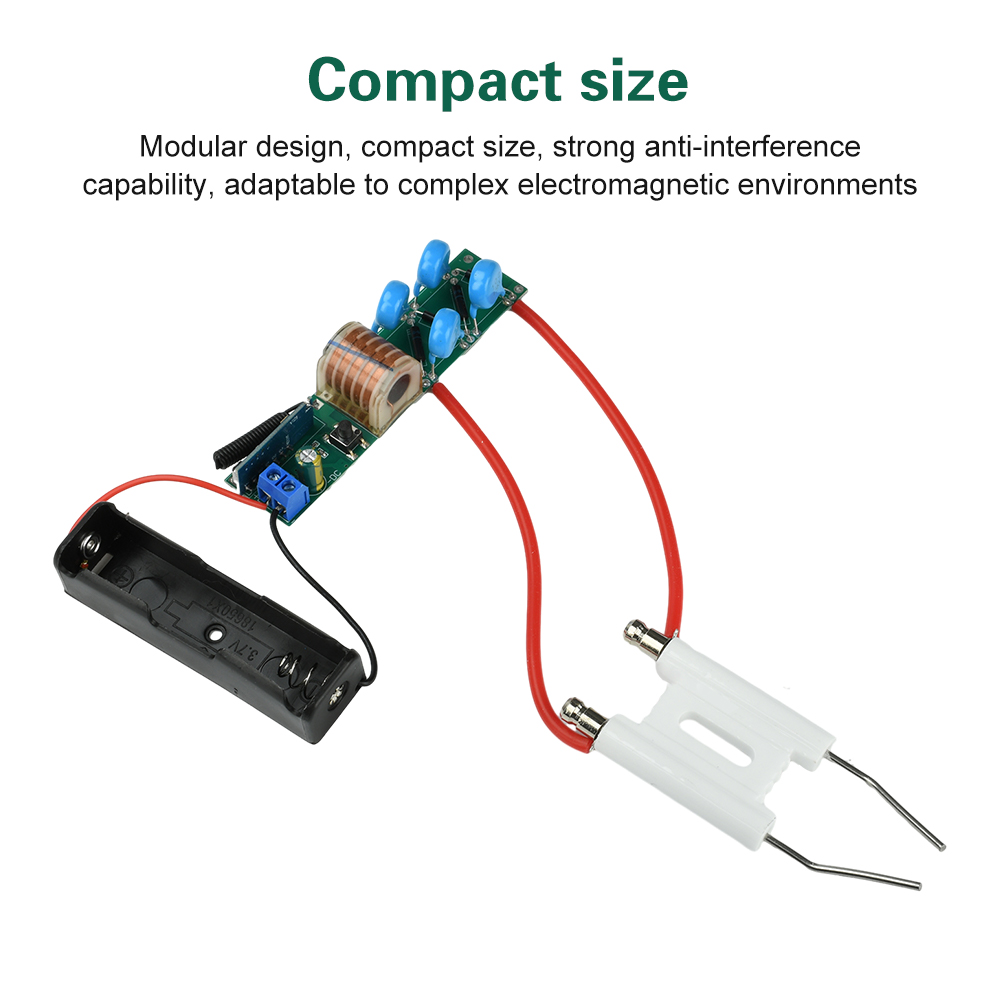

6. Modular design, compact size, strong anti-interference capability, suitable for complex electromagnetic environments

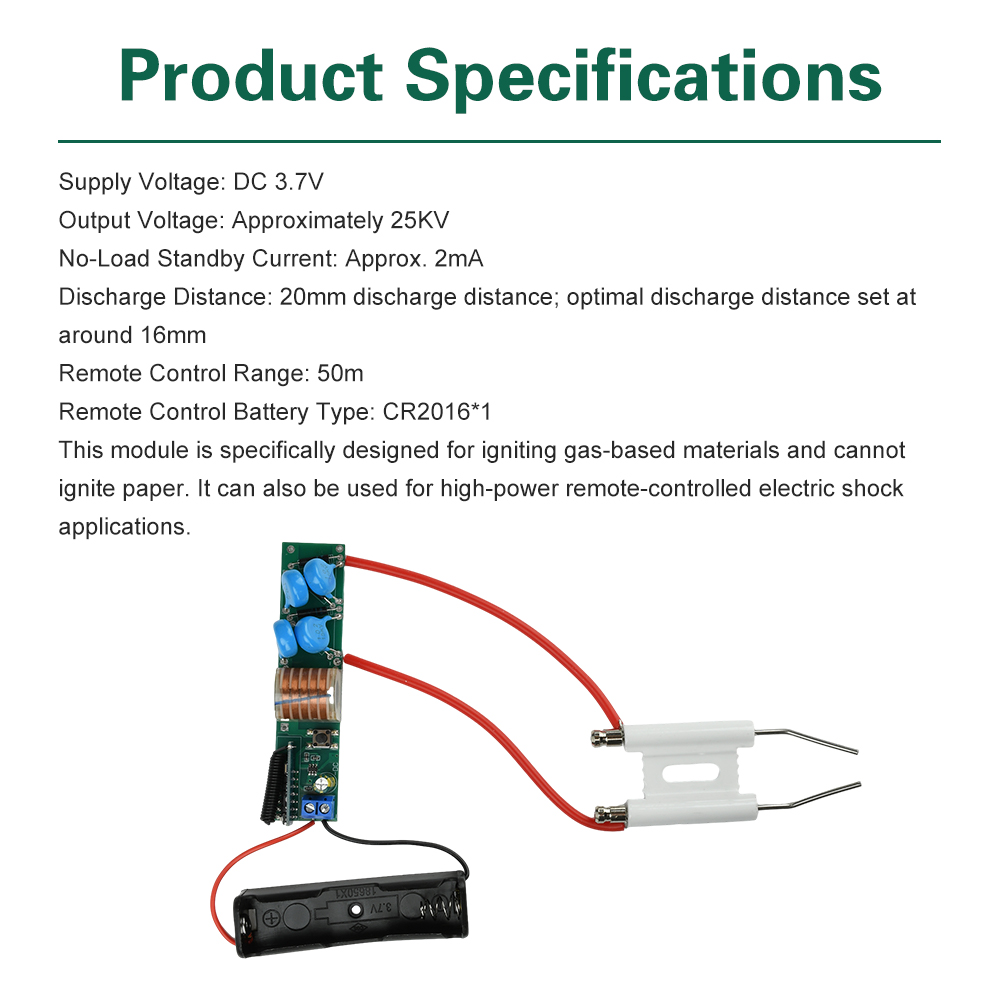

Product Specifications

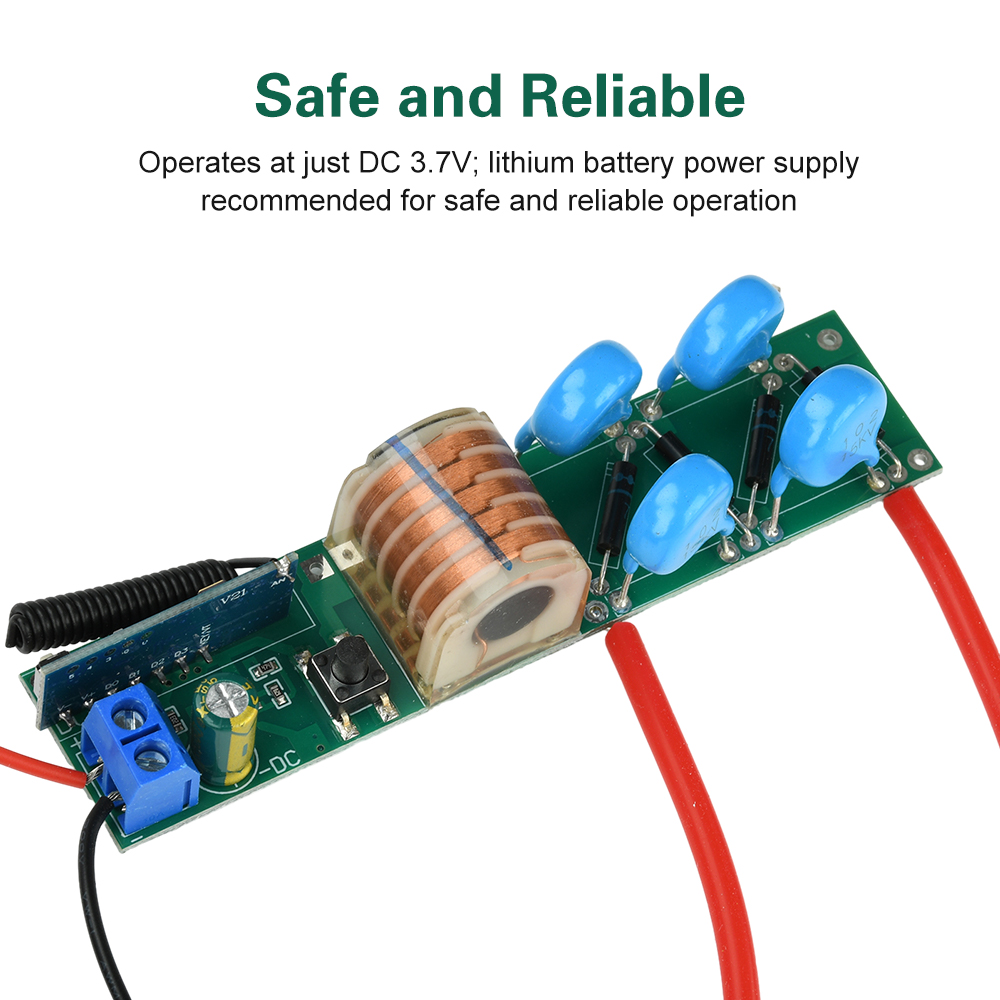

Supply Voltage: DC 3.7V
Output Voltage: Approx. 15KV
No-load standby current: Approx. 2mA
Operating current: 2.5A (requires battery capacity >2600mAh or power battery supply)
Discharge distance: 10mm-12mm optimal (10KV/15KV);

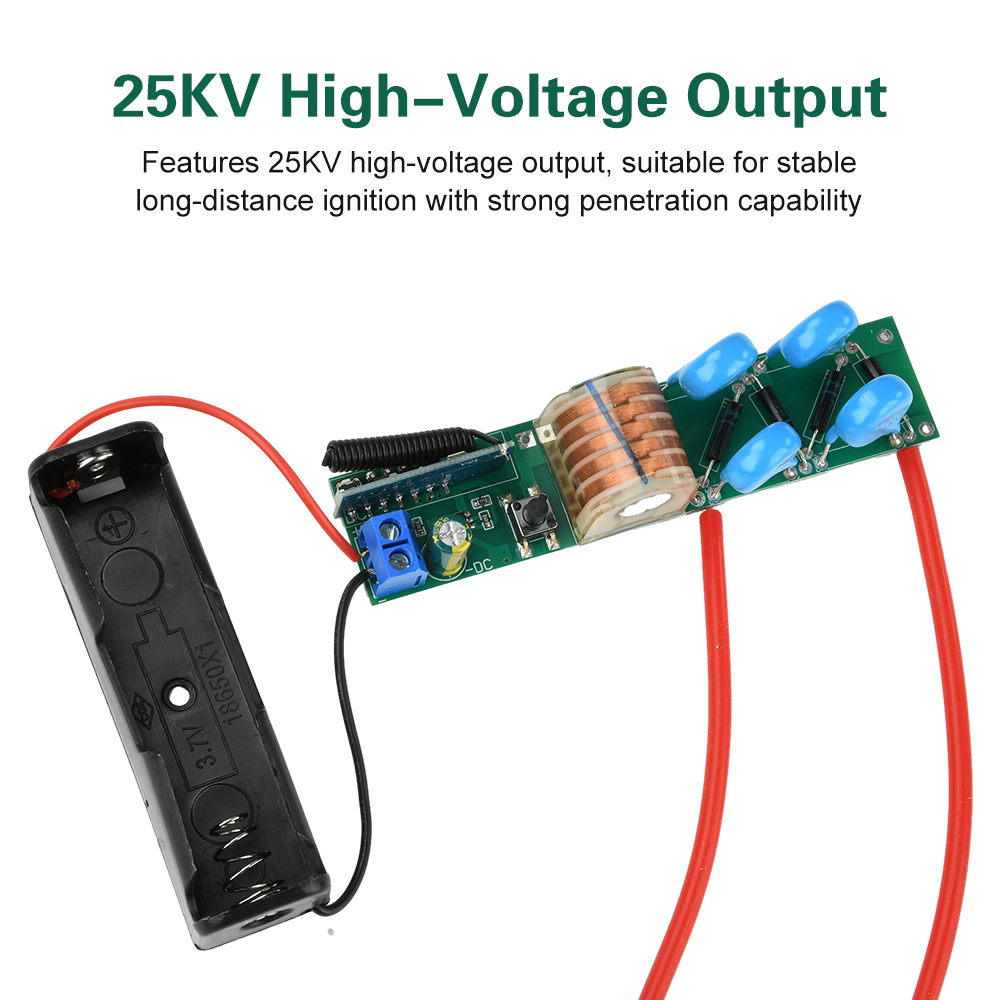

Discharge distance: 20mm, optimal discharge distance set around 16mm (25KV)
Remote control distance: 50m
Remote Control Battery Type: CR2016*1

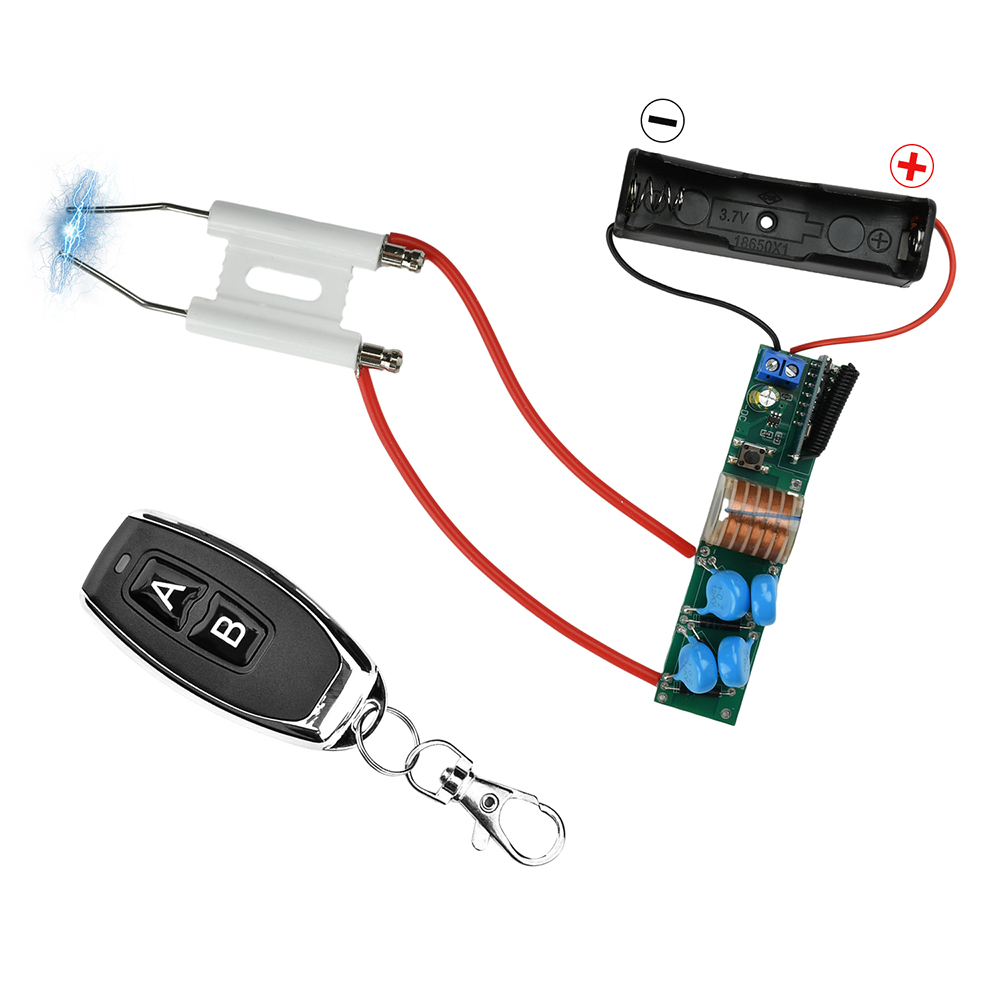

This module is a long-range remote ignition module designed for single-cell battery ignition. It incorporates the newly developed high-voltage, high-power boost chip XKT-2031C, offering advantages such as simple circuitry, high output power, no need for custom transformers, compact size for easy installation, and extended remote control range.
Package Contents:

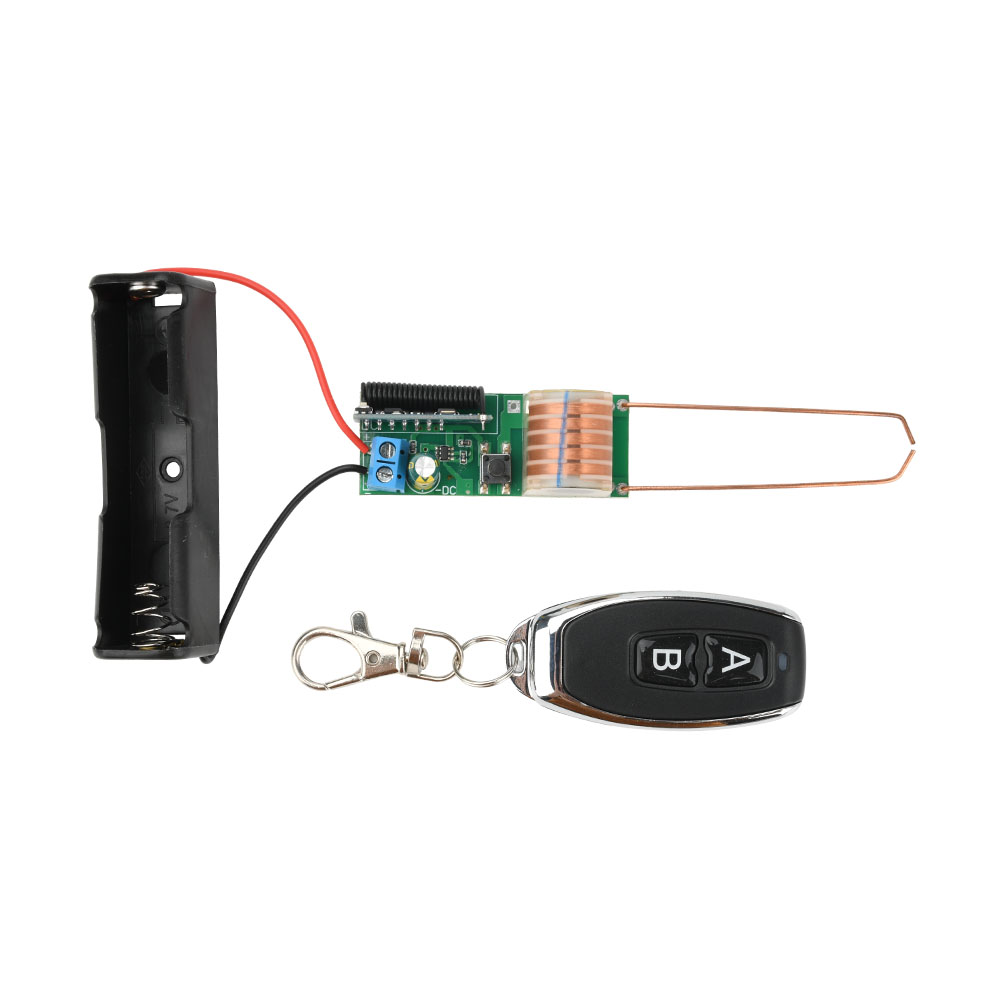

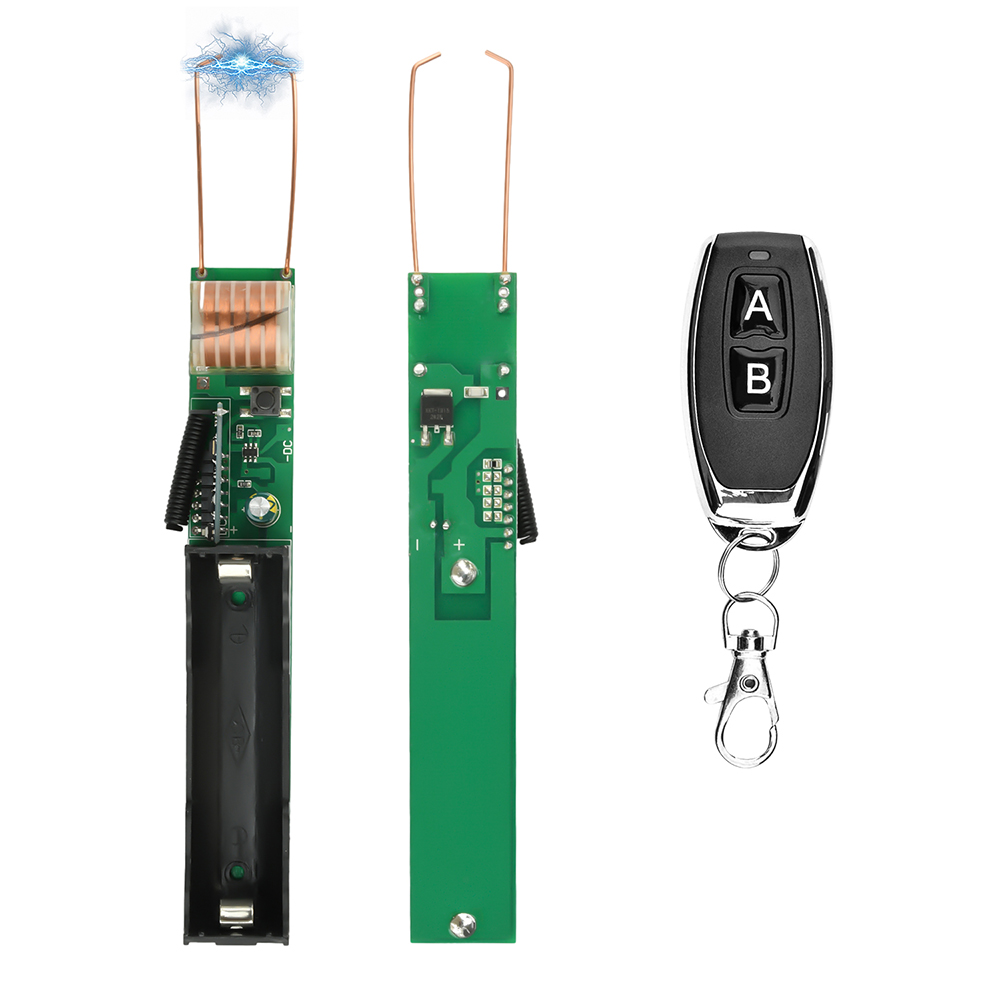

Module*1
Remote Control*1
