Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Description:

This SA-10/12/15 v.2 series is a top-down upgrade from the original SA series. The 2.75” coil punches way above its weight, outperforming many 3” coils without the adding weight & with the added advantage of a wider spider. We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level.

The motor also features a large magnet shorting ring (faraday ring) to reduce distortion and deliver smoother response across the entire acoustic spectrum. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and cast aluminum frame are used to complete this masterpiece. On top of the ~19mm of one-way linear excursion we have an x-mech limit of 37mm one-way before coil bottom making it nearly "bottomless."

The 18" model features a larger diameter motor to drive the higher mass.

Features:

• 1250 Watts RMS / 2500 Watts Peak

• Dual 4 ohm

• Vented magnetic gap & pole piece

• Aluminum 2.75” voice coil former for superior heat dissipation

• Innovative high velocity, cast aluminum vented frame spacer ring

• Magnet ID faraday ring for smooth acoustic response

• High-temperature copper voice coil wire

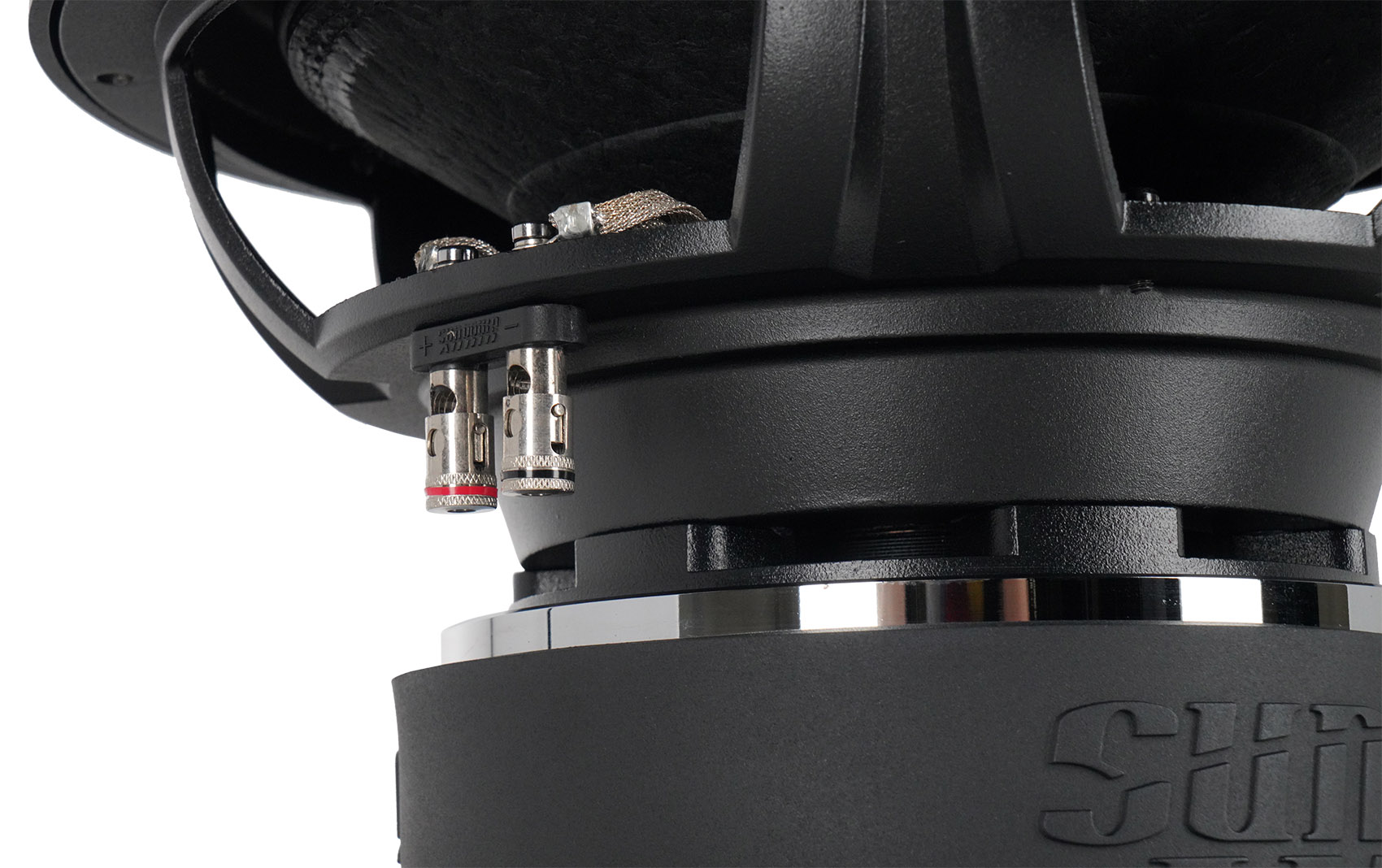

• Spring-loaded terminals

• Stitched-on double “XL” tinsel leads


Specifications:

• RE (Ohms): 6.35

• FS (Hz): 33.6039

• VAS (L): 28.0603

• Qes: 0.4996

• Qms: 4.0178

• Qts: 0.4443

• Le (mH): 4.6357

• BL (NA): 29.39

• Mms (Grams): 321.8425
• Cms (uM/N): 69.6976
• Sens (dB @ 1w/1m): 85.03

• Xmax: 19mm


Subwoofer Measurements:

• Displacement (Inches): .11cu ft

• Depth (Inches): 7.50"

• Cutout (Inches): 11.01"

• Motor Diameter (Inches): 9.68


Ported Enclosure Specs:

• Ported Enclosure Size: 1.75 cu ft

• Recommended Port Area: 26 sq in

• Recommended Port Tuning: 35hz


Sealed Enclosure Specs:

• Sealed Enclosure Size: 1.0 cu ft


4th Order Enclosure Specs:

• 4th Order Sealed Side: .75cu ft

• 4th Order Ported Side: 2.25cu ft

• 4th Order Port Area: 15sq in

• 4th Order Port Length: 6"
