Application

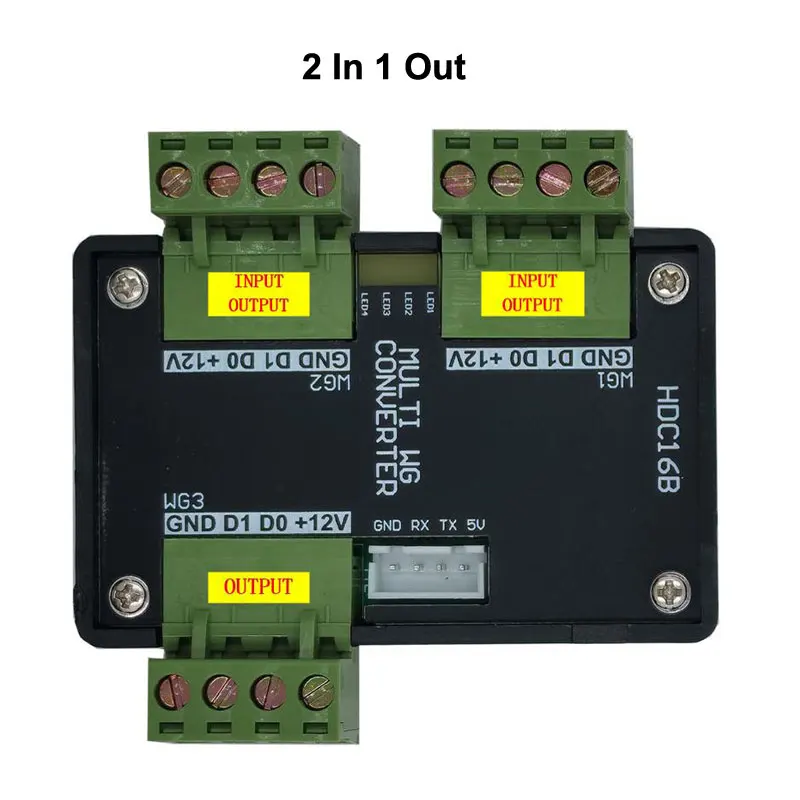

Standard mode of this series converter support 2CH Wiegand reader input (WG1 and Wg2), 1CH Wiegand reader output (WG3).

Popular application for use 4 door access control, for example, some 4 door access controller have only 1CH Wiegand interface for each door, when customer request install 2 Wiegand RFID card reader at each side of the door, can use this Wiegand to Wiegand converter as communication splitter to change 1CH Wiegand interface to 2CH Wiegand interface, so finally 4door access controller can connect 8pcs of Wiegand RFID reader.

Another typical application is connect 1pc of Wiegand RFID card reader (1CH Wiegand output) with 2pcs of access controller, for example 1pc of Wiegand RFID reader connect to access controller Wiegand input interface and also connect to face identify machine Wiegand input interface.

Connect 2 card readers, support WG26 ~ WG80 and keyboard code.

The swipe information is output in turn in WG3.

For examble, the 4-door one-way access control motherboard can be turned into 4-door two-way swipe to open the door.

In the case of card reader, the card number of reader 1 is output first, and then the card number of reader 2 is output;

*****************************************************************************************************************************************

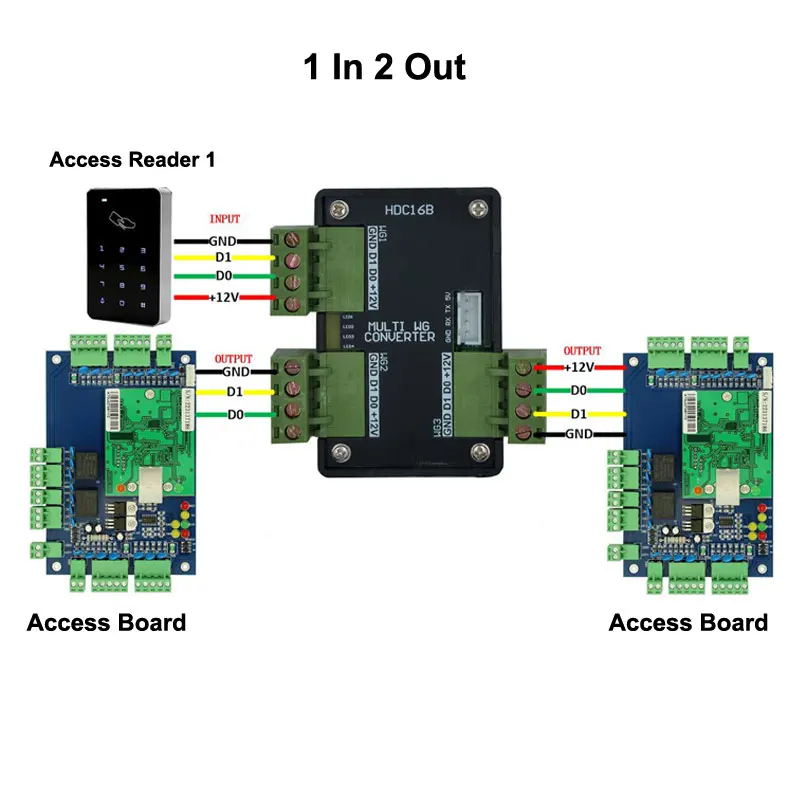

A card reader is connected to two access control boards via the converter board, and the card number is output to the access control board 1 and the access control board 2 at the same time. The card number forwarding rules can be customized according to user requirements;

*****************************************************************************************************************************************

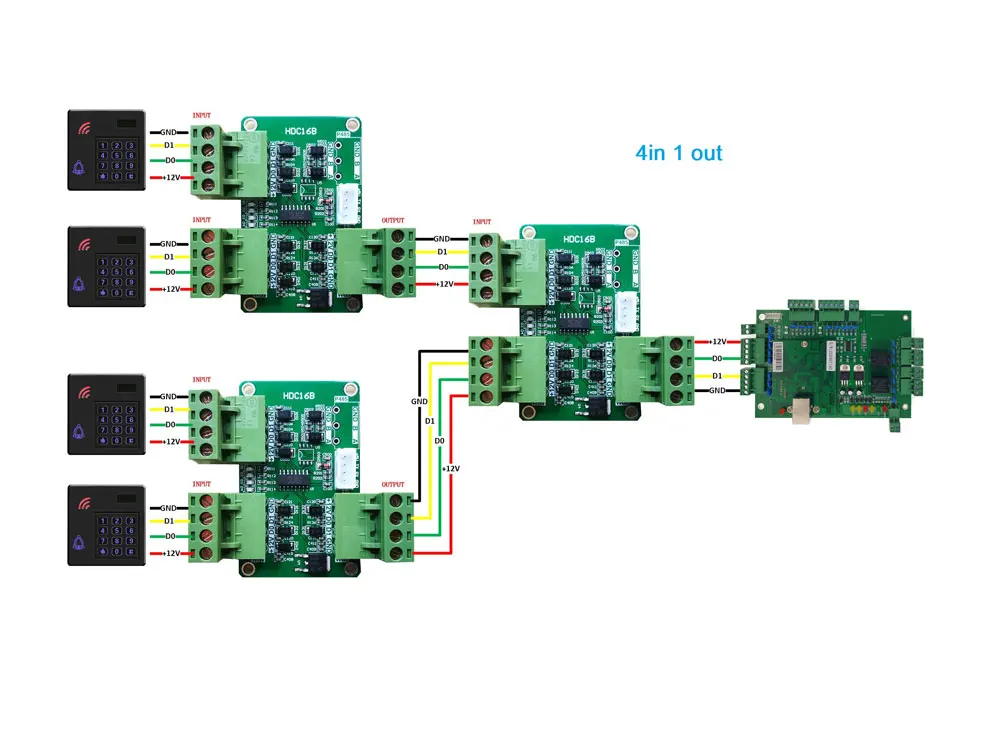

Access to 4 card readers can be swiped at the same time. The access card readers 1, 2, 3, and 4 swipe information are sequentially output from the adapter board 3 to the access control board. In actual use, it can be extended for access control system reader access Convenient for a large number of people to swipe the card at the same time;

***************************************************************************************************************************************************************

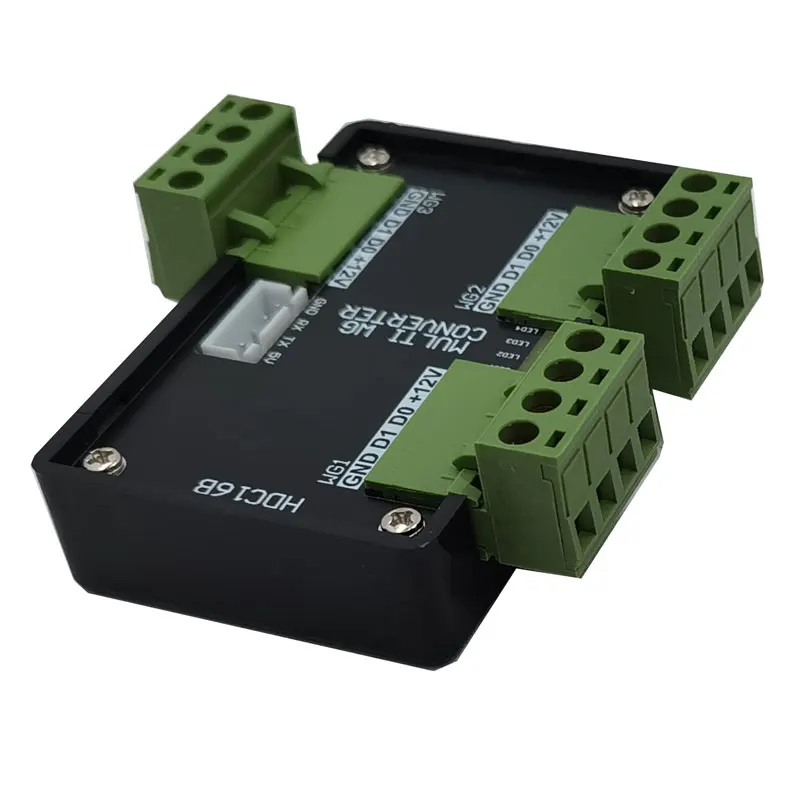

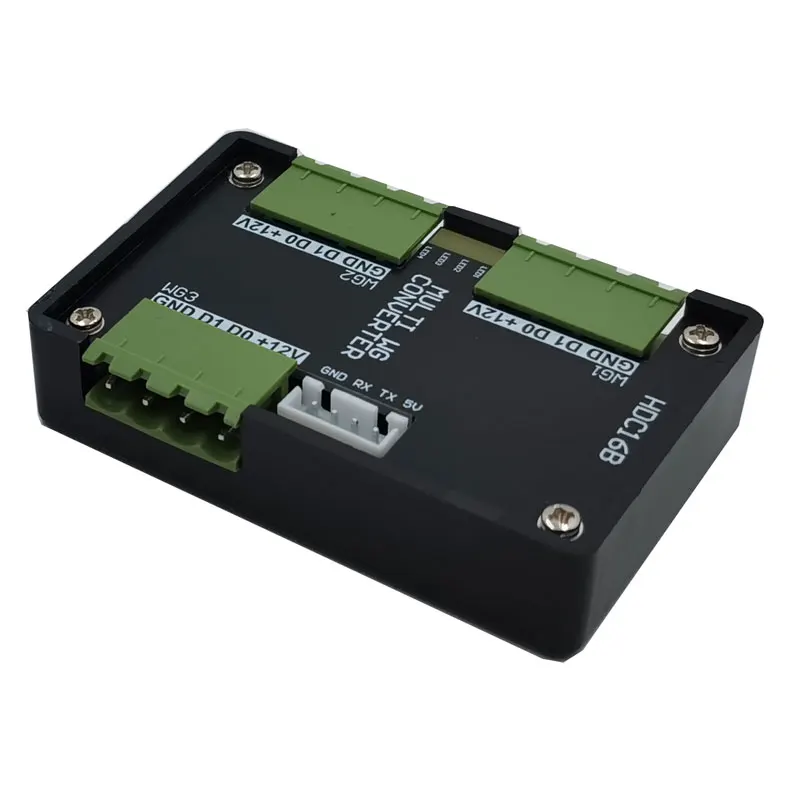

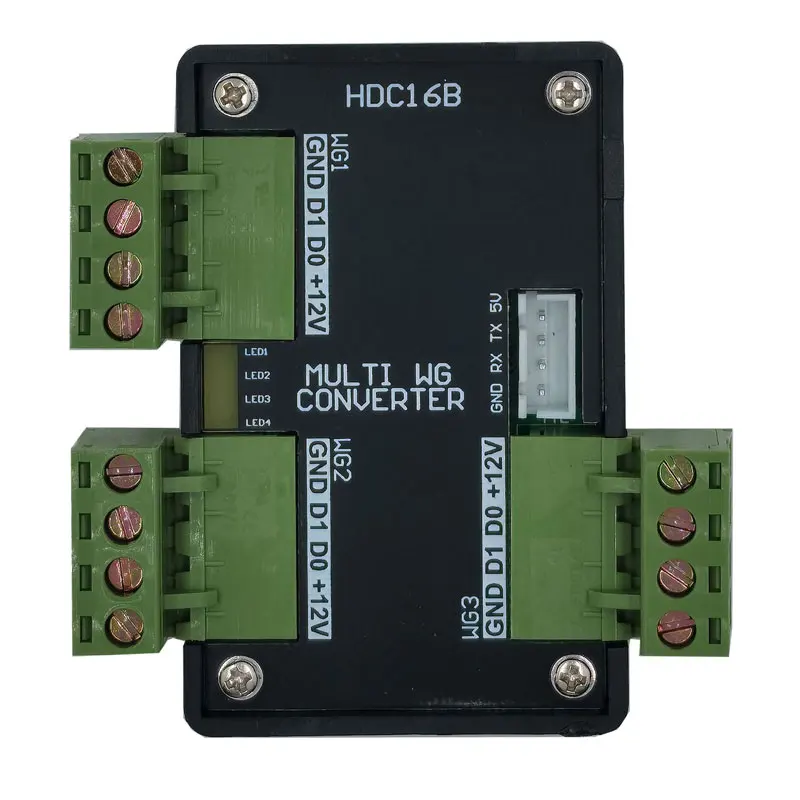

Product picture
