Description

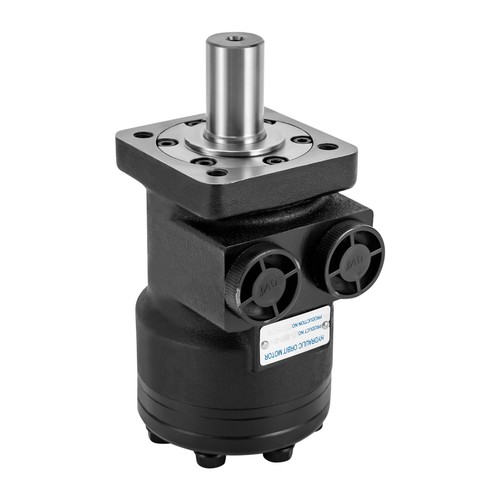

This product is suitable for Char-Lynn 101-1001-009 and Eaton 101-1001. It has high speed and high torque to provide you with more power. It also features a stator rotor and S-bearing, resulting in high precision and strong pressure resistance. It will be your powerful power source!

Key Features

High-quality Material: This product adopts a powder metallurgy valve disc and low carbon alloy steel output shaft, with high wear resistance, high precision, and long service life.

Good Sealing: The oil seal adopts three layers of the sealing ring to bear pressure, which can effectively prevent oil leakage.

High Precision: The precision processed stator and rotor whose flatness error does not exceed 0.08 inches have high precision.

Strong Pressure Resistance: The S-type bearing shaft has a strong radial force and high-pressure resistance, which can effectively extend the service life of the product.

Powerful Power: High speed (continuous: 879rpm; intermittent: 975rpm) and high torque (continuous: 81N*M; intermittent: 108N*M) bring you greater power.

One-piece Construction: The one-piece construction allows you to start using the product directly without an additional installation.

Good Customer Service: Communication is the best way to solve problems. If you encounter any problem after purchase, please contact us in time before opening or unpacking the box. We will do our best to solve the problem for you.

Details

Rounded Edges: The rounded edges can effectively prevent you from being accidentally injured in the process of use.

Anti-slip Knobs: Both knobs with a striped anti-slip pattern effectively increase friction and make your operation easier.

Application

This product is generally applied to harvesting machines, augers, horizontal directional drilling rigs, coal mine type drilling rigs, trenching machines, lawn mower, food machinery, snow plow, concrete mixer, pump truck, sanitation machinery, machine tool, injection molding machinery, small crane, fishing machine, etc.

Specification

Material: Cast Iron, Low Carbon Alloy Steel

Color: Black

Process: Powder Metallurgy

Assembly Required: No

Compatible: For Char-Lynn 101-1001-009 and Eaton 101-1001

Shaft: 2.54cm/1 Inch Straight w/Woodruff Key O-Ring

Mount: 4 Bolt Flange

Port Size: ½ NPTF

Displacement: 50ML/R 1.69Oz/R

Flow Rate: Continuous: 45LPM; Intermittent: 50LPM

Speed: Continuous: 879rpm; Intermittent: 975rpm

Pressure: Continuous: 12.5MPA; Intermittent: 16.5MPA

Torque: Continuous: 81N*M; Intermittent: 108N*M

Gross Weight: 5.5kg/ 12.13 lbs

Product Size: 10*10*19.3cm/ 3.94*3.94*7.6 in

Package Size: 26*13*13cm/ 10.24*5.12*5.12in

Package Included

1 * Hydraulic Motor

Notes

• The normal operating oil temperature of this product is 68-140 ℉, and the maximum system operating temperature is 194 ℉ (not more than 1 hour).
• Filter filtration accuracy is 10-30 microns, and it is better to add a magnetic block at the bottom of the oil tank to stop metal chips from entering the system. The solid contamination level of working oil should not be higher than 19/16.
• Please select the appropriate hydraulic oil according to the actual operation and ambient temperature. The oil viscosity at 104 ° F is 42-74MM2/S.
• When used in series or parallel, the external drain must be used for pressure relief if the back pressure exceeds 10MPA (the rotating speed is lower than 200RPM). It is better to connect the external drain directly with the oil tank.
• The best working condition of the motor should be selected at the rated working condition of 1/3-2/3.
• In order to make the motor have a long service life, when adding load to the motor, it should first operate at 30% of the rated pressure for about 1 hour. In any case, please ensure that the motor is full of oil before adding load to the motor.
• Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
