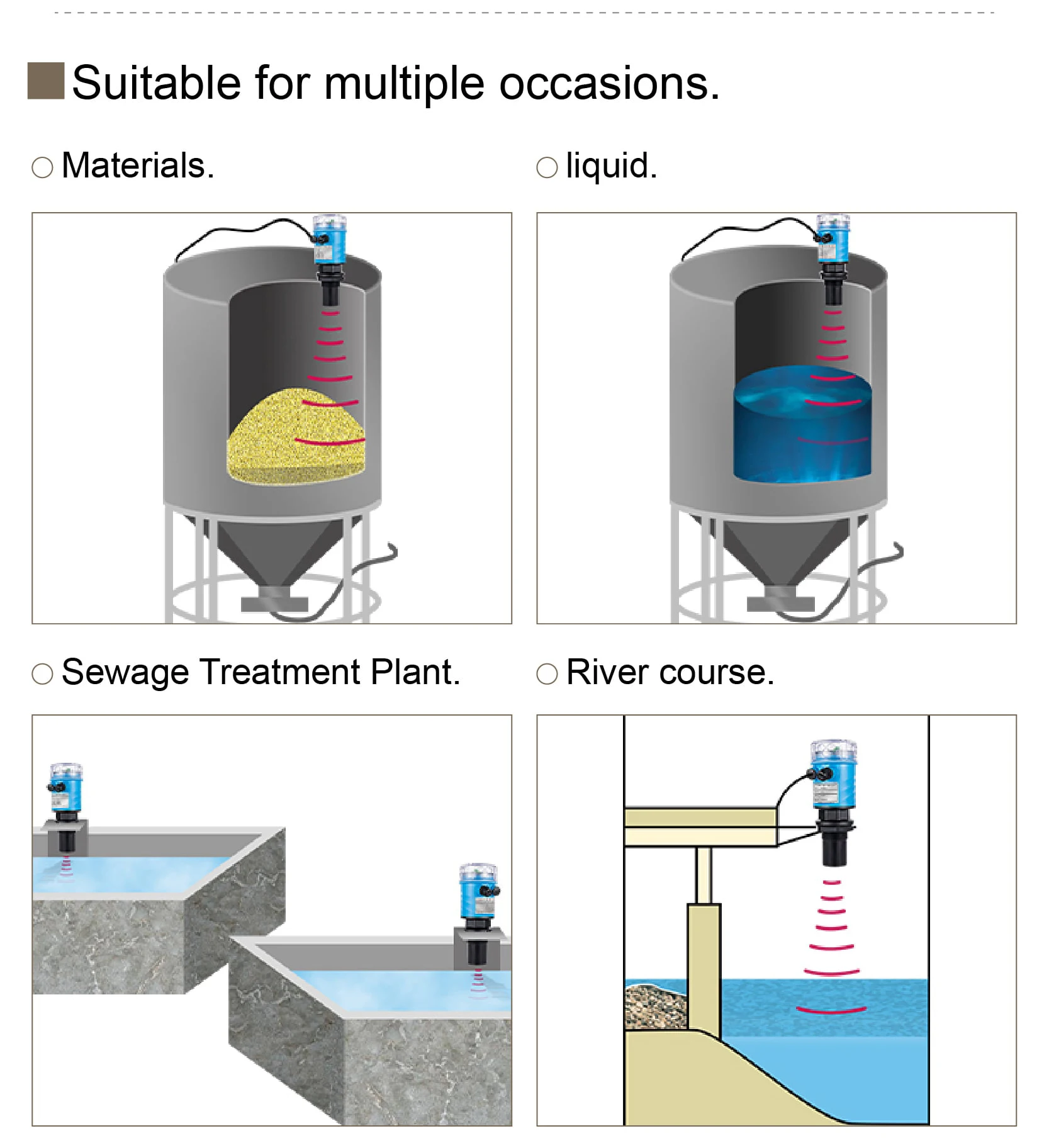

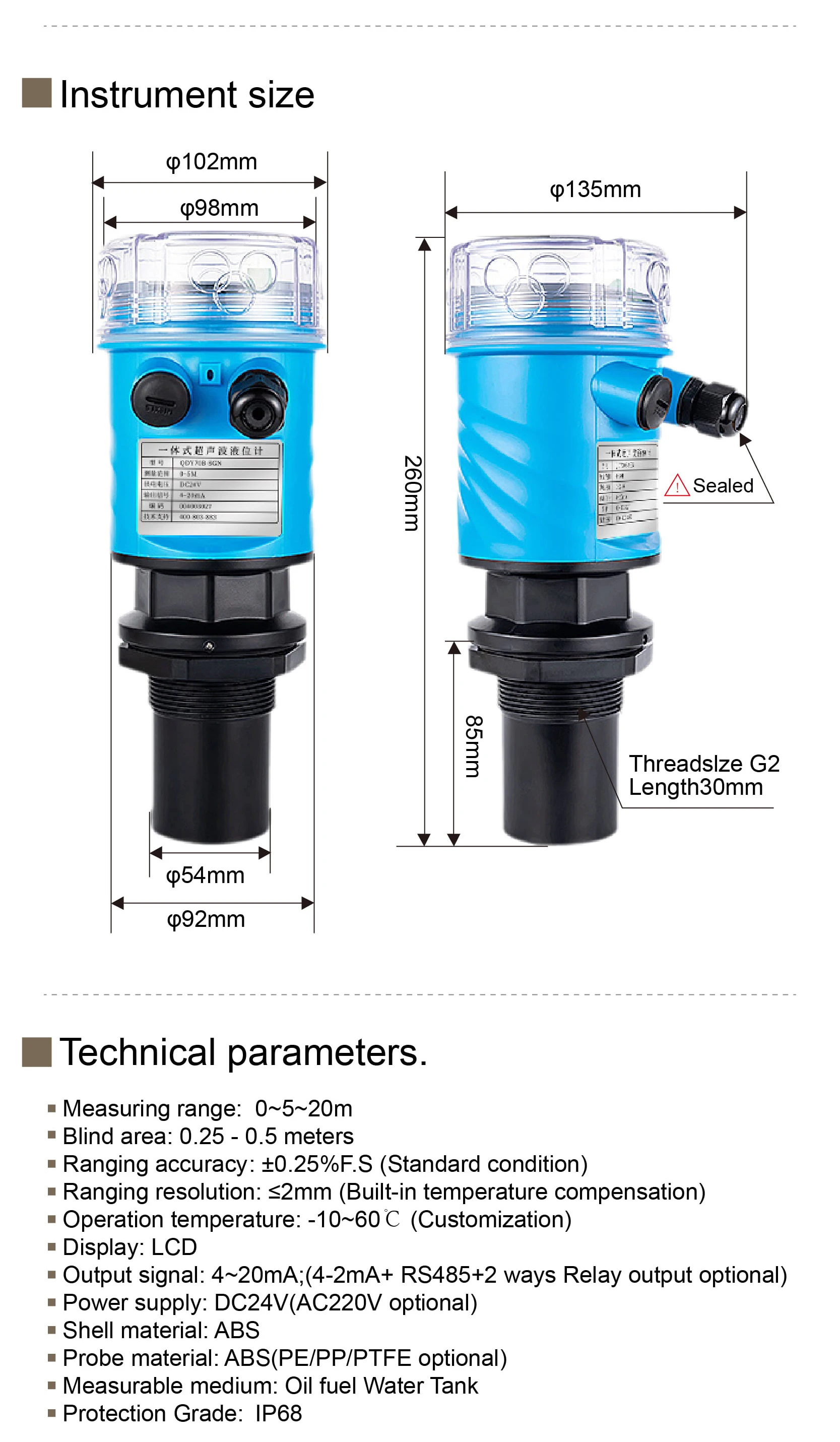

1.NOTE This level transmitter is ideal for standard water level measurements, storage tanks with pressure below 0.4MPa, and non-corrosive, non-volatile, and non-high-temperature liquid level monitoring. Optional Features: If you have specific customization requirements or bulk purchase needs, please feel free to contact us at any time! 2.Parameters Parameter Details Measurement Range 5m, 10m, 15m, 20m, 25m Dead Zone 0.25m~0.6m Accuracy 0.25%~0.5% Resolution 1mm Pressure Resistance ≤4 Atmospheres Display LCD with level/distance display Analog Output 4-20mA Digital Output RS485/Modbus protocol Power Supply DC12V, DC24V, AC220V Operating Temperature -20°C to +60°C Protection Level IP65/IP68 3.Features Non-Contact Measurement Wide Medium Compatibility Real-Time Digital Monitoring Durable Waterproof Design 4.Applications River Level Monitoring Sewage Tank Level Measurement Storage Reservoir Liquid Detection Material Tank Measurement What is the maximum measurement range? Is it suitable for high-temperature environments? Does it require complex wiring?
Default Configuration:
Power Supply: DC24V, 2-wire system
Output Signal: 4-20mA
Protection Rating: IP65 (probe)
Display: LCD screen
Measurement Range: Adjustable within 0-10M
Power Supply: DC12V or AC220V
Extended Range: Up to 25M
Output Options: Relay output, RS485
Enhanced Protection: IP68 probe, corrosion-resistant probe

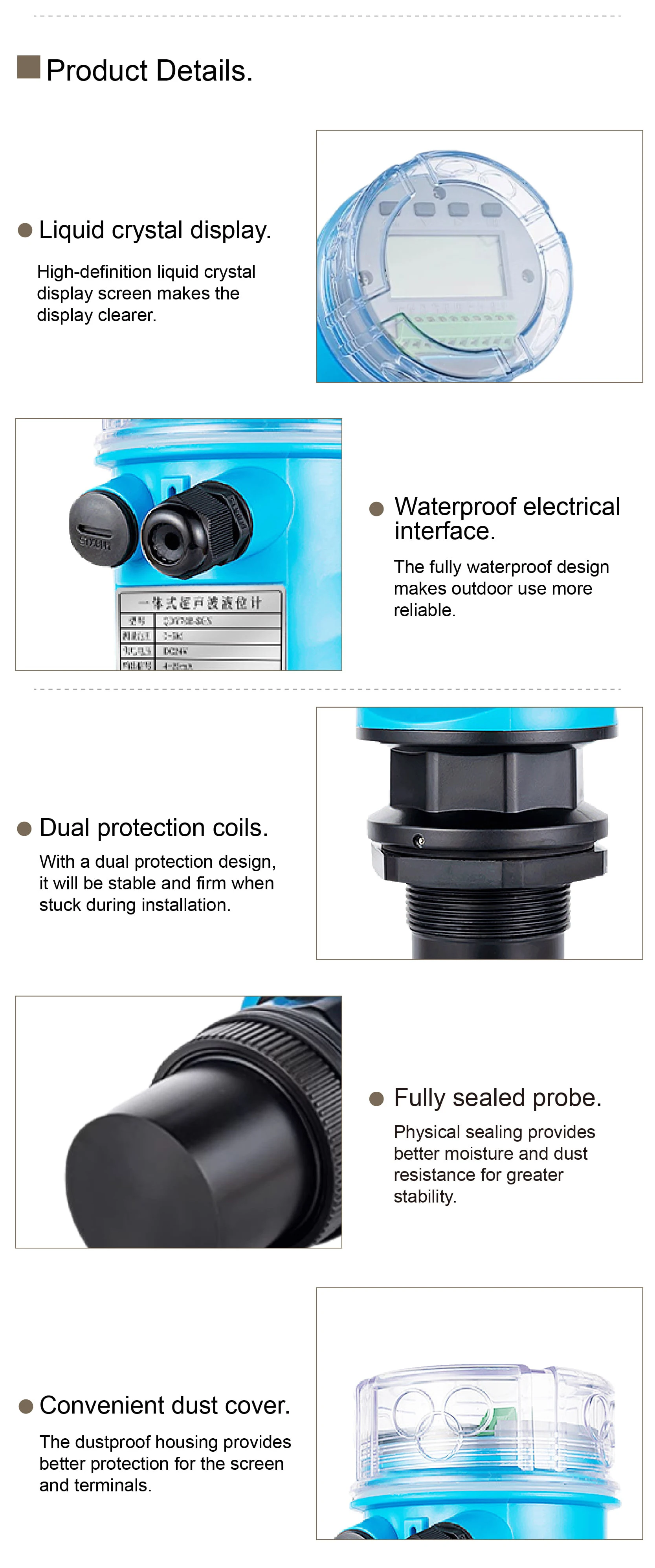

No need for probe immersion, avoiding sediment buildup or blockages.
Measures both liquid and solid materials for versatile applications.

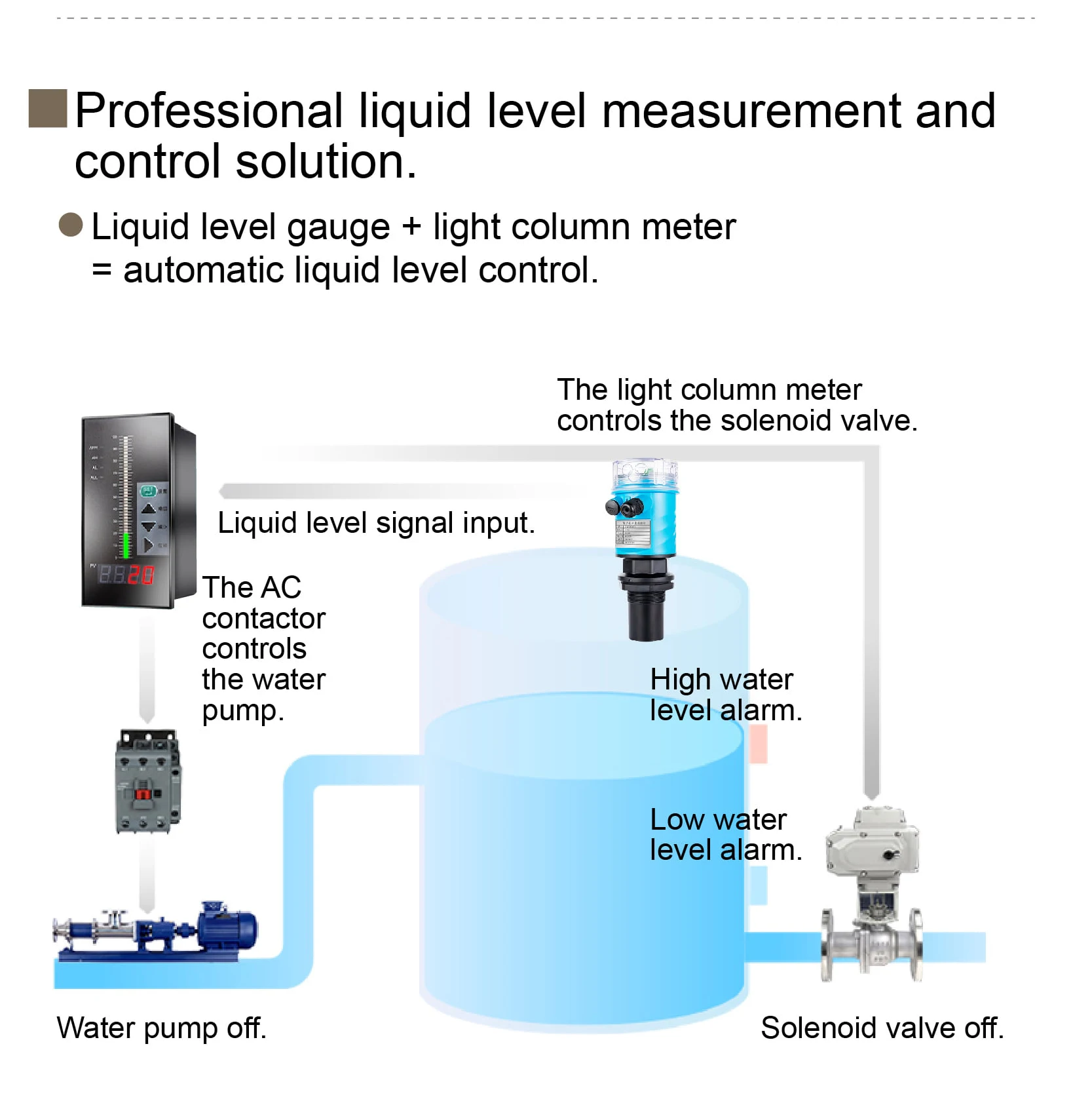

Features multi-output lines for synchronized control and real-time display.
Includes ABS waterproof fittings and a fully sealed structure for long-lasting durability.
5.FAQs
The device supports a range of up to 25m, customizable based on your requirements.
Yes, custom options for high-temperature resistance are available.
No, it offers non-contact monitoring with straightforward installation.
