1.NOTE
Due to page limitations, some configurations may not be listed. For customization, please contact us.

Default Parameters:

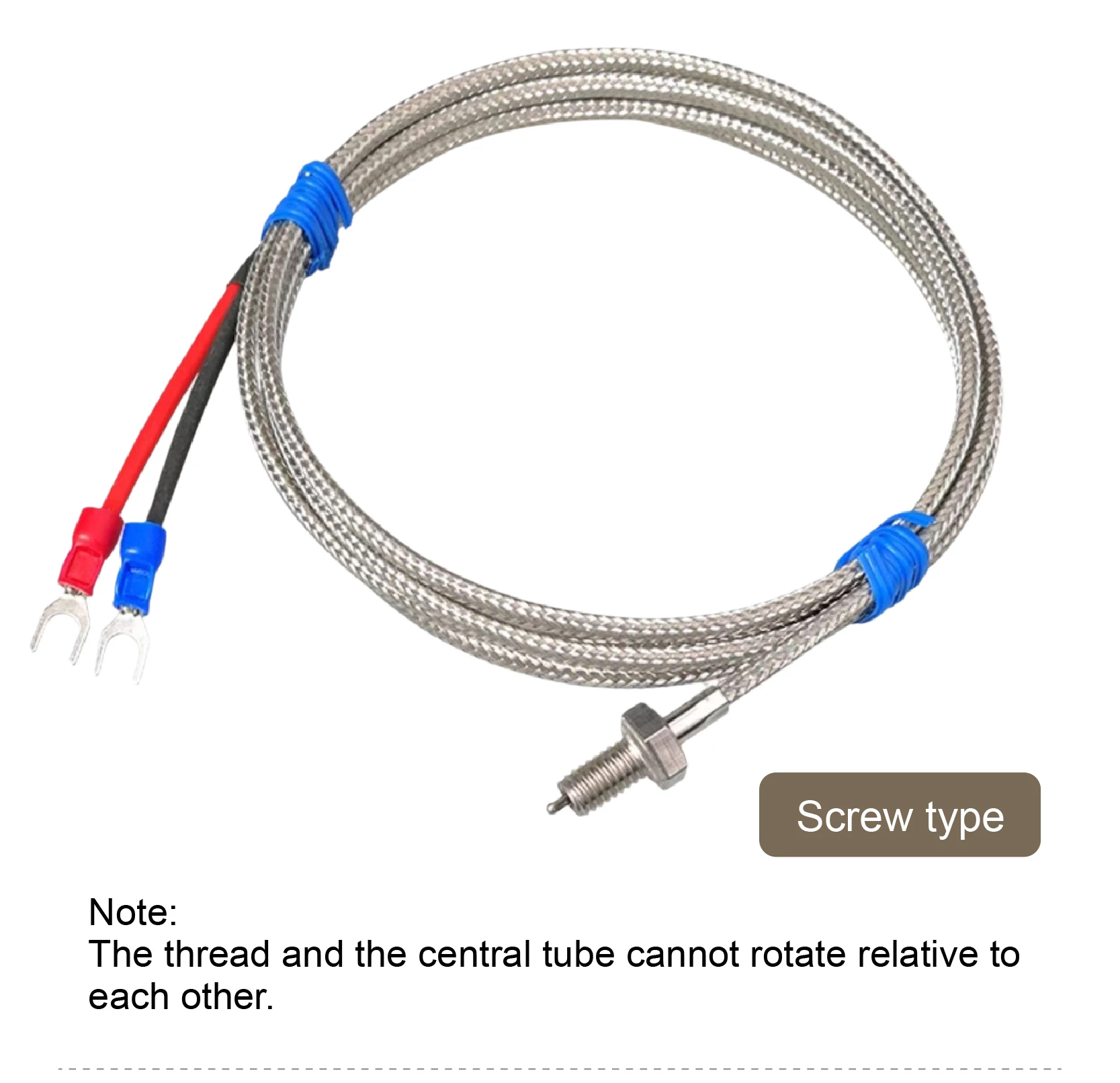

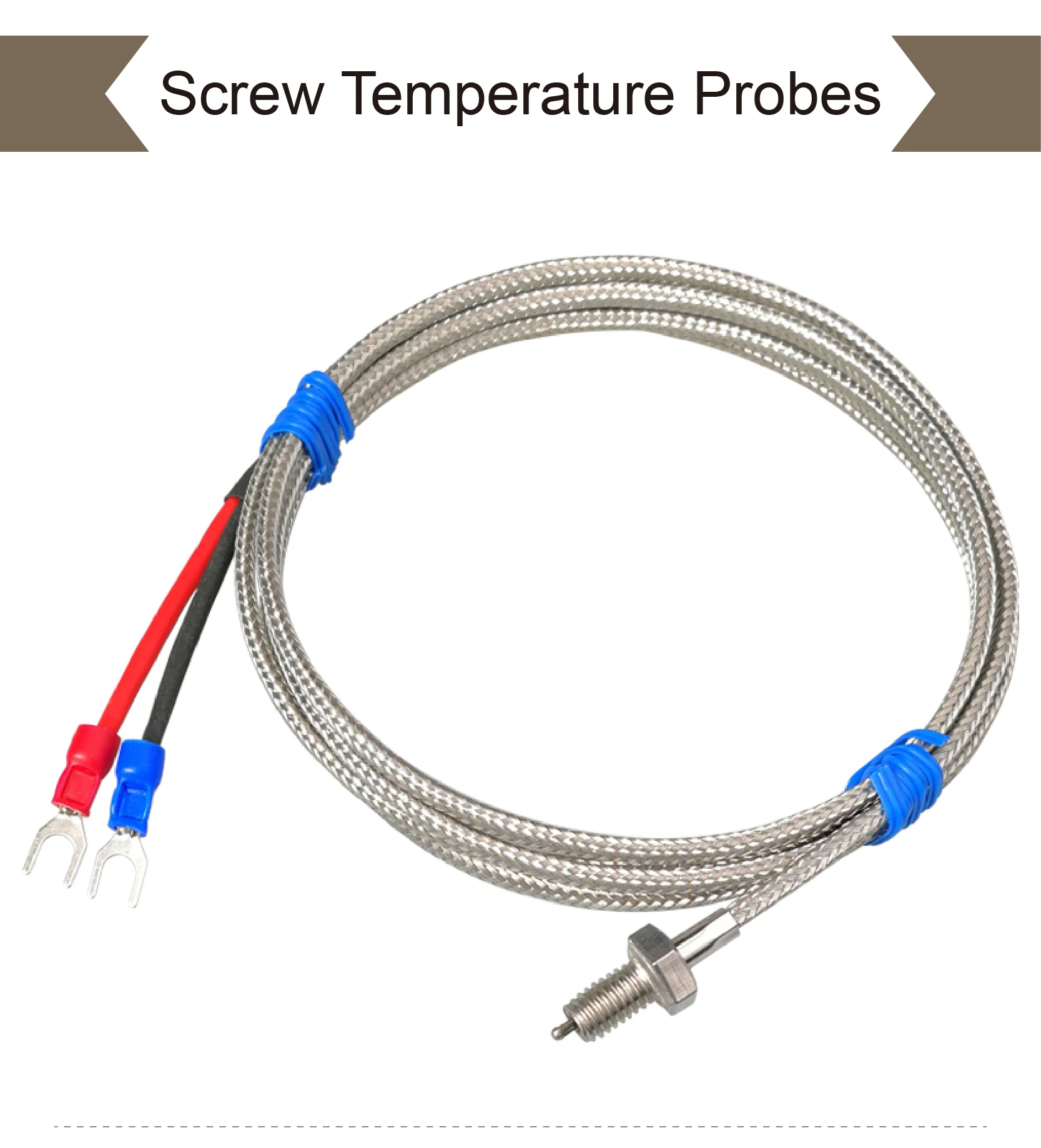

Type：Screw-in Type
Thread: M6*1
Thread Length: 10mm
Temperature Range: 0-1000°C
Terminal: U-type Terminal, 2-wire System
Cable Length: 1-5m

Optional Parameters:

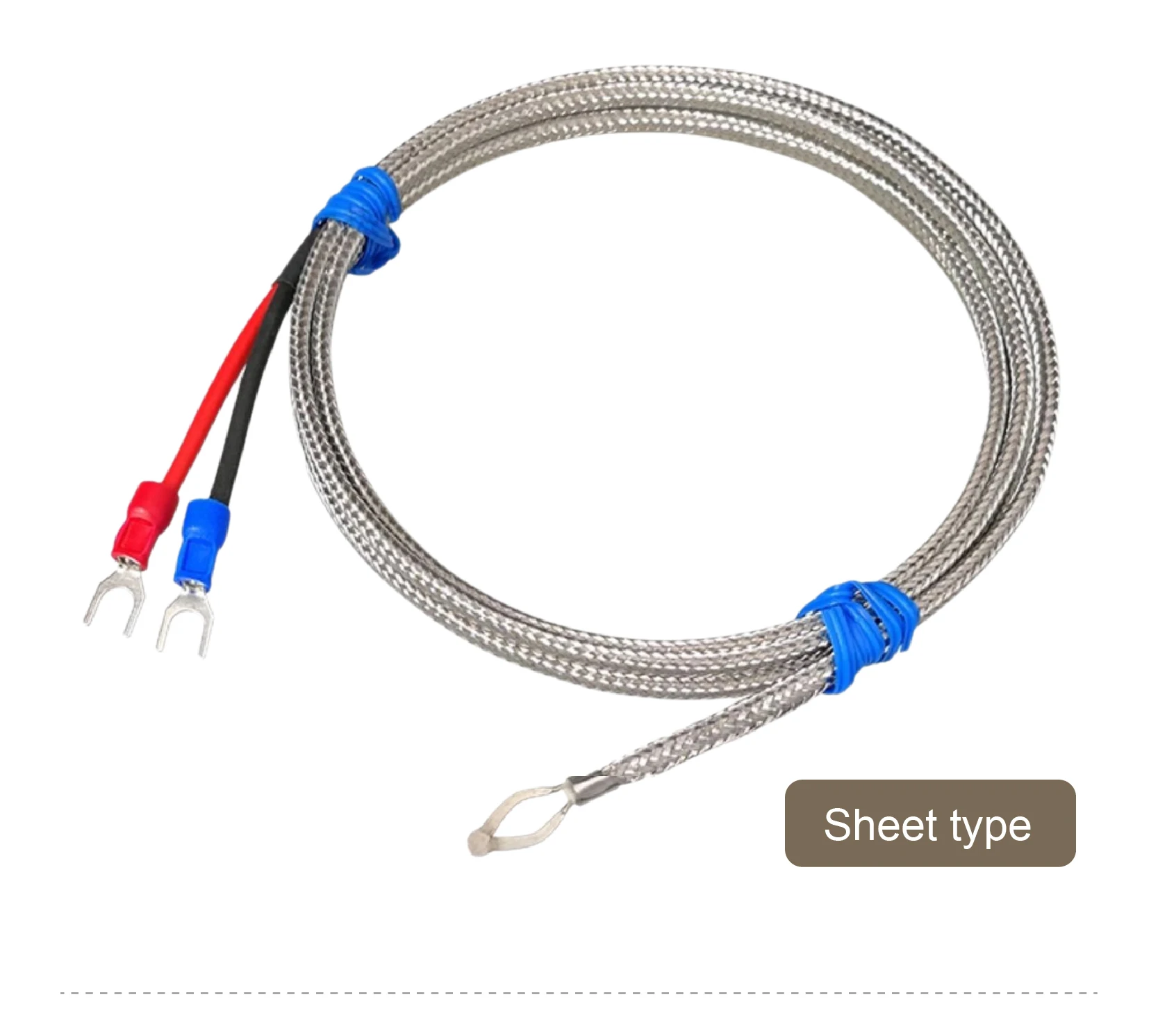

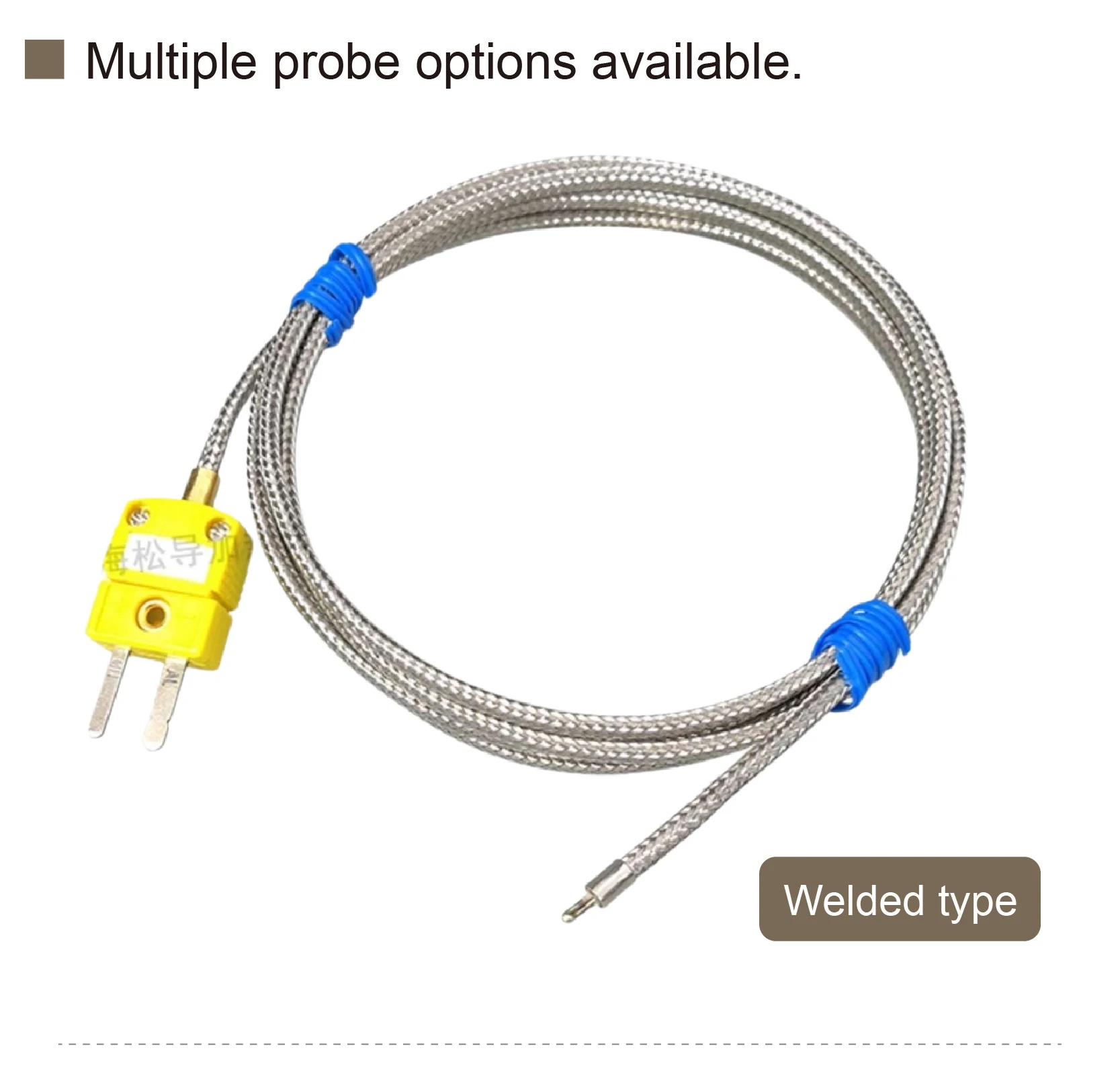

Type：Thin Sheet Type，Welded Tip Type
Thread: Customizable
Connector: Pin Terminal, Plug Connector, XH Series Aviation Connectors
Cable Length: Customizable

2.Parameters

Parameter	Description
Type	K-type (default)
Temperature Range	0~1000°C (default)

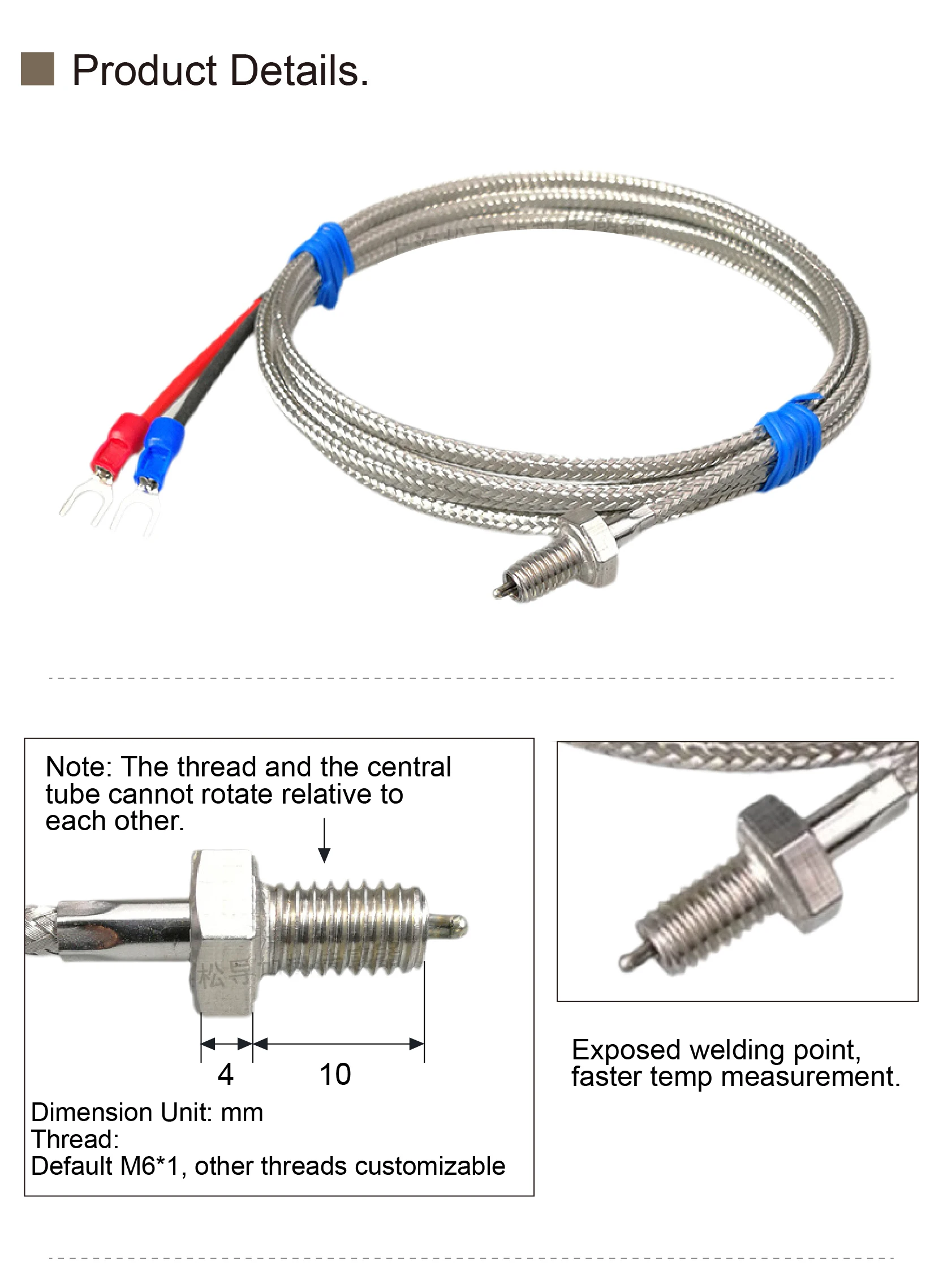

Thread Size	M6*1 (default), customizable
Thread Length	10mm
Screw Material	Iron with electroplating
Cable Material	High-temperature quartz fiber
Cable Length	1-5m (customizable)

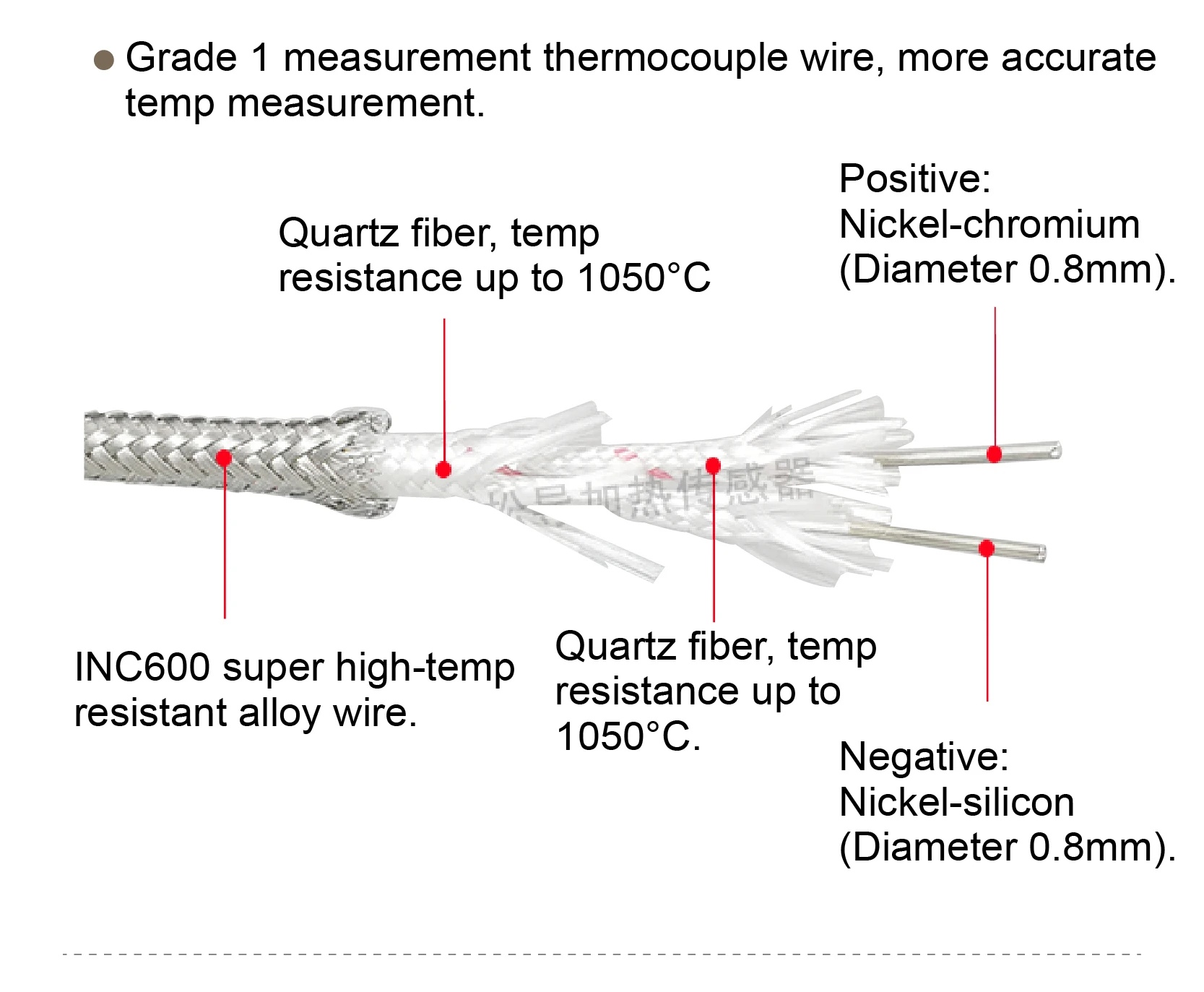

Thermocouple Wires	2*0.8mm precision measurement wires

3.Features

High-Temperature Resistance
Capable of measuring temperatures up to 1000°C, ideal for demanding environments.

Customizable Specifications
Thread type, connector style (e.g., pin terminal, aviation plugs, XH connectors), and cable length can be tailored to your needs.

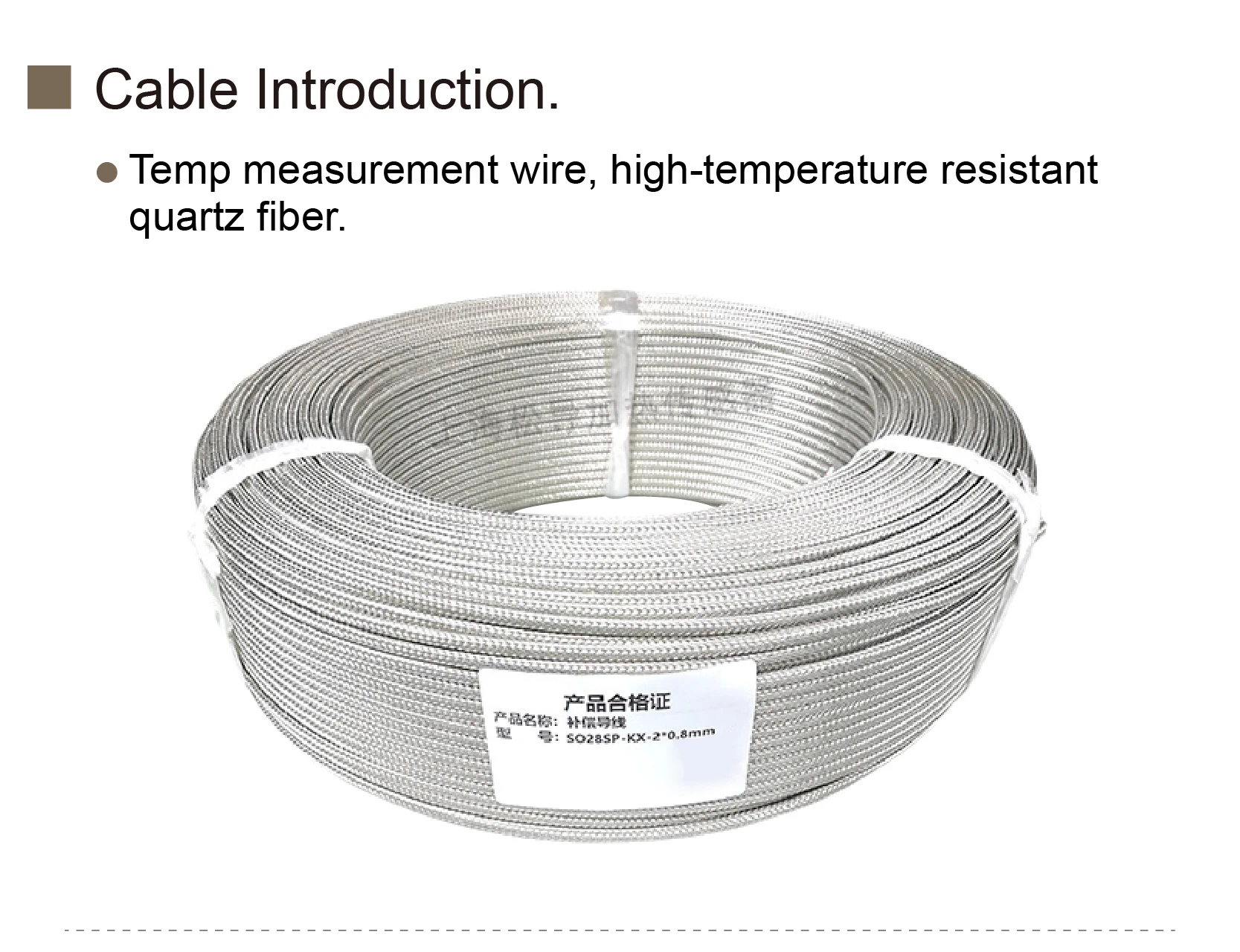

Durable Quartz Fiber Cable
Equipped with high-temperature quartz fiber cables for reliable performance.

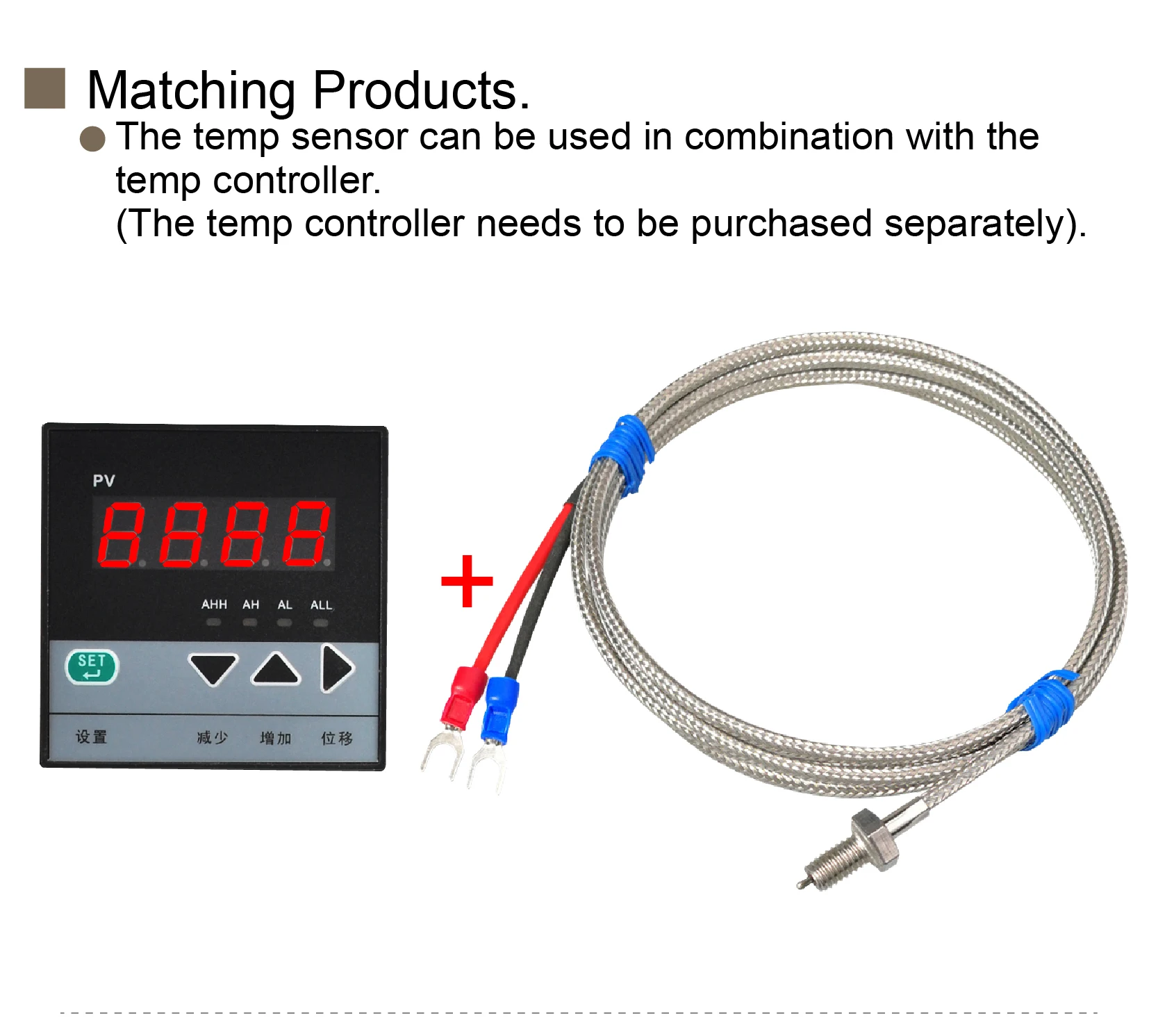

Compatible with Controllers
Can be paired with temperature controllers and other sensors for complete solutions.

4.Applications

Industrial Heating Systems: Accurate temperature measurement in furnaces and kilns.

Scientific Experiments: High-temperature monitoring for lab setups.

Custom Machinery: Ideal for integration into specialized equipment requiring precise thermal data.

5.FAQs

What does the default product include?
The default purchase includes only the sensor probe; temperature controllers must be purchased separately.

Can I customize the connector type?
Yes, we offer a variety of connector options such as pin terminals, aviation plugs, and XH connectors.

Is the cable length customizable?
Absolutely! We can provide cable lengths according to your specific requirements.
