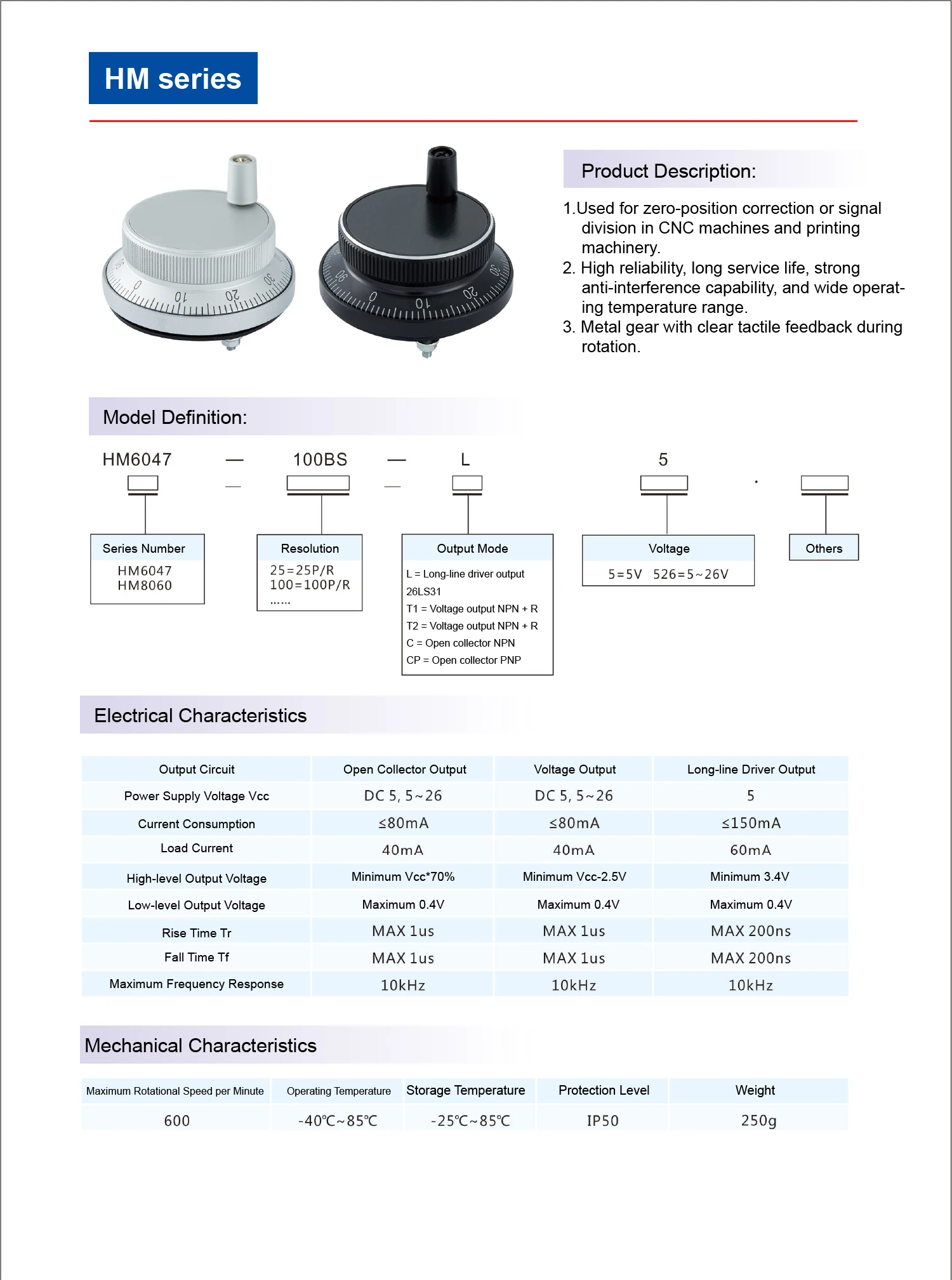

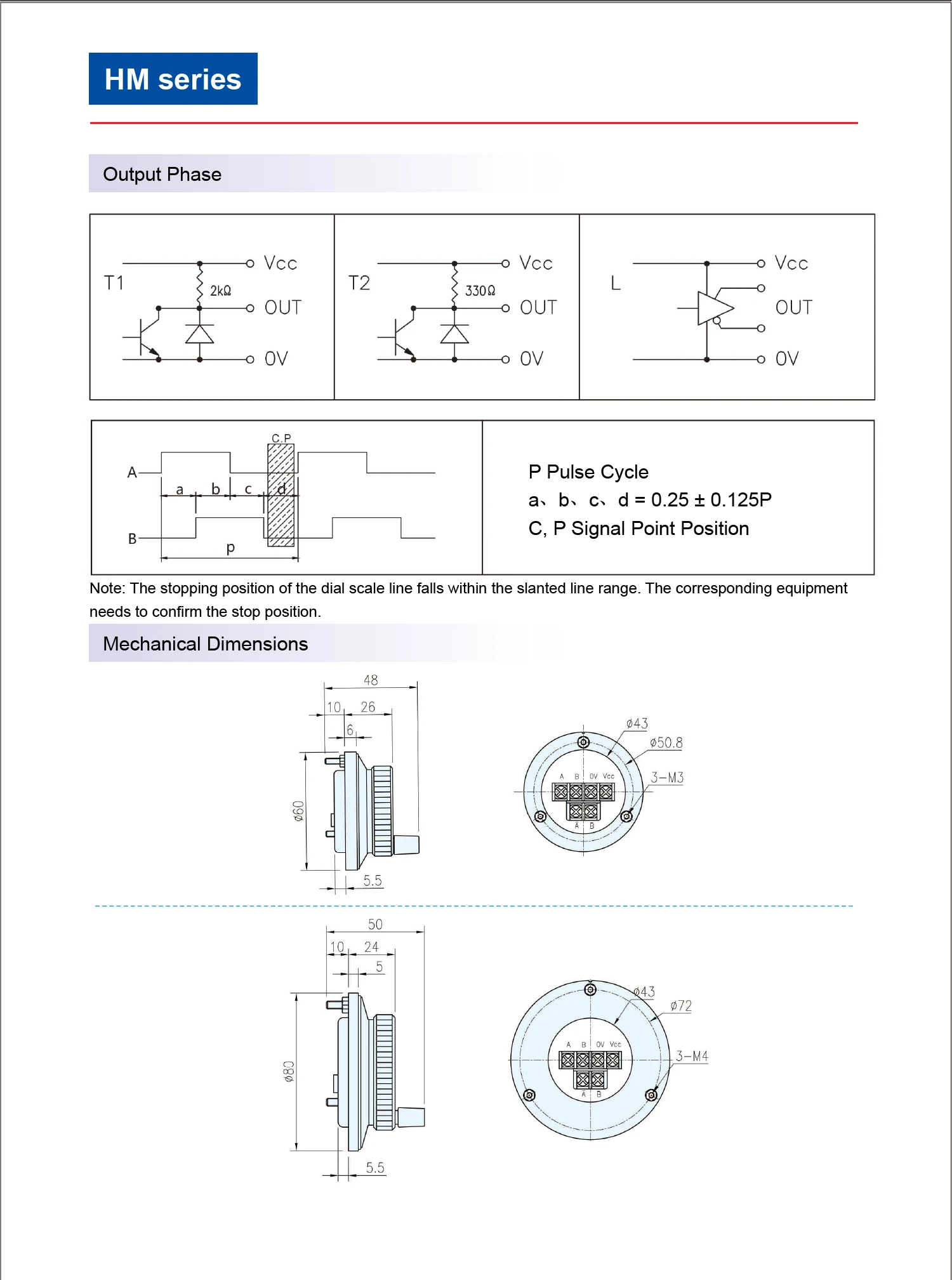

1.NOTE Default Parameters Disc Diameter: 60mm, 80mm (Optional) Power Supply: 5V, 12V, 24V (Optional) Connection Terminals: 4-terminal, 6-terminal (Optional) 6-Terminal Output L = Long-line driver output, 26LS31 4-Terminal Output Options T1 = Voltage output, NPN + R T2 = Voltage output (rotational), NPN + R C = Open collector output, NPN CP = Open collector output, PNP Resolution Options 25 = 25 pulses per revolution (P/R) 100 = 100 pulses per revolution (P/R) 2. Parameters Specification Value Disc Diameter 60mm / 80mm (Optional) Supply Voltage DC 5V / 12V / 24V (Optional) Output Type Voltage / Open Collector / RS422 Resolution 25 PPR / 100 PPR Terminal Configuration 4-pin / 6-pin (Optional) Max Rotational Speed 600 rpm Operating Temperature -40°C to +85°C Storage Temperature -25°C to +85°C Protection Level IP50 Weight 250g High Precision & Reliability Rugged Metal Housing Flexible Output Options Safe & Secure Terminal Design Customizable Specifications Widely used in CNC machine tools, elevators, printing machinery, industrial automation systems, medical equipment, and textile machinery for manual positioning and motion control. Q1: What's the difference between 4-pin and 6-pin outputs? Q2: Can I customize the encoder specifications? Q3: What should I watch for during installation?

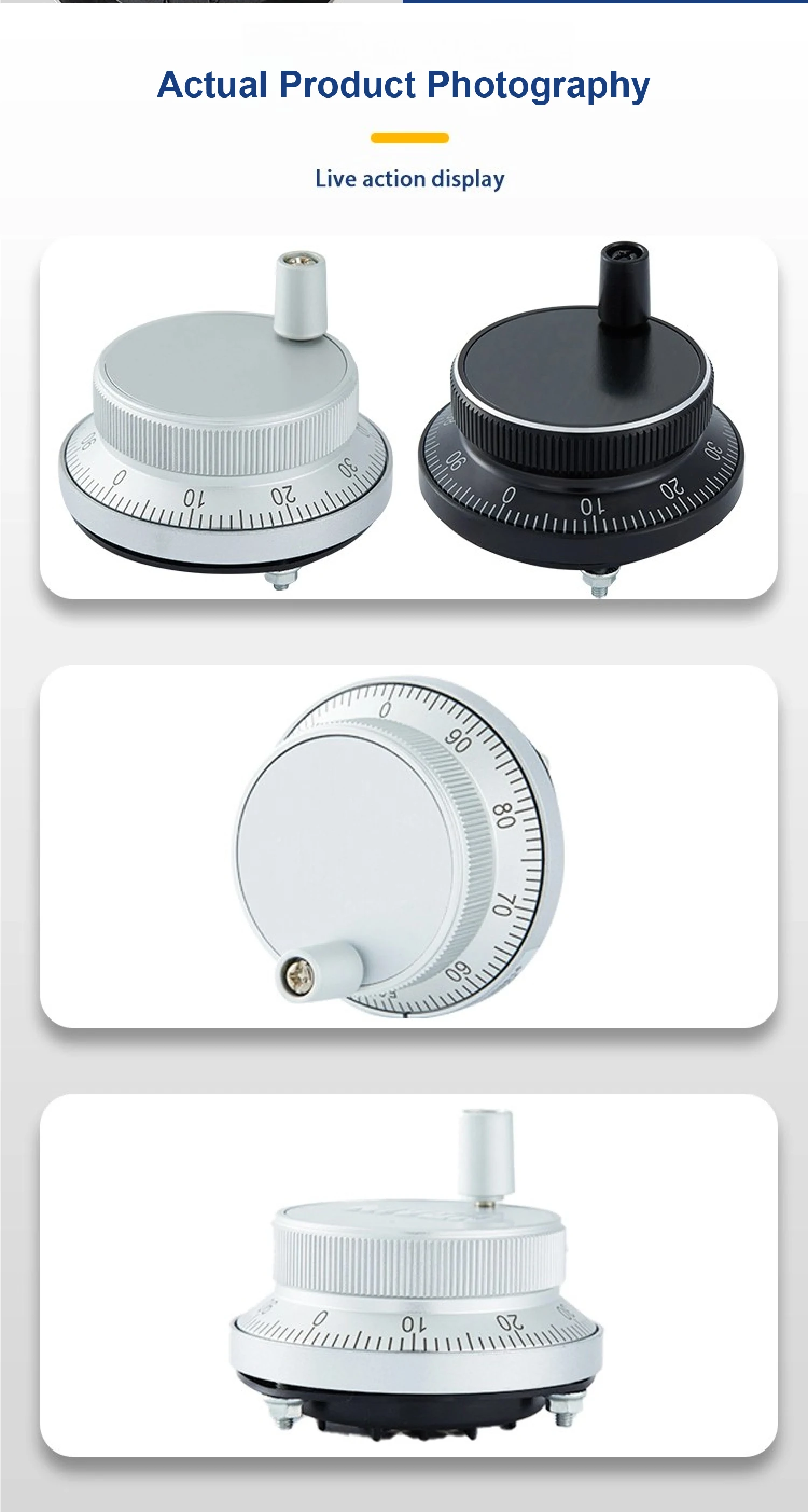

3. Features

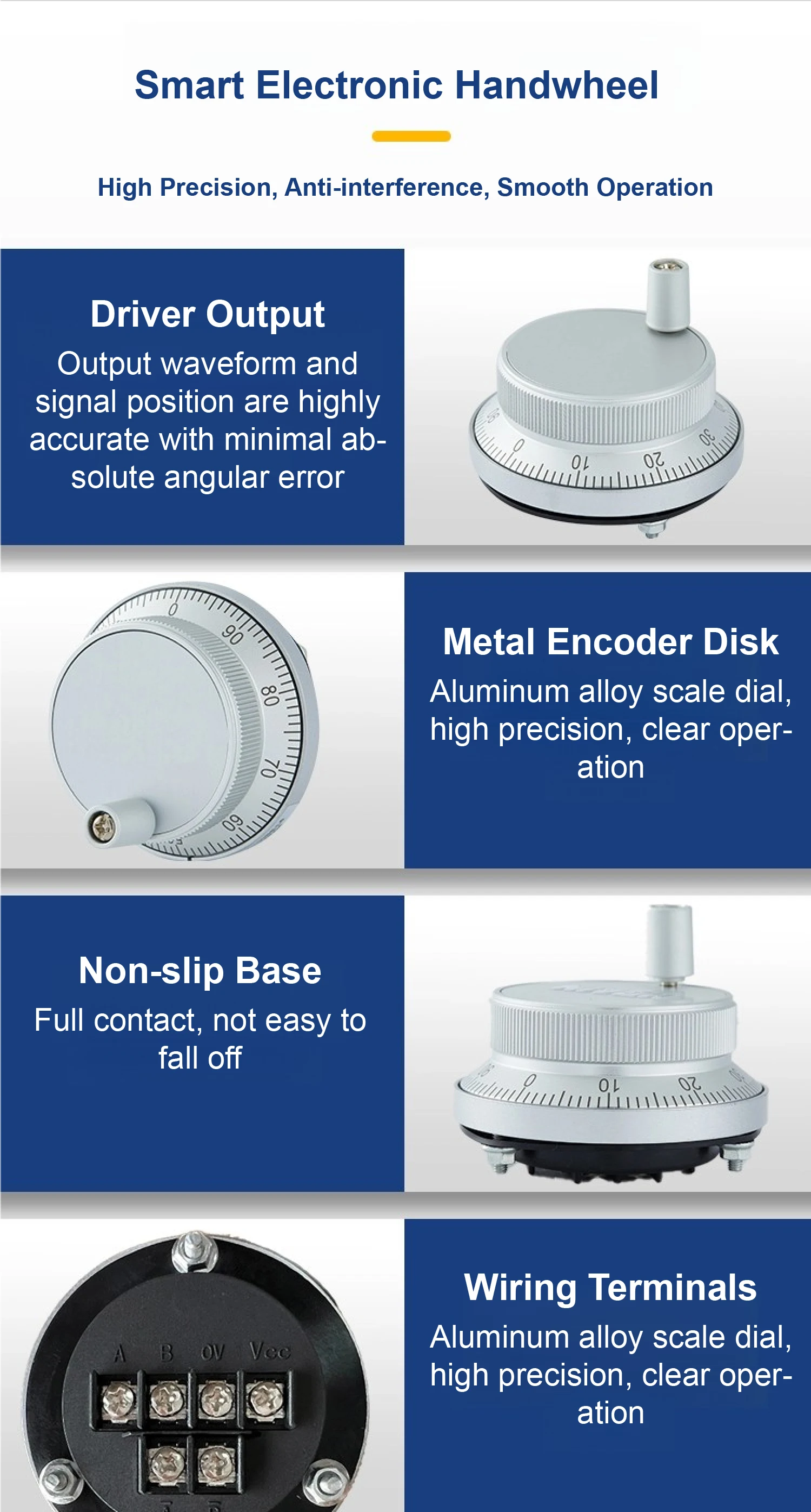

Ensures accurate signal output without pulse loss for precise control.

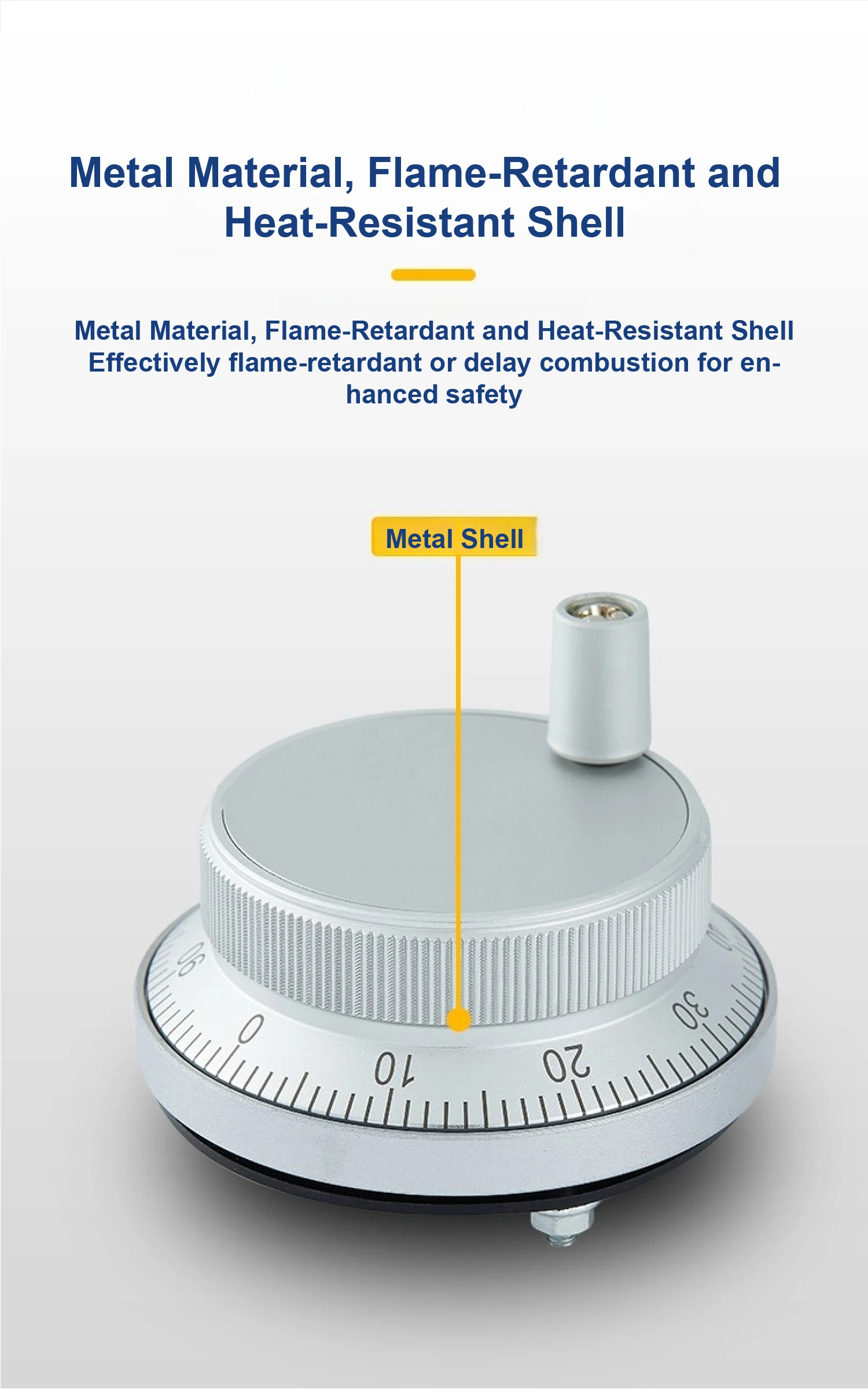

Constructed from durable metal with a flame-retardant shell for added safety and longevity.
Supports voltage output, open collector (NPN/PNP), and long-distance RS422 driver output.

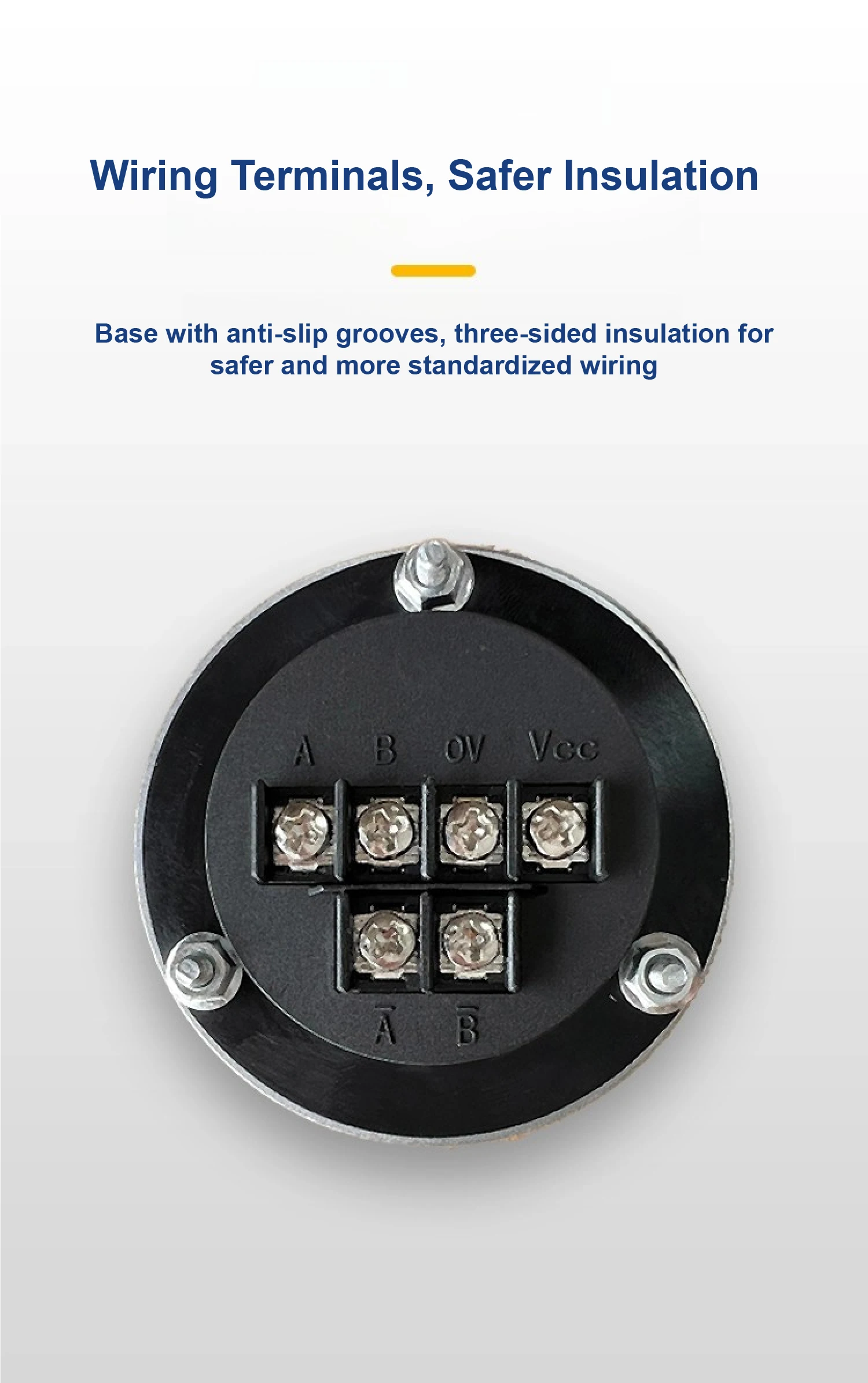

Insulated terminals and anti-slip base improve installation safety and reliability.
Offers customization for dimensions, electrical parameters, pulse count, and protocols.4. Applications
5. FAQs
A: 4-pin outputs are suitable for standard voltage or open collector signals. 6-pin outputs support RS422 differential signals for long-distance transmission.
A: Yes, we support custom configurations for pulse count, mechanical size, and signal protocol to fit your application needs.
A: Follow the wiring diagram carefully, ensure power supply within spec, and mount securely to avoid vibration-related signal issues.
