1.NOTE

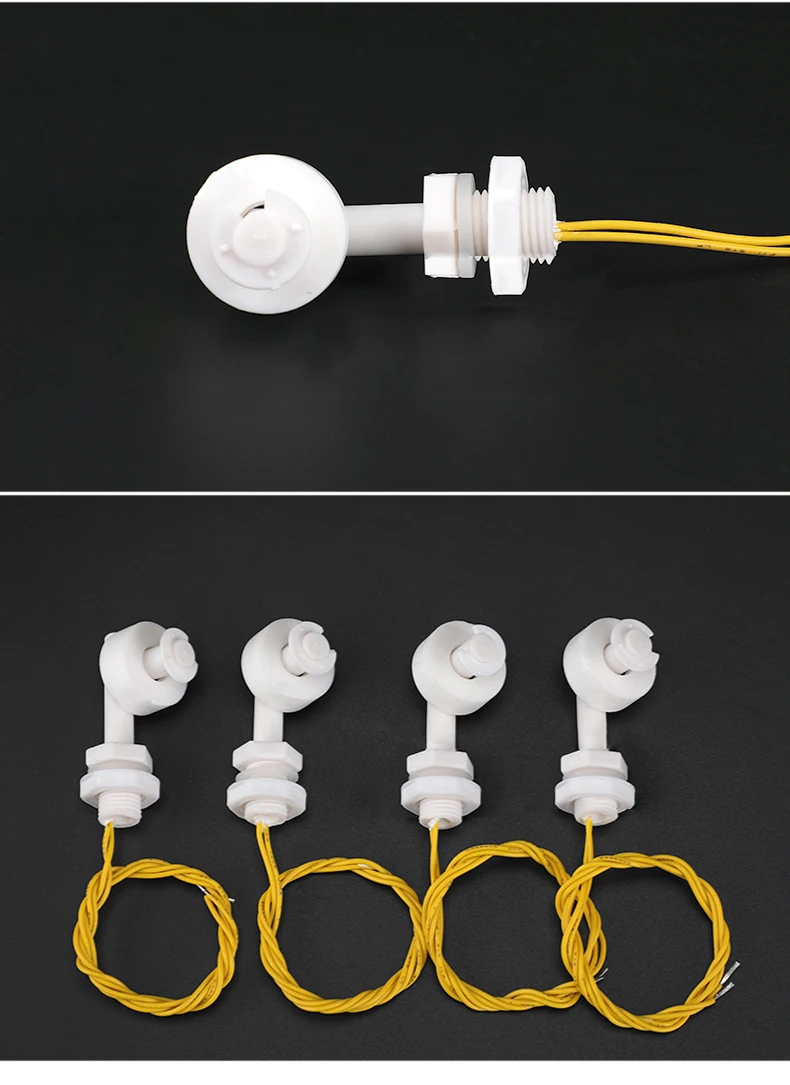

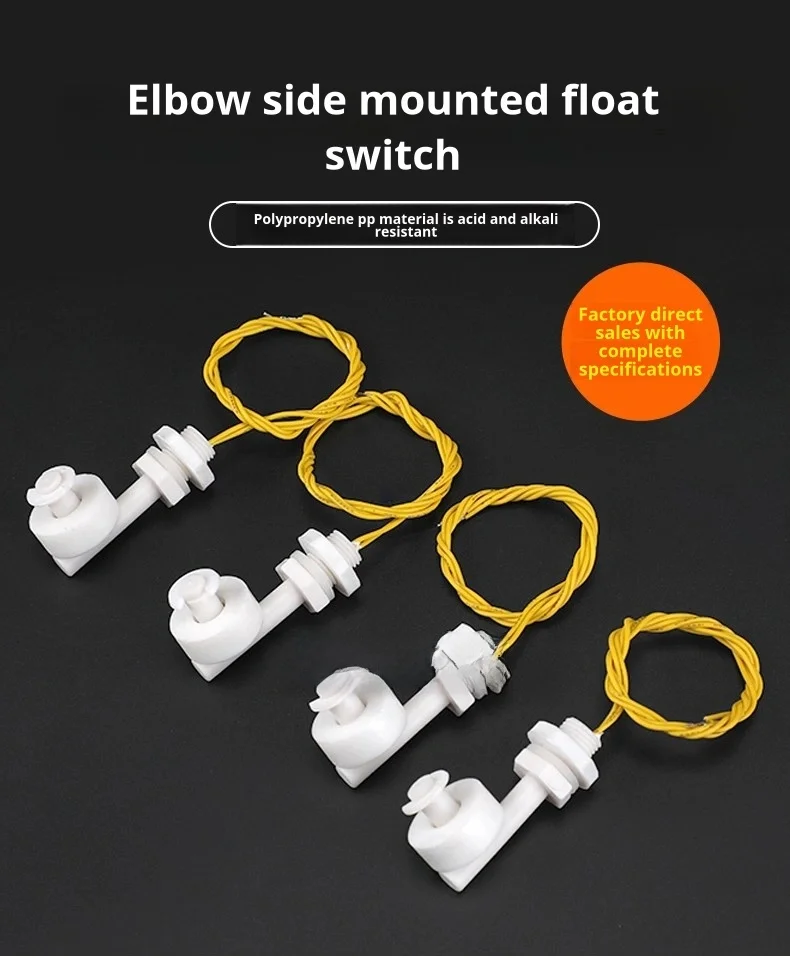

This PP Side Float Switch is designed for reliable liquid level detection in various applications, including water tanks and industrial systems.

Default Configuration Includes:

• Power: Low 10W / High 50W

• Connection: M12*1.25 Thread

• Material: PP (Polypropylene)

• Temperature Range: -10°C to +90°C

• Wire Length: 0.4m (Customizable eg 1M, 2M,5M,10M etc.)

For further assistance or customization options, please contact us.

2. PARAMETERS

Specification	Details
Low Voltage (Low)	Max Power: 10W, Max Voltage: 110VDC, Max Current: 0.2A, Breakdown Voltage: 220VDC, Temperature Range: -10°C to +60°C, Material: PP
High Voltage (High)	Max Power: 50W, Max Voltage: 220VAC, Max Current: 0.5A, Breakdown Voltage: 300VAC, Temperature Range: -20°C to +90°C, Material: PP

3. APPLICATIONS

Widely used in shipbuilding, food processing, and water treatment industries.

Ideal for chemical plants, oil hydraulics, and textile dyeing equipment.

Suitable for diverse liquids across various pressure and temperature ranges.

4. FEATURES

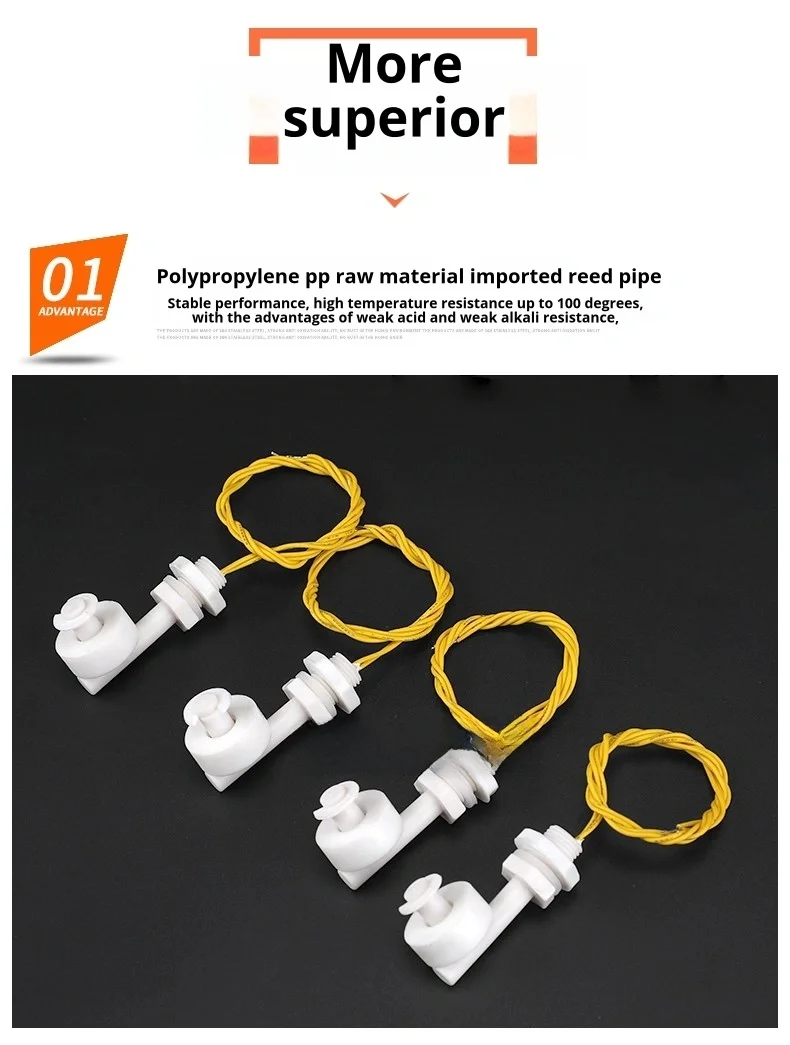

High chemical resistance due to PP material.

Customizable performance for high/low temperatures or wiring needs.

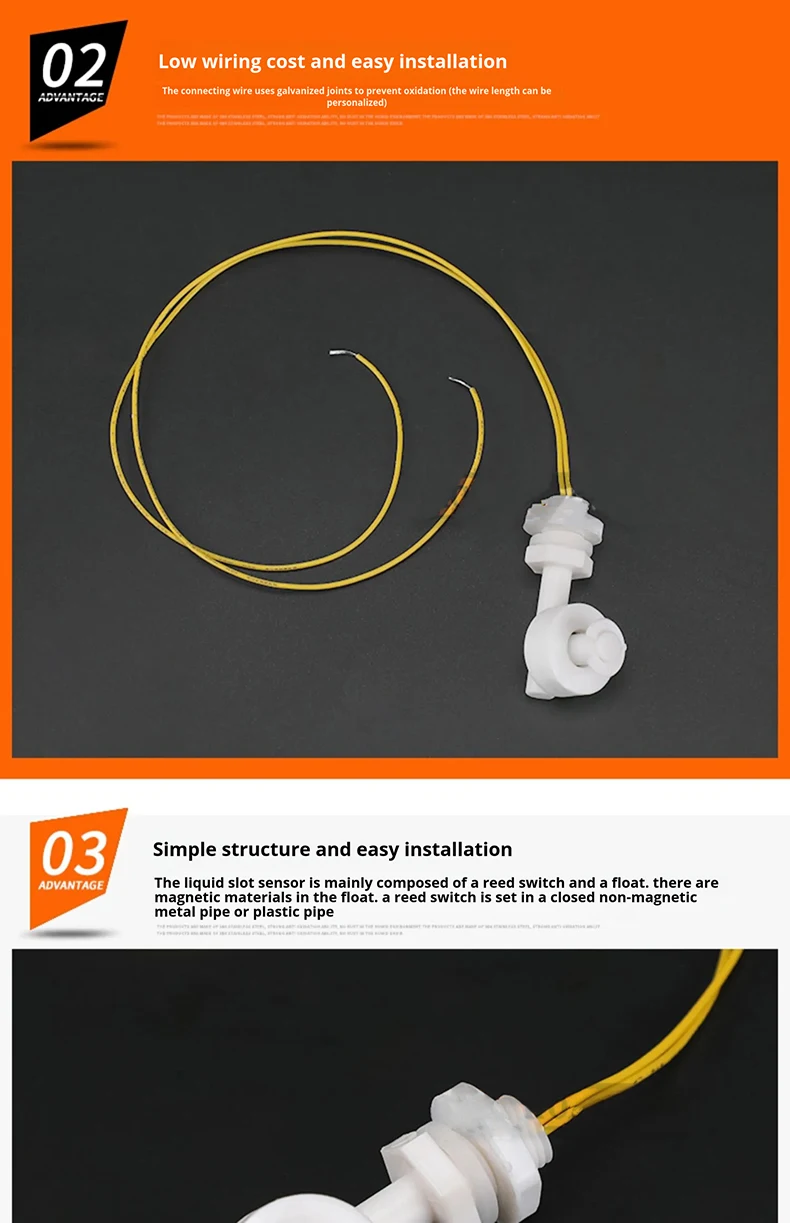

Simple structure with easy installation and maintenance.

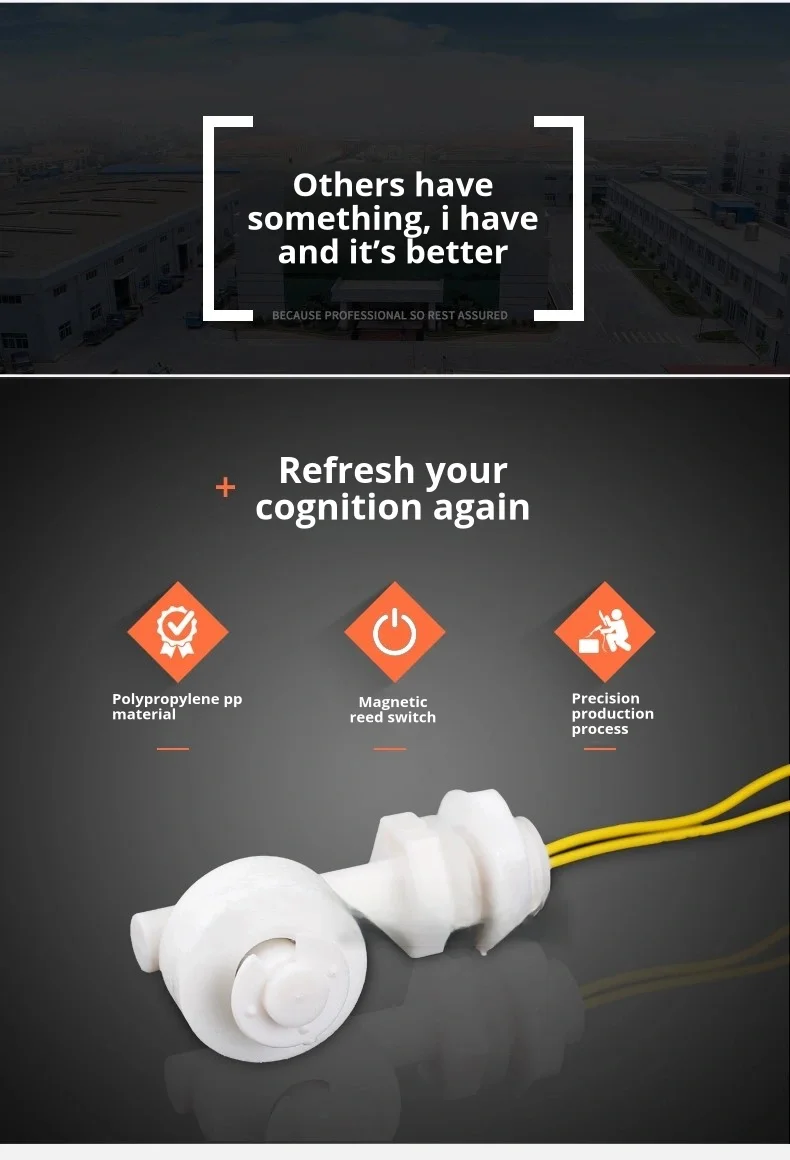

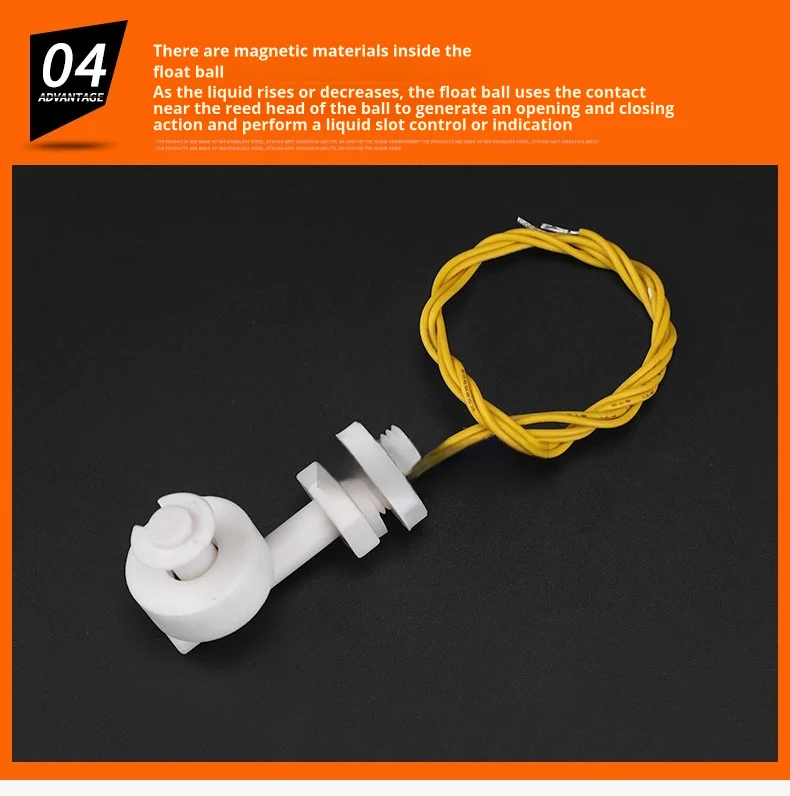

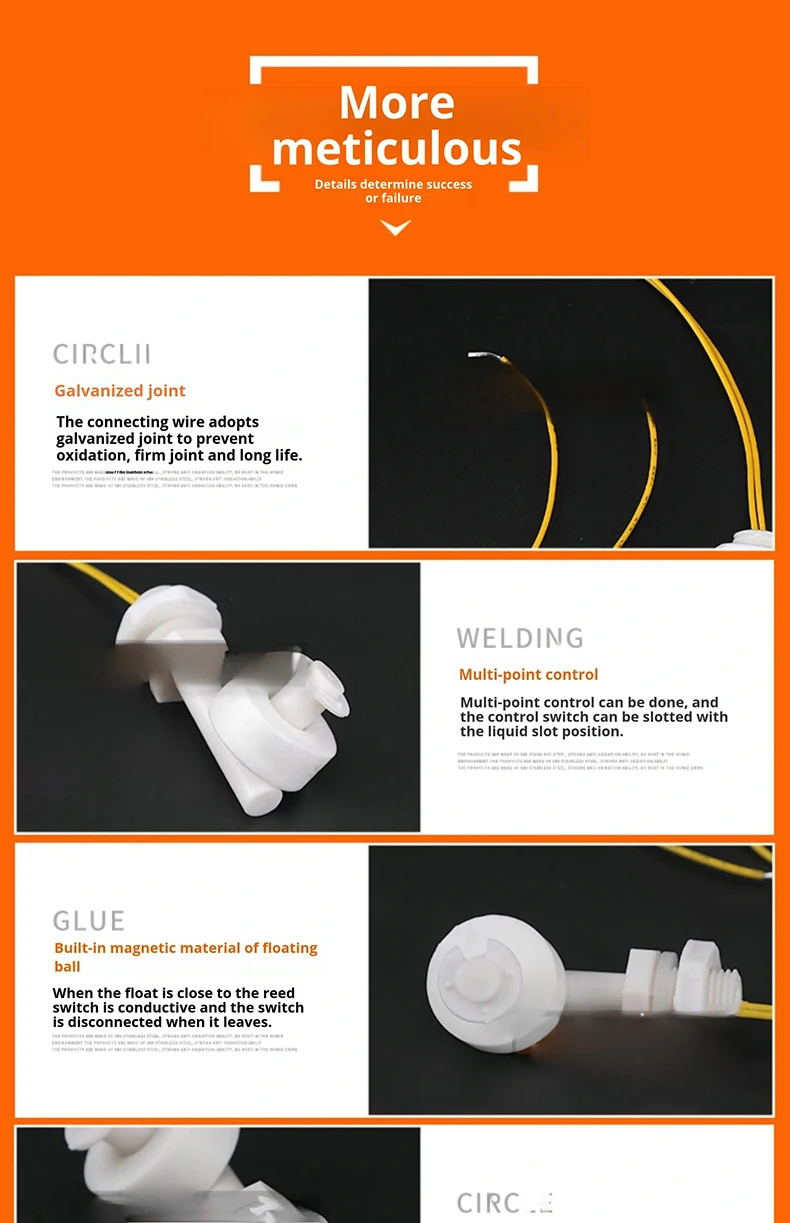

Supports multi-point level control via magnetic reed switch.



5. FAQ

Q1: Can the float point be moved?
A1: No, the float position is fixed and cannot be adjusted.

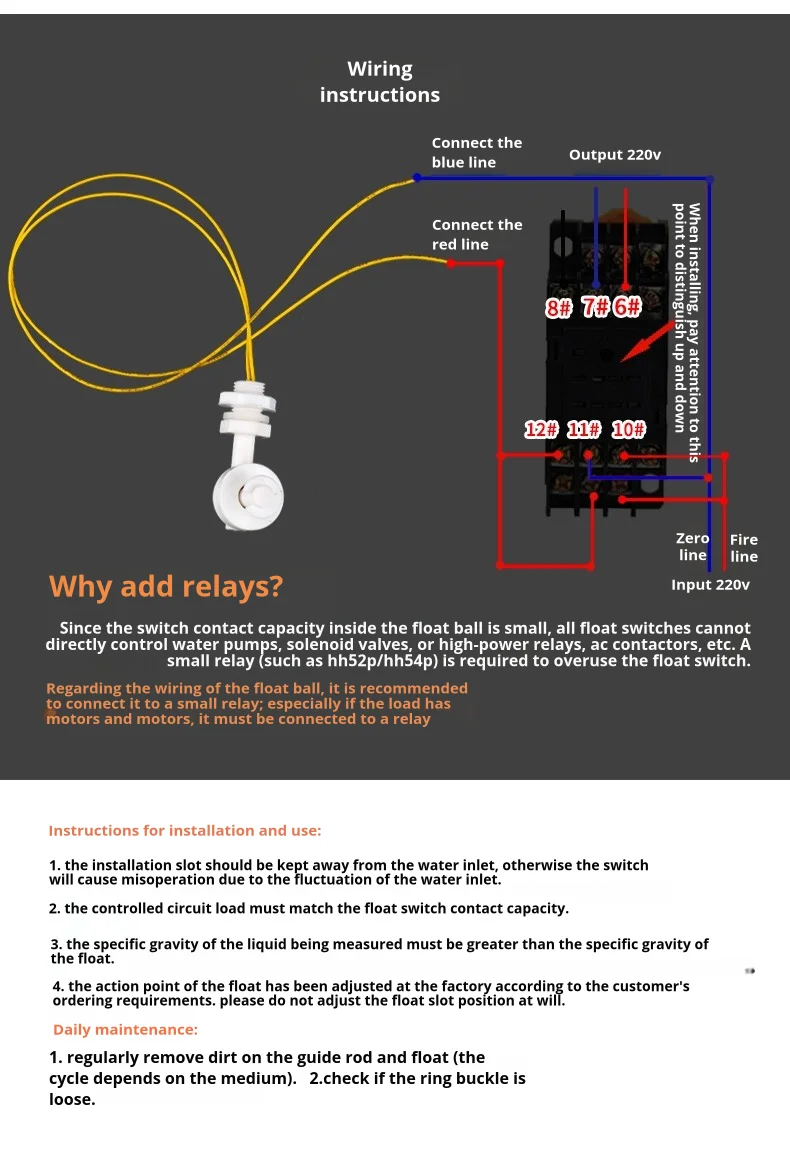

Q2: Can the switch directly control water pumps or alarms?
A2: No, add a relay to control high-power devices.

Q3: What if the required dimensions don’t match the standard sizes?
A3: Custom dimensions and performance can be ordered in any quantity.
