SKYRC Brushless Motor ESC Combo FuriaX Supa 3650 Motor 60A ESC 2-3S LiPo 3.175mm Shaft For 1/10 Touring Buggy Short Course Truck
ESC Features:

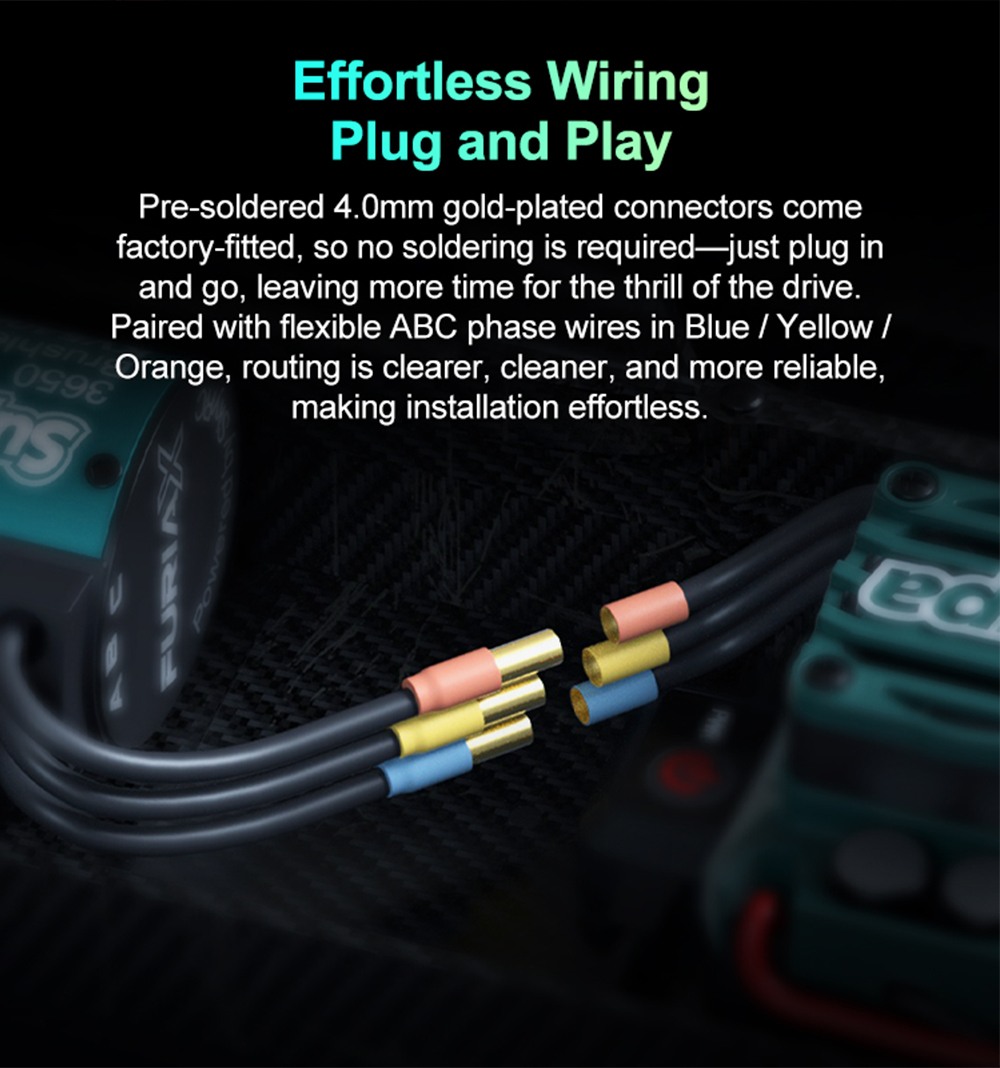

1. Pre-soldered 4.0mm gold-plated connectors comefactory-fitted,no soldering.

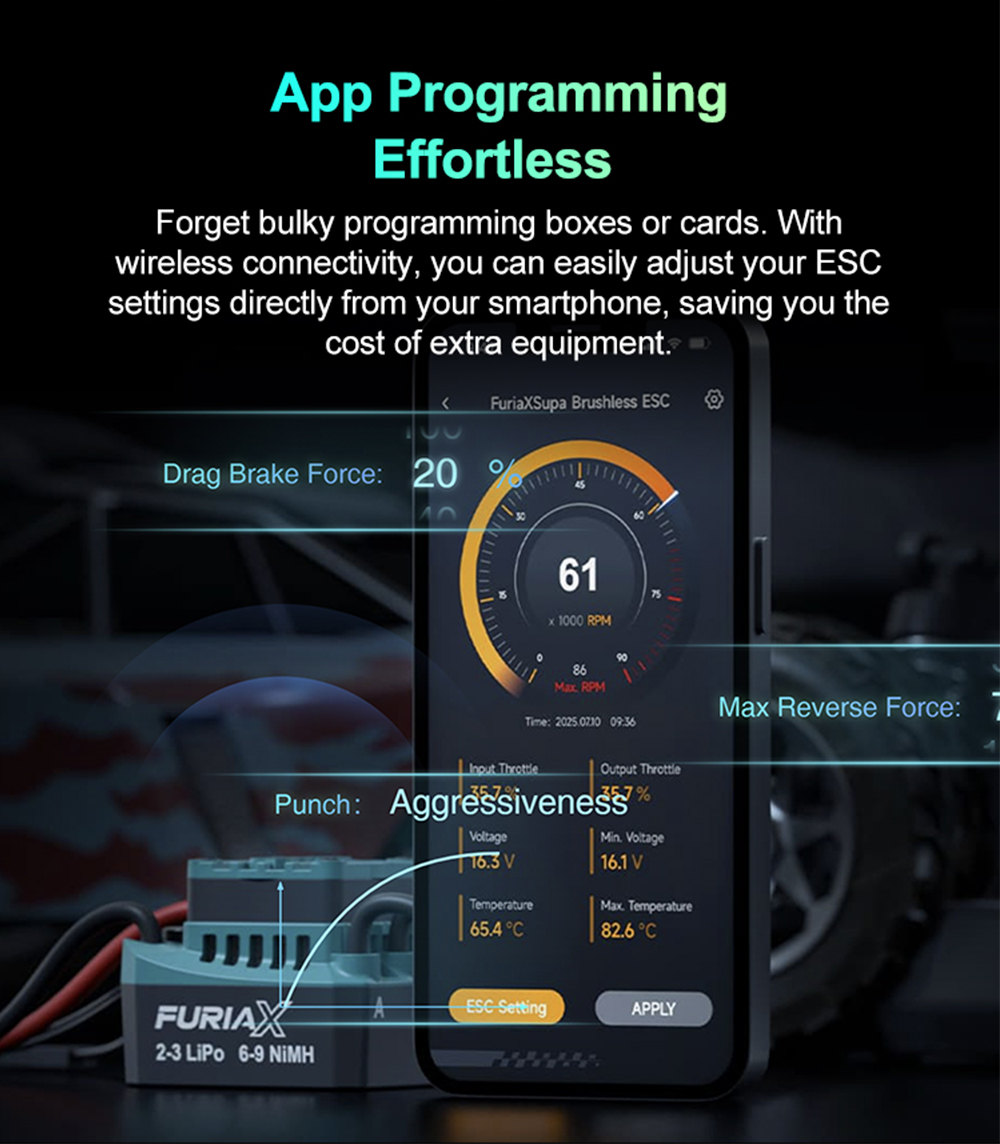

2. With wireless connectivity, you can easily adjust your ESC settings directly from your smartphone.
3. With a continuous 60A output and bursts up to 360A,for smooth acceleration, reliable braking.

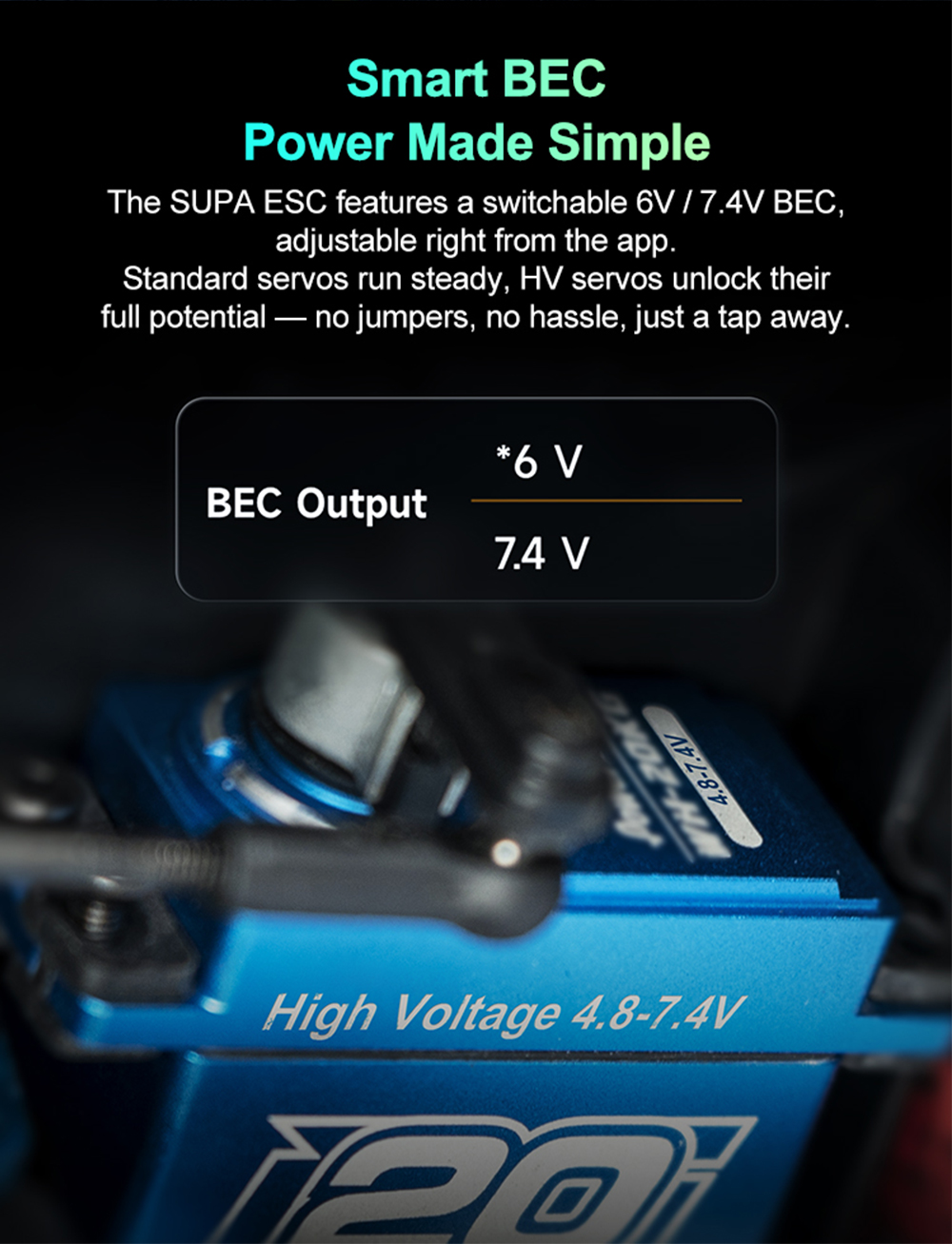

4. ESC features a switchable 6V/7.4V BECadjustable right from the app.

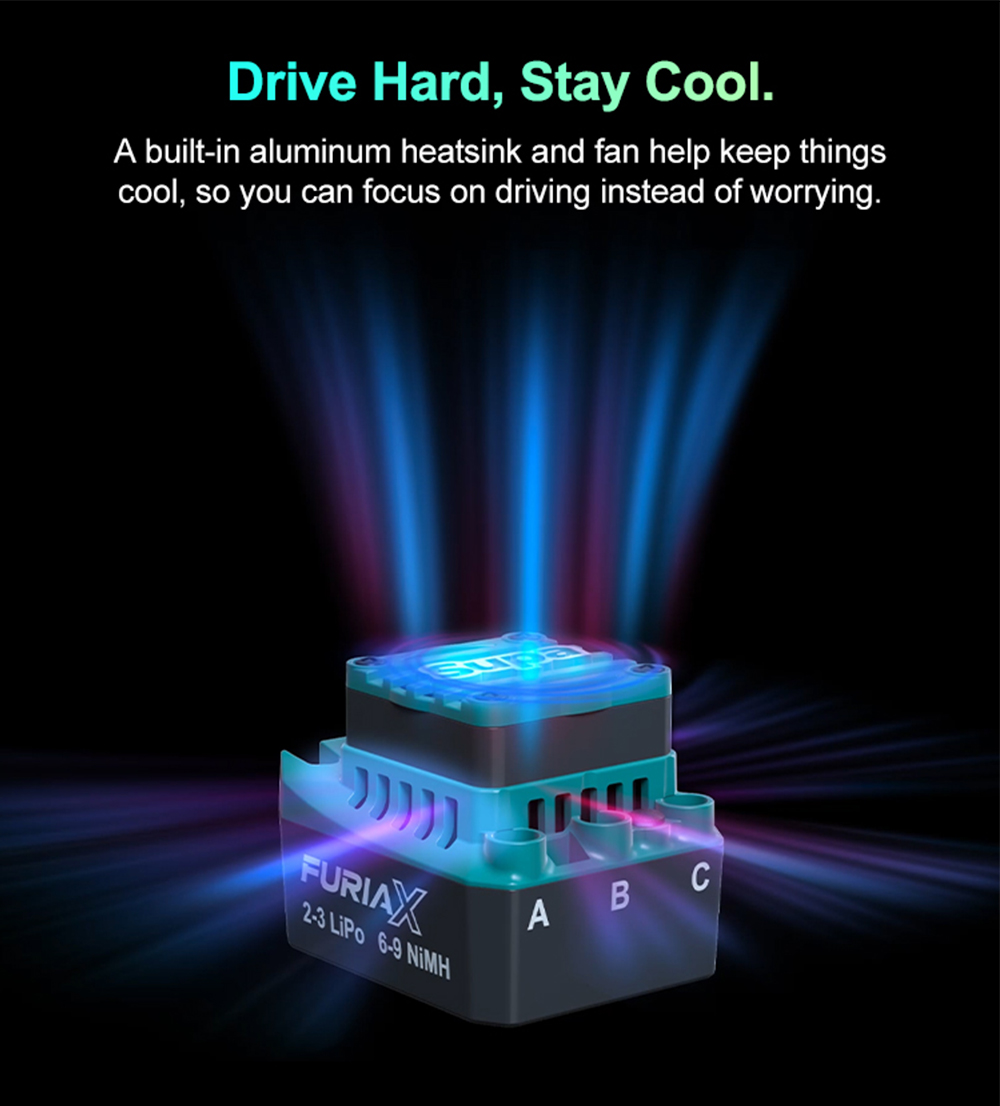

5. A built-in aluminum heatsink and fan help keep things.

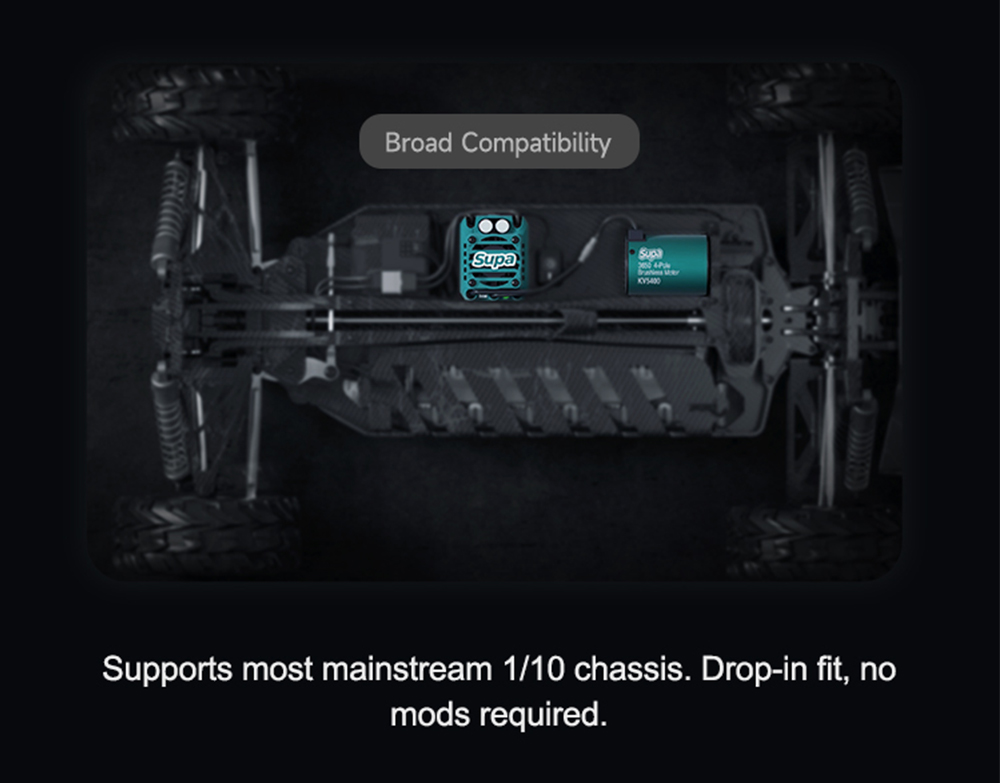

6. For 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck.
Motor Features:
1. Ultra-thin 0.2mm Stator LaminationsLess loss. More efficiency. Cooler runs.

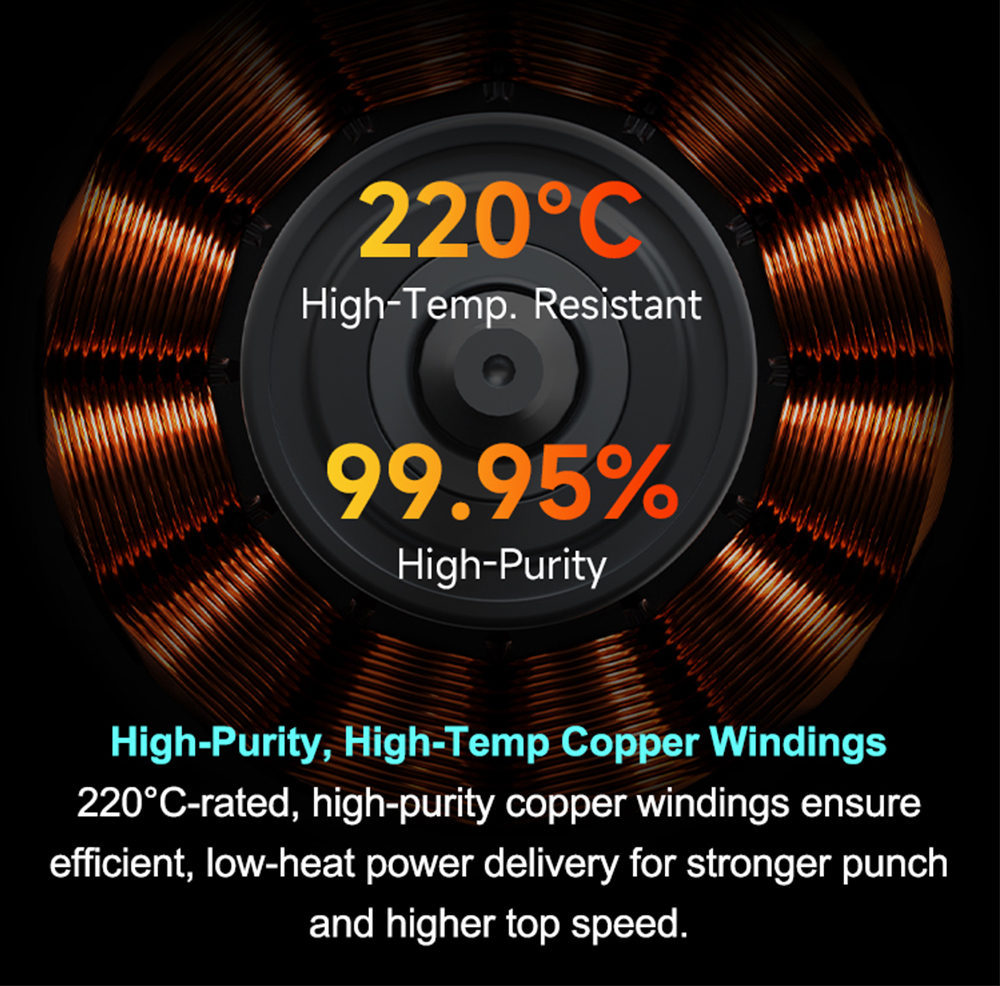

2. High-Purity, High-Temp copper Windings 220°C-rated, high-purity copper windings ensure efficient.

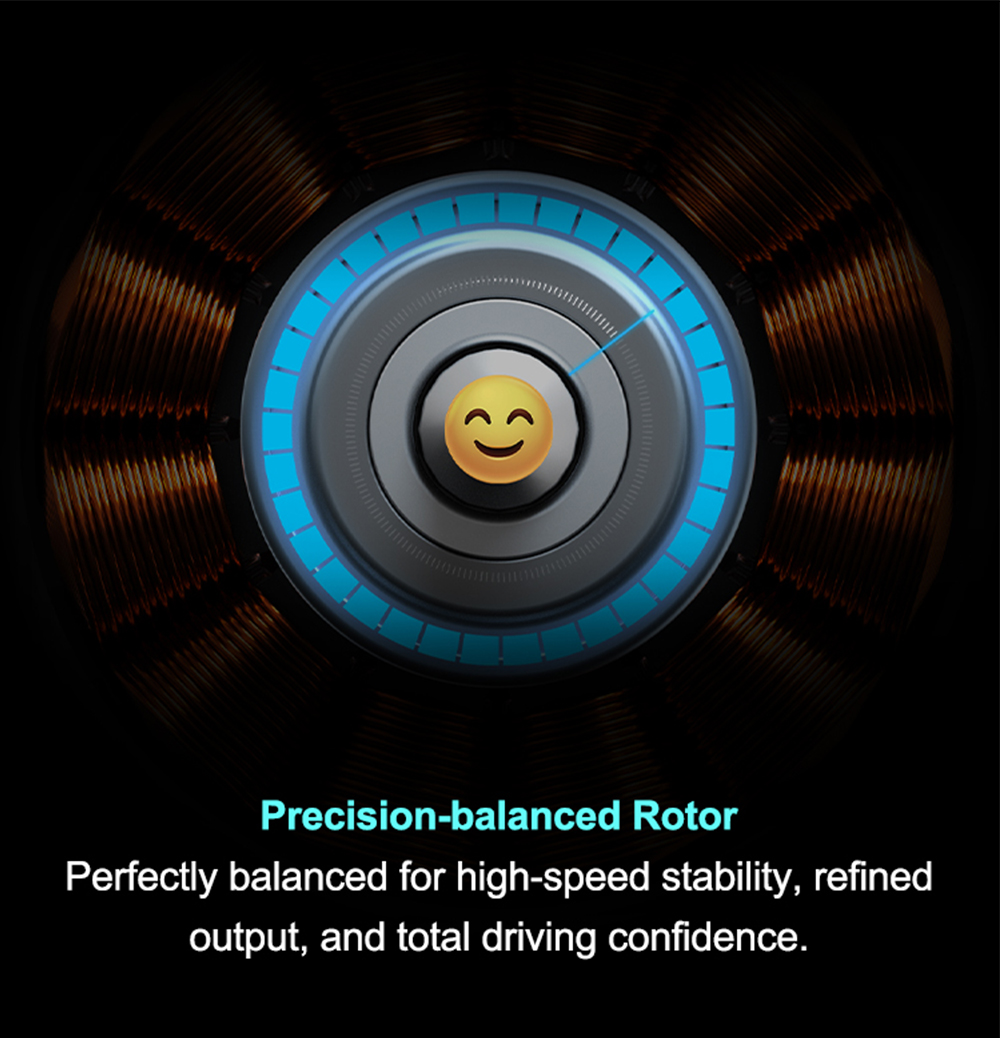

3. Precision-balanced Rotor,Perfectly balanced for high-speed stability, refined output.

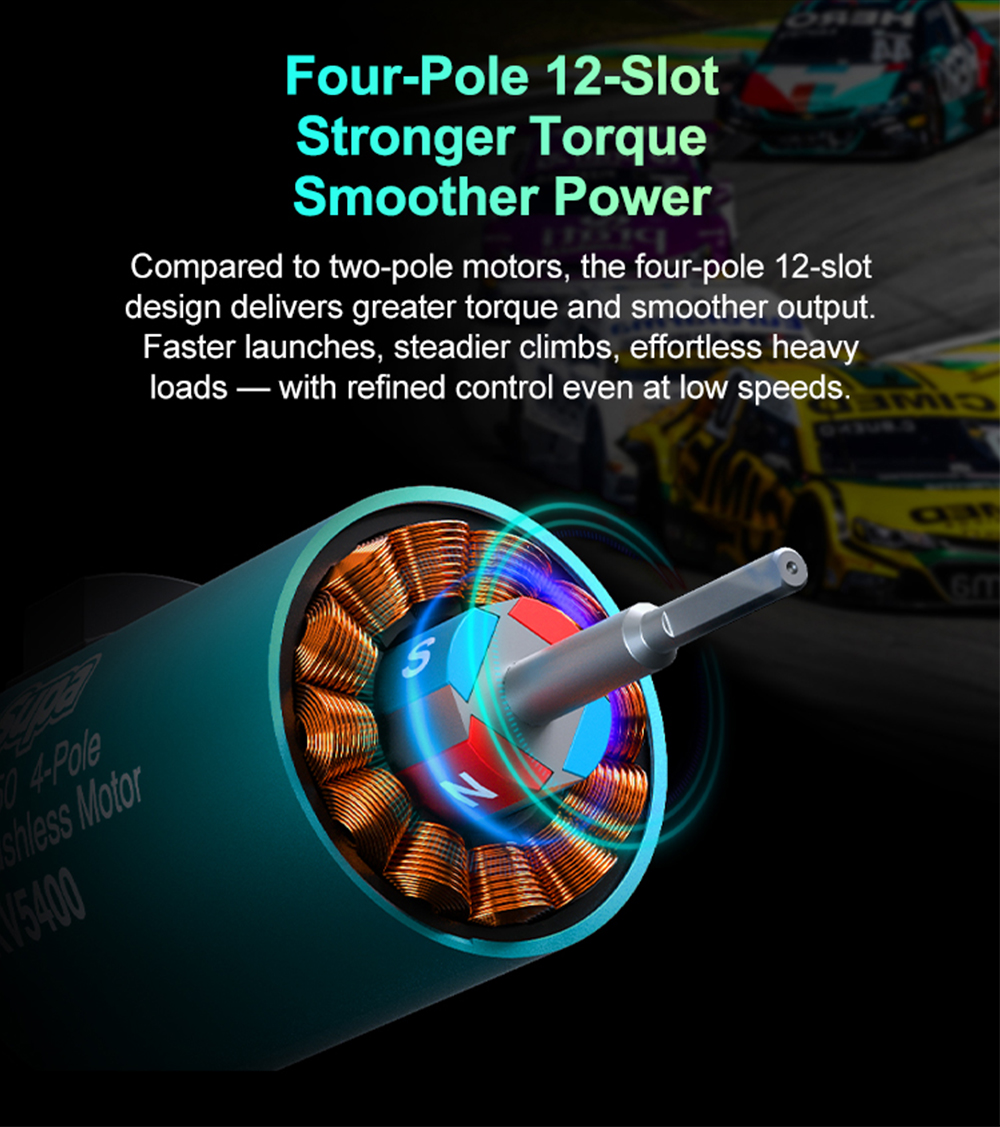

4. Four-Pole 12-Slot Stronger TorqueSmoother Power,with refined control even at low speeds.

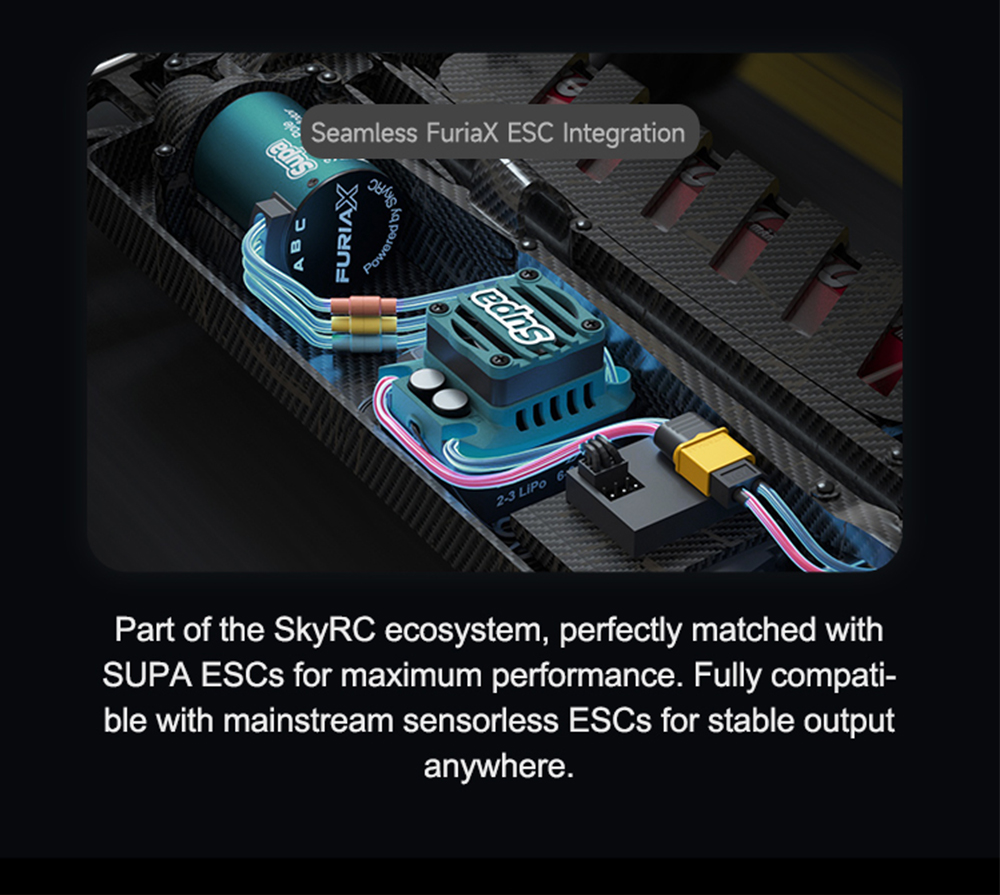

5. perfectly matched withSUPA ESCs for maximum performance. Fully compati-ble with mainstream sensorless ESCs for stable output anywhere.
Description:

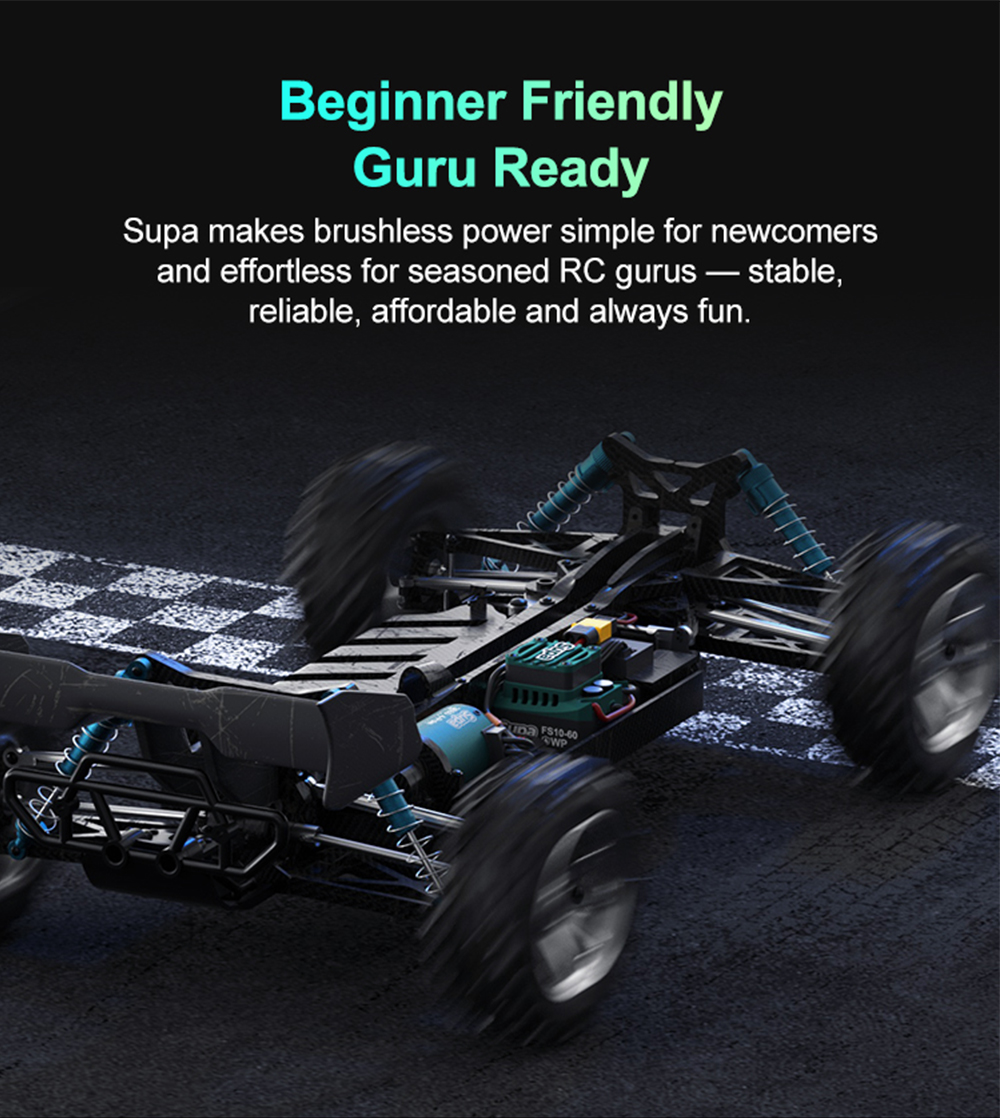

The Supa 60A ESC and 3650 brushless motor come together in one seamless combo delivering a smooth and effortless entry into the brushless world.Simple to use, stable in performance from your very first lap to every race ahead you'll experience the thrill of speed with ease.

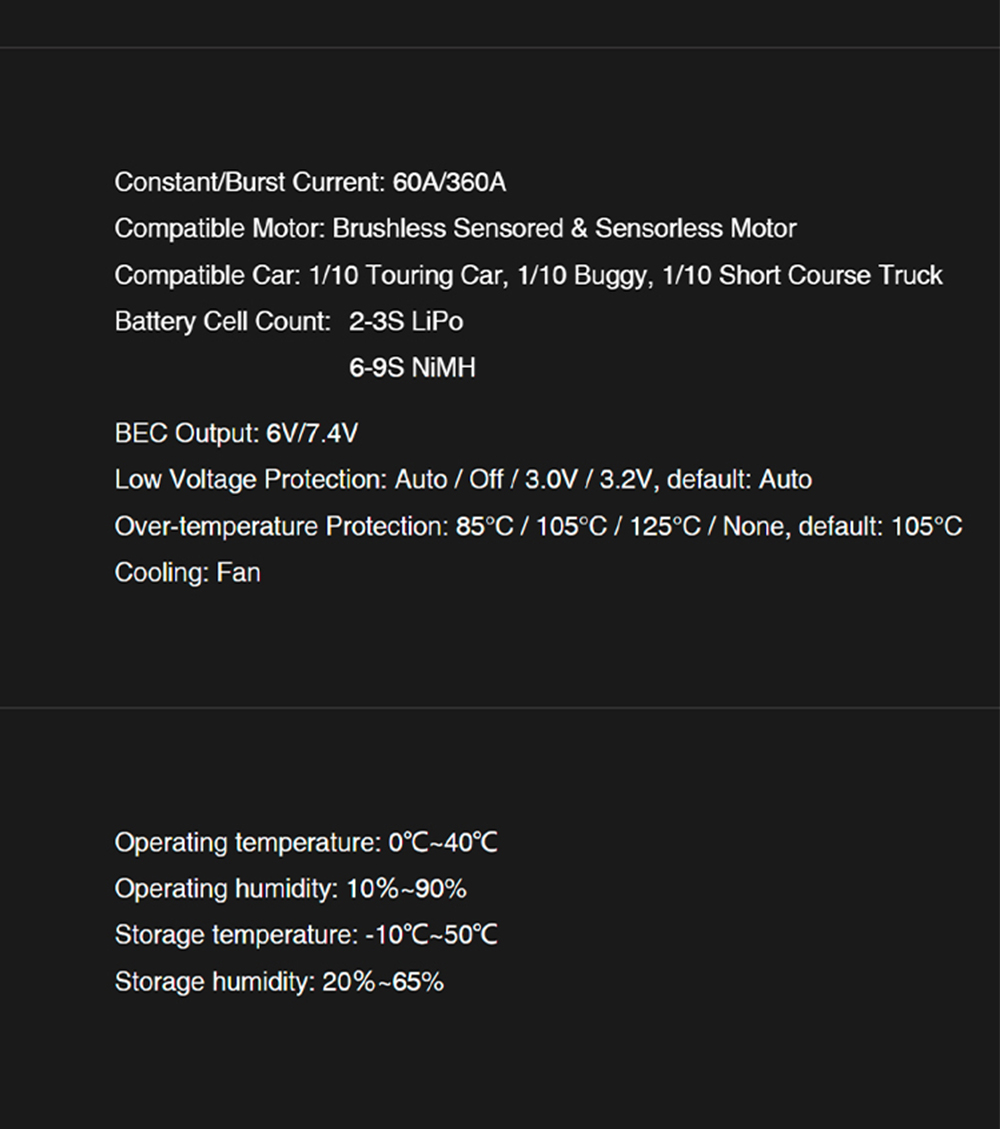

ESC Specifications:
Constant/Burst Current: 60A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Short Course Truck
Battery Cell Count: 2-3S LiPo, 6-9S NIMH
BEC Output: 6V/7.4V
Low Woltage Protection: Auto /0ff/ 3.0V/3.2V, default: Auto
Over-temperature Protection: 85°C/105°C/125C/None, default: 105-C
Cooling: Fan
Operating temperature: 0°c~40°c
Operating humidity: 10%~90%
Storage temperature:-10°c~50°c
Storage humidity: 20%~65%

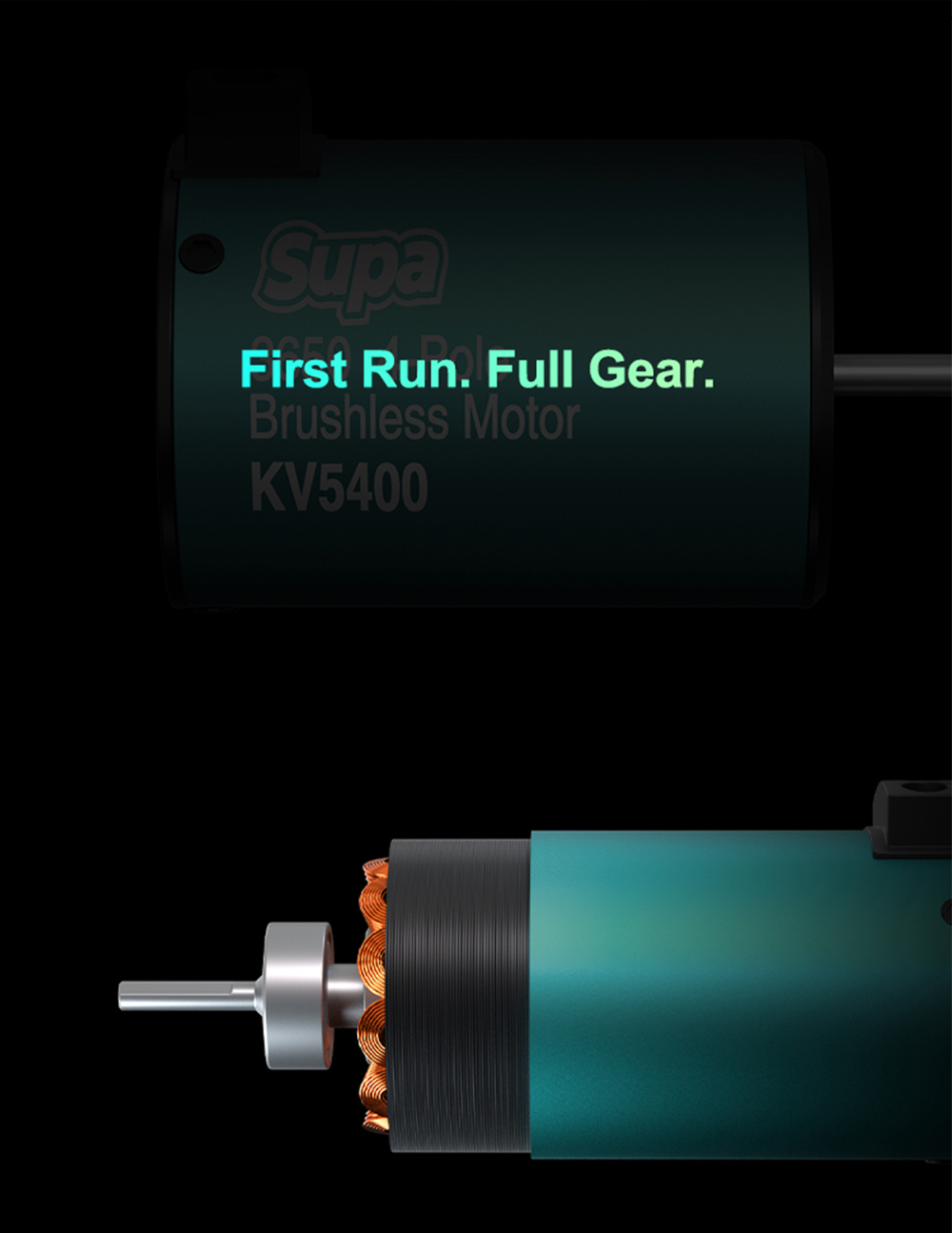

2300KV Motor Specifications:

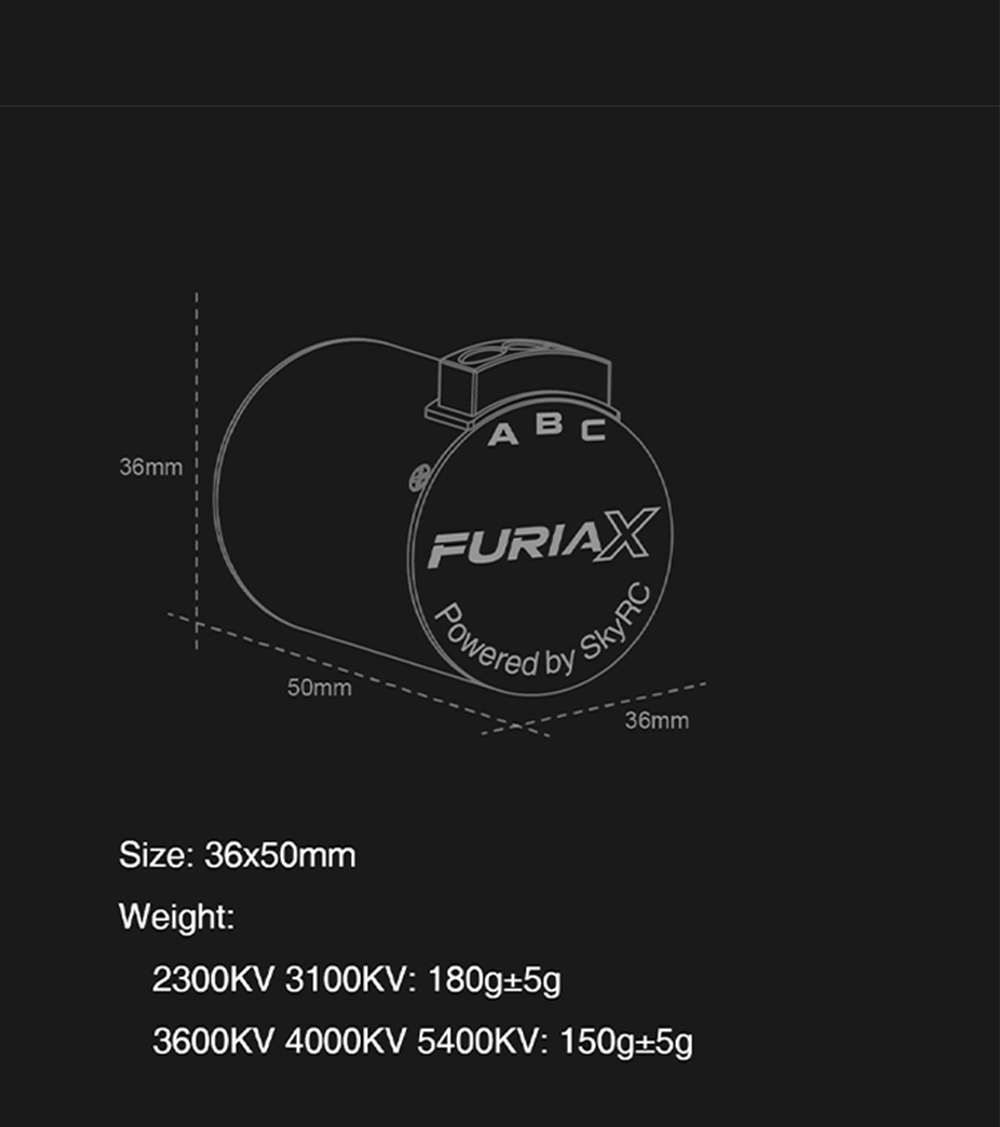

Size.36x50mm
Voltage: < 22V
No-load Current: 1.0A
Load Current: 41A Max.
Power: 900W Max.
Plug: 4.0mm gold
Shaft: 3.175mm
3100KV Motor Specifications:
Size.36x50mm
Voltage: < 16V
No-load Current: 1.5A
Load Current: 56A Max.
Power: 900W Max.
Plug: 4.0mm gold
Shaft: 3.175mm
3600KV Motor Specifications:
Size.36x50mm
Voltage: < 13V
No-load Current: 1.7A
Load Current: 69A Max.
Power: 900W Max.
Plug: 4.0mm gold
Shaft: 3.175mm
4000KV Motor Specifications:
Size.36x50mm
Voltage: < 12V
No-load Current: 2.0A
Load Current: 75A Max.
Power: 900W Max.
Plug: 4.0mm gold
Shaft: 3.175mm
5400KV Motor Specifications:
Size.36x50mm
Voltage: < 9.0V
No-load Current: 3.5A
Load Current: 100A Max.
Power: 900W Max.
Plug: 4.0mm gold
Shaft: 3.175mm
