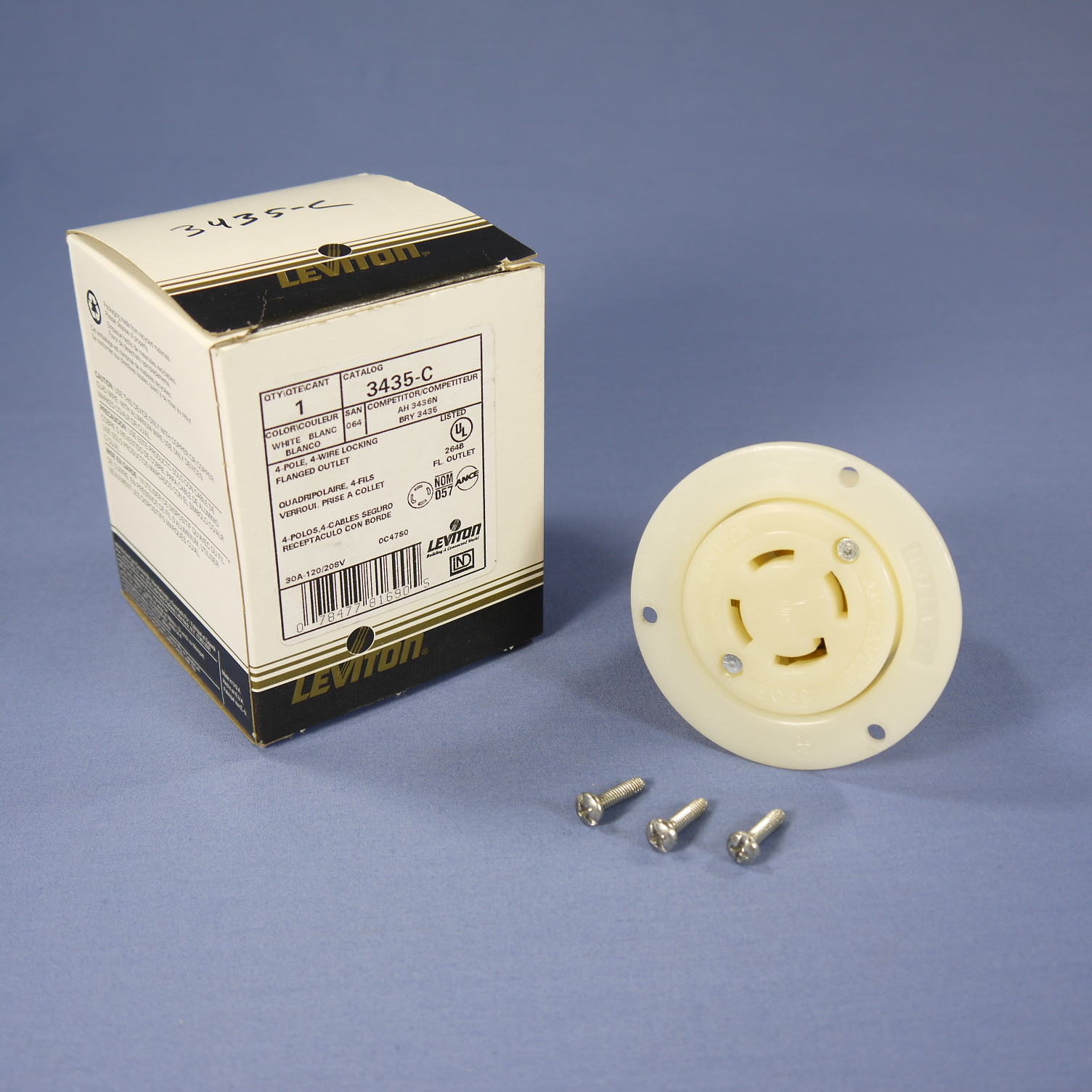

Leviton Non-Nema Locking Flanged Outlet Twist Lock 30A 120/208V 3ØY 3435-C

Leviton 3435-C locking flanged outlet. Industrial Specification Grade, Non-NEMA, 4-pole, 4-wire, non-grounding, rated 30A 120/208V 3 Phase Y. Each is individually packaged; packaging may differ from photo. Terminals accommodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are definitely a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:

• Solid brass blades are fitted and held tightly and securely in place
• Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
• Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
• Transparent wiring chambers provide a means of visual inspection of conductors and terminals
• Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
• Color-coded terminal screws
• Molded-in strip gage provides correct measurement for proper strip length of conductor
• Terminal identification letters on back cover ensure quick and accurate termination
• Captive terminal screws eliminate nuisance dropping and searching for missing screws
• Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
• Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
• Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
• NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification

This is New Old Stock and is returnable for any reason. (SKU # L3435-C-EA; Weight: 0.4000 lbs.)
