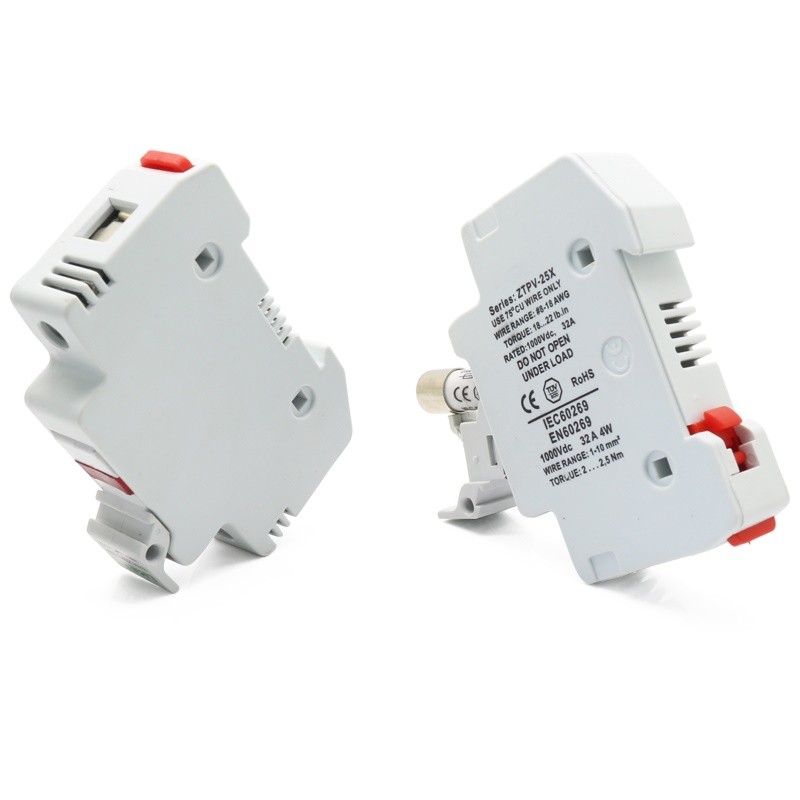

Fuse Holder Solar PV Fuse 10x38mm With LED Indicator Light For Solar Panels
DESCRIPTION


Solar PV fusible 1000V DC fusible 10x38 gPV with LED fusible Holder for Solar for protection


Specification:

According to: IEC 60269.6

Rated current (fusible): 2-32A

Rated current (fusible holder): 20a

Rated voltage: DC1000V

fusible size: 10x38mm

application:

Solar panels, solar photovoltaics, DC strings. Tip: Always use fusible on the positive and negative terminals of any PV string rated up to 1000 VDC.

Electrical Characteristics:

Rated Voltage 1000VDC amps 1A,3A,5A,10A,15A,20A,25A,30A Rated Braking Capacity 33kA dc Minimum Interruption Rating 1.3x under time constant 1ms


standard:

IEC 60269-6, EN 60947-3, DC-20B

fusible holders for PV string fusible:

This bracket is suitable for 12A, 15A, 20A, 25A and 30A, 32A PV fusible. The maximum voltage is 1000V. The fusible holder can be combined with the following PV string fusible, which are essential for protection for solar panels. -1000V DC-20B - 45mm Modular Cutout - 1 Module (17.5mm) X Post - 35mm DIN Rail Mount - High Temperature Plastic - High Insulation Properties


The package includes:

1*fusible

1*fusible holder
