Features

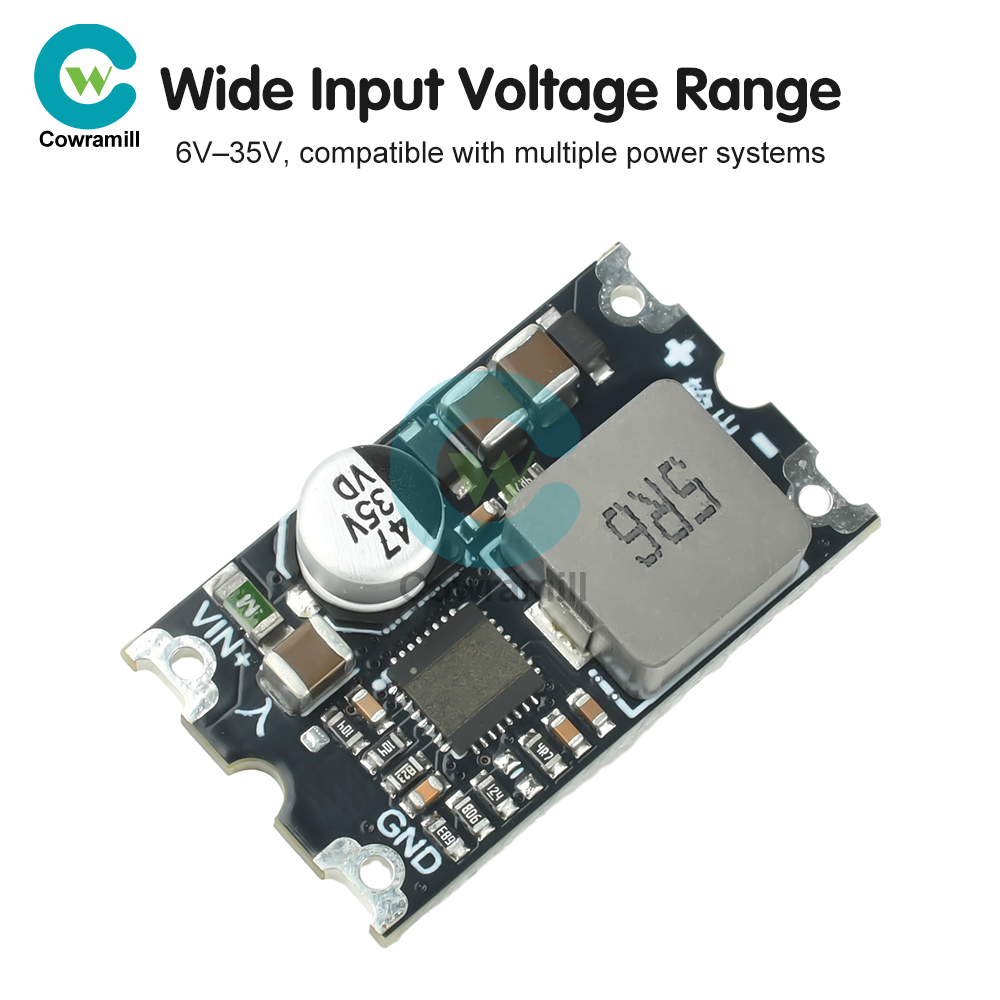

1. Wide Input Voltage: 6V–35V, compatible with various power systems

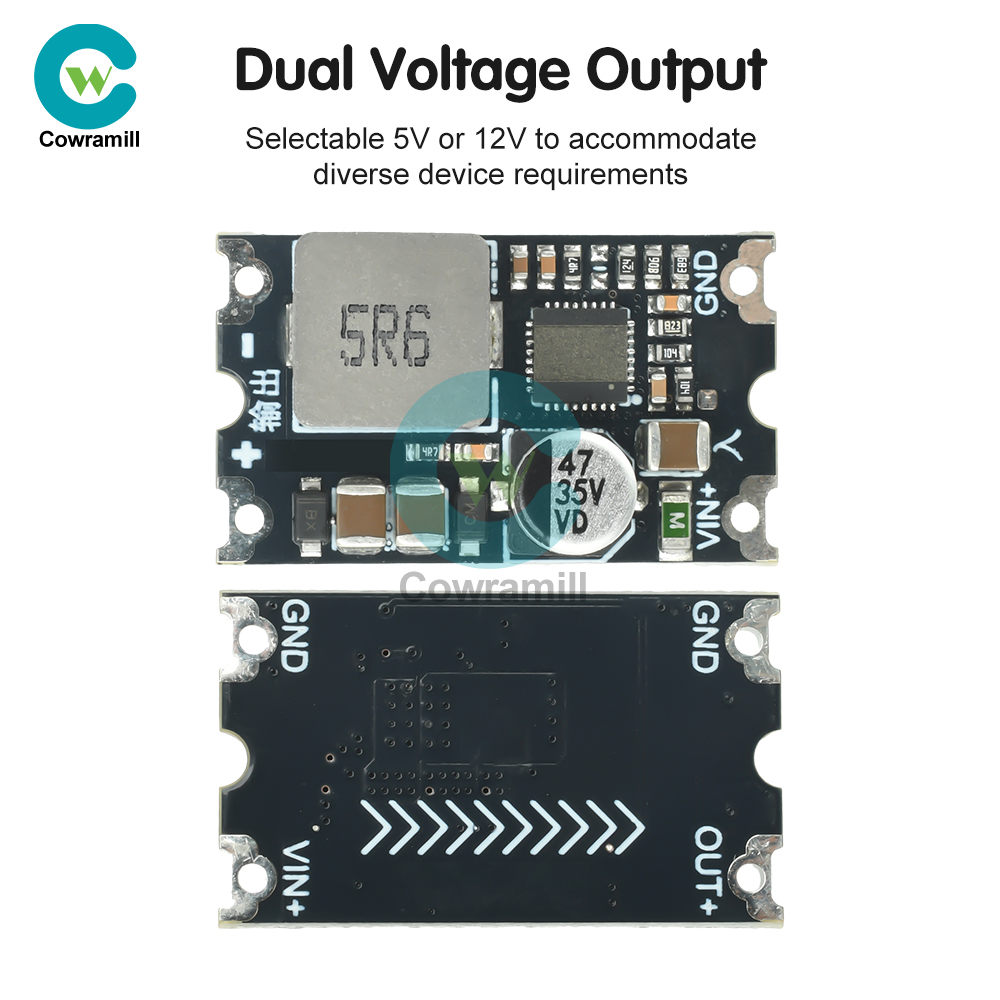

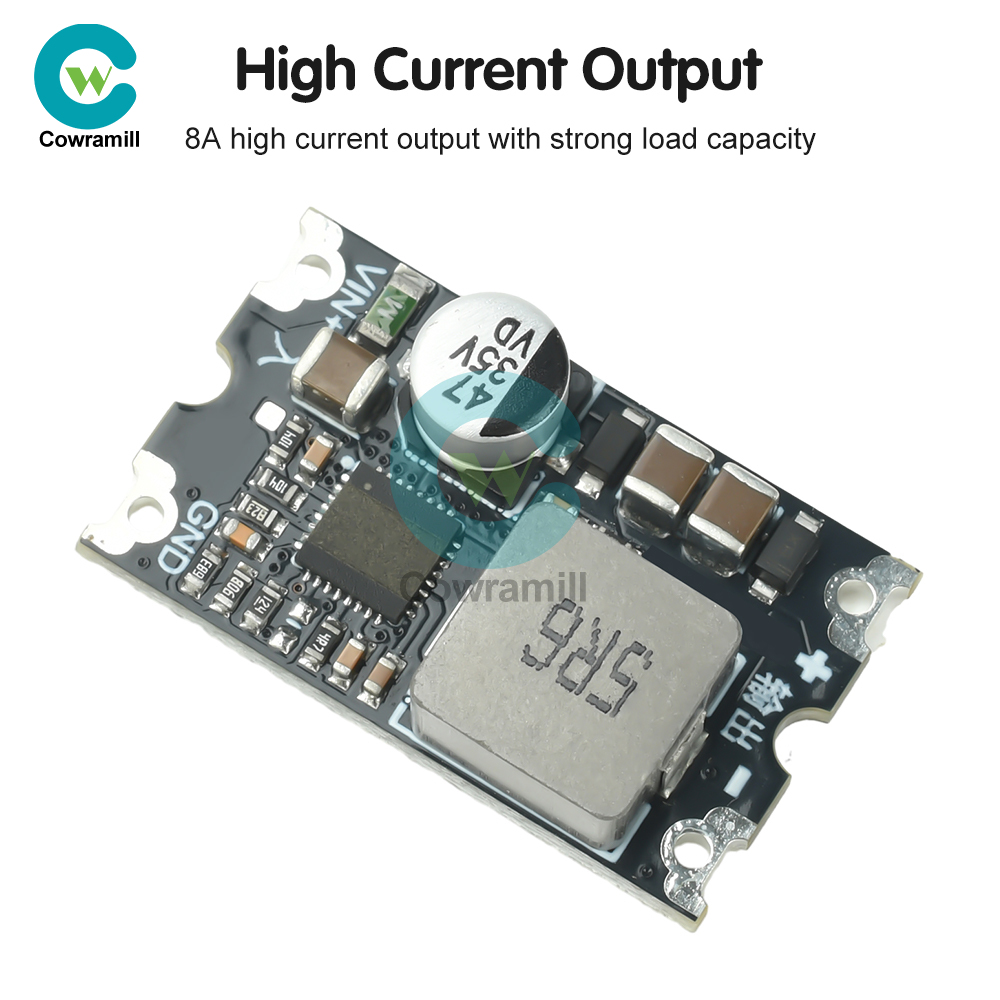

2. Dual Voltage Output: Selectable 5V or 12V to meet diverse device requirements 3. High Current Output: Up to 8A, strong load capability
4. High Efficiency & Low Heat: 95% conversion efficiency, minimal temperature rise, stable operation 5. Multiple Protections: Input TVS and fuse protection, over-temperature protection
Parameter
Input Voltage: DC 6-35V (must exceed output by at least 1V)
Output Voltage: 5V/12V (selectable)
Output Current: Max 8A
Quiescent Current: 2-25mA
Operating Temperature: -40°C to 85°C
Up to 95% Conversion Efficiency
Max 500kHz Low Ripple
Precautions
1. Input voltage must exceed output voltage; maintaining a 1V+ differential is optimal. Do not reverse polarity, as this will burn the board.
2. Disconnect power before wiring to prevent sparking at high voltages, which may damage or destroy the chip.
3.
Use sufficiently thick wiring to handle rated currents. Protect inductive loads to prevent excessive back EMF exceeding the chip's tolerance.
4.
Heat dissipation is critical as higher power usage and currents near the maximum limit increase thermal output.
Package include
Module*1
