M4-M24 Electric Tapping Machine 360° Flexible Arm With Collets Brand New
Bullet Points:
Adjustable Speed Control: Adjustable forward and retract speeds ensure adaptability to various operational requirements, supported by an advanced, flexible tapping system that prevents tap breakage during blind hole and deep hole tapping for consistent high-quality threaded holes, powered by an imported servo motor for reliable performance
Broad Material Compatibility: Works efficiently on a wide range of materials including iron, steel, copper, aluminum, wood, nylon, raw iron, A3 steel, NAK80 molds, die steel, Q235, 45# steel, cast iron, and lead, to meet diverse project requirements
Versatile Processing Options: Manual mode for single pieces, deep-hole tapping for extended reach, and automatic mode for batches ensure adaptability across various machining requirements
Excellent Tapping Solution: Enabling tapping in any direction with a suspended arm, this machine ensures durability and resistance to deformation while supporting high-speed, precise, repeatable tapping for enhanced efficiency
Effortless Operating and Reliability: Designed with hydraulic support rods and rotary installation for ease of use, its strong double cantilever motor bracket and integrally formed body deliver consistent stability, enhanced by a touchscreen interface and protections like a built-in fuse and cooling fan system

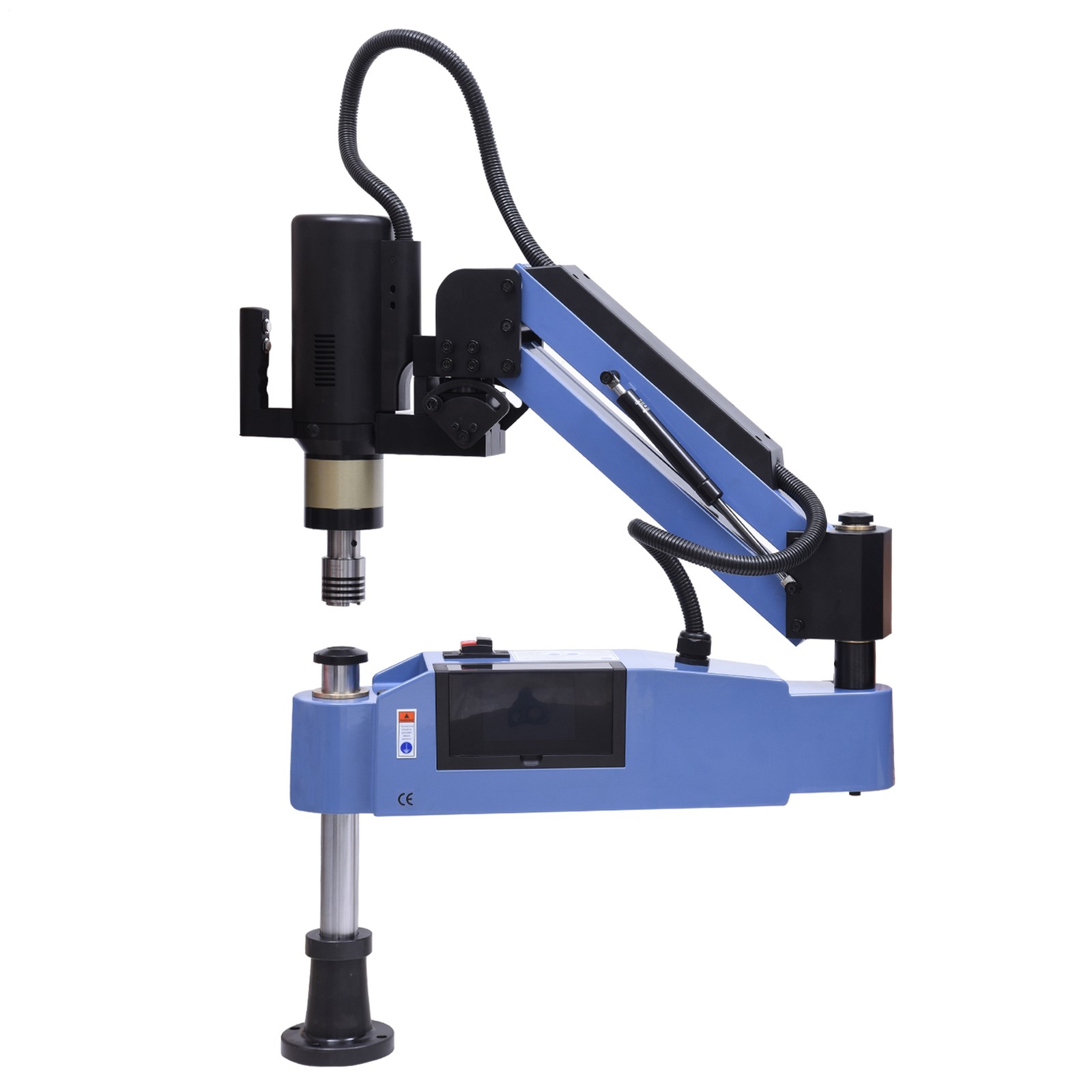

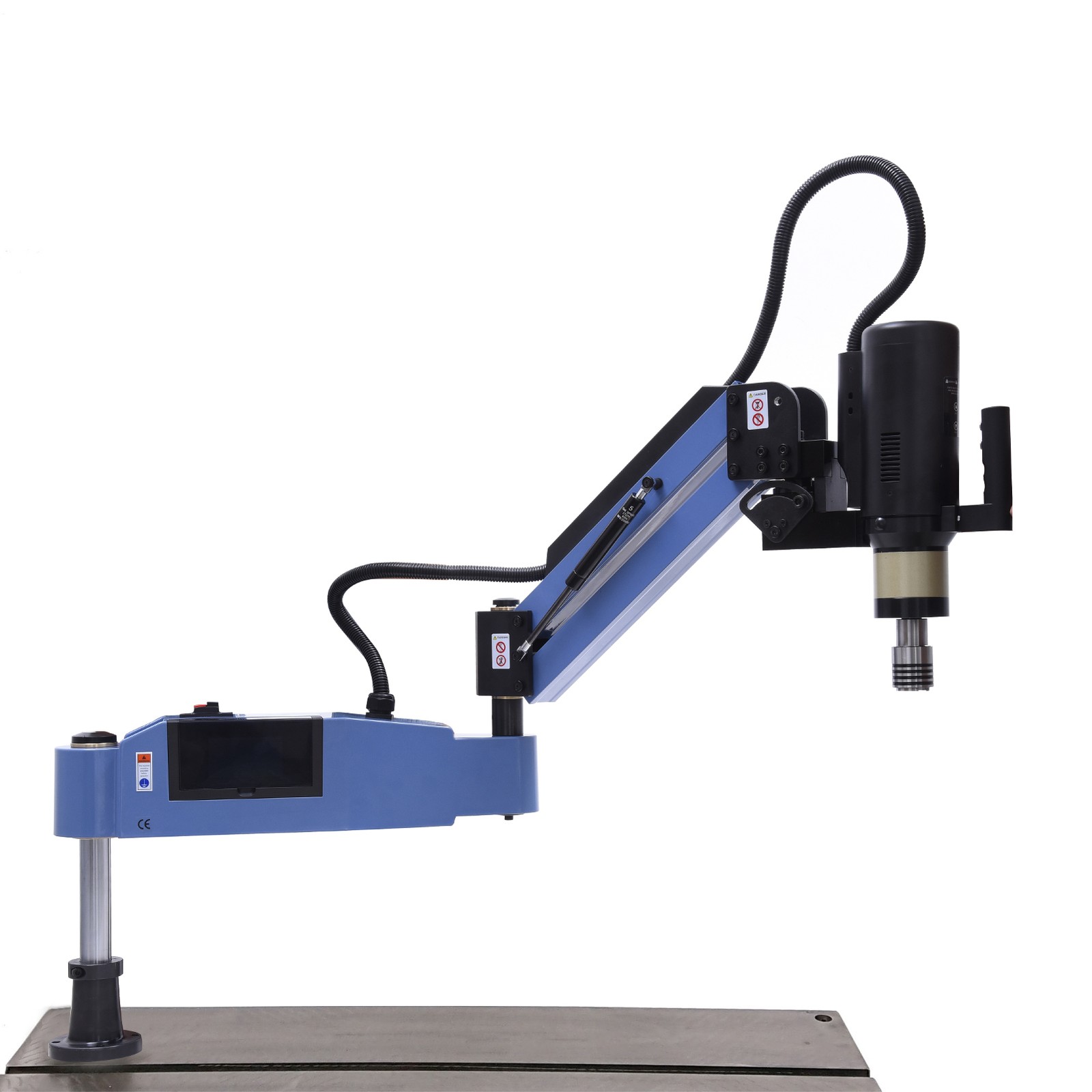

This tapping machine features a vertical tapper with collets, ideal for accurate tap threading and drilling tasks. Its flexible arm allows effortless adjustments, while compatibility with iron, copper, steel, aluminum, wood, and nylon ensures broad usability across different projects.

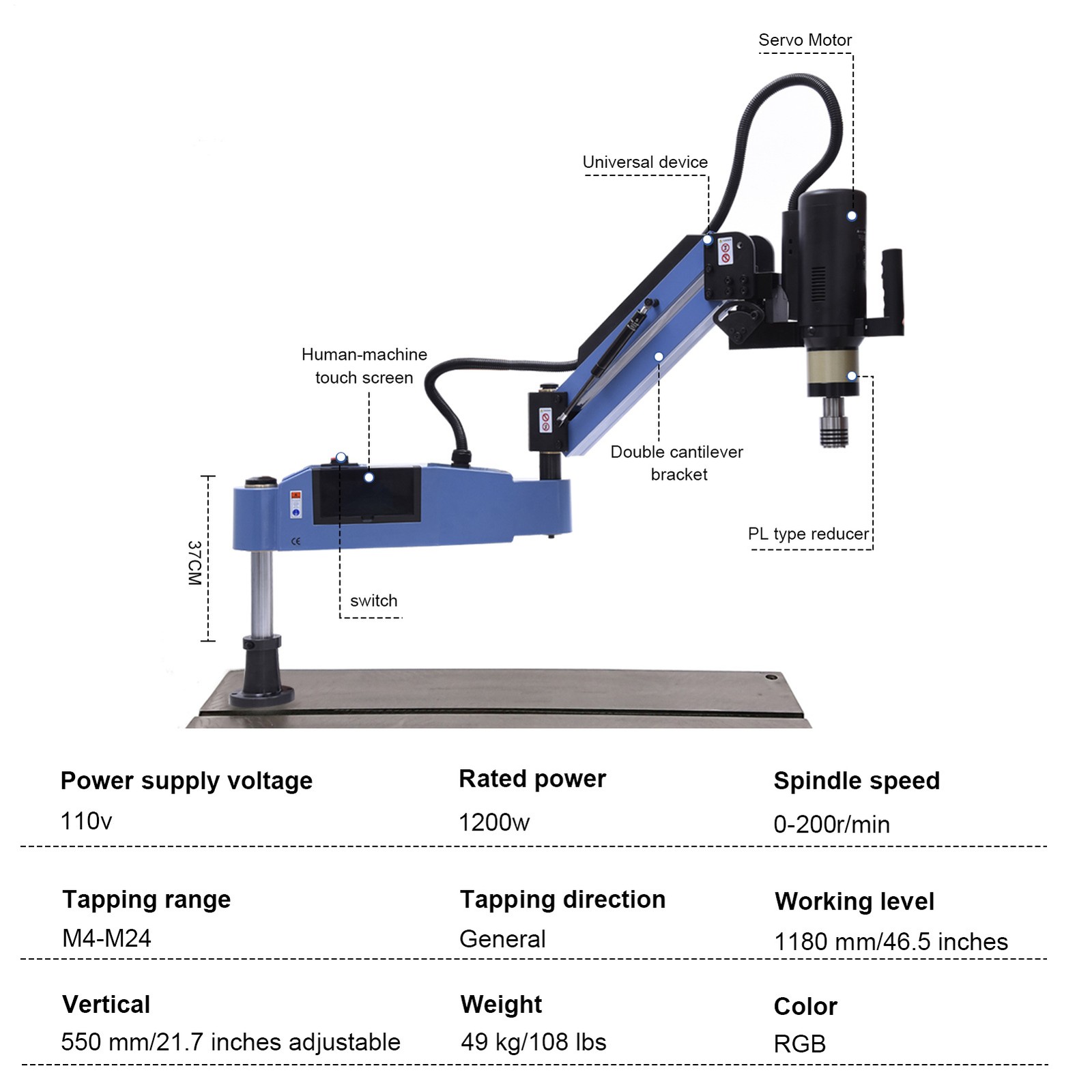

Specification:
Product Name: Tapping Machine
Type 2:
Models M4-M24
Voltage: 110V
Rating Power: 1200W (Actual load power is lower than the rating value, possibly due to mechanical efficiency or insufficient load).
Measured power: 840W
Maximum speed: 200 RPM
Working modes: Manual, automatic, batch processing
Vertical reach: 550mm/21.6in
Working radius: 1180mm/46.4in
Chuck models: 1/4in (6.35mm), 5/16in (7.9mm), 3/8in (9.5mm), 1/2in (12.7mm), 9/16in(14.2mm), 5/8in(15.8mm), 11/16in(17.4mm), 13/16in(20.6mm), 7/8in(22.2mm), 15/16in(23.8mm)
Applicable to metal materials such as aluminum, copper, A3 steel, 45 steel, cast iron, raw iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel, PP, and wood.
① Manual Mode: Set tapping speed and pitch, monitor displayed values, and manually retract the tap fully. Ideal for single-piece machining.
② Automatic Mode: Input tapping speed, retraction speed, and depth; touch screen type automatically adjusts torque for efficient batch production.
③ Deep Hole Mode: Designed for deep hole tapping, it uses an intelligent forward-backward cycle (1:1, then 2:2 steps) to ensure chip removal and optimal results.

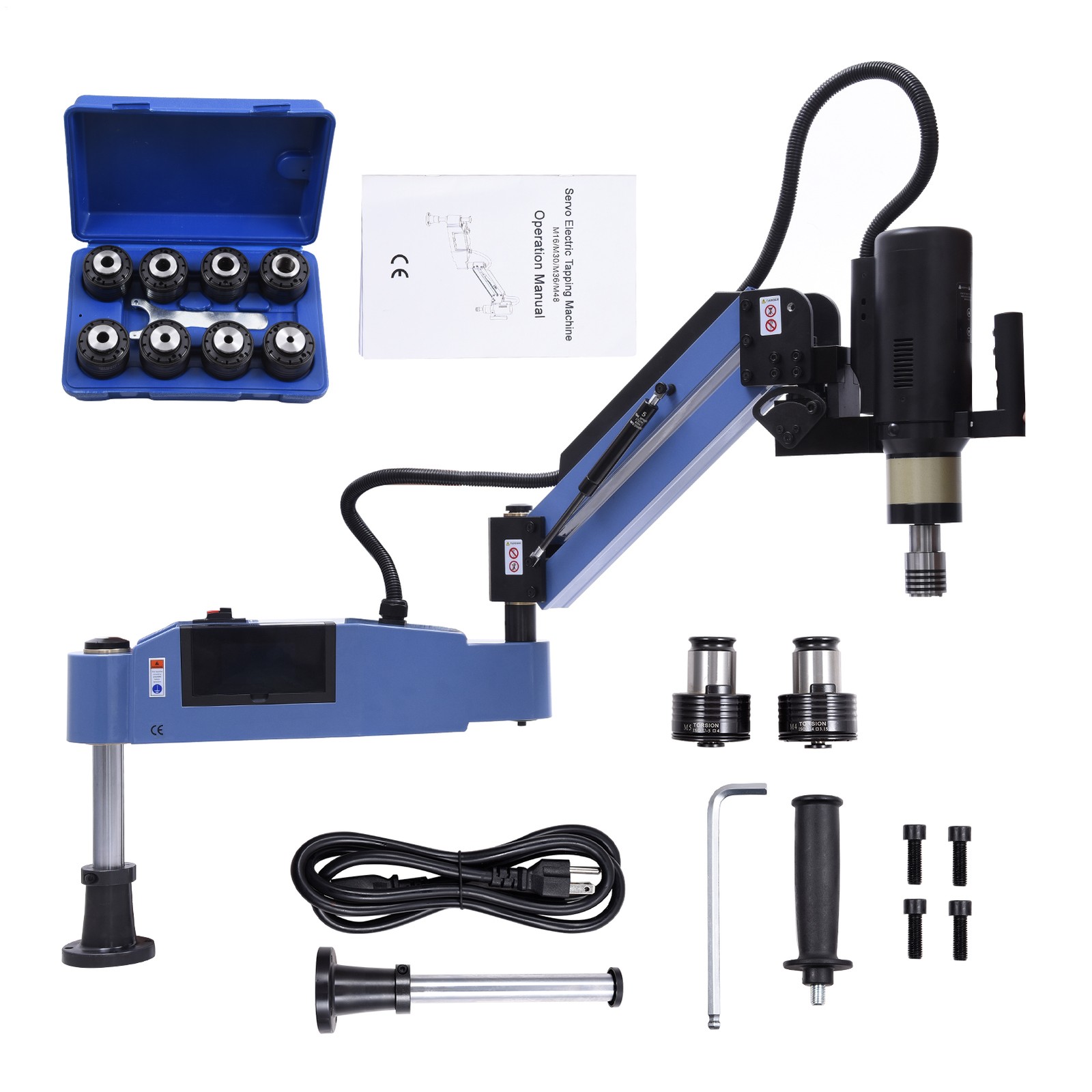

Packing List:
1 Set of Tapping Machine (M4-M24 available)
Including:
1 * Tapping Machine
1 Set of Collets
1 * Power Cord
1 * Post
1 * Instruction Manual
