QXFAS

Air Spring Bag W/ Dual Gauge for Sprinter 906 RWD 2006-2018 Load Helper Kit



MaXpeedingrods Air suspension kit

MaXpeedingrods Air suspension kit

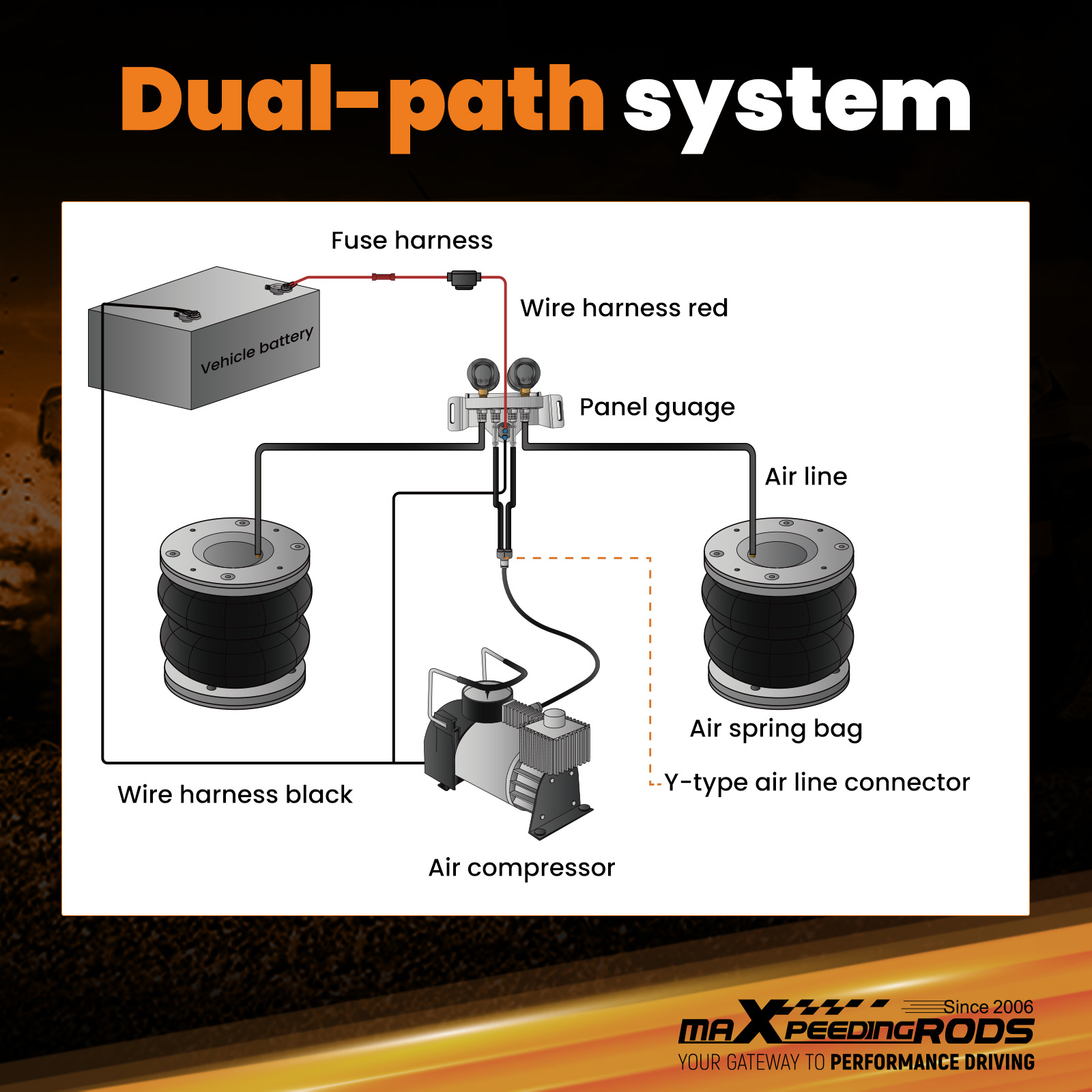

  • [Dual-path System]

The dual-path system provides independent air spring control, boosting stability in turns and leveling uneven loads seamlessly, perfect for motorhomes and heavy-duty use.


  • [Quick No-Drill Install & 4000KG Capacity

Built with galvanized steel and natural rubber for 4000KG strength, installs in 1-2 hours without drilling.

MaXpeedingrods Air suspension kit

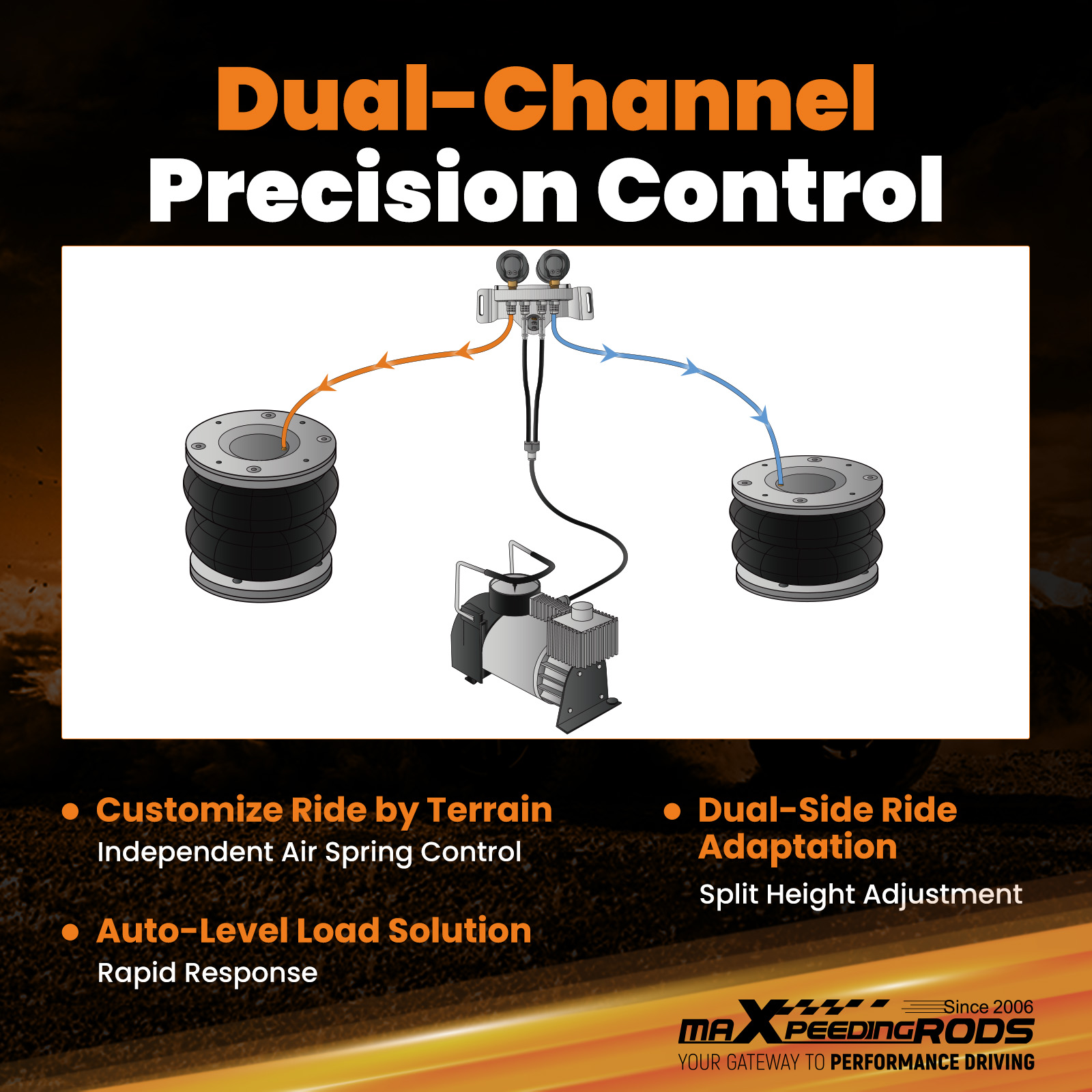

Dual-Channel Precision Control

Custom Ride Optimization, Any Terrain?

Independent left/right air spring adjustment


Uneven Load? Instant Solution

Rapidly auto-level your vehicle


Tailored Ride Experience, Any Situation?

Raise/lower passenger vs. cargo sides separately

Maxpeedingrods Air Spring Bag Kit


Condition Brand New
Placement on Vehicle Rear Left and Right
Capacity 8800 LB / 4000 KG
Stroke 135mm
Max. Extended 210mm
Min. Compressed 75mm
Unloaded Min 10 PSI
Loaded 75 PSI
Maximum Working Voltage 10 bar (1 MPa )
Operating Pressure ≤2.0Mpa
Temperature ≤+70° , ≥-40°
Instruction included Yes

MaXpeedingrods Air Compresssor


Air Compressor inlcuded Yes
Power 150 W
Output Voltage 12 V
Maximum Current 10 A
Cigarette lighter socket included Yes
Compressor hose dia 0.72m
Compressor cable dia 2.6m

MaXpeedingrods Air suspension kit

Application

For Mercedes-Benz Sprinter 3,5-T 300 & 400 VS30 907 RWD 2018-2024

For Mercedes-Benz Sprinter 3,5-T 906 RWD 308-319 2006-2018

For Volkswagen VW Crafter 2E & 2F LT35 2006-2017

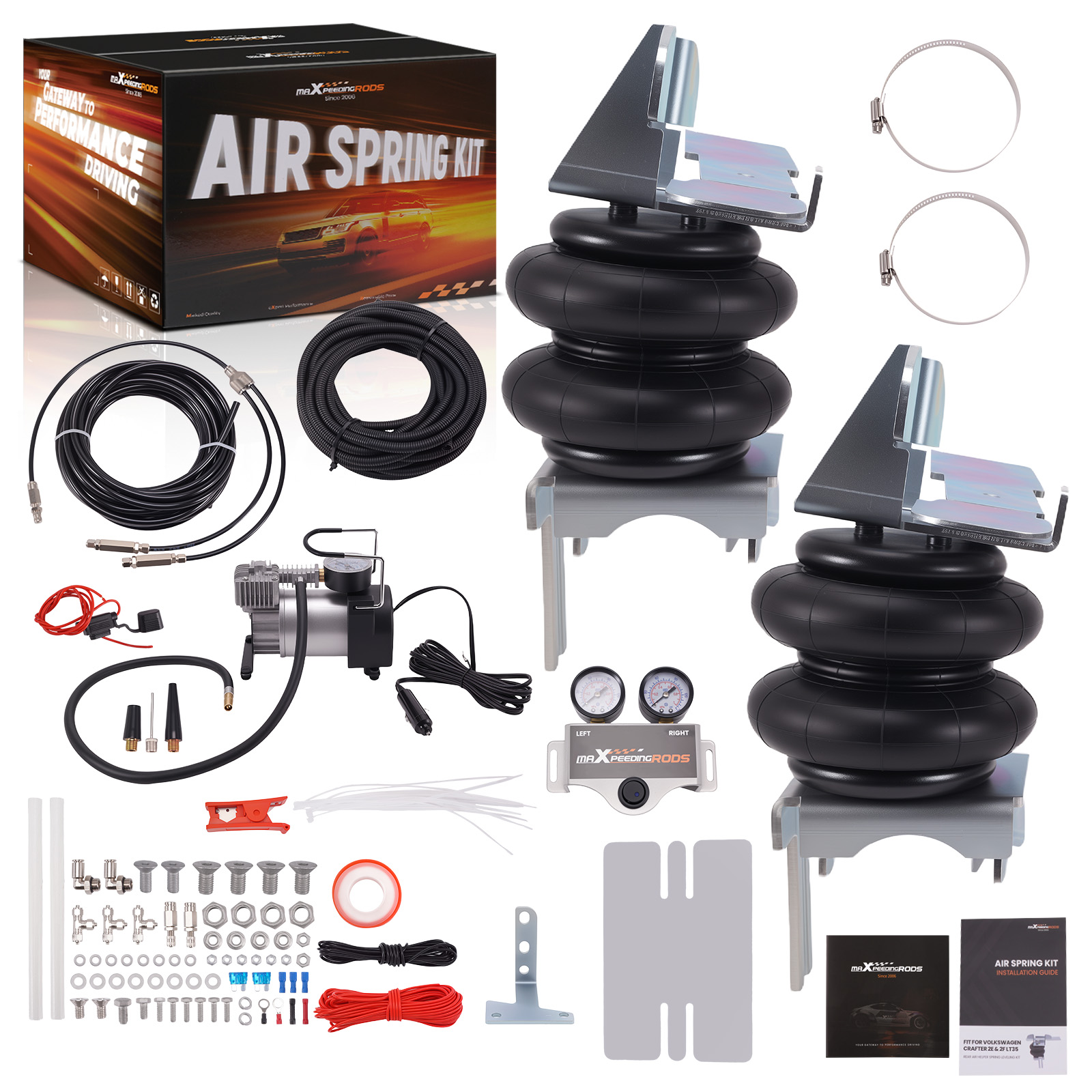

Package Includes:

2x Natural Rubber & Hi-tensile steel Air spring bag

6x Galvanised Heavy duty mounting bracket

1x Heavy Duty 12V Air compressor

1x Dual Gauge

1x Air line 8m

1x Fuse harness

Mounting bolts and Air fittings


Notice:

- Professional installation is recommended

- Contact us please for whatever we can help

MaXpeedingrods Air suspension kit

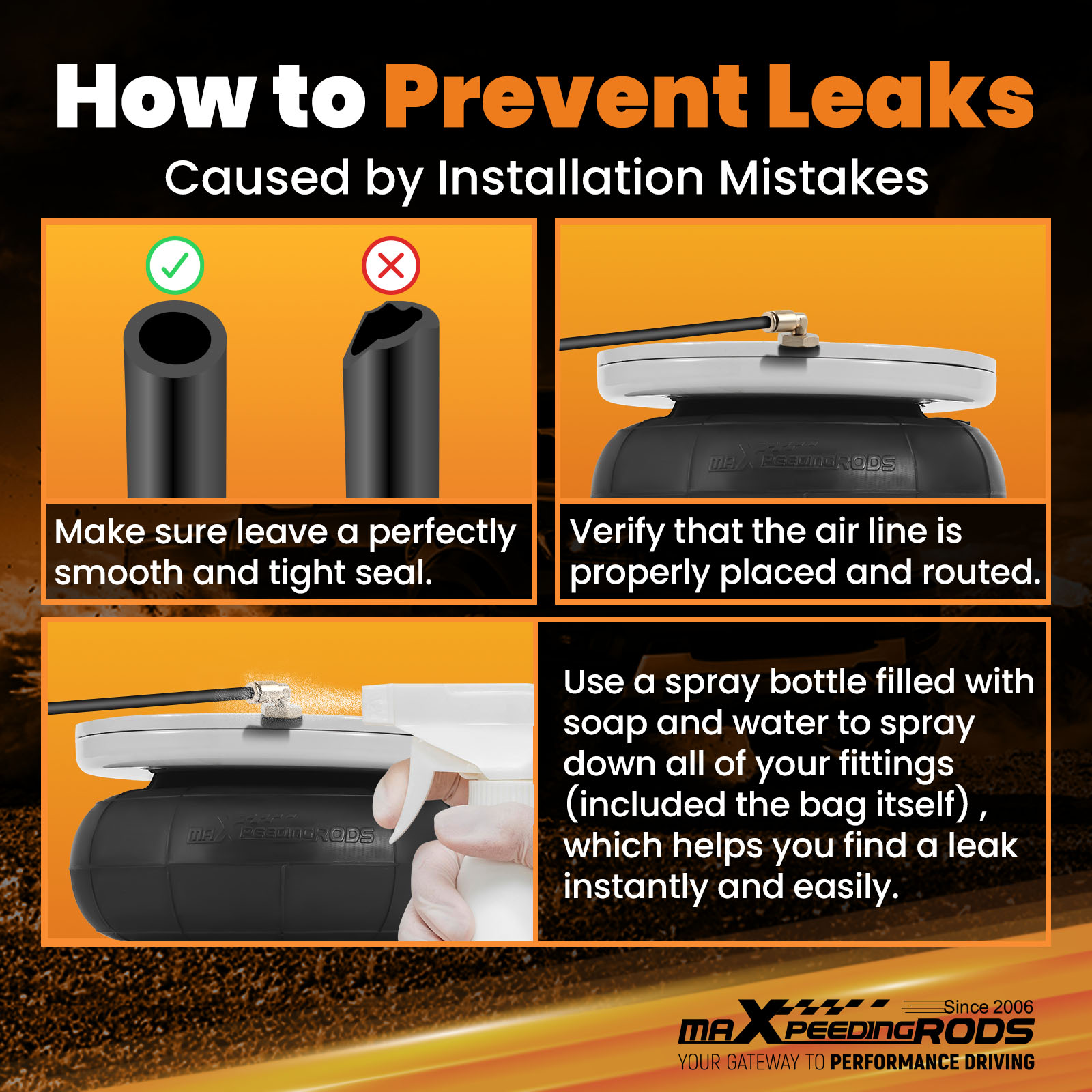

How to Prevent Leaks Caused by Installation Mistakes

1. Make sure leave a perfectly smooth and tight seal.


2. Verify that the air line is properly placed and routed.


3. Use a spray bottle filled with soap and water to spray down all of your fittings (included the bag itself) which helps you find a leak instantly and easily.
