Lonsdor KH100+ Remote K.ey Progarmmer

Lonsdor KH100+ is a versatile hand-held smart device, able to access control k.ey, simulate/ generate chip, generate remote (k.ey), detect remote frequency, detect IMMO, un/lock for Toyota smart k.ey and etc.

Note: If you are unsure of compatibility, please contact us for confirmation.

Lonsdor KH100+ Features:

※ Modern appearance design, in line with the operating habits of the public.

※ Device system comes with operation instructions, easier for you to use.

※ It covers almost all the functions of the similar products in the market.

※ Built-in super sensor to collect data(over-range data collection).

※ Exclusive support for 8A(H chip) generation.

※ Built-in WIFI module, can connect to network at any time.

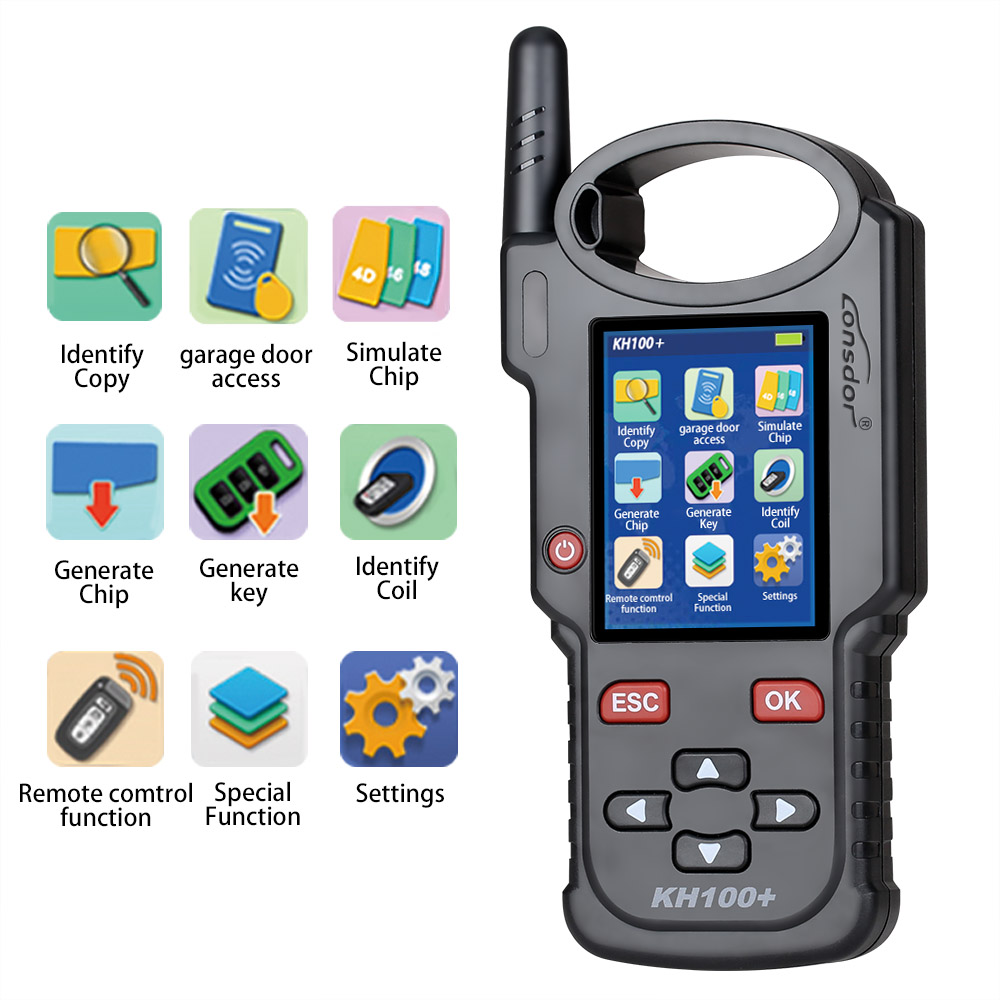

Lonsdor KH100+ Function List:

Identify Copy

Chip Simulation

Remote Generation

Remote Frequency

Access Control K.ey

Chip Generation

Coil Identification

Special Function

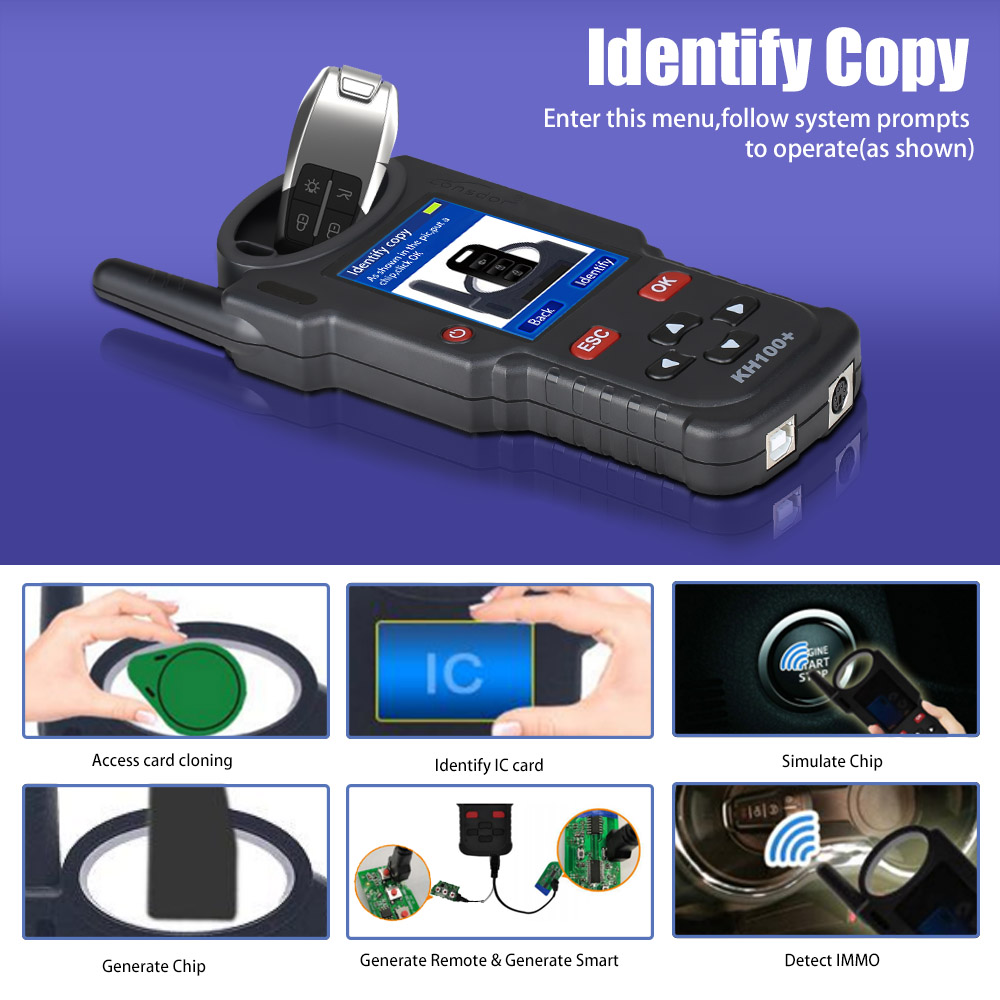

Identify/Copy/Generate Chip:

Multi-vendor chips supported

Especially for Toyota 8A(H) chip Our predominance

Simulate Chip:

Able to simulate 4D/46/48 chips

With built-in super sensory data collector(no interference within 1 meter when collecting data)

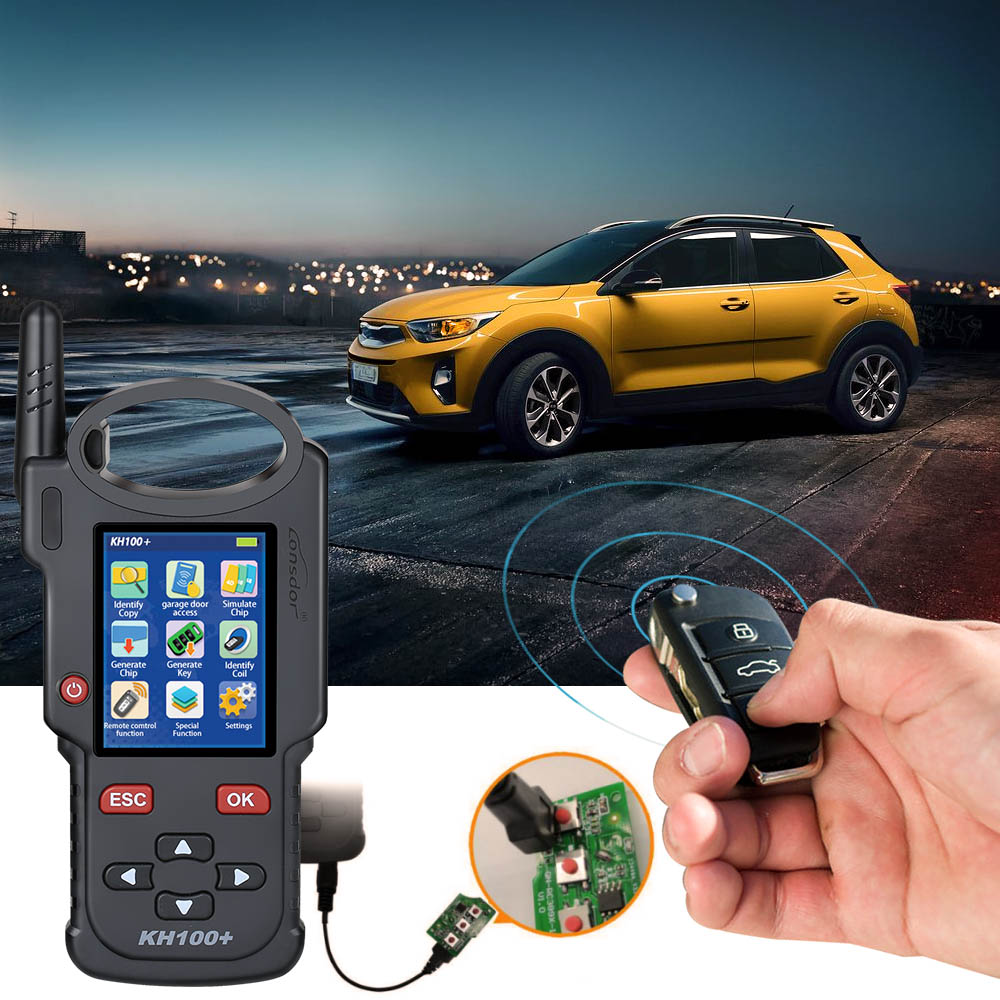

Generate Remote/Smart. key:

Dedicated connector to generate remote/smart k.ey Online update supported

Remote generation diagram

Smart K.ey Generation Diagram

Dedicated Connector to Generate Remote K.ey: PS2-7Pin OD3.5

Access Control/Remote Frequency

One-click identify and copy IC/ID cards

Copy multi-vendor chops

Detect remote frequency bands with high accuracy

One click identify ID card,able to copy multi-vendor chps,at the back sensor area

Detect Super Frequency

Detect multiple frequency brands with high accuracy

Identify Coil:

1) Search smart induction area Connect remote k.ey with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).

2) Detect IMMO Connect remote k.ey with remote connector, Put KH100+'s antenna close to k.ey identification coil, and use k.ey to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.

Remote Frequency

Enter this menu, put remote control at the device’s induction area to detect remote frequency.

Lonsdor KH100+ Special Function:

Include: detect infrared signal, un/lock for Toyota smart k.ey, More functions, to be continued...

1. Detect Infrared Signal

Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).

2. FT Smart Key

For Toyota or for Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unl/ock and upgrade progarm and etc. Put in the smart key, click [select] to operate.

3. Unl-.ock For Toyota Smart K.ey/Detect for Toyota K.ey Status

Put in the smart key, click OK to operate.

4. Charge K.ey

For a chargeable k.ey with battery, you can perform this function. Put in the key, click [OK] to operate.

Lonsdor KH100+ Registration Guide:

Note: After booting the device, please connect to WIFI and enter the following process.

New User

1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.

2) Boot the device and enter registration activation process.

3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.

4) Account registered successfully, it will take 5 seconds to bind the device.

5) Successful registration, enter the system.

Registered User (who has registered Lonsdor products before)

1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.

2) Boot the device and enter registration activation process.

3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.

4) Account login succeeded, it will take 5 seconds to bind the device.

5) Successful registration, enter the system.

In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.

Lonsdor KH100+ Upgrade:

Enter settings menu, and connect the device to network, then choose [check for updates], one-click online upgrade. 3.0 After-sales service

(1) Our company will provide you with excellent after-sales service and warranty service within agreed time.

(2) The warranty period lasts 12 months from device activation date.

(3) Once the product is sold, the return and refund will not be accepted if there is no quality problem.

(4) For product maintenance beyond the warranty period, we will charge labor and material costs.

(5) If the device is faulty or damaged due to any of the following reasons, we reserve the right not to provide service based on the agreed terms(but you can choose paid service).

※ The device and components are beyond the warranty period.

※ Users find that the product appearance is flawed or damaged, but has no quality problem.

※ Counterfeit, without certificate or invoice, our official back-end system cannot authenticate the device info.

※ The product is damaged due to not following the instructions in this manual for operation, use, storage, and maintenance.

※ Damage caused by private disassembly or damage caused by repair and maintenance of maintenance company unauthorized by Lonsdor.

※ Liquid inflow, moisture, falling into water or mildewing.

※ The newly purchased device works normally without any damage when unpacked for the first time. But with the prolonged time of use, screen damage occurs, such as screen explosion, scratching, white spots, black spots, silk screen, touch damage, etc.

※ The use of special tools and accessories not provided by our company.

※ Force majeure.

※ For the man-made damaged device, if you decide not to repair after we disassemble it and make a quotation, the device appears unstable condition(such as: unable to boot, crash, etc) when you receive it.

※ Private cracking of the system causes function changes, instability, and quality damage.

(6) If the auxiliary parts and other parts(other than the main components of the device) are faulty, you can choose the paid repair service provided by our company or our authorized customer service outlets.

(7) We will perform repair after receiving your device and confirming its problems, so please fill in the problems in details.

(8) After repair finished, we will return the device to customer, so please fill in the correct delivery address and contact number.

(9) Customers who needs to send the device for repair, shall bear the cost, such as round-trip delivery cost, transportation cost and etc. If the device is damaged in the process of delivery, our company will not bear relevant fees. In particular cases, we will assist the customer to claim for compensation against the shipping company..

(10) We do not provide sales invoice to individual in any form. If need it, please ask the dealer you purchased from to invoice you.

(11) Please keep the warranty card properly, and fill in the card when returning your device for repair, so that we can deal with the relevant work procedures (the warranty card attached to the end of the manual).

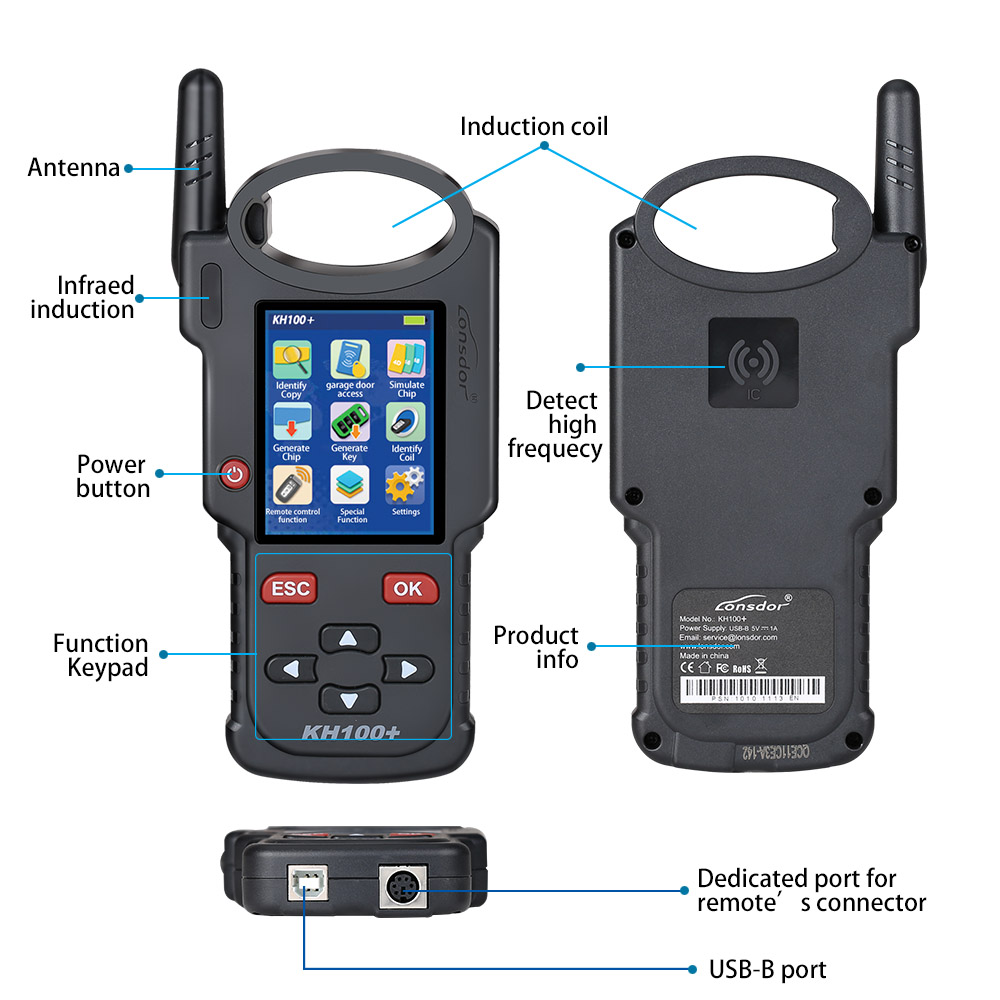

Lonsdor KH100+ Device Components:

Lonsdor KH100+ Specifications:

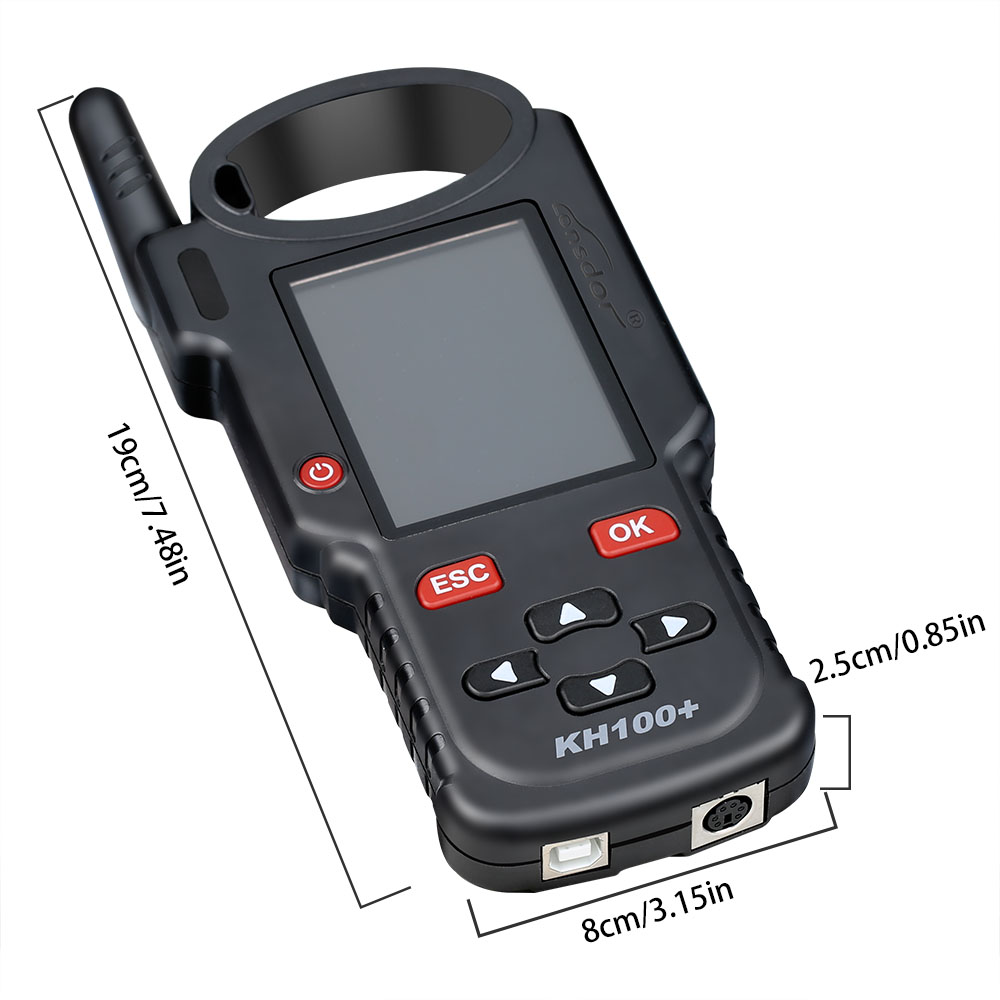

Size: 193mm*88mm*24mm

Screen size: 2.8 inch color screen

Resolution: 320*240

Battery: 3.7V 2000mA/H

Power: 5V 500MA

Work Temperature: -5~60℃

USB: USB-B/Charge-Data Transfer

Connector Port: PS2-7Pin OD3.5 7Pin,1.27 Spacing,The 2ND Pin:NC

Package includes:

1set x Lonsdor KH100+ Hand-Held Remote K.ey Progarmmer
