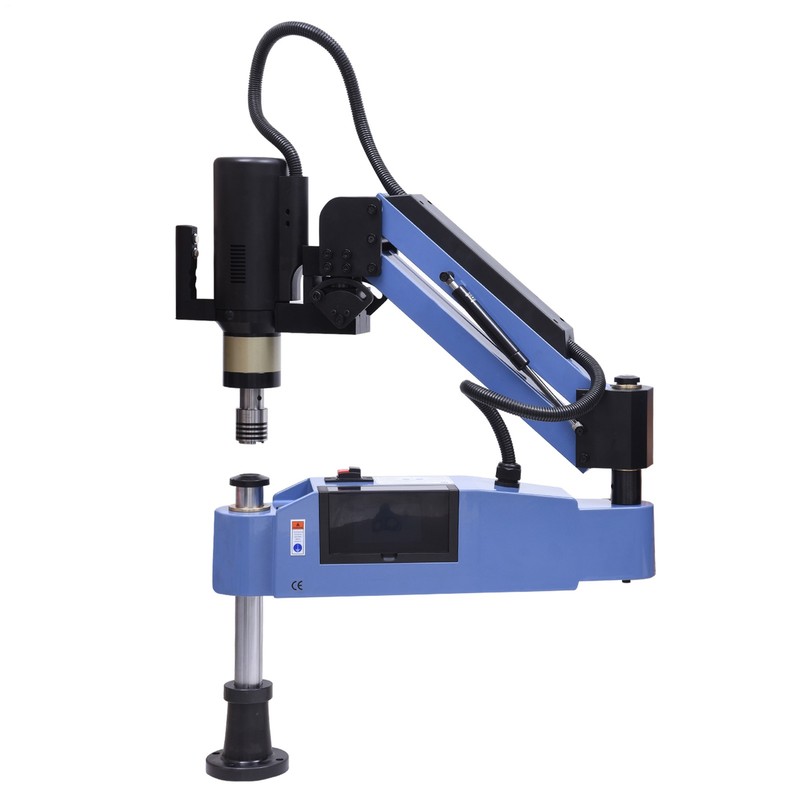

M3-M16 Electric Tapping Machine 360° Flexible Arm With Collets Brand New



  Bullet Points:
Reliable Tap Protection: Tap breakage prevention is enhanced during blind and deep hole tapping operating, thanks to adjustable forward and retract speeds and an advanced flexible tapping system, delivering high-quality threaded holes with consistent accuracy via an imported servo motor
Versatile Tapping Performance: Achieves seamless operating on materials like iron, steel, copper, aluminum, wood, nylon, raw iron, A3 steel, NAK80 molds, die steel, Q235, 45# steel, cast iron, and lead, ensuring reliable results across various workpieces
Flexible Machining Solutions: Manual mode suits individual parts, deep-hole mode manages complex depths, and automatic mode for mass production for varied tapping applications
Efficient Tapping Design: With quick workpiece positioning and an integrated structure, this machine supports multi-directional tapping, high production efficiency, and consistent precision using robust aluminum alloy components

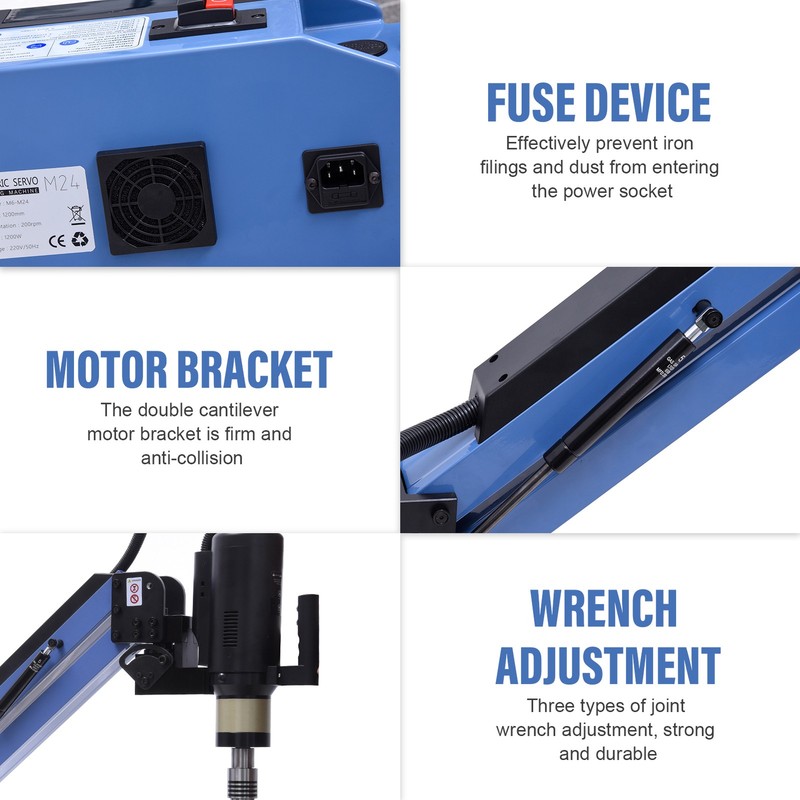

Advanced Safety and Design: Incorporates hydraulic support rods, a double cantilever motor bracket, and a high-strength frame to ensure stability, while the back-mounted cooling fan and sealed power socket protect internal components from overheating or contamination caused by external debris during use
Designed for versatility, this tapping machine includes a vertical tapper with collets, perfect for tap threading and drilling tasks. The flexible arm aids in precise handling, while its ability to work on iron, copper, steel, aluminum, wood, and nylon makes it an adaptable solution.

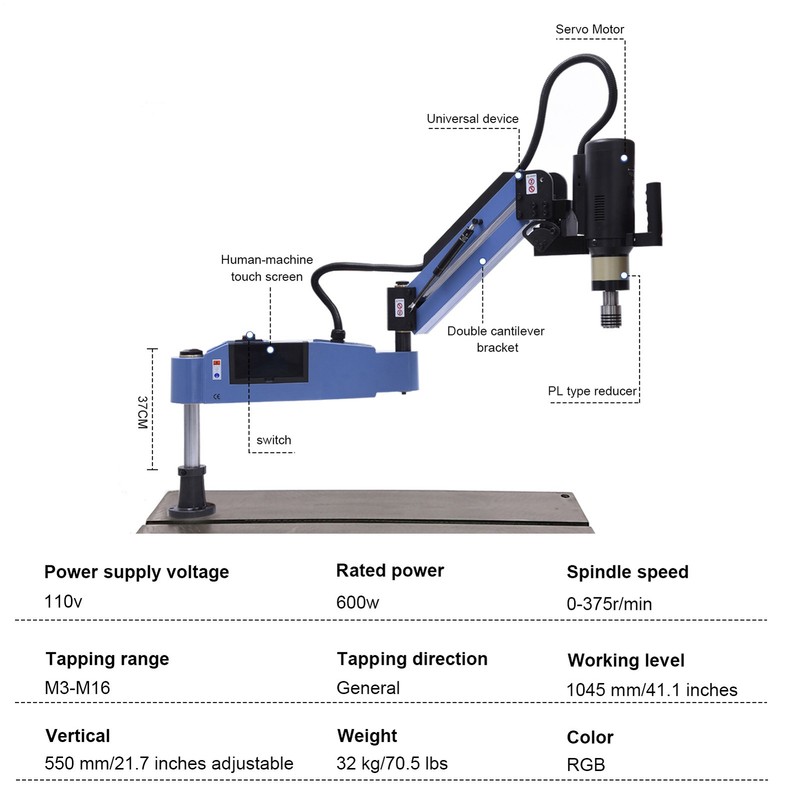

Specification:
Product Name: Tapping Machine
Type 1:
Models M3-M16
Voltage: 110V
Rating Power: 600W (Actual load power may be lower than the rating value due to mechanical efficiency or insufficient load).
Measured Power: 420W
Maximum Speed: 375RPM
Working Modes: Manual, Automatic, and Batch
Vertical Extension: 550mm/21.6in
Working Radius: 1045mm/41.1in
Chuck Models: 1/16in (1.5mm), 5/32in (3.9mm), 3/16in (4.7mm), 7/32in (5.5mm), 1/4in (6.3mm), 5/16in (7.9mm), 3/8in (9.5mm), 7/16in (11.1mm), and 1/2in (12.7mm)
Applicable to metal materials: aluminum, copper, A3 steel, 45 steel, cast iron, raw iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel, as well as PP and wood.


① Manual Mode: Set tapping speed and pitch, monitor displayed values, and manually retract the tap fully. Ideal for single-piece machining.

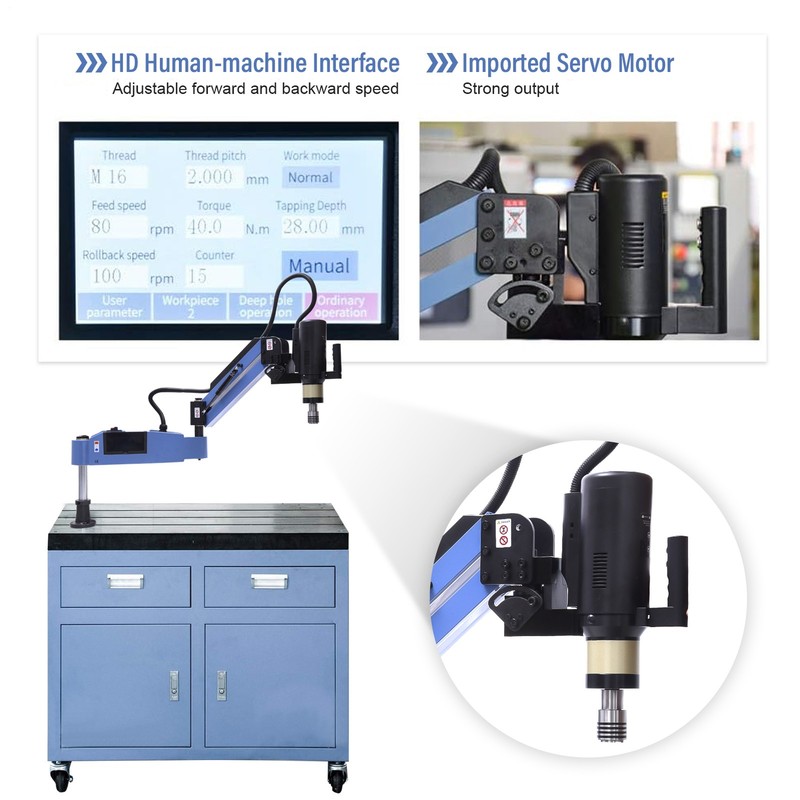

② Automatic Mode: Input tapping speed, retraction speed, and depth; touch screen type automatically adjusts torque for efficient batch production.
③ Deep Hole Mode: Designed for deep hole tapping, it uses an intelligent forward-backward cycle (1:1, then 2:2 steps) to ensure chip removal and optimal results.

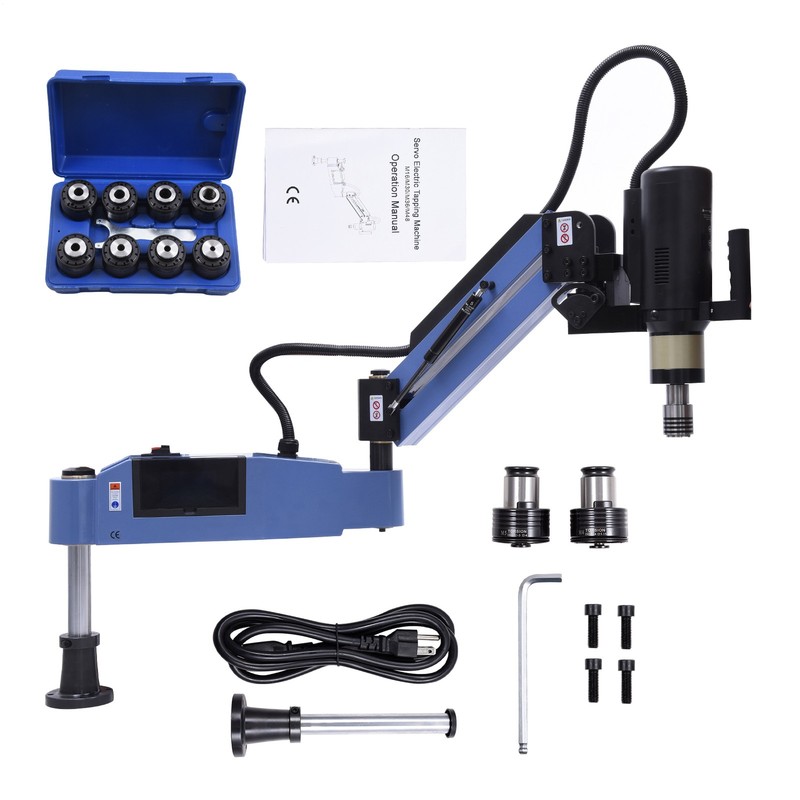

Packing List:
1 Set of Tapping Machine (M3-M16 or M4-M24 available)
Including:
1 * Tapping Machine
1 Set of Collets
1 * Power Cord
1 * Post
1 * Instruction Manual
