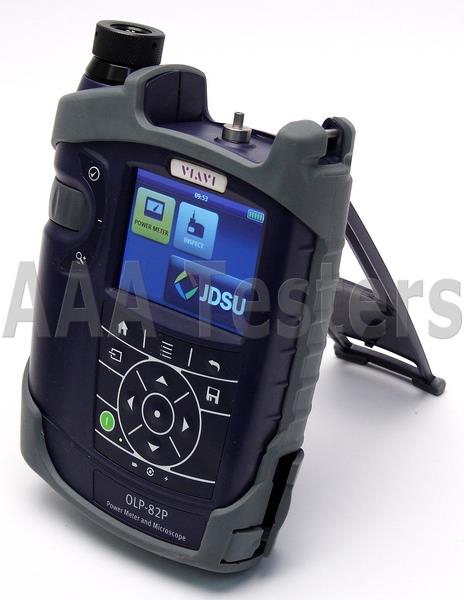

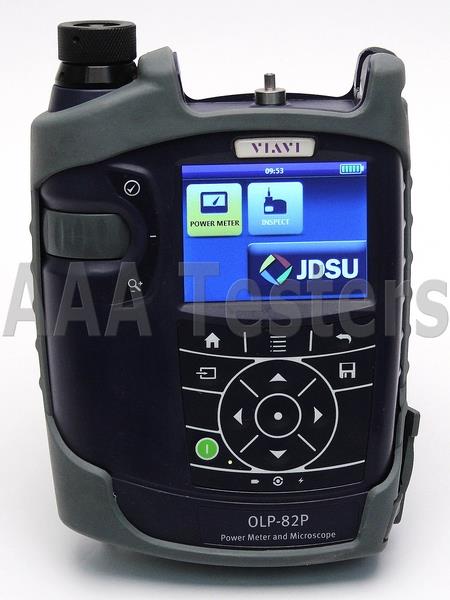

JDSU OLP-82P SingleMode Multimode Fiber Power Meter & Microscope

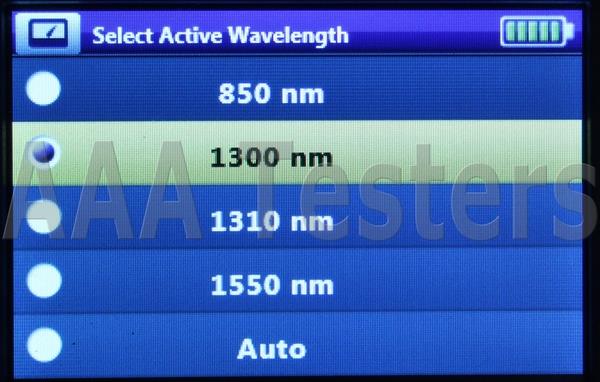

Power Meter:
- 850nm
- 1300nm
- 1310nm
- 1550nm
The OLP-82P is ideal for technicians at any skill level with instant pass/fail acceptance results for both end-face quality and OPM in one button push

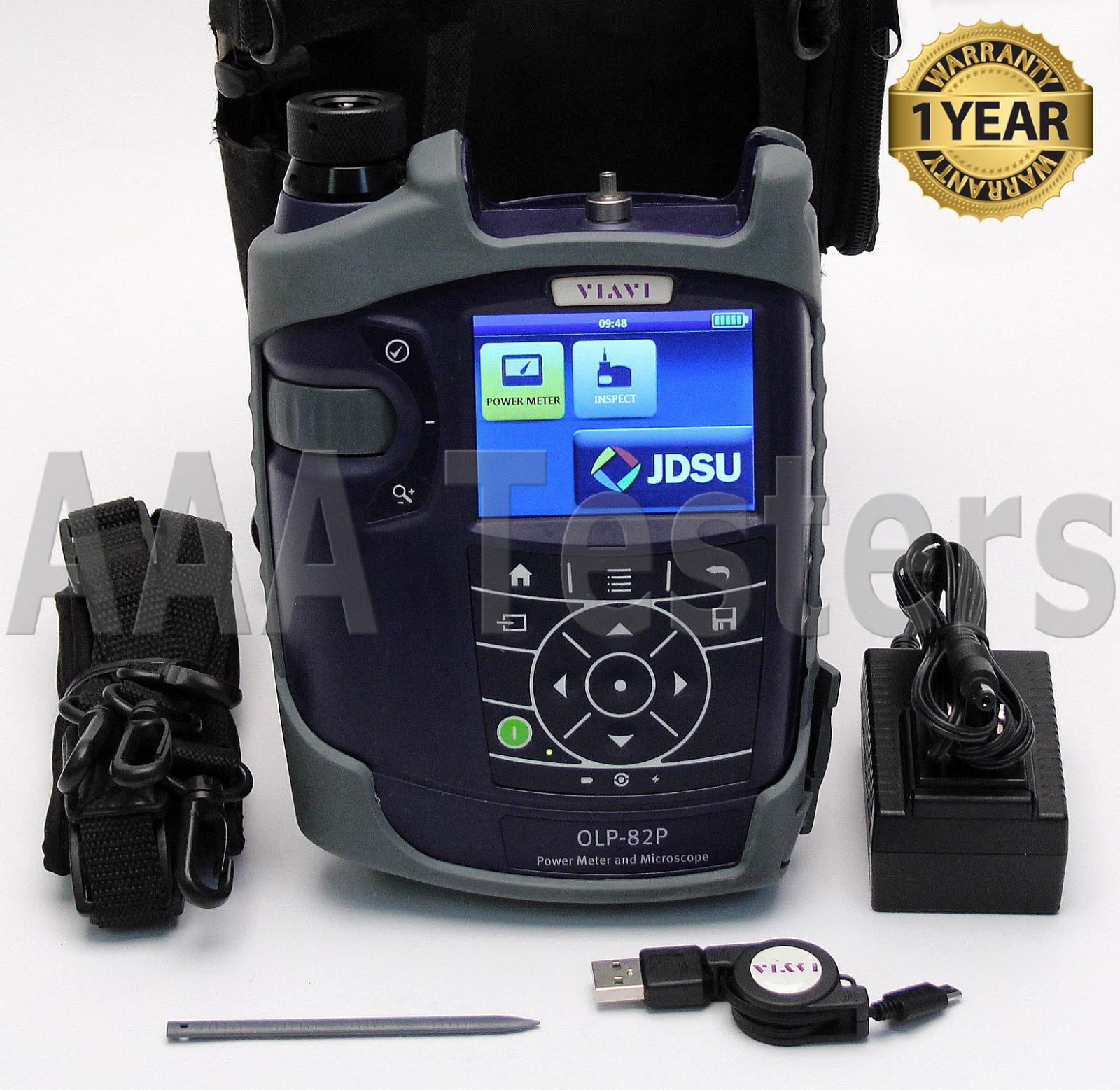

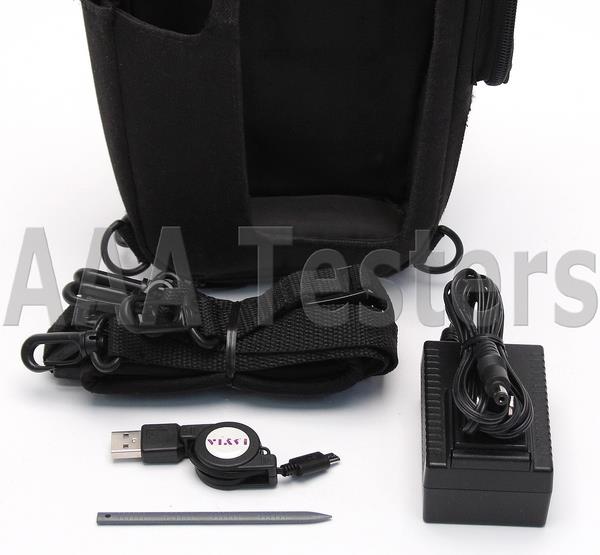

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
JDSU OLP-82P Power Meter
The new OLP-82 from JDSU is the first handheld tool to combine pass/fail fiber inspection and optical power measurement (OPM) into one solution. As part of the new JDSU SmartClass Fiber family, the OLP-82 helps service providers guarantee a lifetime of system performance from their network connectivity and gives contractors an essential tool for delivering best-in-class reliable networks to their customers.
The OLP-82 is ideal for technicians at any skill level with instant pass/fail acceptance results for both end-face quality and OPM in one button push. The OLP-82 can also save test results and generate certification reports to document work quality. Integrating these capabilities into one system helps the OLP-82 drive technician behavior toward implementing today’s best practices in a seamless workflow that optimizes efficiency and reliability so they complete the job right—the first time.
The handheld OLP-82 can be used anywhere today’s fiber technicians go, up poles or down holes. Technicians get ultimate flexibility and performance from this powerful, easy-to-use solution that can help any technician become an instant fiber expert.
Combines Inspection and Test in One Handheld Device
Use either the onboard patch-cord microscope (PCM) or connect a P5000i digital analysis microscope to inspect fiber end faces and eliminate poor-quality components from entering your network.
Benefits of Using P5000i and PCM Together
Working with both the P5000i and PCM:
- Optimizes technician performance with tools designed for workflow
- Improves network activation with a reliable, repeatable processes
- Ensures test leads are safely stored when not in use
- Enables quick and easy inspection of both female (bulkhead) and male (patch cord) fiber connectors without changing tips
Features:
- Field-portable OPM with multiple calibrated wavelengths from 780 to 1625 nm
- Automated pass/fail analysis for fiber inspection and test
- Supports both industry-standard and user-definable acceptance criteria
- Available with integrated PCM
- Integrated connector certification reports
- Onboard storage for fiber inspection and test results
- Connects to a PC via mini-USB to export data and manage acceptance criteria using FiberChekPRO™ software
- Two USB ports to connect additional devices such as a P5000i microscope
- Automatic fiber-image centering
- Modern, smartphone-style user interface with touch screen
- Rugged, weather-proof design
Specifications:
General
|
Weight
|
1.2 lb
|
Dimensions (H x W x D)
|
20.83 x 152.4 x 6.35
(8.2 x 60 x 2.5 in)
|
Video display
|
3.5 in color LCD, 4:3 ratio |
Keypad
|
11+2 dome-buttons membrane panels
4 LED indicators
|
Connector
|
USB 2.0
(2 x host, Type A; 1 x device, Micro-B)
|
Power source
|
AC adaptor, battery
(Alkaline or rechargeable Li ion), USB port
|
Run time
Rechargeable Li ion = (minimum)
Alkaline
|
8 hours
5 hours
|
Power mode
|
Active, Auto-off
|
Auto-shutoff time
|
user programmable
|
Charge time
AC adaptor
USB port
|
8 hours
16 hours
|
Power source
|
USB port
|
Certification
|
CE, IEC/EN61326
|
OPM
|
Interface
|
Free space (2.5 mm UPP adapter, 1.25 mm UPP optional)
|
Power measurement range
1300/1310 nm
Standard
High power
850 nm
Standard
High Power
|
–50 to +10 dBm
–40 to +23 dBm
–45 to +10 dBm
–35 to +23 dBm
|
Display range
Standard
High power
|
–65 to +10 dBm
–50 to +23 dBm
|
Maximum permitted input level
Standard
High power
|
+10 dBm
+23 dBm
|
Standard wavelength settings
|
850, 980, 1300, 1310, 1490, 1550, 1625 nm
|
Intrinsic uncertainty
|
±0.20 dB (±5%)
|
Linearity
|
±0.06 dB
(–50 to +5 dBm)
|
Wavelength range
|
780 to 1650 nm
|
Wavelength and modulation
Result display
Resolution
|
dBm, dB, MW
0.01 dB
|
Calibrated wavelengths
|
850, 1310, 1490, 1550, 1625
|
Wavelength settings
|
780 to 1650 in 1 nm steps
|
Tone detection
|
270 Hz, 1kHz, 2kHz
|
Auto lambda
|
Yes
|
Video Display
|
Live image
|
320 x 240 x 8 bit gray, 10 fps
|
Light source
|
Blue LED, 100,000+ hour life
|
Lighting technique
|
Coaxial
|
Low-magnification field-of-view (FOV)
Horizontal
Vertical
|
740 μm
550 μm
|
High-magnification field of view (FOV)
Horizontal
Vertical
|
370 μm
275 μm
|
For full Viavi OLP-82P product specifications, please click here: Viavi OLP-82P
|
|
|
|
