The BWJ-10 (10kg positioner) mainly consists of five parts: a workbench, a turnover mechanism, a control box, a motor, a speed reducer, and a rack. Fix the workpiece on the worktable for rotation and tilting, so that the weld is in the most favorable welding position, to improve welding quality and production efficiency, and reduce labor intensity of workers.

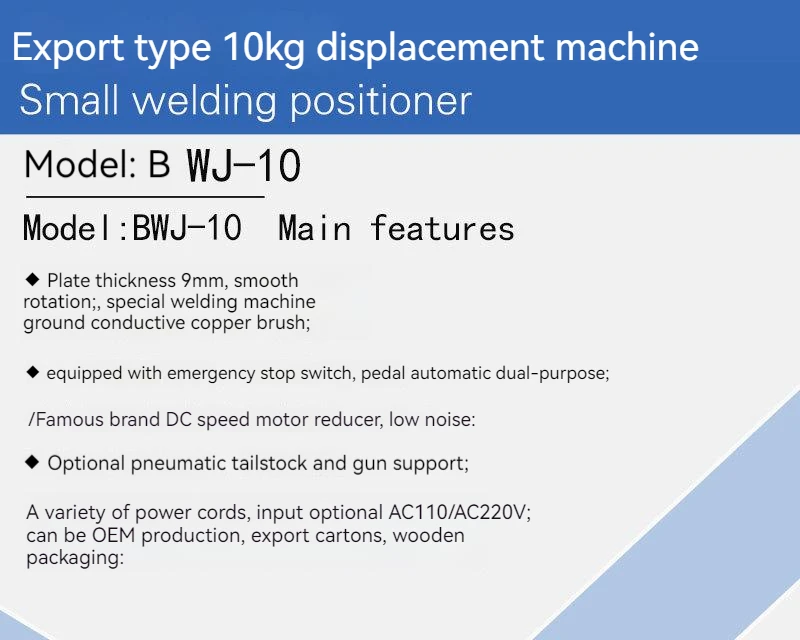

This product has the following characteristics:

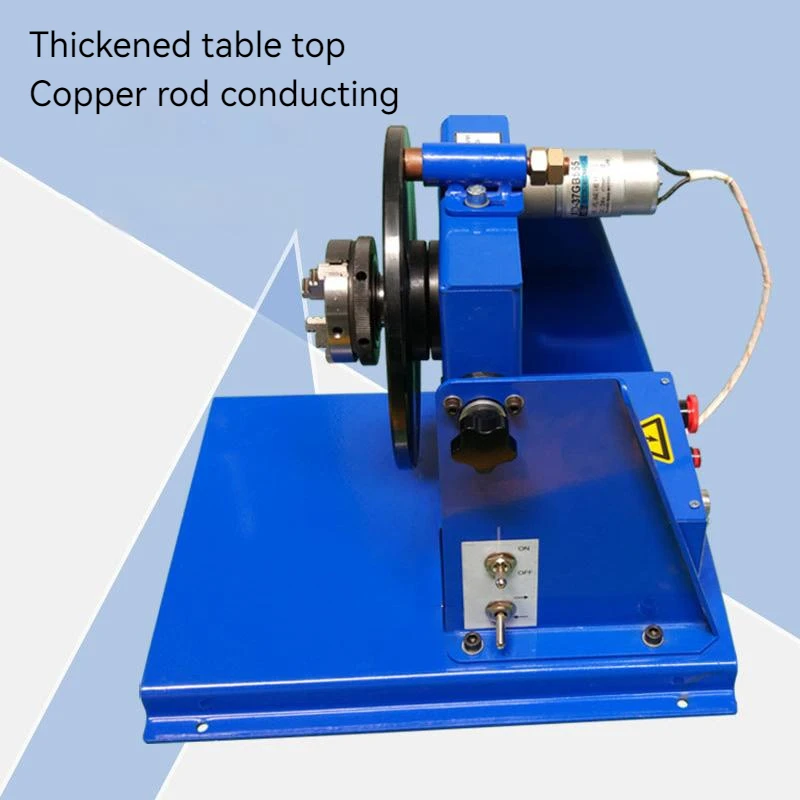

Exquisite export quality and craftsmanship, with a plate thickness of 9mm and smooth rotation; Special welding machine ground wire conductive copper brush, can be OEM production;
High quality DC motor is used to transmit torque to the rotating workbench through gear mesh transmission. The workbench operates smoothly, with stepless adjustment of welding speed, wide adjustment range, and high adjustment accuracy.
It has small size, precise structure, simple operation, and flexible use.
Simple mechanical connection method is selected for the fixture and workbench, with high positioning accuracy.

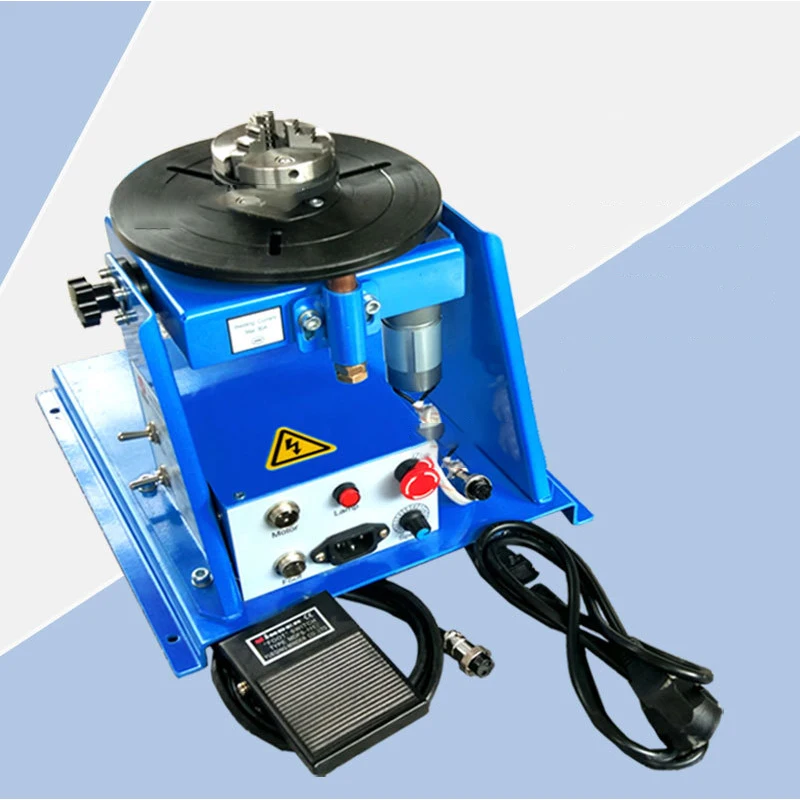

Use a foot switch to control the rotation of the workbench, facilitating control of rotation.
Especially suitable for welding flange, steel pipe, annular, circular and other components below 10 kg.

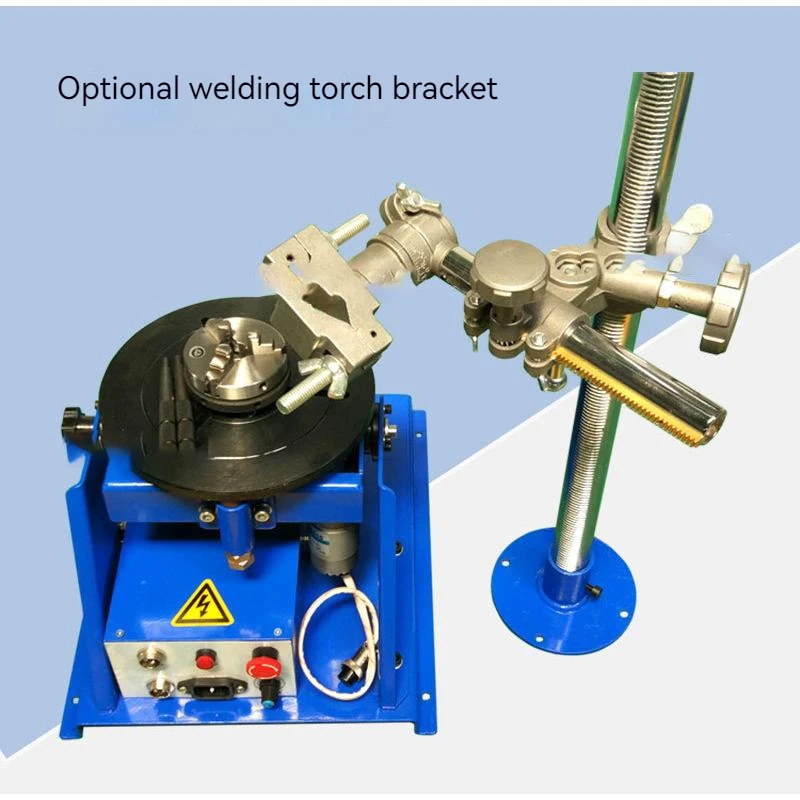

This machine is equipped with a standard power cord, foot switch cable, optional chuck, welding gun bracket, and a control box with time control.

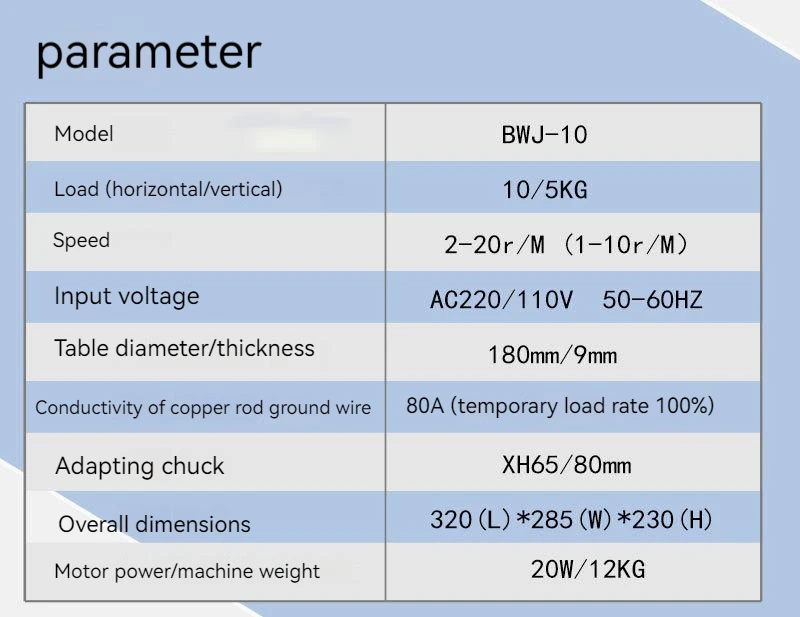

The standard rotational speed is 2-20 revolutions per minute, and 1-10 revolutions per minute can also be selected according to actual needs.
This product has the following characteristics:
Exquisite export quality and craftsmanship, with a plate thickness of 9mm and smooth rotation; Special welding machine ground wire conductive copper brush, can be OEM production;
High quality DC motor is used to transmit torque to the rotating workbench through gear mesh transmission. The workbench operates smoothly, with stepless adjustment of welding speed, wide adjustment range, and high adjustment accuracy.
It has small size, precise structure, simple operation, and flexible use.
Simple mechanical connection method is selected for the fixture and workbench, with high positioning accuracy.
Use a foot switch to control the rotation of the workbench, facilitating control of rotation.
Especially suitable for welding flange, steel pipe, annular, circular and other components below 10 kg.
This machine is equipped with a standard power cord, foot switch cable, optional chuck, welding gun bracket, and a control box with time control.
The standard rotational speed is 2-20 revolutions per minute, and 1-10 revolutions per minute can also be selected according to actual needs.
