Heating Infrared Reballing Machine IR6500 BGA Rework Station Repair Solder New
ATTENTION : This machine comes with EU plug , please prepare an UK adapter plug cable yourself
IF YOU HAVE ANY QUESTION, PLZ CONTACT US!
Product Specifications
Introduction
IR6500 Rework station for laptop motherboards, desktop computer motherboards,server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
IR6500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.
It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.
IR6500 Rework station can be connected to a computer to be controlled more conveniently with a built-in USB connector and proprietary Software attached to it.
It can easily rework the variety of CPU's seat, all kinds of shielding enclosures, replacement of various components slot can easily deal with lead-free soldering rework.
It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.
The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.
Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.

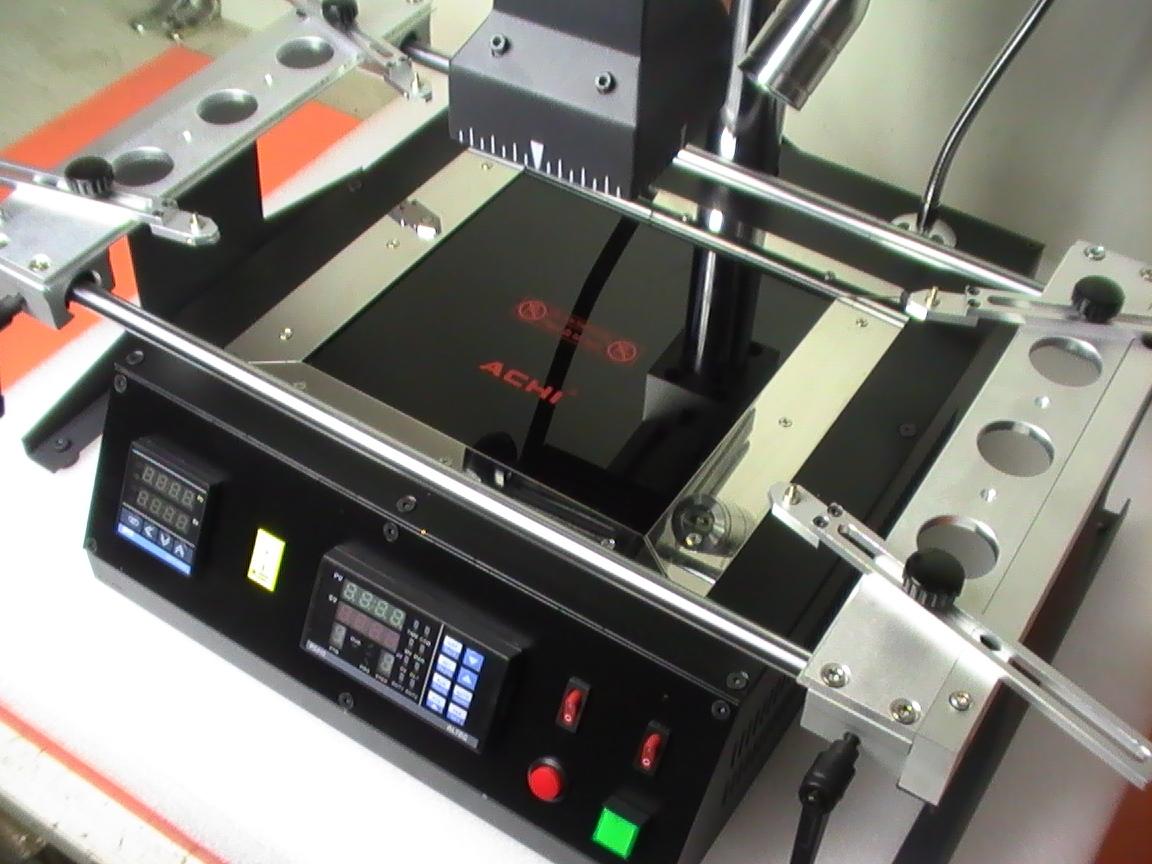

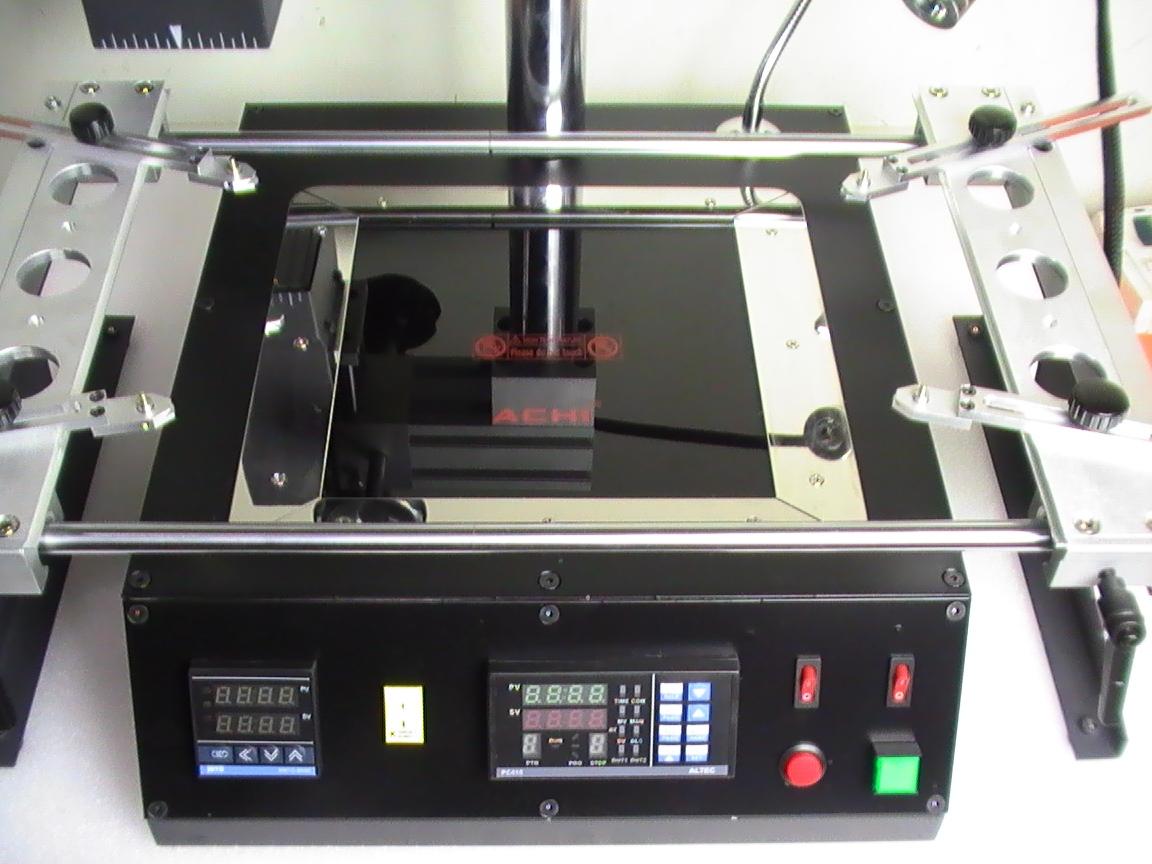

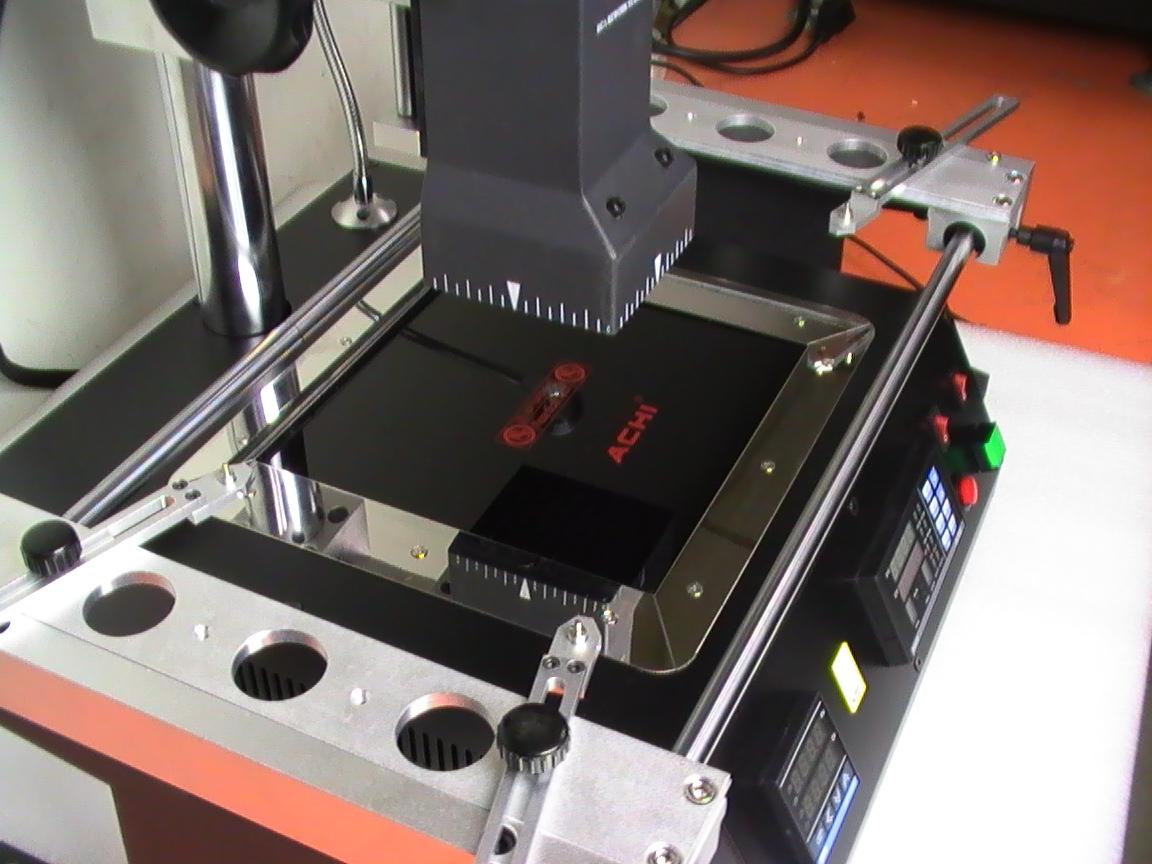

Linear guide type Bracket with abnormity pole can be locking, adjusted by rotating the handle, can be very easily fixed PCB board, effectively prevent the deformation of PCB board.
Basic Parameters:
Heating: IR
Dimension: L475mmx W480mmx H420mm
Weight: 15kg
Total weight: About 17 kg, vary with the differen need of the users
Electrical Parameters:
Power: 220V AC
Upper Heating: IR
Size of Upper heating: 80mm x 80mm
Consumption of upper heating: 400W
Bottom Heating: IR
Size of Bottom heating: 180mm x180mm
Consumption of Bottom heating: 800W
General power: 1250W
Temperature Control:
Control mode of Upper
Independent temperature control, high-precision closed-loop control, precision ± 0.5%
Control mode of Bottom
Independent temperature control, high-precision closed-loop control, precision ± 0.5%
Rework Function:
SMD
Suit for welding, remove or repair packaged devices, such as BGA ,PBGA, CSP, multi-layer substrates, EMI
metallic shield product and solder/lead free Reworkwelding
Size of applicable chips: ≤70mm x70 mm
Size of applicable PCB: ≤400mm x305mm
Feature
1. CE Certification
2.IR6500 Rework station for laptop motherboards, desktop computer motherboards,server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
3.IR6500 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.
4.It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.
5.It sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.
6.The BGA rework station the technology of closed-loop temperature control ensures accurate temperature process and even heat distribution.
7.Machine overall system integration Design, Rework station more integrated workbench area occupied by smaller, Didn't mixed and disorderly of cables.
How to use
Please download this machine USER MANUAL HERE to see how to use
