This Item Has A Current Calibration!
|
|
|
|

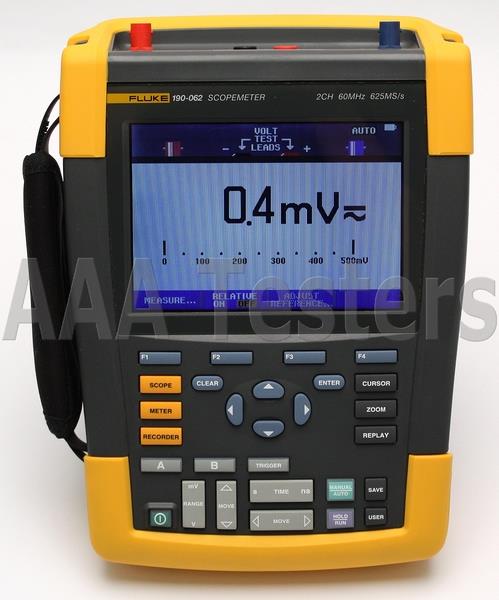

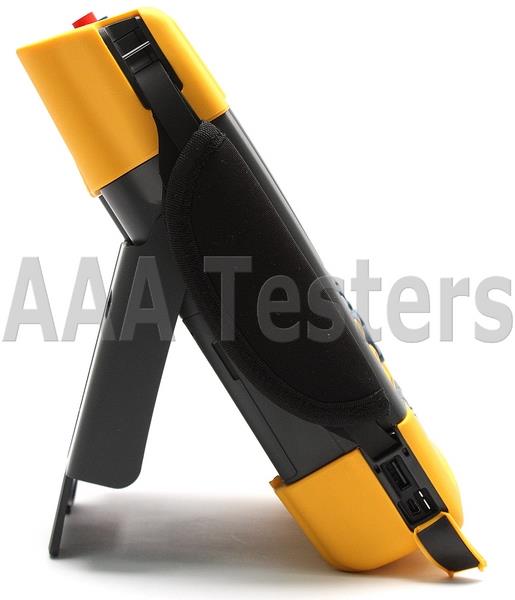

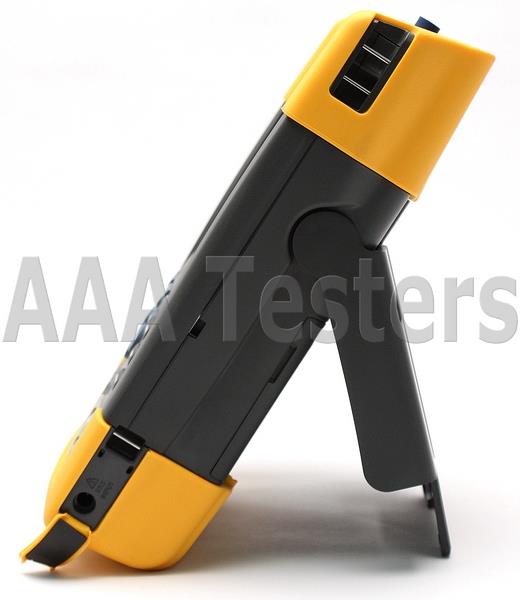

Fluke 190-062 Series II Scopemeter 2 Channel 60MHz Oscilloscope
The first high-performance portable oscilloscope with 2 independently insulated input channels, an IP51 dust- and dripwater proof rating and a CAT III 1000 V/CAT IV 600 V safety rating.

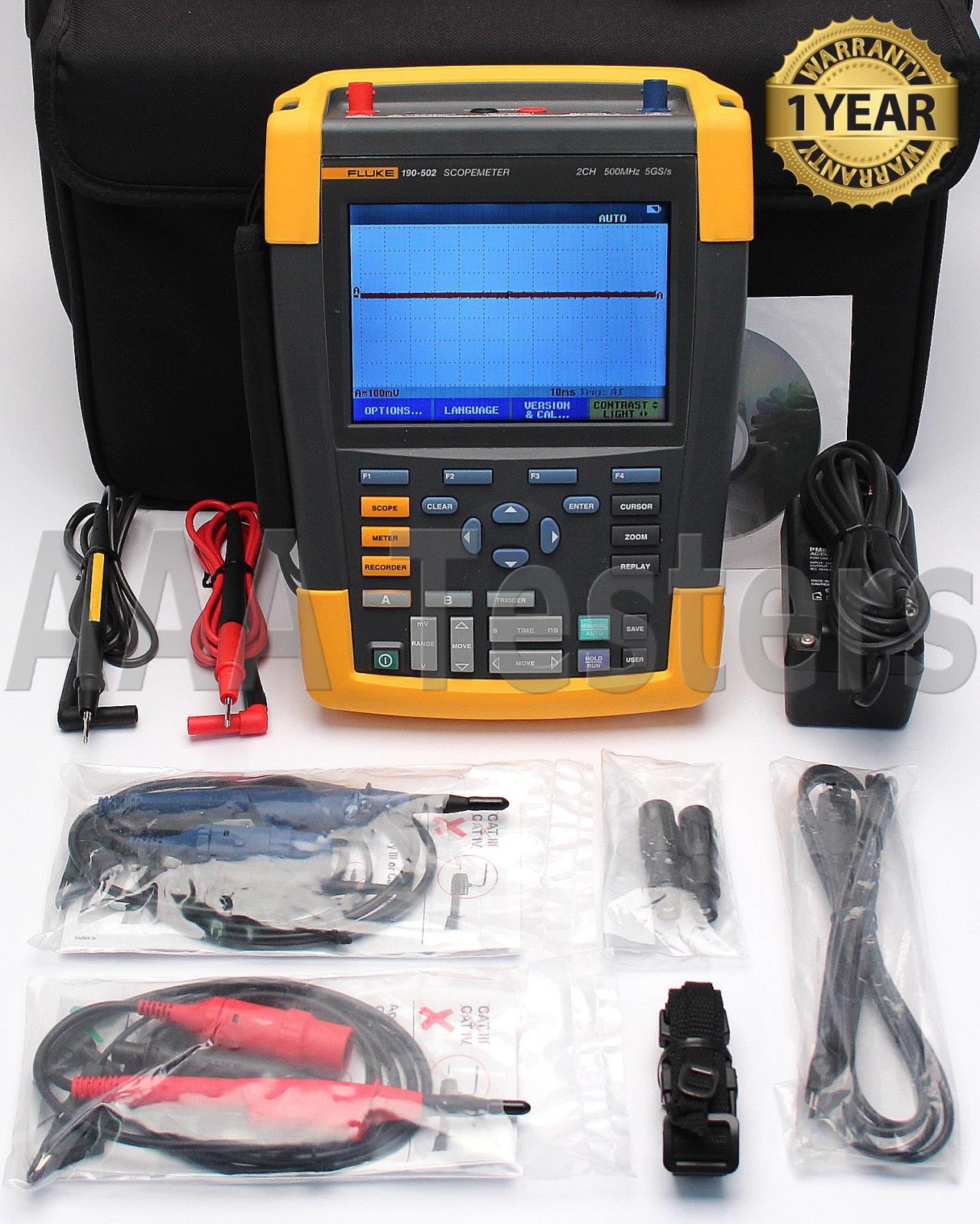

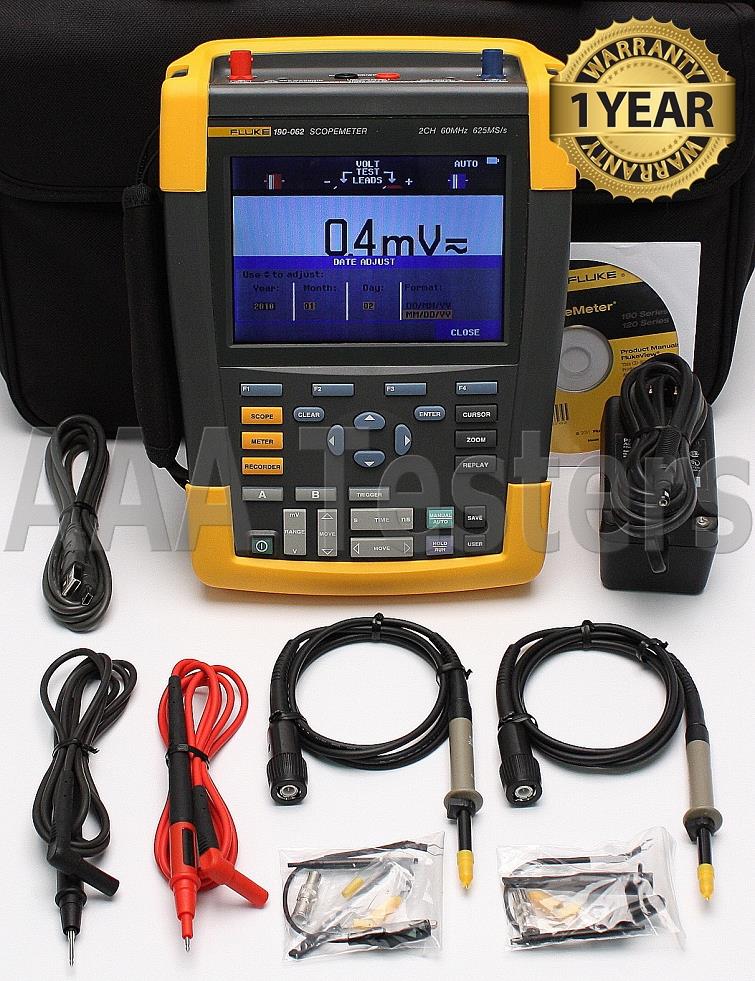

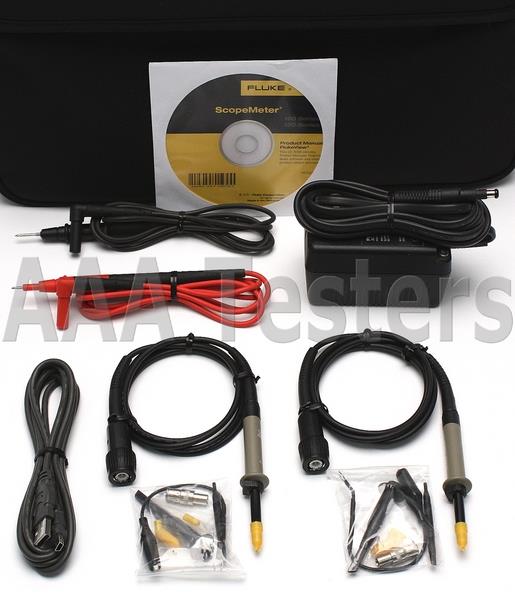

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
190-062 Series II Scopemeter

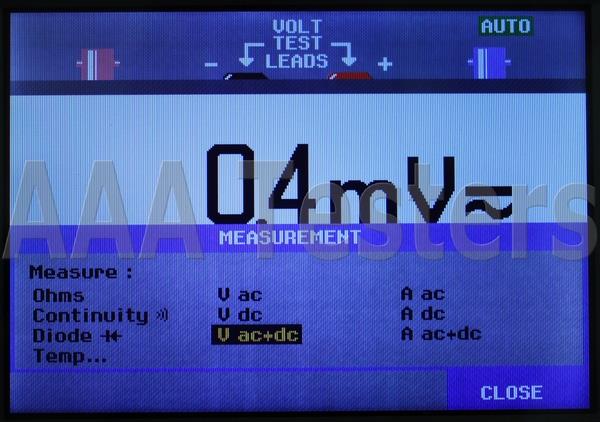

The Fluke ScopeMeter 190 Series II combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter test tools go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications. The 190 Series II is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more
The FLUKE 190-062 ScopeMeter oscilloscope has two electrically isolated channels, and is safety rated for industrial applications. This scope combines rugged portability with the high performance of bench oscilloscopes. Its 60 MHz of bandwidth, 625 MS/sec sampling rate, and deep memory of 10,000 samples per channel allows high-accuracy capture and display of waveform details, noise, and other disturbances.
Perform timing or amplitude related measurements on three phases or three-axis control systems or simply compare and contrast multiple test points in a circuit under test. Features like TrendPlot™, ScopeRecord™, and Connect-and-View™ help you quickly diagnose industrial machinery, automation and process controls, and power electronics to minimize repair costs and downtime. These features make the oscilloscopes easy to use especially when diagnosing the most difficult problems like complex waveforms, intermittent events and signal fluctuations or drift. New Li-ion battery technology keeps your scope on the job, all day.
Specifications:
| Vertical Deflection |
| Number of channels |
2 |
| Bandwidth |
60 MHz |
| Rise time |
5.8 ns |
| Number of scope inputs |
2 input channels plus external Trigger |
| Channel architecture |

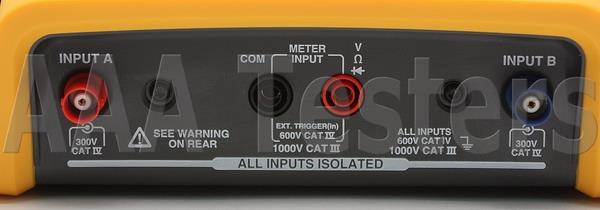

All inputs fully insulated from each other and from ground
Inputs may be activated in any combination |
| Input Coupling |
AC or DC, with ground level indicator |
| Input sensitivity |
2 mV/div to 100 V/div, plus variable attenuation |
| Bandwidth limiter |
User selectable: 20 kHz, 20 MHz or full bandwidth |
| Normal/invert/variable |
On each input channel, switched separately |
| Input voltage |
CAT III 1000 V/CAT IV 600 V rated, see General Specifications for further details |
| Vertical resolution |
8 Bit |
| Accuracy |
± (2.1 % of reading + 0.04 x range/div) @ 5 mV/div to 100 V/div |
| Input impedance |
1 MΩ ± 1 % // 14 pF ± 2 pF |
| Horizontal |
Maximum real-time sample
rate (sampled simultaneously) |
625 MS/s for each channel |
| Record length |
Up to 10,000 samples per channel |
| Time base range |
10 ns/div to 4 s/div |
Time base in a 1-2-4-sequence
Slower time/division settings using ScopeRecord™ Roll mode (see ‘Recorder mode’) |
| Maximum record length |
10,000 samples per channel in scope mode;
30,000 points per channel in ScopeRecord™ Roll mode (see ‘Recorder mode’) |
| Timing accuracy |
± (0.01 % of reading + 1 pixel) |
| Glitch capture |
8 ns peak detect on each channel
(using real time sampling and data compression, at any timebase setting) |
| Display and acquisition |
| Display |
153 mm (6 in) full-color LCD with LED backlight |
| Display modes |
Any combination of channels; average on/off; replay |
| Visible screen width |
12 divisions horizontally in scope mode |
| Digital persistence modes |
off/short/medium/long/infinite and envelope mode |
| Waveform mathematics |
One mathematical operation on any 2 input channels: add/subtract/multiply; X-Y-mode
Frequency Spectrum using FFT analysis |

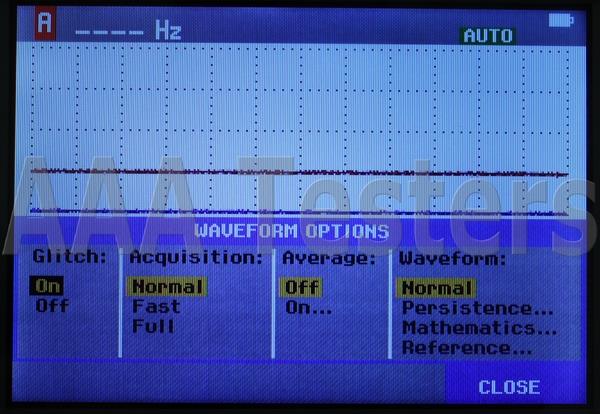

| Acquisition modes |
Normal, Averaged, Auto, Single Shot, ScopeRecord™ roll, glitch capture,
waveform compare with automatic “Pass/Fail testing”; Replay |
For full Fluke 190-062 product specifications, please click here: Fluke 190-062
|
|
|
|
