Hex Nuts DIN 934 Bright Zinc Plated Steel Metric Fasteners M2.5-M36 M4 M6 M8 M10
Hex nuts to DIN 934 in bright zinc-plated (BZP) steel: standard height and hexagonal shape for a secure, stable connection, in 18 metric sizes from M2.5 to M36.
This listing covers all 18 sizes, M2.5 to M36, in packs of 1, 10, 20, 50 or 100, so you can order the size and quantity the job needs.
DIN 934 hexagon nuts
Standard height and hexagonal shape for a secure, stable connection, with across-flats and height listed for every size.
Bright zinc-plated (BZP) steel
A bright silver appearance and general-purpose corrosion resistance on every nut.
Standard right-hand coarse thread
Metric fasteners that mate securely with any correctly sized metric bolt, screw or threaded rod.
Fit with a standard spanner
Fit and remove with a standard open-end or socket spanner, for workshop benches, fixtures, machine building and general mechanical assemblies.
18 sizes, M2.5 to M36
Such as M6, M8, M10, M12 and M16 nuts, in packs of 1, 10, 20, 50 or 100.
Technical Specification
Hex nuts manufactured to DIN 934, in 18 sizes from M2.5 up to M36, each in packs of 1, 10, 20, 50 or 100. Their standard height and hexagonal shape give a secure, stable connection, and the DIN 934 hexagon nut is one of the most widely used and versatile fastening elements, compatible with a wide range of metric bolts and threaded rods.
The hexagon body carries a bright zinc-plated (BZP) finish, giving a bright silver appearance and general-purpose corrosion resistance. Every size features standard right-hand metric coarse threading, machined to DIN 934 dimensions, so each nut mates securely with any correctly sized metric bolt, screw or threaded rod. Fitting and removal need nothing more specialist than a standard open-end or socket spanner sized to the width across flats given in the specification table below.
Key Features
- Manufactured to DIN 934, with the dimensions for every size listed in the specification table below
- Bright zinc-plated (BZP) finish for a bright silver appearance and general-purpose corrosion resistance
- Standard right-hand metric coarse thread throughout the range
- Wide size range from M2.5 up to M36
- Fits any correctly sized metric bolt, screw or threaded rod, and installs with a standard open-end or socket spanner
- Standard height and hexagonal shape for a secure, stable connection
- One of the most widely used and versatile fastening elements, compatible with a wide range of metric bolts and threaded rods
- Every size available in packs of 1, 10, 20, 50 or 100
Specification
| Thread size | Thread pitch | Width across flats | Nut height |
| M2.5 | 0.45mm (0.02in) | 5mm (0.20in) | 2.0mm (0.08in) |
| M3 | 0.5mm (0.02in) | 5.5mm (0.22in) | 2.4mm (0.09in) |
| M4 | 0.7mm (0.03in) | 7mm (0.28in) | 3.2mm (0.13in) |
| M5 | 0.8mm (0.03in) | 8mm (0.31in) | 4.0mm (0.16in) |
| M6 | 1.0mm (0.04in) | 10mm (0.39in) | 5.0mm (0.20in) |
| M8 | 1.25mm (0.05in) | 13mm (0.51in) | 6.5mm (0.26in) |
| M10 | 1.5mm (0.06in) | 17mm (0.67in) | 8.0mm (0.31in) |
| M12 | 1.75mm (0.07in) | 19mm (0.75in) | 10.0mm (0.39in) |
| M14 | 2.0mm (0.08in) | 22mm (0.87in) | 11.0mm (0.43in) |
| M16 | 2.0mm (0.08in) | 24mm (0.94in) | 13.0mm (0.51in) |
| M18 | 2.5mm (0.10in) | 27mm (1.06in) | 15.0mm (0.59in) |
| M20 | 2.5mm (0.10in) | 30mm (1.18in) | 16.0mm (0.63in) |
| M22 | 2.5mm (0.10in) | 32mm (1.26in) | 18.0mm (0.71in) |
| M24 | 3.0mm (0.12in) | 36mm (1.42in) | 19.0mm (0.75in) |
| M27 | 3.0mm (0.12in) | 41mm (1.61in) | 22.0mm (0.87in) |
| M30 | 3.5mm (0.14in) | 46mm (1.81in) | 24.0mm (0.94in) |
| M33 | 3.5mm (0.14in) | 50mm (1.97in) | 26.0mm (1.02in) |
| M36 | 4.0mm (0.16in) | 55mm (2.17in) | 29.0mm (1.14in) |
Standard: DIN 934; Finish: Bright zinc-plated (BZP); Thread: Right-hand metric coarse; Sizes: M2.5 to M36; Pack sizes: 1, 10, 20, 50 or 100
Typical Applications

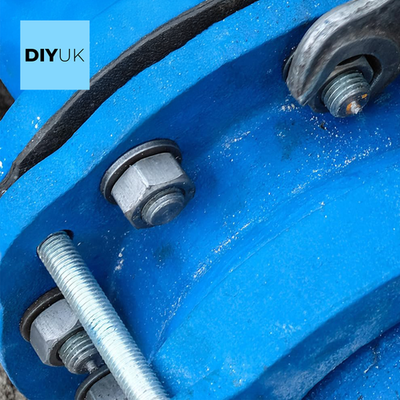

- Workshop benches and fixtures: permanent or semi-permanent assemblies.
- General mechanical assemblies: mates with any correctly sized metric bolt, screw or threaded rod.
- Mechanical engineering and machine building: a standard DIN 934 nut that mates with any correctly sized metric bolt or threaded rod.
- Electronics, household appliances and general industrial use: sizes from M2.5 up to M36, fitted with a standard open-end or socket spanner.
- Metric bolts, screws and threaded rod: fits any correctly sized metric bolt, screw or threaded rod.
Fitting & Installation Guidance
- Match the nut to the corresponding metric bolt, screw or threaded rod diameter and thread pitch shown in the specification table above
- Use a standard open-end or socket spanner sized to the width across flats given in the specification table above
Common Questions
- Which spanner size do I need? Match the spanner or socket to the width across flats: an M6 nut takes 10mm, an M8 nut 13mm, an M10 nut 17mm and an M12 nut 19mm. The size for every nut is in the Specification table.
- Will the nut fit my bolt? Yes, when the diameter and thread pitch match: every nut has a standard right-hand metric coarse thread, so 10mm nuts (M10) fit an M10 bolt, screw or threaded rod, and 8mm nuts (M8) fit an M8 one.
- What finish do the nuts have? A bright zinc-plated (BZP) finish, giving a bright silver appearance and general-purpose corrosion resistance.
- What pack sizes are available? Every size comes in packs of 1, 10, 20, 50 or 100 nuts.
