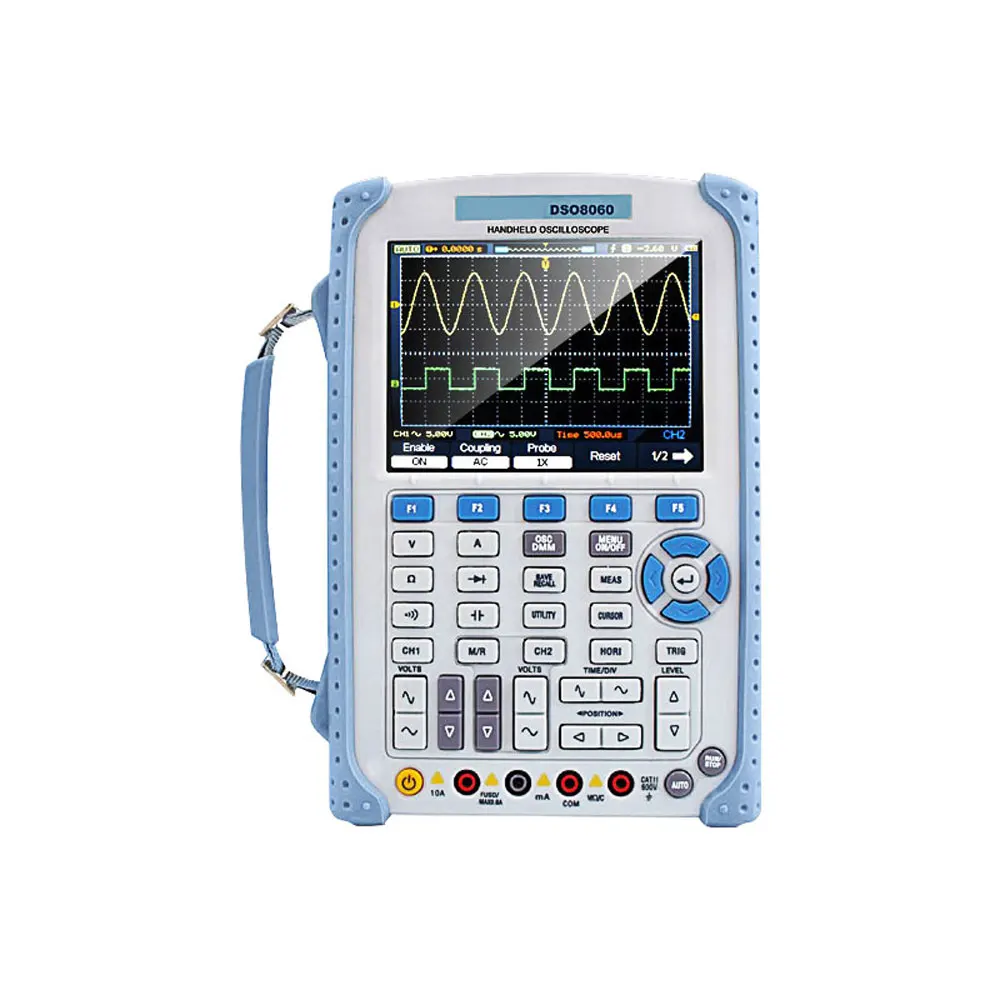

Handheld Digital Multimeter with Oscilloscope, 2-Channel Spectrum Analyzer

Model    DSO8060
Analog Bandwidth    60MHz
Number of Channels    2
Real-time Sampling Rate    250MSa/s
Equivalent Sampling Rate    50GSa/s
Memory Depth    Single-channel 32K memory depth, dual-channel 16K
Rise Time    ≤5.8ns
Time Base Accuracy    ±50ppm
Time Base Range (s/div) 5ns/div-1000s/div
Video Help    -
Memory Card    --
Input Impedance    1MΩ 15pF
Vertical Sensitivity Range    10mV/div~5V/div
Vertical Resolution    8 bits
±50V (5V/div), ±40V (2V/div~500mV/div),
Vertical Offset Range
±2V (200mV/div to 50mV/div), ±400mV (20mV/div to 2mV/div) 2mV/div to 5mV/div ±4% (Sample or Average Sampling)
DC Gain Accuracy
10mV/div to 5V/div ±3% (Sample or Average Sampling)
Bandwidth limit    20MHz
Trigger type    Edge, Pulse width, Video, Alternate,
Trigger source    CH1, CH2, EXT
Waveform calculations    +, -, x, ÷, FFT, Inverse
Manual mode: Voltage difference △V between cursors; Time difference △T between cursors:
Cursor measurement
Reciprocal of T in Hz (1/T); Trace Mode: Voltage and time values at waveform points
Frequency, Period, Rising Edge, Falling Edge, Positive Duty Cycle, Negative Duty Cycle, Positive Pulse Width, Negative Pulse Width, Peak-to-Peak, Maximum Value, Minimum Value,
Auto Measurements    Peak Value, Valley Value, Mid-Value, Amplitude, RMS Value, Period RMS, Average Value, Overshoot, Pre-shoot, Delay1-
2, Delay1-2
Multimeter Resolution    6,000 Counts
Multimeter Functions    Voltage, Resistance, Current, Capacitance, Continuity, Diode
Multimeter Input Voltage    AC: 600V, DC: 800V
Multimeter Input Current    AC: 10A, DC: 10A
Multimeter Input Resistance    10MΩ
Display    5.7° LED backlit display, 320*240 resolution
Dimensions    Length: (245mm) Width: (163mm) Height: (52mm)
Weight    Without packaging: 1.3KG
Standard Probes    2 PP80 passive probes included
