Specifications
| Material |
Toray T700+ T800 |
Rim Type |
Tubeless |
| Spoke Holes |
16H 18H 20H 24H 28H 32H |
Weave |
UD 3K 12K 3K Twill 12K Twill |
| Braking System |
Disc/V-Brake |
Finish |
Matte/glossy |
| Nipple Position |
External or Internal |
Width |
30mm |
| Max Spoke Tension |
180KGf |
InterWidth |
24mm/25mm |
| CyclingTire Pressure |
60-120psi Max |
Max Weight Limit |
110-120Kg |
Detailed information
| Size |
Model |

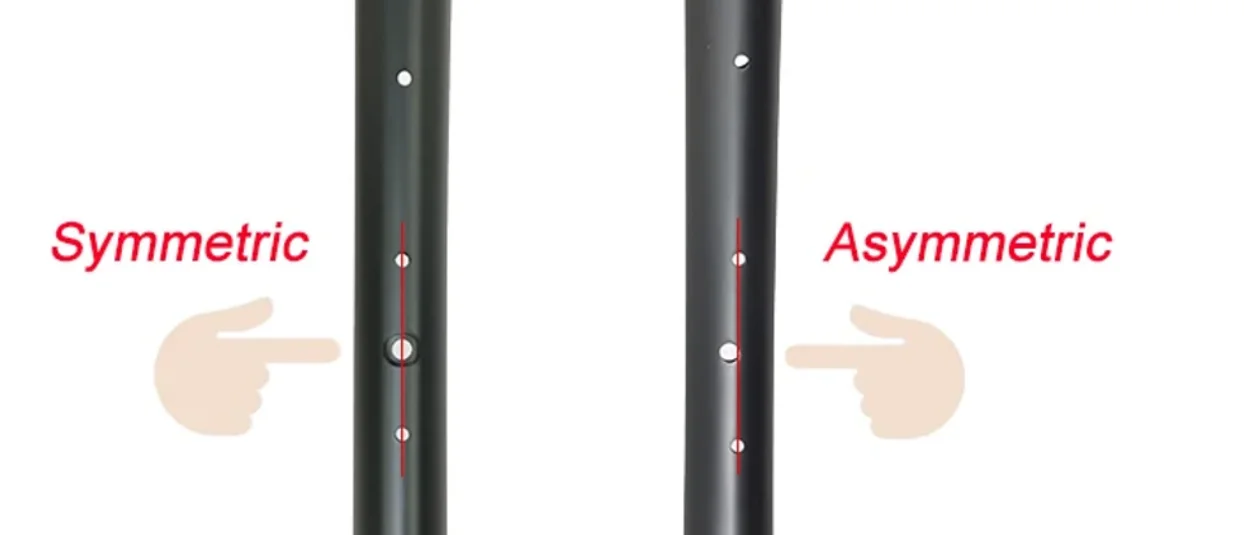

SY/ASY |
Depth |
Outer Width |
Inner width |
Standard Weight |
Fly Weight |
Ultralight |
| 700C |
30x30 |
Symmetry |
30mm |
30mm |
24/25mm |
390±15g |
365±10g |
345±10g |
| 30x30 |

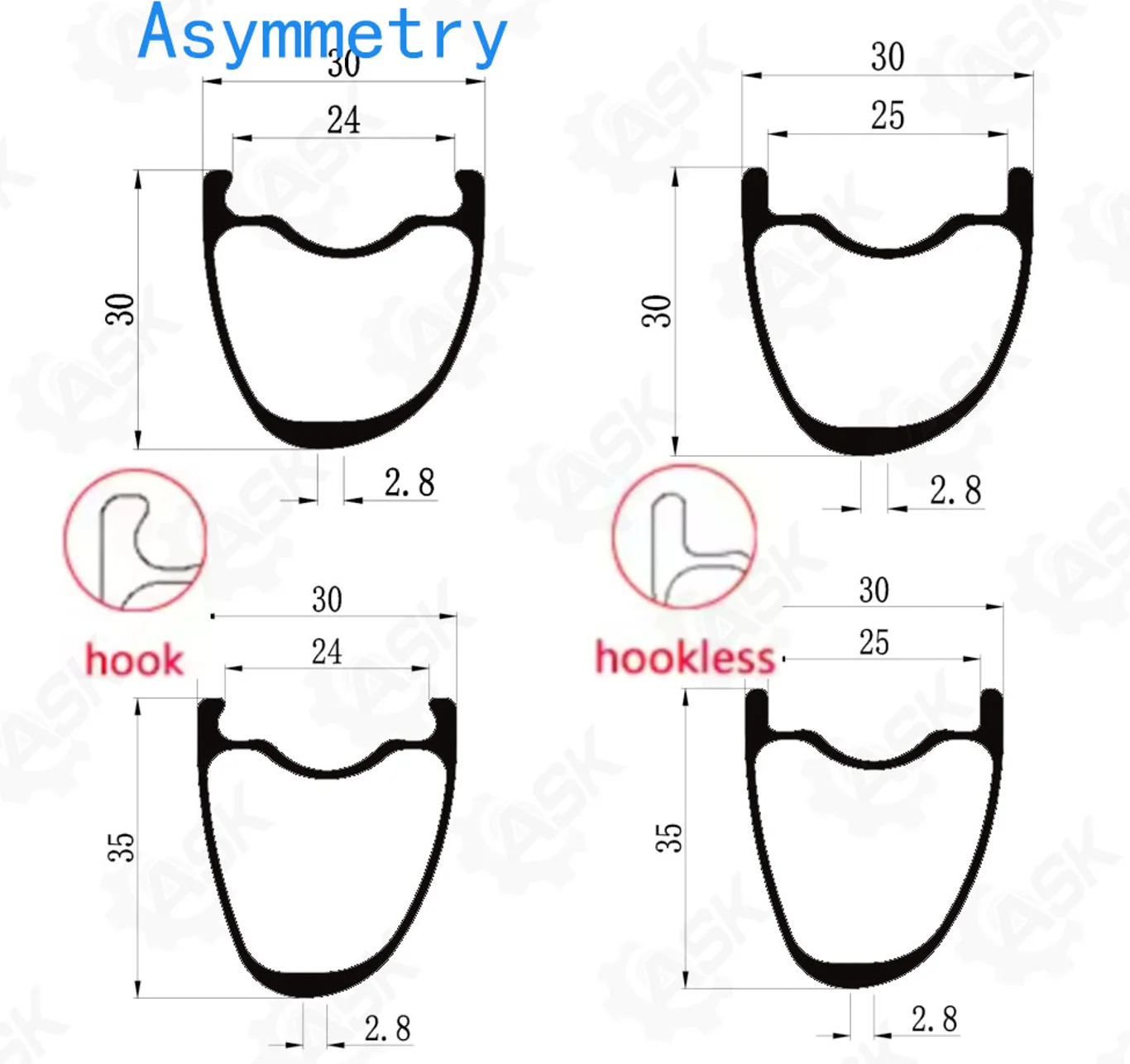

Asymmetry |
30mm |
30mm |
24/25mm |
390±15g |
365±10g |
345±10g |
|
| 35x30 |
Symmetry |
35mm |
30mm |
24/25mm |
400±15g |
370±10g |
350±10g |
|
| 35x30 |
Asymmetry |
35mm |
30mm |
24/25mm |
400±15g |
370±10g |
350±10g |
|
| 40x30 |
Symmetry |
40mm |
30mm |
24/25mm |
430±15g |
395±10g |
375±10g |
|
| 45x30 |
Symmetry |
45mm |
30mm |
24/25mm |
435±15g |
400±10g |
380±10g |
|
| 50x30 |
Symmetry |
50mm |
30mm |
24/25mm |
470±15g |
430±10g |
400±10g |

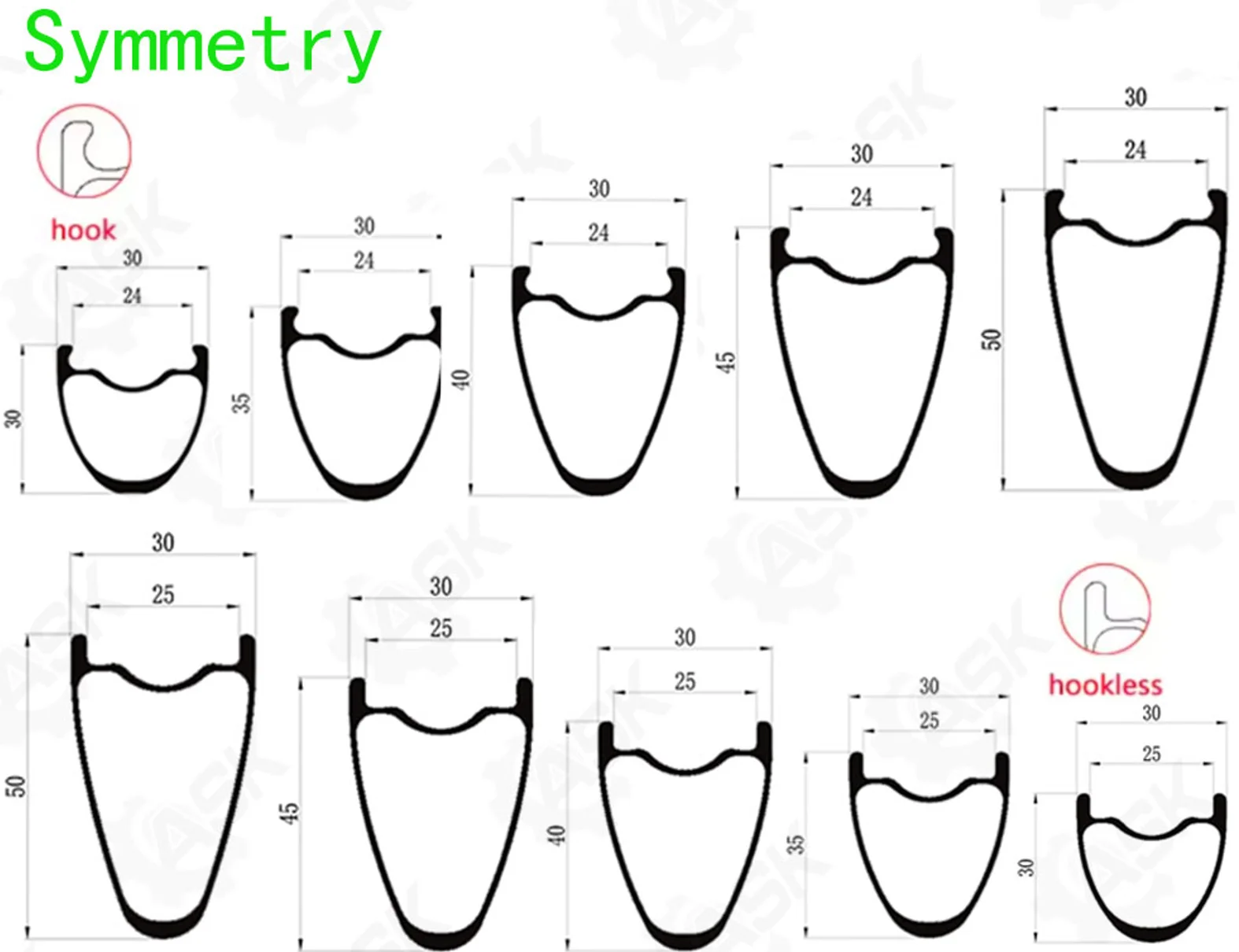

Profile
Dear friend
Welcome to our shop!
When you place an order, please leave us a message and tell us which specifications you need, we will confirm with you, thank you!
1、Spoke Holes: 16H 18H 20H 24H 28H 32H【Other holes can be customized, free of charge】
2、Hole Type : Outer holes or Not outer holes ( tapeless )
3、Nipples position: External, Internal
4、Weave：UD 3K 12K 3K Twill 12K Twill
5、Brake system：Disc-brake or V-brake
Note:
1、The displayed price is only for 1 piece, if you want 1 pair, just buy 2pcs.
2、If not specified, the Hole Type defaults to Outer holes, the Nipples position defaults to External,the Brake system defaults to Disc-brake,and the weave defaults to UD.
If you need other option, please note or contact customer service.
